If you’ve just bought a new dishwasher or moved into a home without one, you might be wondering how to plumb in a dishwasher waste pipe correctly. A poorly connected waste line can lead to foul odors, messy leaks, or even failed home inspections. Don’t worry—you don’t need to be a licensed plumber to do this right. With the right tools, a bit of patience, and this clear, step-by-step guide, you’ll connect your dishwasher’s drain line safely and up to code.
Why Proper Dishwasher Waste Pipe Installation Matters
According to the International Residential Code (IRC), all dishwasher drains must include an air gap or high-loop configuration to prevent backflow of contaminated water from the sink or garbage disposal into your clean dishwasher. Ignoring this can introduce bacteria into your dishes—a serious health risk.
A study by the National Kitchen & Bath Association (NKBA) found that over 30% of DIY dishwasher installations had drainage issues due to incorrect waste pipe setup. The good news? Most of these problems are avoidable with proper technique.
What Tools and Materials Do You Need?
Before you begin, gather these essentials:
- Adjustable wrench or pliers
- Hose clamps (stainless steel recommended)
- Dishwasher drain hose (typically ½” or ⅝” diameter)
- T-fitting or dishwasher branch tailpiece (if connecting to a garbage disposal)
- Bucket and towels (for potential spills)
- Screwdriver (if securing the dishwasher)
Tip: Always check your dishwasher’s manual—some models include specific hose or clamp requirements.
Step-by-Step: How to Plumb In a Dishwasher Waste Pipe
Follow these precise steps to ensure a leak-free, code-compliant connection.
Step 1: Turn Off Power and Water Supply
Locate your circuit breaker and switch off power to the dishwasher outlet. Also, shut off the hot water supply under the sink to prevent accidental flow.
Step 2: Position the Dishwasher
Slide the dishwasher into place, leaving 2–3 inches of clearance for hose connections. Do not fully push it against the wall yet—you’ll need access to the back.
Step, 3: Attach the Drain Hose to the Dishwasher
Secure one end of the drain hose to the dishwasher’s outlet (usually on the left side). Use a hose clamp and tighten with a screwdriver—snug, but not overtightened (risk of cracking plastic).
Step 4: Create a High Loop (or Install an Air Gap)
Option A: High-Loop Method (Most Common)
- Route the drain hose upward and attach it to the underside of the countertop using a bracket or zip tie.
- The highest point of the loop must be at least 20 inches above the floor (per IRC P2803.4). This prevents backflow by gravity.
Option B: Air Gap Installation
- Mount the air gap through a pre-drilled hole on your countertop or sink deck.
- Connect one hose from the dishwasher to the air gap’s smaller inlet, and another from the larger outlet to the sink drain or garbage disposal.
📌 Note: Garbage disposals often have a knockout plug on the side for dishwasher drains. Remove it with a screwdriver and hammer before connecting.

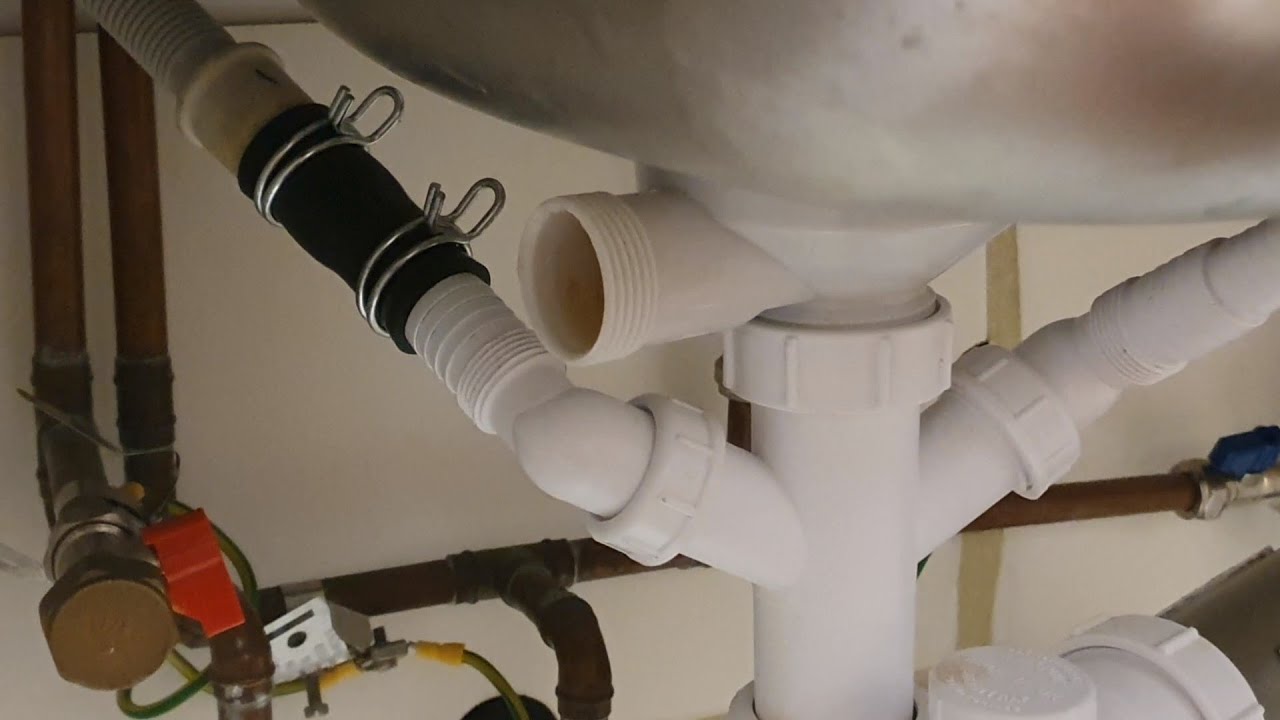

Step 5: Connect to Drain System
Attach the free end of the drain hose to:
- The side inlet of your garbage disposal, or
- A dishwasher branch tailpiece on the sink’s P-trap (if no disposal)
Use a hose clamp and ensure the connection is tight. For tailpiece connections, use a T-fitting designed for dishwasher waste lines.
Step 6: Test for Leaks
Turn the water and power back on. Run a short rinse cycle and check all connections with a dry paper towel. Any moisture? Tighten clamps or reposition the hose.
High Loop vs. Air Gap: Which Is Better?
| Feature | High Loop | Air Gap |
|---|---|---|
| Cost | Free (uses existing hose) | $15–$30 for fixture |
| Installation Ease | Easy (DIY-friendly) | Moderate (requires drilling) |
| Code Compliance | Accepted in most areas | Required in CA, TX, and others |
| Backflow Protection | Good (if installed correctly) | Excellent (physical separation) |
| Aesthetics | Hidden under sink | Visible chrome fixture |
For most homeowners, a properly installed high loop is sufficient. But if your local code mandates an air gap—or you want maximum safety—install one. Learn more about backflow prevention on Wikipedia.
Common Mistakes to Avoid
- Skipping the high loop: Lets dirty water siphon back into the dishwasher.
- Using old or kinked hoses: Causes poor drainage and clogs. Always use the new hose provided.
- Overtightening clamps: Cracks plastic fittings—snug is enough.
- Connecting below the sink trap: Violates plumbing code and allows sewer gas entry.
A 2023 study by HomeAdvisor found that 68% of dishwasher leaks stem from improper drain connections—not faulty appliances.
FAQ Section
Q: Can I connect my dishwasher drain directly to the sink drain without a loop or air gap?
A: No. Direct connection below the flood level of the sink violates plumbing codes and risks sewer gas infiltration and back-siphonage. Always use a high loop or air gap.
Q: My dishwasher smells bad—could it be the waste pipe?
A: Yes. Odors often mean food debris is trapped in a low-hanging hose or the drain isn’t sealed. Ensure your hose has a proper high loop and is connected above the P-trap.
Q: Do I need an air gap if I have a garbage disposal?
A: Not always—but check local codes. Many areas allow a high loop even with a disposal. However, California and some other states require air gaps regardless.
Q: How high should the high loop be?
A: At least 20 inches above the finished floor, or as high as the bottom of the countertop (typically 34–36 inches). Higher = better backflow prevention.
Q: Can I share a drain with the washing machine?
A: No. Dishwasher and washing machine drains must be separate. Washing machines discharge large volumes of water quickly, which can overwhelm a dishwasher line and cause backups.
Q: What if my sink doesn’t have a garbage disposal?
A: Use a branch tailpiece on the sink’s P-trap. This T-shaped fitting has a side port for the dishwasher hose and maintains proper drainage for both sink and appliance.
Conclusion
Knowing how to plumb in a dishwasher waste pipe correctly protects your kitchen from leaks, odors, and health hazards—while ensuring your appliance runs efficiently. With just a few tools and 30 minutes of your time, you can achieve a professional-grade installation that meets code and lasts for years.
✅ You’ve just saved $150+ on a plumber
✅ Prevented potential water damage
✅ Ensured clean, safe dishwashing every time
If this guide helped you, share it on Pinterest or Facebook to help a friend avoid a flooded kitchen! Got questions? Drop them in the comments below—we’re happy to help.
