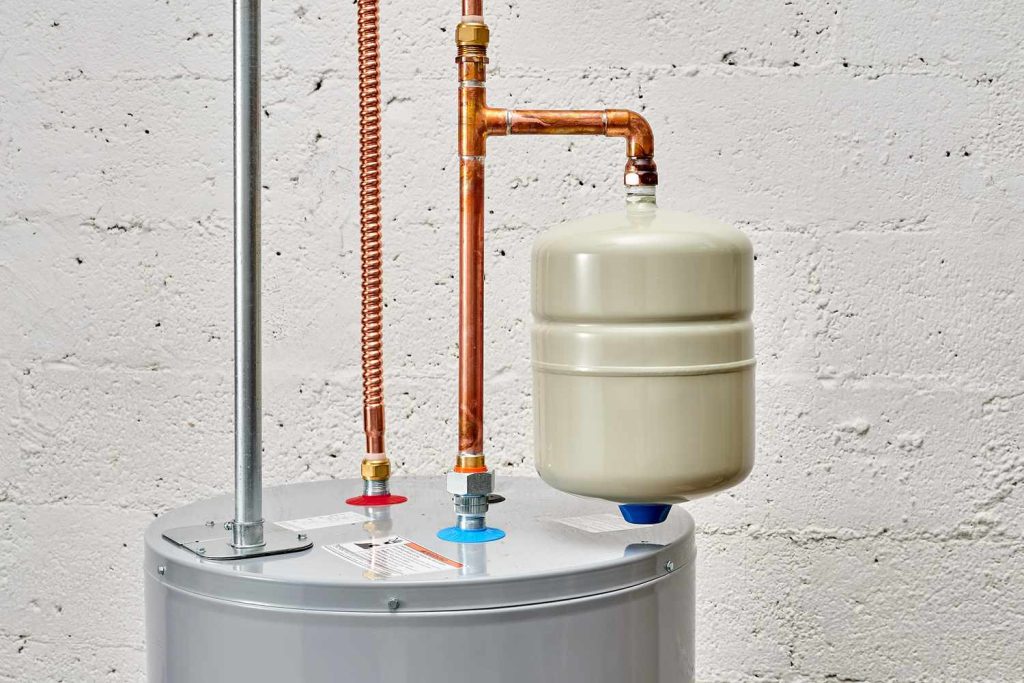

If your home has a closed-loop plumbing system—common in newer builds with backflow preventers or pressure-reducing valves—you’ve likely experienced rising water pressure after heating. This isn’t just annoying; it can damage pipes, valves, and even your water heater. That’s where learning how to plumb in an expansion tank on water heater becomes essential.
Installing an expansion tank is a smart, code-compliant solution that absorbs excess pressure from thermal expansion. Done right, it extends your system’s life and prevents costly leaks. In this guide, we’ll walk you through the process step by step—with safety, clarity, and confidence.
Why Do You Need an Expansion Tank on Your Water Heater?
In a closed plumbing system, water can’t flow backward once heated. As water heats up in your tank, it expands—by about 2% in volume for every 100°F rise (U.S. Department of Energy). Without a place to go, this creates dangerous pressure spikes.
According to the International Residential Code (IRC) P2903.4, expansion tanks are required in closed systems to manage this thermal expansion. Ignoring this can void your water heater warranty and lead to premature failure.
💡 Real-world impact: A 2023 study by the Plumbing-Heating-Cooling Contractors Association (PHCC) found that homes without expansion tanks were 3.2x more likely to experience T&P (temperature and pressure) valve leaks within 5 years.
Where Should an Expansion Tank Be Installed?
The ideal location is on the cold water supply line, within 3–5 feet of the water heater inlet. This ensures the tank absorbs expansion before pressure builds excessively.
Common mistakes to avoid:
Installing on the hot water line (less effective, may overheat the tank bladder)
Mounting horizontally without proper support (can cause premature diaphragm wear)
Placing too far from the heater (reduces responsiveness)
✅ Best practice: Use a dedicated tee fitting on the cold inlet—never share with other appliances.
Tools & Materials You’ll Need
Before starting, gather these items:
Item
Purpose
Thermal expansion tank (2–5 gallons, sized for your heater)
Absorbs excess water volume
Pipe cutter or hacksaw
For clean pipe cuts
Adjustable wrenches (2)
Tightening fittings
Teflon tape or pipe thread sealant
Leak-proof connections
Shut-off valve (optional but recommended)
Isolate tank for future service
Pipe straps or mounting bracket
Secure tank vertically
Pressure gauge
Verify system pressure
🔧 Pro Tip: Most residential tanks (e.g., Amtrol ST-5, Watts PLT-5) are pre-charged to 12–40 psi. Match this to your home’s static water pressure (use a gauge at an outdoor spigot).
Step-by-Step: How to Plumb In an Expansion Tank on Water Heater
Follow these steps carefully. Always turn off power/gas and water supply before beginning.
Step 1: Turn Off Utilities
Gas water heater: Set control knob to “Pilot”.
Electric: Flip breaker at the panel.
Water: Shut main supply valve. Open a hot faucet to relieve pressure.
Step 2: Install a Tee Fitting on Cold Inlet
Cut the cold water line near the heater (leave 6+ inches of pipe).
Solder (copper) or use push-fit (PEX) to install a ½” or ¾” tee, pointing upward.
Ensure the tee is within 3 feet of the heater for optimal performance.
Step 3: Mount the Expansion Tank
Attach the tank to a wall stud or ceiling joist using the included bracket.
Always mount vertically (air side up) to prevent waterlogging the diaphragm.
Leave 2–3 inches of clearance below for future removal.
Step 4: Connect the Tank to the Tee
Wrap threads with 3–5 wraps of Teflon tape (clockwise).
Hand-tighten the tank nipple into the tee, then give 1–1.5 turns with a wrench.
Do not over-tighten—this can crack the tank neck.
Step 5: Check Pre-Charge Pressure
Remove the valve cap on the tank’s air side (like a tire valve).
Use a tire pressure gauge to check PSI.
If needed, adjust with a bike pump to match your static water pressure (typically 40–60 psi).
⚠️ Warning: Never add air while the tank is connected to water—this compresses the bladder incorrectly.
Step 6: Restore Water & Power
Slowly turn on the main water supply.
Let faucets run until air clears (1–2 minutes).
Check all joints for leaks.
Once confirmed dry, restore gas/electric power.
Expansion Tank Sizing Guide
Choosing the wrong size reduces effectiveness. Use this table based on water heater capacity and incoming water pressure:
For precise sizing, use the formula: Tank Volume = (Water Heater Volume × 0.02) ÷ (1 – (P<sub>system</sub> / P<sub>max</sub>)) (Where P<sub>system</sub> = static pressure, P<sub>max</sub> = relief valve setting, usually 150 psi)
Common Mistakes & How to Avoid Them
Mistake
Consequence
Fix
Installing on hot side
Bladder degrades faster
Move to cold inlet
Ignoring pre-charge
Tank “waterlogs,” loses function
Check/adjust air pressure annually
No shut-off valve
Hard to replace later
Add ball valve between tee and tank
Horizontal mounting
Uneven diaphragm stress
Always mount upright
📌 Expert Insight: “An improperly installed expansion tank is worse than none—it gives false security,” says Maria Chen, Master Plumber and PHCC-certified trainer.
Maintenance Tips for Longevity
Test annually: Press the air valve—if water spurts out, the bladder is ruptured (replace immediately).
Inspect for corrosion: Especially at threaded connections.
Re-pressurize if needed: Air slowly leaks over time; top off every 2–3 years.
A: Yes—if you’re comfortable with basic plumbing. The process takes 1–2 hours and requires common tools. However, if you’re unsure about soldering copper or working with gas lines, hire a licensed plumber. Safety first!
Q2: How do I know if my system is “closed”?
A: If your home has a backflow preventer, pressure-reducing valve (PRV), or check valve on the main line, it’s a closed system. You can also test: shut off main water, run hot water until cold, then monitor pressure—if it rises when heater cycles, you need a tank.
Q3: What happens if I don’t install an expansion tank?
A: Excess pressure can cause:
Leaking T&P valves
Premature water heater failure
Pipe joint bursts
Reduced lifespan of washing machines/dishwashers
Many manufacturers void warranties if thermal expansion damage occurs without a tank.
Q4: Can one expansion tank serve multiple water heaters?
A: Only if they’re on the same loop and total capacity matches tank size. Otherwise, each heater needs its own tank—or a centrally located oversized tank engineered for the system.
Q5: How long does an expansion tank last?
A: Typically 5–10 years. Signs of failure include constant dripping from the T&P valve, water around the tank base, or inability to hold air pressure.
Q6: Is an expansion tank required by law?
A: In most U.S. states, yes—if you have a closed system. The IRC and UPC (Uniform Plumbing Code) both mandate them. Check local codes, but assume it’s required unless proven otherwise.
Conclusion
Learning how to plumb in an expansion tank on water heater isn’t just a DIY project—it’s a critical investment in your home’s safety and efficiency. By following this guide, you’ve taken a proactive step to prevent water damage, extend appliance life, and comply with modern plumbing standards.
✅ You now know:
Why expansion tanks are non-negotiable in closed systems
Exactly where and how to install one
How to size, maintain, and troubleshoot it
If this guide helped you, share it with a friend or on social media—they might be dealing with mysterious leaks right now! Got questions? Drop them in the comments below. Stay safe, and happy plumbing! 💧🔧
