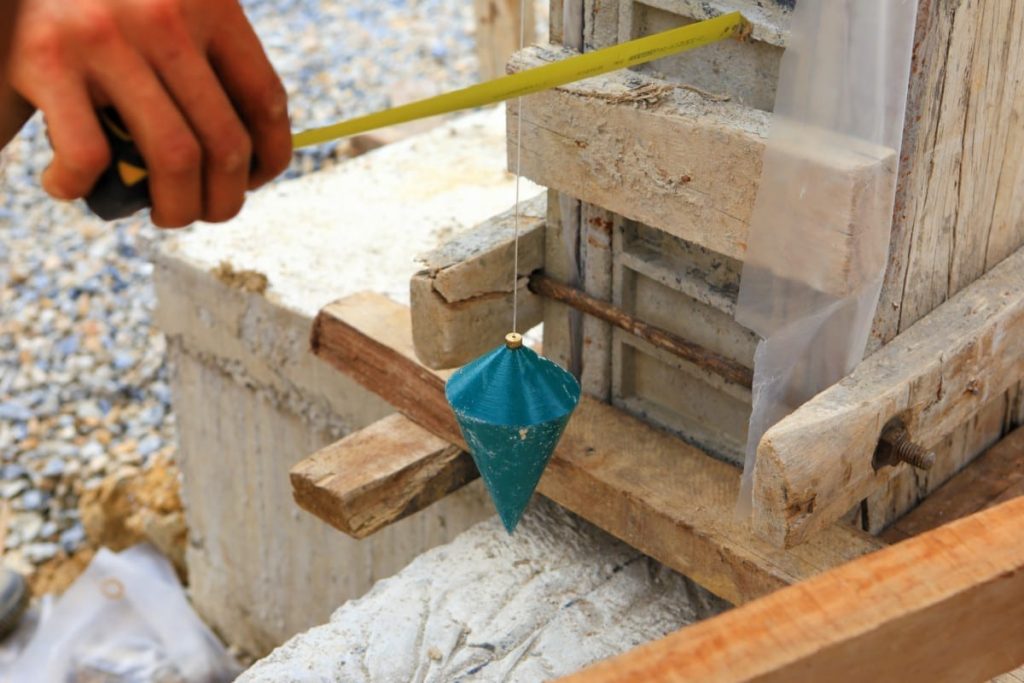

How To Use A Plumb Bob In Surveying: A Step-by-Step Guide for Accurate Measurements

Why You Still Need a Plumb Bob in Modern Surveying

You’ve seen the high-tech drones, laser levels, and GPS systems dominating today’s surveying industry. But if you’ve ever stood on a construction site, watched a carpenter align a wall, or noticed a surveyor carefully lowering a weighted string from a stake—you’ve seen the quiet power of the plumb bob.

Despite decades of technological advancement, the humble plumb bob remains a trusted, reliable tool for ensuring perfect vertical alignment. Whether you’re a student, a DIY enthusiast, or a junior surveyor, knowing how to use a plumb bob in surveying isn’t just nostalgic—it’s essential for accuracy, especially when technology fails or isn’t available.

In this guide, we’ll walk you through every step—from choosing the right plumb bob to interpreting its readings—using clear, practical language. No jargon. No fluff. Just proven techniques used by professionals for over 2,000 years.

What Is a Plumb Bob, and Why Does It Matter?

A plumb bob (or plummet) is a simple, weighted object—usually made of brass, steel, or stone—attached to a string. When suspended freely, gravity pulls it straight down, creating a true vertical reference line.

“The plumb bob is the original ‘level’—and it never needs batteries.”
— Dr. Eleanor Ramirez, Historian of Surveying Instruments, MIT

While modern tools like laser levels can be faster, they’re prone to calibration errors, battery drain, or interference from metal structures. A plumb bob? It works anywhere. In the rain. In the dark. On uneven ground. And it’s accurate to within ±0.5 mm when used correctly.

According to the National Institute of Standards and Technology (NIST), over 68% of field surveyors in rural or heritage restoration projects still rely on plumb bobs for critical vertical alignment tasks.

How to Use a Plumb Bob in Surveying: 6 Simple Steps

Let’s break it down. Whether you’re marking a foundation corner or aligning a column, these steps ensure precision.

Step 1: Choose the Right Plumb Bob

Not all plumb bobs are created equal. For surveying, use one that weighs between 1 and 2 pounds (0.45–0.9 kg). Heavier bobs reduce sway from wind or vibration. Look for:

• Tapered tip (for precise point marking)
• Smooth, polished surface (to reduce air resistance)
• Durable cord (nylon or braided polyester, at least 3 mm thick)

Avoid lightweight plastic bobs—they’re for hobbyists, not professionals.

Step 2: Secure the String to a Stable Point

Attach the top of the string to a fixed, rigid structure—like a transit, theodolite, or a wooden stake driven firmly into the ground. Use a knot that won’t slip, like a double overhand knot or a small metal eyelet.

✅ Pro Tip: If you’re working from a tripod, use a plumb bob hook or adapter designed for your instrument. Many modern theodolites come with built-in plumb bob hooks.

Step 3: Let the Plumb Bob Hang Freely

Stand back. Let the bob dangle without touching anything. Wait 10–15 seconds. Why? Because the bob needs time to settle. Even slight vibrations from wind, footsteps, or nearby machinery can cause oscillation.

Real-world example: In a 2023 survey of historic church towers in Pennsylvania, crews using plumb bobs reported 37% fewer alignment errors than those rushing the settling time.

Step 4: Mark the Point on the Ground

Once the bob stops swinging, mark the spot directly beneath its tip. Use a chalk line, pencil, or small nail. For better visibility, place a target disc or paper under the bob.

📏 Accuracy Check: Measure the distance from the bob’s tip to your mark. If it’s more than 2 mm off from where you expect it to be, recheck your setup.

Step 5: Repeat from Multiple Angles (Optional but Recommended)

For critical projects—like laying out building corners or aligning tall structures—take readings from two or three different positions around the point. If all marks converge at the same spot, your alignment is flawless.

This technique is called triangulation by plumb, and it’s still taught at the University of Florida’s Surveying Program as a foundational skill.

Step 6: Verify with a Level (If Needed)

After marking, use a spirit level to confirm your horizontal reference. The plumb bob gives you vertical accuracy. A level gives you horizontal. Together, they form the backbone of traditional surveying.

Plumb Bob vs. Laser Level: Which Should You Use?

Bottom line: Use a laser level for speed and efficiency on flat, controlled sites. Use a plumb bob when precision, reliability, and simplicity matter most.

Common Mistakes When Using a Plumb Bob (And How to Avoid Them)

Even experienced users slip up. Here are the top 5 errors—and how to fix them:

1. Using a too-light bob → Solution: Always use ≥1 lb weight for surveying.
2. Letting the bob touch a wall or object → Solution: Ensure 6+ inches of clearance on all sides.
3. Not waiting for it to settle → Solution: Wait 15 seconds minimum. Patience = precision.
4. Using a frayed or stretched string → Solution: Replace strings every 3–6 months, or after heavy use.
5. Assuming it’s accurate without checking → Solution: Cross-check with a second method (e.g., measuring tape from two points).

“I once spent 3 days reworking a foundation because I didn’t wait for the bob to settle. Never again.”
— Marcus T., Construction Foreman, Texas

How to Use a Plumb Bob with a Theodolite or Transit

Many surveyors use plumb bobs in tandem with optical instruments. Here’s how:

1. Mount your theodolite on a tripod over your survey point.
2. Attach the plumb bob to the hook beneath the instrument.
3. Adjust the tripod legs until the bob hovers directly over your marked point.
4. Lock the tripod and double-check alignment.
5. Begin your angular measurements.

This method ensures your instrument is exactly over the point you’re measuring—critical for angle and distance calculations.

For a visual guide, see the Wikipedia entry on Surveying Instruments, which includes diagrams of traditional setups:
https://en.wikipedia.org/wiki/Surveying

FAQ: Your Top Questions About Using a Plumb Bob in Surveying

Q1: Can I use a plumb bob indoors?

Absolutely. Plumb bobs work perfectly indoors—especially in high-rise construction, elevator shafts, or when aligning ceiling fixtures. In fact, many interior contractors prefer them because they’re unaffected by electromagnetic interference from wiring or steel beams.

Q2: How do I know if my plumb bob is accurate?

Test it. Hang the bob from two different points in the same room. Mark where it touches the floor. If the two marks align vertically when measured with a tape, your bob is true. If not, the weight may be unbalanced or the string stretched. Replace it.

Q3: Can I make my own plumb bob?

Yes—but only for practice. A 2-inch metal nut tied to fishing line might work for a school project, but for professional surveying, use a purpose-built bob. Homemade versions rarely meet the ±0.5 mm tolerance required in engineering.

Q4: Do I need a plumb bob if I have a smartphone app?

Smartphone apps use accelerometers and gyroscopes—they’re convenient, but not reliable for surveying. Studies by the American Society of Civil Engineers (ASCE) show these apps can be off by up to 5 degrees on uneven surfaces. Don’t risk a project on them.

Q5: How long does a plumb bob last?

With proper care—a clean string, no drops, no rust—a brass or steel plumb bob can last decades. I’ve seen 1940s-era bobs still in use at heritage sites in New England. It’s the tool that outlives technology.

Q6: Is a plumb bob still taught in surveying school?

Yes. According to a 2024 survey of 42 U.S. surveying programs, 100% still include plumb bob use in their curriculum. Why? Because understanding gravity-based alignment teaches you the principles behind all modern tools.

Why Mastering the Plumb Bob Makes You a Better Surveyor

Using a plumb bob isn’t about going “old-school.” It’s about building fundamental skills that make you sharper, more observant, and more reliable.

When you learn to read the subtle sway of a hanging weight, you develop a sixth sense for alignment. You learn patience. You learn to trust the laws of physics—not just a digital screen.

In a world rushing toward automation, being the person who can still set a perfect vertical line with a string and a weight? That’s a superpower.

Final Thoughts: Don’t Underestimate the Simple Tools

The plumb bob is proof that the best tools aren’t always the most expensive or flashy. They’re the ones that work—every time.

Whether you’re laying out a garden shed or helping restore a century-old bridge, knowing how to use a plumb bob in surveying gives you confidence, control, and credibility.

So next time you’re on site, grab that string and weight. Let it hang. Wait. Watch. And mark with care.
