How to Verify Framing Plumb and Square for Sheetrock Opening

Installing sheetrock (drywall) over poorly framed walls is like hanging a painting on a crooked nail—it might go up, but it won’t look right. If your wall framing isn’t plumb (perfectly vertical) and square (90-degree corners with equal diagonals), you’ll face gaps, uneven surfaces, and frustrating rework. In this guide, you’ll learn exactly how to verify framing plumb and square for sheetrock opening—a critical step that saves time, materials, and headaches. Whether you’re a DIYer or a seasoned contractor, getting this right ensures a smooth, professional finish.

Why Does Framing Need to Be Plumb and Square?

Before diving into verification methods, it’s essential to understand why plumb and square matter. According to the National Association of Home Builders (NAHB), over 68% of drywall callbacks stem from improper framing alignment, not drywall errors themselves.

• Plumb walls ensure vertical consistency—critical for doors, windows, and cabinetry.
• Square openings guarantee that sheetrock panels fit without trimming or forcing, reducing cracks and seams.
• Misaligned framing can lead to wasted materials, longer labor times, and even structural concerns in extreme cases.

As veteran builder Mike Guertin notes in Fine Homebuilding:

“A wall that’s out of plumb by just ¼ inch over 8 feet can throw off your entire room layout—especially when tiling or installing trim.”

What Tools Do You Need to Check Framing Alignment?

You don’t need expensive gear—just a few reliable tools:

💡 Pro Tip: Always calibrate your level before use. Place it on a known flat surface, note the bubble position, then flip it 180°. If the bubble shifts, your level may be inaccurate.

Step-by-Step: How to Verify Framing Plumb and Square for Sheetrock Opening

Follow this systematic process for every rough opening (doors, windows, or interior partitions):

Step 1: Check Vertical Plumb on Both Sides

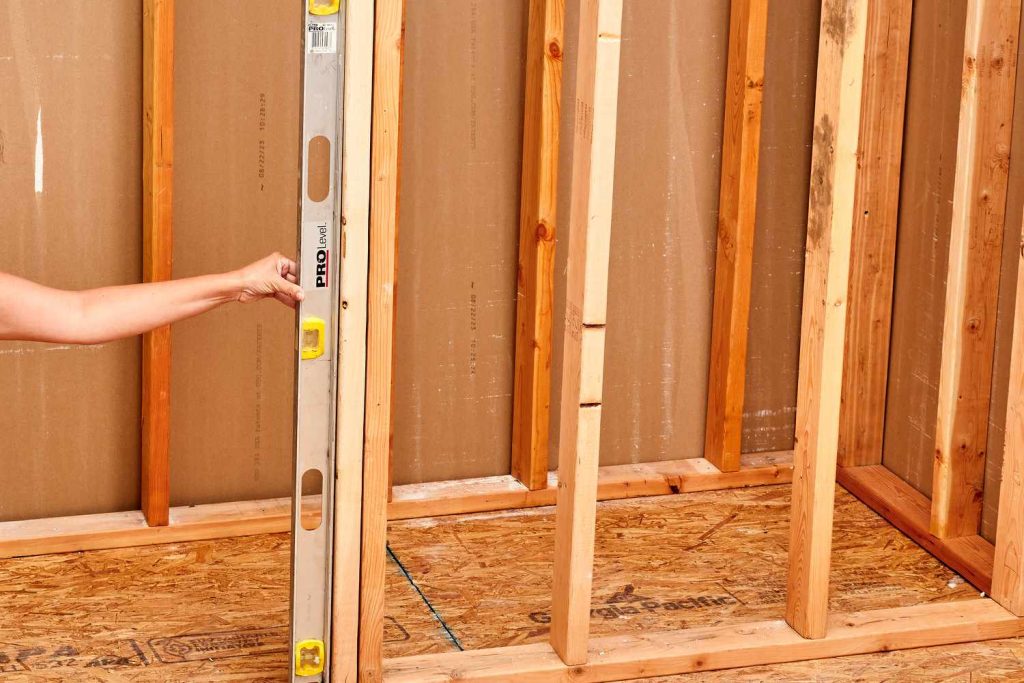

1. Place your 4-ft level vertically against the king stud or jack stud on one side of the opening.
2. Adjust until the bubble is centered between the lines.
3. Use a pencil to mark any gaps between the stud and level—if the gap exceeds ⅛ inch over 8 feet, the stud is out of plumb.
4. Repeat on the opposite side.

✅ Acceptable tolerance: ≤ ¼ inch out of plumb over 10 feet (per International Residential Code, IRC R602.2).

Step 2: Verify Horizontal Level on the Header

1. Lay your level across the top header.
2. Ensure the bubble is centered.
3. If the header sags or tilts, it will cause sheetrock to bow or crack at the seam.

Step 3: Test for Square Using the 3-4-5 Triangle Method

This classic carpentry trick uses the Pythagorean theorem (a² + b² = c²):

1. From the bottom corner of the opening, measure 3 feet along the bottom plate and mark it.
2. From the same corner, measure 4 feet up the king stud and mark it.
3. Measure the diagonal distance between these two marks.
   • If it’s exactly 5 feet, the corner is square.
   • If not, adjust the framing until it is.

🔧 Alternative: For larger openings, use 6-8-10 (same ratio, scaled up).

Step 4: Confirm Square with Diagonal Measurements

1. Measure from the top-left corner to bottom-right corner of the opening.
2. Then measure from top-right to bottom-left.
3. If both diagonals are equal within ⅛ inch, the opening is square.

📏 Example: Diagonal A = 92½”, Diagonal B = 92⅜” → Acceptable.
Diagonal A = 92″, Diagonal B = 93″ → Needs correction.

Step 5: Inspect for Twists or Bowing in Studs

Run your hand along each stud. Look for:

• Bowing (curved outward/inward)
• Twisting (stud rotated along its axis)

Use a straightedge or taut string line to detect deviations. Replace or sister any stud with more than ¼ inch warp over 8 feet.

For deeper insight into structural integrity and framing standards, refer to the Wikipedia entry on light-frame construction, which outlines foundational principles used in modern residential building.

Common Mistakes (And How to Avoid Them)

When to Call a Professional

While most framing checks are DIY-friendly, consider hiring a pro if:

• The wall is load-bearing and shows significant misalignment (>½ inch out of plumb).
• You notice cracks in adjacent walls or floors, suggesting foundation issues.
• You’re working on a high-end finish (e.g., large-format tile, custom millwork), where tolerances must be near-perfect.

FAQ Section

Q1: Can I install sheetrock on slightly out-of-plumb walls?

A: Yes—but with caveats. Minor deviations (≤¼ inch over 8 ft) can be masked with shims or skim coating. However, severe misalignment leads to visible waves, poor joint taping, and difficulty installing trim. It’s always better to correct framing first.

Q2: What’s the difference between “plumb” and “level”?

A: Plumb means perfectly vertical (like a plumb bob hanging straight down). Level means perfectly horizontal (like water on a calm lake). Both are essential for proper framing.

Q3: How often should I check plumb during framing?

A: Check after every major framing stage: after sole plates are secured, after studs are erected, and again after headers are installed. Early detection prevents cascading errors.

Q4: Does sheetrock hide framing imperfections?

A: Not really. Drywall follows the contour of the framing. If a stud bows outward, the drywall will too—creating a visible bulge. Taping and mudding can’t fully compensate for structural flaws.

Q5: Can I use a smartphone app to check plumb?

A: Some apps (like Bubble Level) are surprisingly accurate for rough checks, but never rely on them for final verification. Phone sensors can drift, and case thickness affects readings. Use a physical level for critical work.

Q6: What if my opening is square but the wall isn’t plumb?

A: This is common in older homes. Prioritize plumb over square for vertical surfaces. You can taper drywall edges or use adjustable trim to accommodate slight squareness issues—but leaning walls are harder to disguise.

Conclusion

Knowing how to verify framing plumb and square for sheetrock opening isn’t just about technical accuracy—it’s about craftsmanship, efficiency, and pride in your work. Taking 15 minutes to double-check alignment can save hours of sanding, cutting, and patching later. Plus, your finished walls will look crisp, clean, and truly professional.

If this guide helped you avoid a drywall disaster, share it with a fellow builder or DIYer on Facebook, Pinterest, or Instagram! And don’t forget to bookmark it for your next project—you’ll thank yourself when your seams line up perfectly.

🛠️ Remember: Great drywall starts with great framing. Measure twice, frame true, and hang with confidence.
