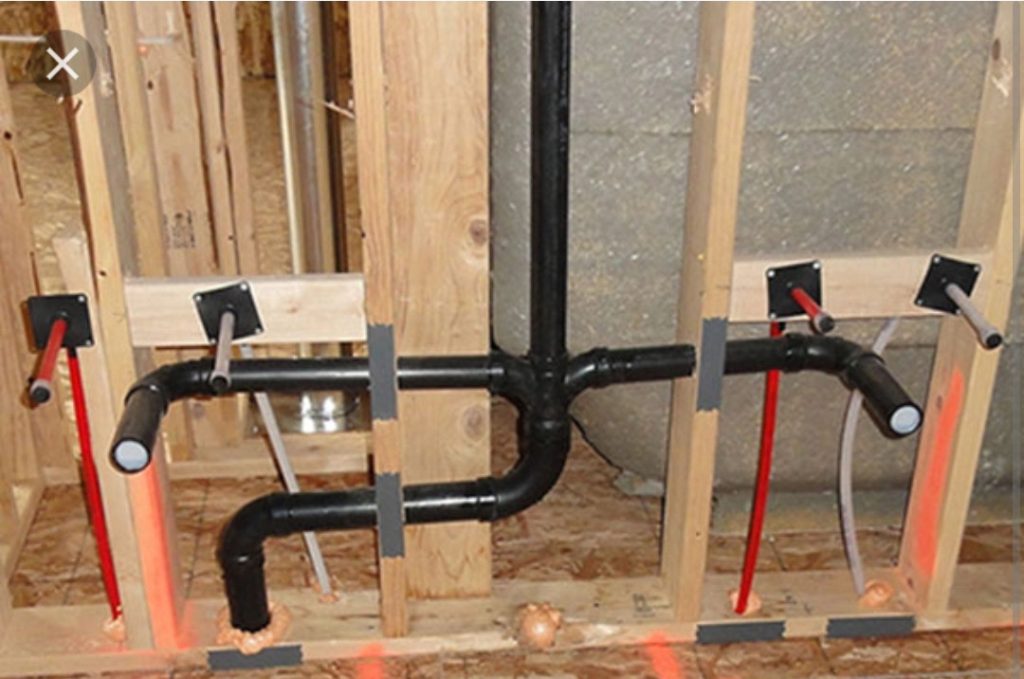

IL Plumbing Code: How Many Sinks on One 2-Inch Drain?

If you’re remodeling your kitchen, adding a bathroom, or installing a utility sink in your Illinois home, you’ve probably asked: “How many sinks can I connect to one 2-inch drain?” It’s a smart question—getting it wrong could mean slow drainage, clogs, or even failed inspections. The IL plumbing code sets clear limits to ensure safety, efficiency, and compliance. In this guide, we’ll break down exactly what the code allows, why it matters, and how to apply it correctly—whether you’re a DIYer or working with a licensed plumber.

What Does the Illinois Plumbing Code Say About Drain Sizing?

Illinois adopts the International Plumbing Code (IPC) as its base regulation, with state-specific amendments administered by the Illinois Department of Public Health (IDPH). According to the 2024 edition of the IPC—used statewide unless local jurisdictions (like Chicago) adopt stricter rules—the number of fixtures that can connect to a single drain depends on Drainage Fixture Units (DFUs), not just physical pipe size.

A 2-inch horizontal drain pipe is commonly used for sinks, but its capacity isn’t infinite. Here’s the key rule:

A 2-inch drain can handle up to 8 DFUs in a horizontal configuration (IPC Table 710.1(2)).

Now, how does that translate to actual sinks?

• A standard kitchen sink = 2 DFUs
• A bathroom lavatory (sink) = 1 DFU
• A laundry/utility sink = 2 DFUs

So, theoretically:

• Four bathroom sinks (1 DFU each) = 4 DFUs → ✅ OK
• Two kitchen sinks = 4 DFUs → ✅ OK
• One kitchen + one laundry sink = 4 DFUs → ✅ OK
• Three kitchen sinks = 6 DFUs → ✅ Still within limit
• Five bathroom sinks = 5 DFUs → ✅ Acceptable

But—and this is critical—you must also account for venting, slope, and distance from the main stack. Even if DFUs add up correctly, poor venting can cause siphoning, gurgling, or sewer gas backup.

💡 Pro Tip: Always check with your local building department. Cities like Chicago follow the Chicago Plumbing Code, which may impose tighter restrictions than the statewide IPC adoption.

Can You Connect Multiple Sinks to One 2-Inch Drain? Step-by-Step Guide

Yes—but only if you follow these steps precisely:

Step 1: Calculate Total DFUs

List every fixture draining into the 2-inch line and sum their DFUs using the IPC table:

Example: Two bathroom sinks + one bar sink = 1 + 1 + 1 = 3 DFUs → well below the 8-DFU limit.

Step 2: Ensure Proper Slope

A 2-inch drain must slope ¼ inch per foot (minimum). Over a 10-foot run, that’s 2.5 inches of drop. Too flat = standing water; too steep = solids separate from liquids.

Step 3: Install Correct Venting

Each trap must be vented within 5 feet (for 1.25″–1.5″ traps) or 6 feet (for 2″ traps) of the trap weir. Use a common vent or wet vent if allowed by local code.

⚠️ Warning: Wet venting multiple sinks on a 2-inch line is only permitted if the vertical portion serves as the vent and meets IPC Section 912 requirements.

Step 4: Avoid Overloading Horizontal Runs

Even if DFUs are under 8, don’t connect more than three fixture drains to a single 2-inch branch unless engineered otherwise. This prevents turbulence and blockages.

Step 5: Get It Inspected

In Illinois, most plumbing work requires a permit and inspection. Skipping this risks fines or being forced to redo the work.

Real-World Example: Remodeling a Chicago Apartment

Sarah, a homeowner in Logan Square, wanted to add a second bathroom sink next to her existing one. Her contractor proposed tying both into the same 2-inch drain.

• Existing sink: 1 DFU
• New sink: 1 DFU
• Total: 2 DFUs → ✅ Well within limit

However, the original vent was 8 feet away—too far for a 1.25″ trap. Solution? They installed an Air Admittance Valve (AAV) approved by Chicago code (yes, Chicago allows AAVs in certain retrofits), bringing the effective vent distance to zero.

Result: Passed inspection on first try.

Common Mistakes Homeowners Make

Many DIYers assume “if it fits, it works.” Not true in plumbing. Here are frequent errors:

• ❌ Ignoring venting distance – leads to slow drainage and odors
• ❌ Using 1.5-inch pipe for kitchen sinks – violates code (kitchen sinks require min. 2-inch trap and drain)
• ❌ Connecting a dishwasher directly to a garbage disposal without an air gap – health hazard
• ❌ Assuming all Illinois cities follow the same rules – Chicago, Naperville, and Springfield have local amendments

For deeper context on plumbing standards, see the International Plumbing Code overview on Wikipedia.

FAQ Section

Q1: How many bathroom sinks can share a 2-inch drain in Illinois?

A: Up to eight (since each uses 1 DFU and the max is 8 DFUs). However, practical limits (like venting and layout) usually cap it at 3–4 sinks on one branch.

Q2: Can a kitchen sink and a bathroom sink share a 2-inch drain?

A: Yes—if properly vented and within DFU limits. Total = 2 (kitchen) + 1 (bath) = 3 DFUs, which is acceptable.

Q3: Does Illinois allow wet venting for multiple sinks?

A: Yes, under IPC rules adopted statewide. But the wet-vented section must be 2 inches minimum, and the vertical stack must serve as the vent. Local codes (e.g., Chicago) may restrict this in multi-family buildings.

Q4: What happens if I exceed the DFU limit?

A: You risk slow drainage, backups, or failed inspections. In severe cases, sewage could back up into sinks—a serious health violation.

Q5: Do I need a permit to add a sink in Illinois?

A: Yes, in nearly all municipalities. Minor repairs might be exempt, but new fixtures almost always require a plumbing permit and inspection.

Q6: Can I use a 1.5-inch drain for a bathroom sink?

A: Yes—bathroom lavatories may use 1.25-inch or 1.5-inch traps and drains. But if connecting multiple sinks to a common 2-inch branch, the branch itself must be 2 inches.

Conclusion

Understanding the IL plumbing code: how many sinks on one 2-inch drain isn’t just about technical specs—it’s about protecting your home, health, and wallet. By respecting DFU limits, ensuring proper venting, and confirming local rules, you’ll avoid costly mistakes and keep your plumbing flowing smoothly.

✅ Key Takeaways:

• Max 8 DFUs on a 2-inch horizontal drain
• Kitchen sinks = 2 DFUs; bathroom sinks = 1 DFU
• Venting distance matters as much as pipe size
• Always verify with your local building authority
