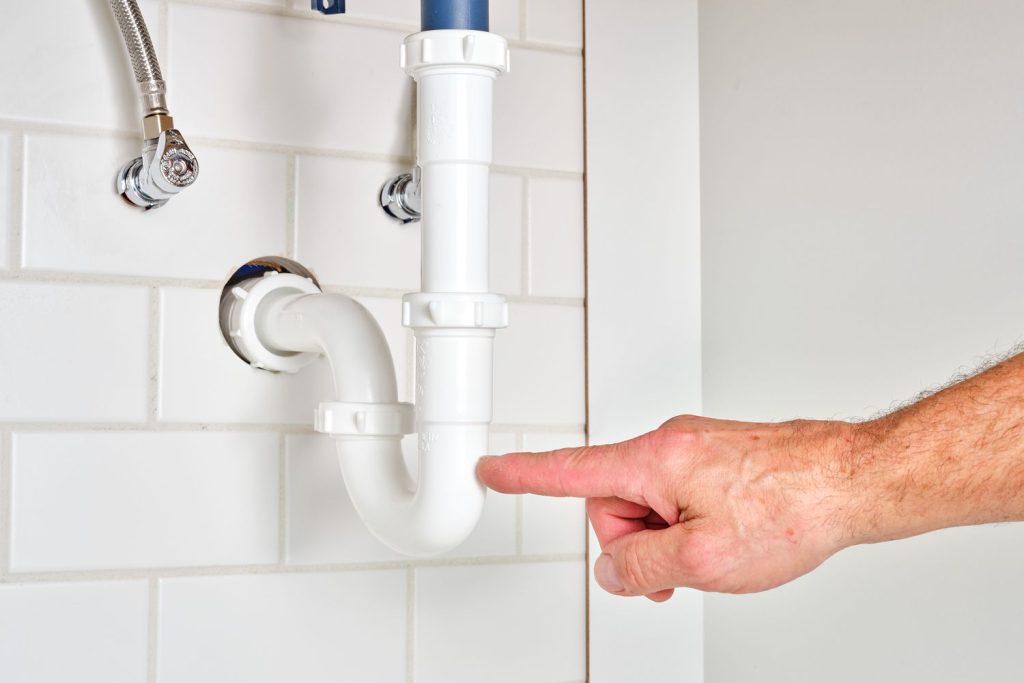

If you’ve ever tried fixing a leaky bathroom sink only to find water still dripping after reassembly, the issue might be as simple—and frustrating—as an incorrectly oriented washer. Understanding the correct illustration of washer direction of bathroom sink plumbing through wall can mean the difference between a watertight seal and a flooded cabinet. Whether you’re a weekend DIYer or a new homeowner tackling your first plumbing project, this guide will walk you through everything you need to know—clearly, accurately, and step by step.
Why Washer Direction Matters in Bathroom Sink Plumbing
Many homeowners assume that washers are symmetrical and can be installed either way. This is a common misconception. In reality, the orientation of the washer directly affects how well it seals against water pressure—especially in through-wall plumbing setups where space is tight and alignment is critical.
According to the Plumbing-Heating-Cooling Contractors Association (PHCC), over 30% of minor household leaks stem from improperly installed compression fittings or washers, not faulty pipes or valves. Getting the washer direction right isn’t just about following instructions—it’s about preventing water damage, mold growth, and costly repairs down the line.
What Is “Plumbing Through the Wall”?
In many modern bathrooms—especially in apartments, condos, or minimalist designs—the sink’s water supply lines and drain pipe run through the wall instead of under the vanity. This setup creates a clean, open look but demands precise installation of all components, including washers.
💡 Key Insight: In through-wall plumbing, the faucet tailpiece connects to a wall-mounted supply elbow or shutoff valve. The washer sits between these two metal surfaces. If flipped, it won’t compress evenly under the nut, leading to micro-leaks.
For more on plumbing configurations, see Wikipedia’s overview of residential plumbing systems.
Step-by-Step: Installing the Washer Correctly (With Direction Guide)
Follow these steps carefully to ensure your washer is oriented properly:
1. Turn Off Water Supply
Locate the shutoff valves under the sink or at the main line. Turn them clockwise until tight. Open the faucet to drain residual water.
2. Remove the Faucet Tailpiece
Use an adjustable wrench to loosen the compression nut connecting the faucet tailpiece to the wall supply line. Gently pull the tailpiece away.
3. Inspect the Old Washer
Most standard faucets use a flat rubber or fiber washer (not an O-ring). Note its condition:
- Cracked or brittle? Replace it.
- Smooth on one side, slightly beveled on the other? The beveled (tapered) side should face the water source—i.e., toward the wall supply line.
✅ Rule of Thumb: The washer’s flat side faces the nut; the tapered side faces the incoming water.
4. Install the New Washer
Place the new washer onto the tailpiece with the tapered edge pointing toward the wall. This allows water pressure to push the washer tighter against the valve seat, enhancing the seal.
5. Reconnect and Tighten
Slide the tailpiece into the wall fitting, hand-tighten the compression nut, then give it an additional 1/4 to 1/2 turn with a wrench. Do not overtighten—this can deform the washer and cause leaks.
6. Test for Leaks
Turn the water back on slowly. Check the connection for drips. If you see moisture, do not keep tightening—disassemble and check washer orientation again.
Common Washer Types & Their Direction Rules
| Washer Type | Material | Direction Rule | Best For |
|---|---|---|---|
| Flat Rubber | EPDM or Neoprene | Tapered side → water source | Compression faucets |
| Fiber Washer | Compressed paper | Same as rubber—taper toward supply | Older fixtures |
| O-Ring | Silicone/Nitrile | No direction (symmetrical) | Cartridge or ceramic valves |
| Beveled Nylon | Thermoplastic | Bevel faces incoming water | High-pressure lines |
⚠️ Note: O-rings are often used in modern cartridge faucets and don’t require directional installation—but they’re not typically used in standard through-wall compression connections for sink tailpieces.
People Also Ask: Top Questions Answered
❓ Does washer direction really affect performance?
Yes. A backward washer won’t compress uniformly under pressure. Water can seep around the edges, causing slow leaks that worsen over time.
❓ Can I reuse an old washer?
Not recommended. Even if it looks intact, rubber degrades with heat, chlorine, and compression cycles. Always use a fresh washer—costs less than $0.50.
❓ What if my faucet uses no visible washer?
Some modern faucets use washerless cartridges (e.g., ceramic disc). In those cases, the “washer” is internal. But if your connection to the wall uses a compression fitting, there’s almost always an external washer involved.
FAQ Section
Q1: How do I know which side of the washer is tapered?
A: Hold it up to light. The tapered side will appear slightly thinner at the edge. Some manufacturers mark it with a faint ridge or color code—check packaging if unsure.
Q2: My sink leaks even after correct washer installation. What now?
A: Check for cross-threading on the compression nut, damaged valve seats, or cracked supply lines. If the wall shutoff valve is old, its internal washer may be failing—not the faucet’s.
Q3: Are metal washers better than rubber?
A: Not for standard sink connections. Metal (e.g., copper) washers are used in high-temp applications like water heaters. For cold/hot sink lines, rubber or fiber provides better sealing flexibility.
Q4: Should I use plumber’s tape on the threads?
A: No—on compression fittings, tape goes on male pipe threads, not the compression nut area. Applying tape near the washer can interfere with proper seating.
Q5: Can incorrect washer direction cause low water pressure?
A: Indirectly, yes. A misaligned washer may partially obstruct flow or cause debris buildup from erosion, reducing pressure over time.
Q6: Where can I find a visual illustration of correct washer direction?
A: Many plumbing supply sites (like Ferguson or Home Depot) include exploded diagrams in product manuals. We also recommend sketching your setup before disassembly—label “wall side” and “faucet side” for clarity.
Troubleshooting Table: Symptoms vs. Causes
| Symptom | Likely Cause | Fix |
|---|---|---|
| Drip at wall connection | Washer backward or worn | Replace + orient correctly |
| Sudden gush of water | Cross-threaded nut or cracked ferrule | Replace entire compression fitting kit |
| Intermittent drip | Loose nut or degraded washer | Retighten (¼ turn max) or replace washer |
| Rust stains around nut | Chronic minor leak + metal corrosion | Disassemble, clean, replace all parts |
Conclusion: Get It Right the First Time
Understanding the illustration of washer direction of bathroom sink plumbing through wall isn’t just technical detail—it’s practical home maintenance wisdom that saves time, money, and stress. With the right orientation, a $0.25 washer can protect your walls, flooring, and peace of mind for years.
✅ Pro Tip: Keep a small plumbing kit under your sink—extra washers, a basin wrench, and Teflon tape can handle 90% of minor leaks without calling a pro.
Found this guide helpful? Share it on Pinterest, Facebook, or Reddit to help fellow DIYers avoid the #1 plumbing mistake! Got questions? Drop them in the comments—we’re here to help you succeed, leak-free.
