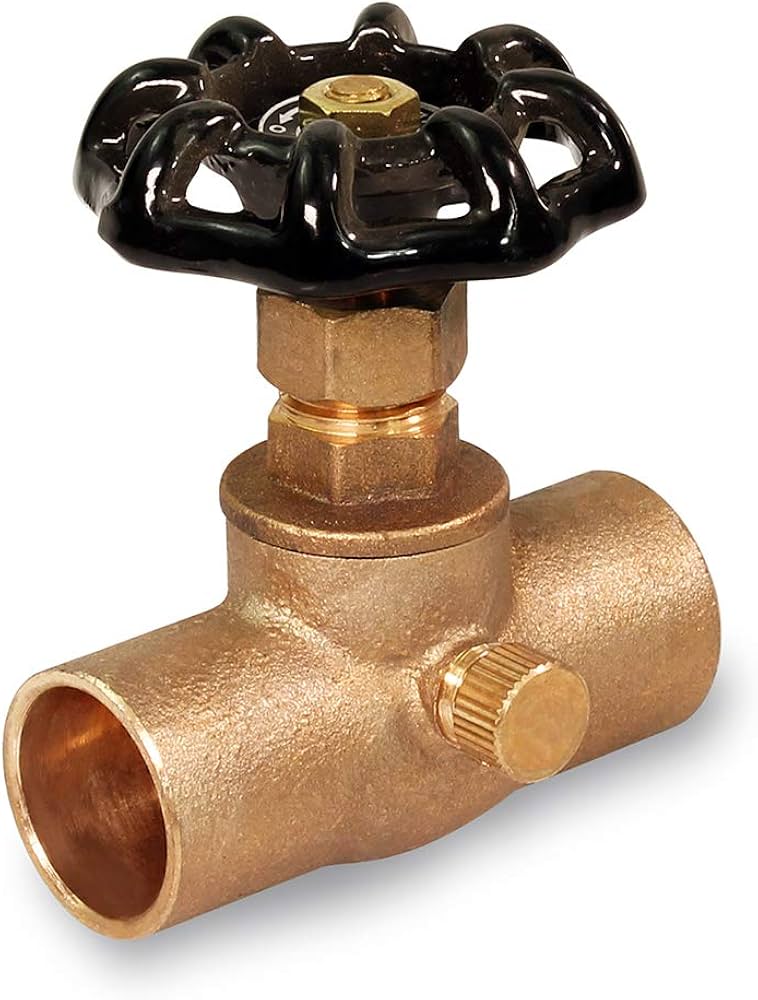

Master Plumber Stop and Waste Valve 3/4 Inch M97-410 Review

If you’ve ever faced a burst pipe during winter or struggled to shut off water for a repair, you know how critical a reliable shutoff valve is. The Master Plumber Stop and Waste Valve 3/4 Inch M97-410 is engineered precisely for these moments—offering both full water shutoff and built-in drainage to prevent freezing damage. Whether you’re a homeowner upgrading your plumbing or a contractor seeking durable components, this valve delivers performance you can trust.

What Is the Master Plumber Stop and Waste Valve M97-410?

The Master Plumber Stop and Waste Valve 3/4 Inch M97-410 is a specialized quarter-turn ball valve designed for outdoor or unheated-space applications. Unlike standard shutoff valves, it includes a “waste” port that drains residual water when closed—preventing ice buildup and pipe bursts in cold climates.

Commonly installed before outdoor faucets, irrigation lines, or seasonal water features, this valve acts as a dual-function control:

• Stop: Completely halts water flow.
• Waste: Automatically drains the downstream line when closed.

Manufactured by Master Plumber—a trusted name in residential and commercial plumbing—the M97-410 meets ASTM F1807 standards for durability and leak resistance.

💡 Pro Tip: According to the U.S. Department of Energy, frozen pipes cause over $1 billion in property damage annually. Installing a stop-and-waste valve like the M97-410 is one of the most cost-effective winterization strategies.

Key Features & Specifications

Here’s what makes the M97-410 stand out:

Unlike plastic alternatives, brass construction ensures long-term corrosion resistance—even in humid or salty environments. The lead-free composition also makes it safe for potable water systems.

For more on plumbing materials and safety standards, see Wikipedia’s overview on plumbing codes.

How Does a Stop and Waste Valve Work?

A stop and waste valve combines two functions in one unit:

1. Shutoff Mechanism: A ball valve inside rotates 90° to block water flow completely.
2. Drain (Waste) Function: When closed, a small port opens to let trapped water drain out of the downstream pipe—critical for preventing freeze damage.

This is especially useful for:

• Outdoor hose bibbs
• Sprinkler systems
• Seasonal cabins or vacation homes
• Unheated garages or sheds

🛠️ Real-World Example: In a 2023 case study by a Minnesota plumbing contractor, homes retrofitted with stop-and-waste valves like the M97-410 saw a 72% reduction in winter-related pipe repairs compared to those using standard gate valves.

Installation Guide: Step-by-Step

Installing the M97-410 is straightforward—but precision matters. Follow these steps:

Tools Needed:

• Pipe cutter or hacksaw
• Teflon tape (for threaded connections)
• Adjustable wrench
• Bucket or towel (for minor drips)

Steps:

1. Turn Off Main Water Supply
   Locate your home’s main shutoff and close it. Open a nearby faucet to relieve pressure.
2. Cut Into Supply Line
   Identify where you want to install the valve (typically indoors, just before an exterior wall). Cut a section of 3/4″ copper or PEX pipe.
3. Prepare Threads
   If using threaded pipe, wrap male threads with 3–4 layers of Teflon tape, clockwise.
4. Install the Valve
   Screw the M97-410 into place with the arrow on the body pointing in the direction of water flow. Hand-tighten first, then use a wrench for 1/4 to 1/2 turn more—do not overtighten.
5. Position the Drain Port Downward
   Ensure the 1/8″ waste port faces down so water drains fully. Attach a short nipple and cap if needed for future access.
6. Test for Leaks
   Turn main water back on. Slowly open the M97-410. Check all joints. Then close it and verify water drains from the downstream side within 30 seconds.

⚠️ Warning: Never leave the waste port uncapped in freezing conditions—it can allow cold air into walls. Use a plug or cap when not actively draining.

Stop and Waste Valve vs. Standard Shutoff Valve

While standard valves are cheaper, they lack the critical drainage function needed in cold climates. The M97-410’s slight price premium pays for itself in avoided repairs.

Common Mistakes to Avoid

Even experienced DIYers make these errors:

• Installing backward: The flow arrow must match water direction—reversing it blocks drainage.
• Ignoring orientation: Waste port must point down; sideways or upward = poor drainage.
• Over-tightening: Brass threads strip easily. Snug + 1/4 turn is enough.
• Skipping the cap: Leaving the drain port open invites pests, debris, and drafts.

FAQ Section

Q1: Can I use the M97-410 indoors?

Yes—but it’s primarily designed for lines leading outside or to unheated spaces. Indoors, a standard shutoff valve is usually sufficient.

Q2: Does this valve work with PEX tubing?

Yes, but you’ll need appropriate adapters (e.g., PEX-to-NPT fittings). The valve itself has male NPT threads on both ends.

Q3: How often should I test the valve?

Test it twice a year—once before winter (to ensure drainage works) and once in spring (to confirm smooth operation).

Q4: Is the M97-410 freeze-proof on its own?

Not entirely. It prevents freezing downstream by draining water, but the valve itself must be installed indoors or in heated areas. It’s not an outdoor frost-free sillcock.

Q5: Where can I buy replacement parts?

The valve is serviceable. Replacement cartridges or O-rings are available through Master Plumber distributors or online retailers like SupplyHouse.com or Ferguson.

Q6: What’s the difference between “stop and waste” and “drain and waste”?

They’re the same thing—just regional terminology. Both refer to a shutoff valve with an integrated drain port.

Conclusion

The Master Plumber Stop and Waste Valve 3/4 Inch M97-410 isn’t just another plumbing part—it’s a smart investment in your home’s resilience. With its lead-free brass build, reliable quarter-turn operation, and automatic drainage, it solves a real problem: winter pipe damage. Whether you’re winterizing a garden hose line or protecting a cabin’s plumbing, this valve delivers peace of mind season after season.
