Stop Pipe Punctures: Metal Blocking Plates on 2x4s Explained

Have you ever worried about accidentally drilling into a water pipe or electrical wire hidden behind your drywall? It is a nightmare scenario for any homeowner or DIY enthusiast, often leading to expensive repairs and potential safety hazards. The solution lies in a simple yet critical component known as metal blocking plates on 2×4 for plumbing protection. These small steel shields act as an impenetrable barrier, ensuring that nails, screws, and drill bits never reach the vulnerable utilities running through your wall frames. In this guide, we will explore exactly how they work, why building codes mandate them, and how you can install them correctly to safeguard your home.

What Are Metal Blocking Plates and Why Do You Need Them?

When constructing or renovating a home, walls are rarely empty spaces. They serve as highways for essential utilities like copper water lines, PEX tubing, electrical wiring, and HVAC ducts. These utilities typically run through holes drilled in the center of wooden studs, usually standard 2×4 lumber. However, when drywall, siding, or cabinetry is installed over these studs, there is a significant risk that fasteners could penetrate the wood at the exact spot where a pipe or wire exists.

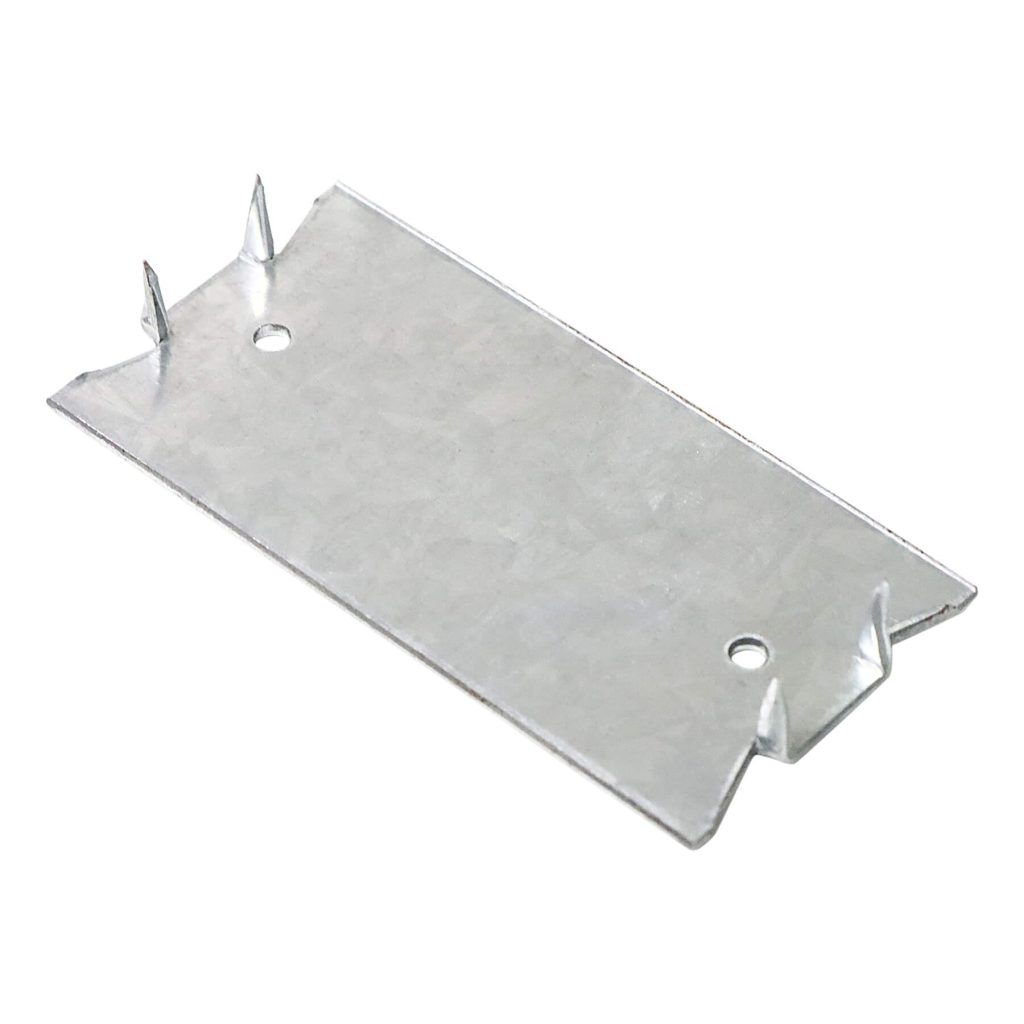

This is where metal blocking plates on 2×4 for plumbing protection become indispensable. Also commonly referred to as “nail plates” or “protection plates,” these are thin sheets of galvanized steel with sharp prongs or pre-drilled holes. They are hammered directly onto the face of the stud, covering the area where a utility passes through. If a contractor later drives a drywall screw into that specific spot, the screw hits the unyielding metal plate instead of piercing the pipe behind it.

The consequences of skipping this step can be severe. According to industry data from insurance claim analyses, accidental punctures of water pipes during renovation projects account for thousands of dollars in water damage repairs annually. Beyond the financial cost, a punctured gas line or live electrical wire poses immediate threats to life and property. Therefore, installing these plates is not just a best practice; it is a fundamental requirement for responsible building.

When Does Building Code Require Protection Plates?

One of the most common questions homeowners and junior contractors ask is, “Do I really need these plates for every hole?” The answer depends on the proximity of the bore to the edge of the stud. Understanding the regulations is crucial for passing inspections and ensuring long-term safety.

In the United States, the International Residential Code (IRC) sets the standard for residential construction. Specifically, section R300.4 (for wiring) and P2603.5 (for plumbing) outline the rules. The general rule is straightforward: if a hole is drilled less than 1¼ inches (32 mm) from the nearest edge of the stud, a protection plate is mandatory.

It is important to note that local jurisdictions may have amendments to the national code that are even stricter. For instance, some high-risk seismic zones require plates regardless of the distance if the utility runs horizontally through multiple studs. Always consult your local building department before starting work. For a comprehensive overview of how these codes evolved and their technical definitions, you can refer to resources like the International Code Council or general construction standards documented on Wikipedia.

Ignoring these codes does not just risk failure during a formal inspection; it voids insurance coverage in many cases if damage occurs due to non-compliant workmanship. The small cost of a metal plate is negligible compared to the liability of ignoring code requirements.

Step-by-Step Guide: Installing Metal Plates on 2×4 Studs

Installing metal blocking plates on 2×4 for plumbing protection is a straightforward process, but precision matters. Doing it incorrectly can weaken the stud or fail to provide adequate coverage. Follow this detailed tutorial to ensure a professional-grade installation.

Tools and Materials Needed

• Galvanized steel protection plates (size appropriate for your utility, typically 1.5″ x 3″ or larger).
• 16d or 18d galvanized nails (or the integrated prongs on self-gripping plates).
• Hammer or pneumatic nail gun.
• Tape measure and pencil.
• Safety glasses and gloves.

Installation Steps

1. Identify the Utility Path: Before installing drywall or sheathing, locate every hole or notch in your 2×4 studs that contains a pipe, wire, or conduit. Mark the top and bottom of the utility’s path lightly with a pencil on the face of the stud.
2. Measure the Coverage Area: The metal plate must extend at least 1 inch above and 1 inch below the bored hole or notched area. If you are protecting a vertical run of pipe that passes through several studs, each stud requires its own individual plate centered on the hole.
3. Position the Plate: Center the metal plate over the hole. Ensure the plate covers the entire diameter of the bore plus the required margin. The plate should sit flush against the wood surface.
4. Secure the Plate:
   • If using pronged plates: Align the prongs with the wood grain to prevent splitting. Strike the plate firmly with a hammer until the prongs are fully embedded and the plate is tight against the stud.
   • If using flat plates: Drive two nails into the pre-drilled holes at the top and bottom of the plate. Do not nail through the center where the pipe is located.
5. Inspect for Stability: Give the plate a gentle tug. It should not wiggle or lift. If the wood around the hole is split or compromised, you may need to reinforce the stud with a sister stud before proceeding.
6. Document the Location: Once covered, it is hard to see where the utilities are. Take photos of the walls before closing them up, or use a stud finder with AC/metal detection later to mark the locations on the finished drywall.

Pro Tip: When working with PEX plumbing, remember that the tubing can expand and contract with temperature changes. Ensure your bore hole is slightly larger than the pipe diameter (typically 1/4 inch larger) to allow movement, but keep the protection plate tight against the wood, not the pipe.

Common Mistakes to Avoid During Installation

Even experienced builders can make errors when rushing through the framing stage. Avoiding these pitfalls ensures your metal blocking plates on 2×4 for plumbing protection function as intended.

• Using Undersized Plates: A frequent error is using a plate that barely covers the hole. If a drywall screw lands on the very edge of a small plate, it might slip off and puncture the pipe. Always choose a plate that offers generous overlap.
• Splitting the Stud: Hammering a plate too aggressively, especially near the end of a 2×4, can split the wood. This compromises the structural integrity of the wall frame. If the wood is old or dry, pre-drilling pilot holes for nailed plates (non-pronged) is safer.
• Covering Multiple Holes with One Plate: While it might seem efficient to cover two adjacent holes with one long plate, this is generally discouraged unless the plate is specifically designed for it. Individual plates allow for better flexibility and ensure that settlement or shifting of the building doesn’t expose a gap between utilities.
• Ignoring Electrical Codes: Sometimes plumbers install plates for pipes but electricians forget wires. Remember that Romex cables also require protection. A unified approach where all trades coordinate ensures no utility is left vulnerable.
• Painting Over Prongs: If you paint the studs before installing pronged plates, the paint can act as a lubricant, causing the plate to slide out over time. Install plates on bare wood whenever possible.

Advantages vs. Disadvantages of Metal Protection Plates

To help you decide on the best approach for your project, here is a quick comparison of using standard metal blocking plates versus alternative methods.

The consensus among professionals is clear: for standard 2×4 residential framing, metal blocking plates are the superior choice due to their cost-effectiveness, ease of installation, and proven track record of preventing accidents.

Frequently Asked Questions (FAQ)

1. Can I use aluminum plates instead of steel for plumbing protection?

No, you should strictly use galvanized steel plates. Aluminum is too soft and can be easily penetrated by drywall screws or nails, especially those driven by pneumatic guns. Steel provides the necessary hardness to stop fasteners effectively.

2. Do I need protection plates if I am using metal studs instead of 2x4s?

Metal studs require a different type of protection. You cannot hammer traditional pronged plates into metal. Instead, you must use specialized plastic or metal grommets that snap into the punched holes of the metal stud, or apply specific shield clips designed for light gauge steel framing.

3. What happens if I forget to install the plates and the drywall is already up?

If you realize the mistake after drywall installation, do not ignore it. You can purchase surface-mount protection plates that screw onto the face of the drywall, though this looks unsightly. A better, albeit more labor-intensive, solution is to cut out the drywall section, install the proper plates on the studs, and patch the drywall. This is far cheaper than fixing a burst pipe later.

4. How thick should the metal plate be?

Most building codes do not specify an exact thickness, but industry standard galvanized plates are typically 20 to 22 gauge. This thickness is sufficient to deflect standard 1-5/8 inch drywall screws and roofing nails without bending or breaking.

5. Are there situations where drilling closer than 1¼ inches is allowed without a plate?

Generally, no. If you must drill closer than 1¼ inches due to structural constraints, the code universally mandates a protection plate. There are no standard exceptions for residential 2×4 framing regarding this distance rule.

6. Can I reuse metal plates if I am demolishing a wall?

It is not recommended. Once removed, the prongs are often bent, and the metal may be weakened or corroded. Given their low cost, it is always safer and more compliant to install brand new plates during reconstruction.

Conclusion

Protecting your home’s infrastructure is one of the most responsible actions a builder or homeowner can take. By correctly installing metal blocking plates on 2×4 for plumbing protection, you create a vital defense system against accidental punctures that could lead to catastrophic water damage, electrical fires, or gas leaks. These small components are inexpensive and easy to install, yet they offer peace of mind that lasts for the lifetime of the building.

Remember, adherence to building codes isn’t just about passing an inspection; it’s about ensuring the safety and longevity of your living space. Whether you are a seasoned contractor or a DIY enthusiast tackling a basement finish, never skip the step of adding these steel guardians to your studs.
