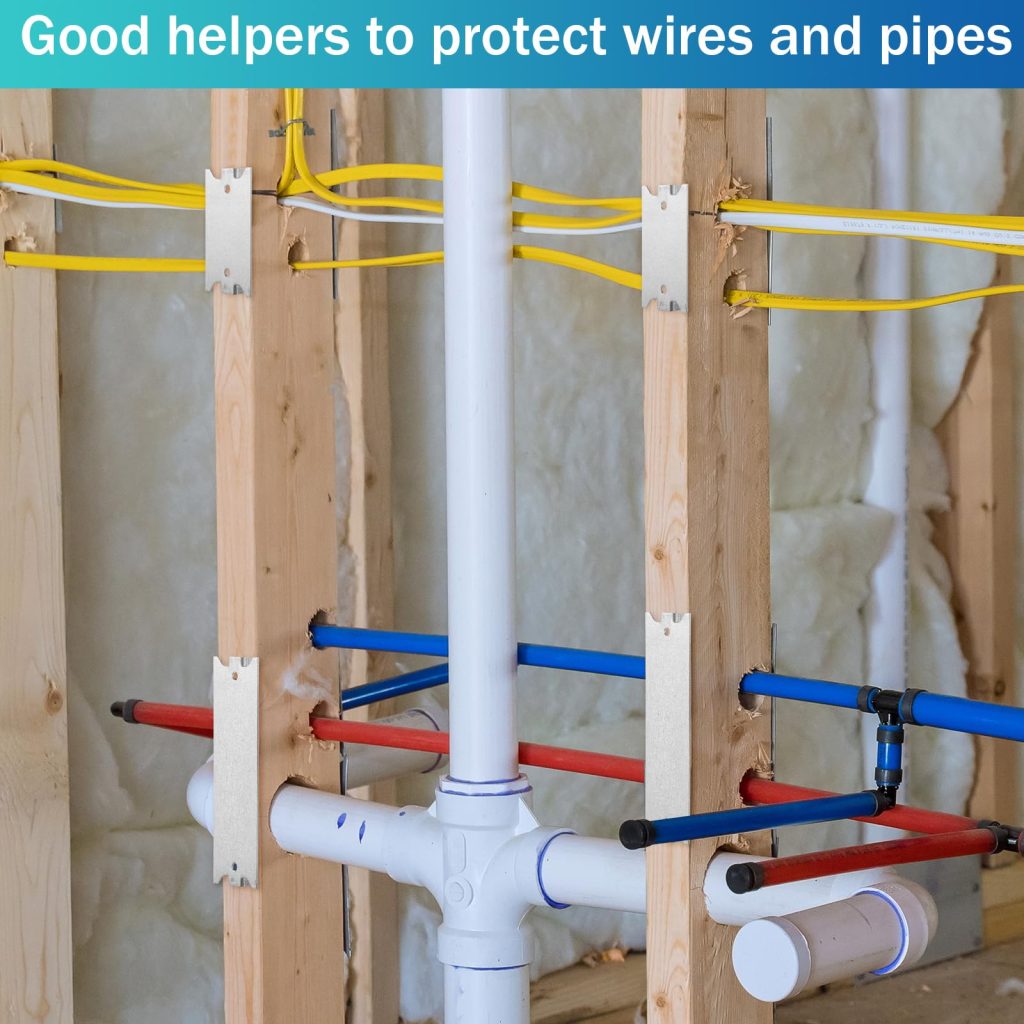

Nail Plates: Stop Roofing Nails Hitting Plastic Plumbing

Imagine finishing a beautiful home renovation, only to discover a slow leak in your ceiling months later because a single roofing nail pierced a hidden plastic water line. It is a nightmare scenario that costs thousands of dollars and causes immense stress for any homeowner. This disaster often happens due to a simple oversight: failing to install protective barriers where utilities cross structural wood. Understanding the critical role of nail plates when plastic plumbing near framing and roofing nail paths intersect is not just about following rules; it is about protecting your investment and ensuring the long-term safety of your home’s infrastructure. In this guide, we will walk you through exactly how to identify these risk zones and install the correct protection according to US building codes.

Why Are Nail Plates Mandatory for Plastic Plumbing?

The primary reason for using nail plates is straightforward: prevention. Modern residential construction heavily relies on PEX (cross-linked polyethylene) and CPVC piping because they are flexible, corrosion-resistant, and easy to install. However, unlike rigid copper, these plastic plumbing lines can be easily punctured by standard galvanized or stainless steel nails used in framing and roofing.

When a roofer installs shingles, they drive nails blindly through the roof deck (sheathing). If a water pipe runs too close to the top edge of a rafter or truss directly beneath that deck, a rogue nail can pierce both the wood and the pipe. The result is an immediate or slow-leak water damage situation inside the wall or ceiling cavity.

According to the International Residential Code (IRC), which serves as the baseline for most US jurisdictions, specific clearance distances must be maintained. If these distances cannot be met due to structural constraints, nail plates become mandatory. These steel plates act as a physical shield, deflecting the nail away from the utility line. Ignoring this requirement doesn’t just risk water damage; it can lead to failed building inspections and significant liability issues if the home is sold later.

Where Exactly Should You Install Nail Plates?

Determining the precise location for nail plates is a skill that separates amateur DIYers from professional builders. The general rule of thumb revolves around the “danger zone” where fasteners are likely to penetrate.

The 1-1/4 Inch Rule

The most common standard cited in the IRC (Section R300.4) states that holes bored in wood members shall not be closer than 1-1/4 inches (32 mm) from the nearest edge of the wood. If the hole is closer than this distance, the hole must be protected by a steel plate.

This applies specifically to:

• Studs: When plumbing runs vertically through wall studs.
• Joists and Rafters: When pipes run horizontally through floor joists or roof rafters.
• Top Plates: Areas where roofing nails might drive down from the roof deck into the top chord of a truss.

High-Risk Zones for Roofing Nails

Roofing presents a unique challenge. Roofing nails are typically 1-1/4 to 1-3/4 inches long. When installing asphalt shingles, roofers aim for full penetration into the sheathing and often into the rafters below for wind resistance.

If your plastic plumbing runs through a rafter within 1-1/4 inches of the top edge, a standard roofing nail has a high probability of hitting the pipe. In these scenarios, you must install a nail plate on the top face of the rafter, directly over the drilled hole. This ensures that even if the roofer drives a nail straight down, it hits the steel plate and bends or stops, leaving the pipe intact.

Step-by-Step Guide: Installing Nail Plates Correctly

Installing a nail plate seems simple, but doing it incorrectly can render it useless. Follow this detailed, step-by-step process to ensure maximum protection for your plastic plumbing near framing and roofing nail entry points.

Step 1: Measure and Mark the Danger Zone

Before drilling any holes, use a tape measure to mark the intended path of your pipe. Identify where the hole will be bored relative to the edge of the lumber.

• Action: Measure from the edge of the stud or rafter to the center of your planned hole.
• Criteria: If the distance from the edge to the nearest side of the hole is less than 1-1/4 inches, stop. You need a plate.

Step 2: Drill the Hole First (Usually)

In most cases, it is easier to drill the hole for the PEX or CPVC pipe before attaching the plate, provided you have enough room to maneuver your drill bit without hitting the future plate location.

• Tool: Use a spade bit or auger bit sized appropriately for your pipe (usually 3/4″ to 1″ larger than the pipe diameter to allow for expansion and movement).
• Precision: Ensure the hole is clean and free of splinters that could abrade the plastic pipe over time.

Step 3: Select the Correct Plate Size

Not all nail plates are created equal. For standard 2×4 or 2×6 framing, you typically need a plate that covers the entire width of the member and extends sufficiently above and below the hole.

• Standard Size: A 1-5/8 inch wide plate is common for 2x lumber.
• Length: The plate should extend at least 2 inches above and 2 inches below the hole to guarantee coverage even if the nailing angle is slightly off.

Step 4: Secure the Plate with Proper Fasteners

This is where many people make mistakes. You cannot use just any nail or screw.

• Fastener Type: Use hardened steel nails or screws specifically designed for nail plates. Standard drywall nails are too soft and may shear off upon impact.
• Placement: Drive the fasteners into the wood outside the protected zone. Do not drive fasteners directly over the hole area, as this defeats the purpose.
• Flush Mount: Ensure the plate sits perfectly flush against the wood. If it protrudes, it can interfere with drywall installation or roofing shingles.

Step 5: Verify Coverage for Roofing Applications

For roof rafters, double-check that the plate is positioned on the top face (the side touching the roof sheathing).

• Visual Check: Stand above the rafter (before sheathing is installed) and ensure no part of the drilled hole is visible or exposed to a vertical nail path.
• Expert Tip: If the pipe runs parallel to the rafter rather than through it, clamps should be used, but if it crosses near the edge, a specialized strap or plate may still be required depending on local amendments to the code.

For more detailed technical specifications on wood framing standards, you can refer to authoritative resources like the Wikipedia entry on Framing (construction), which outlines historical and modern methodologies used in North America.

Common Mistakes That Lead to Leaks

Even with the best intentions, errors occur. Being aware of these common pitfalls can save you from future headaches.

• Using Undersized Plates: Using a small “patch” plate that doesn’t fully cover the potential nail trajectory is dangerous. Roofing nails can be driven at slight angles; if the plate is too short, a nail can slip past the edge.
• Skipping Plates in Non-Load Bearing Walls: Some builders assume non-load-bearing partitions don’t need protection. This is false. If plumbing runs through these studs and drywall screws or trim nails are used later, the pipe is still at risk.
• Damaging the Pipe During Installation: Sometimes, the act of forcing the plastic pipe through a tight hole lined with a rough metal plate can scratch the PEX. Always deburr the hole and ensure the plate edges are smooth.
• Ignoring Local Code Amendments: While the IRC is national, cities like Los Angeles, New York, or Miami often have stricter local amendments. Always check with your local building department.

The Cost of Negligence vs. The Cost of Compliance

Let’s look at the numbers. A pack of high-quality steel nail plates costs approximately $15 to $25 and contains enough plates for an entire room. The labor to install them adds perhaps 10–15 minutes per run to a plumber’s schedule.

Contrast this with the cost of failure:

• Water Damage Repair: Average cost ranges from $1,200 to $5,000 for minor ceiling/wall repairs.
• Mold Remediation: If the leak goes undetected for weeks, mold removal can exceed $6,000.
• Roof Re-placement: If the leak damages the roof deck or insulation, partial re-roofing can cost $3,000+.
• Insurance Deductibles: Most homeowners will have to pay their deductible ($500–$2,500) and face potential premium hikes.

The return on investment for installing nail plates when plastic plumbing near framing and roofing nail zones is virtually infinite. It is one of the cheapest insurance policies you can buy during construction.

Frequently Asked Questions (FAQ)

1. Can I use aluminum nail plates instead of steel?

No, you should generally avoid aluminum plates for this application. Aluminum is softer than steel and may not effectively stop a hardened roofing nail or framing nail. Most building codes specifically require steel plates (often galvanized) to ensure they provide adequate resistance against penetration.

2. What if my pipe is already installed without a plate?

If the wall or roof is still open (drywall or shingles not yet installed), you must pull the pipe back, drill a new hole in a safer location, or install a retrofit plate if possible. If the walls are closed, you are in a risky position. In some cases, electricians or plumbers use “sistering” techniques (adding a new piece of lumber next to the old one) to create a new safe path, but this requires professional assessment.

3. Do nail plates apply to electrical wiring as well?

Yes, absolutely. The same 1-1/4 inch rule applies to electrical cables (Romex/NM cable). In fact, it is very common to see a single wide nail plate protecting both a water pipe and an electrical wire running through the same stud bay. Never run water and electricity in the same hole without proper separation and protection.

4. How thick should the nail plate be?

Standard nail plates are typically made from 16-gauge or 14-gauge steel. This thickness provides the necessary rigidity to deflect a nail without bending excessively itself. Thinner metals (like 20-gauge) are insufficient for structural protection against roofing nails.

5. Does the type of plastic pipe (PEX vs. CPVC) change the requirement?

No. The building code requirements for nail plates are based on the location of the hole relative to the wood edge, not the material of the utility inside. Both PEX and CPVC are vulnerable to nail punctures, so the protection standards remain identical for both.

6. Can roofing nails ever be shorter to avoid hitting pipes?

While shorter nails exist, they are rarely a viable solution for roofing. Roofing nails must be long enough to penetrate the sheathing and embed sufficiently into the rafters to meet wind-uplift codes (especially in hurricane-prone areas). Relying on shorter nails compromises the roof’s structural integrity and is not a code-compliant alternative to using nail plates.

Conclusion

Protecting your home’s plumbing system is a fundamental aspect of quality construction. By understanding when and how to use nail plates when plastic plumbing near framing and roofing nail paths intersect, you eliminate a major cause of preventable water damage. Remember the golden rule: if the hole is within 1-1/4 inches of the edge, a steel plate is not optional—it is essential.

Taking the extra time to measure, select the right gauge steel, and secure the plate properly pays dividends for the lifetime of the house. Don’t let a few cents worth of metal jeopardize your entire home. Share this guide with your fellow contractors, DIY enthusiasts, or anyone planning a renovation to help spread awareness about these critical safety standards. Together, we can build safer, more durable homes.
