House Water Valves: Names & Functions Explained

There is nothing quite as panic-inducing as discovering a burst pipe or a leaking fixture in your home, especially when you don’t know which handle to turn to stop the flood. Every homeowner needs to understand the Names Of Valves Going Into Water Supply In House Plumbing not just for emergency situations, but for routine maintenance and water conservation. By familiarizing yourself with these critical components, you transform from a helpless observer into a capable manager of your home’s most vital resource. Let’s dive into the world of residential plumbing valves so you can face any water issue with confidence.

What Is the Main Valve Controlling Water Entry Called?

The first and most critical component you must identify is the Main Shut-Off Valve. This is the “master switch” for your entire home’s water system. Located typically where the municipal water line enters your house—often in the basement, crawlspace, or near the water meter outside—this valve controls the flow of water from the city supply into your private piping network.

In the United States, you will commonly encounter two primary types of main valves:

1. Gate Valves: These feature a round wheel handle that you turn multiple times to open or close. Inside, a metal gate rises or lowers to block the water. While common in older homes, they are prone to corrosion and can seize up if not used regularly.
2. Ball Valves: Identified by a lever handle, these require only a quarter-turn (90 degrees) to fully open or close. When the lever is parallel to the pipe, water flows; when perpendicular, it stops. Modern building codes increasingly favor ball valves because they are more reliable and less likely to fail during an emergency.

According to data from the Insurance Information Institute, water damage claims average over $10,000 per incident. Knowing exactly where your main shut-off is and how to operate it can reduce this damage to zero by stopping the flow immediately. If you have a gate valve, it is highly recommended to exercise it (turn it off and on) once a year to prevent it from sticking. For a deeper historical context on how valve mechanisms have evolved, you can refer to the general engineering principles outlined on Wikipedia.org.

Which Valves Control Water to Specific Fixtures?

Once water passes the main entry point, it branches out to various appliances and fixtures. Each of these branches usually has its own dedicated control mechanism, known as a Fixture Shut-Off Valve or “stop valve.” Understanding the Names Of Valves Going Into Water Supply In House Plumbing at this level allows you to fix a running toilet or replace a sink faucet without cutting water to the whole house.

Angle Stops vs. Straight Stops

The type of fixture valve you need depends on the orientation of your water supply line:

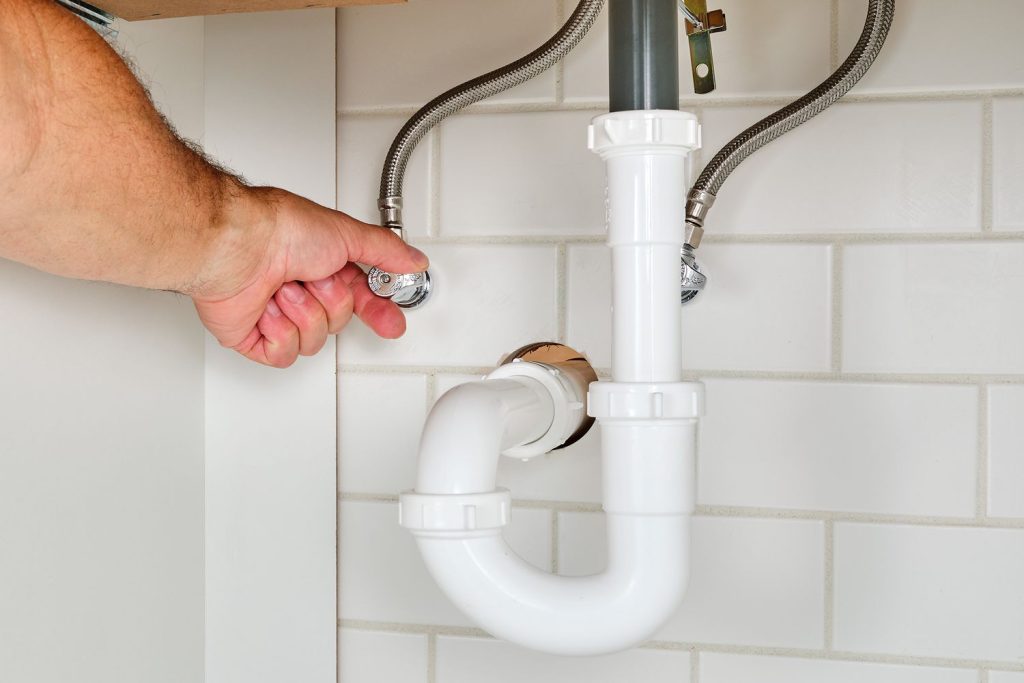

• Angle Stop Valves: These are used when the water pipe comes out of the wall, and the fixture connection needs to go straight up (common for sinks and toilets). The valve body bends at a 90-degree angle.
• Straight Stop Valves: These are utilized when the water pipe comes up from the floor and connects directly to the bottom of the fixture. The inlet and outlet are in a straight line.

Most modern fixture valves are compression valves or quarter-turn ball valves. Compression valves use a rubber washer that presses against a seat to stop water; they require several turns to close and the washers eventually wear out. Quarter-turn ball valves, similar to the main house valve, are durable and provide a tight seal with a simple twist of a small lever or oval handle.

How Do Check Valves Protect Your Home’s Water Supply?

While shut-off valves control when water flows, Check Valves (also known as non-return valves) control the direction of the flow. Their sole purpose is to prevent backflow, ensuring that water never flows backward into the public municipal supply or into other parts of your home’s clean water system.

Imagine a scenario where there is a sudden drop in city water pressure due to a fire hydrant being used nearby. Without a check valve, contaminated water from your garden hose (which might be sitting in a pool of fertilizer or pesticide) could be sucked back into your drinking water lines. This phenomenon is called backsiphonage.

In many US jurisdictions, building codes now mandate the installation of a Dual Check Valve or a Reduced Pressure Zone (RPZ) assembly at the main water entry point.

• Dual Check Valve: Contains two independent checking mechanisms. If one fails, the other still prevents backflow.
• RPZ Assembly: A more complex device used in high-hazard situations, featuring a pressure differential relief valve between two check valves.

These devices are silent guardians of your health. Unlike manual valves, you do not operate them daily; however, they require periodic testing by a licensed plumber to ensure the internal springs and seals are functioning correctly.

What Are Pressure Reducing Valves and Why Are They Needed?

Another critical component often found near the main entry is the Pressure Reducing Valve (PRV), sometimes called a pressure regulator. Municipal water systems often deliver water at pressures ranging from 80 to 150 PSI (pounds per square inch), which is far too high for residential plumbing designed to handle 40–80 PSI.

Excessive water pressure is a silent destroyer. It stresses pipes, joints, and appliances, leading to:

• Premature failure of water heaters and washing machines.
• Constant dripping from faucets even when new washers are installed.
• Noisy pipes (water hammer) when valves close quickly.
• Increased water consumption and higher utility bills.

A PRV automatically reduces the incoming high pressure to a safe, preset level (typically around 50–60 PSI). Most PRVs have an adjustment screw on top. If you suspect your pressure is too high, you can buy a simple gauge at a hardware store, attach it to an outdoor spigot, and read the static pressure. If it exceeds 80 PSI, adjusting or replacing your PRV is an urgent necessity.

Step-by-Step: How to Locate and Test Your Main Water Valve

Knowing the theory is good, but practical application saves homes. Follow this concrete guide to verify your main water control system.

Tools Needed:

• Flashlight
• Bucket (2-gallon capacity)
• Towels
• Adjustable wrench (optional, for stiff handles)

Procedure:

1. Locate the Entry Point: Go to your basement, garage, or crawlspace. Look for the largest pipe entering the house from the ground or foundation wall. You should see a large valve within 3 to 5 feet of where the pipe enters.
2. Identify the Type: Determine if it is a wheel (gate) or lever (ball). If it is a wheel, ensure it turns freely. If it is a lever, note its current position (parallel means open).
3. Prepare for Testing: Open a faucet on the lowest level of your home (e.g., a basement sink or an outdoor hose bib). Have your bucket ready under the faucet.
4. Execute the Shut-Off: Slowly turn the main valve clockwise (if a wheel) or rotate the lever 90 degrees (if a ball) to the closed position.
   • Note: If using a gate valve, do not force it if it feels stuck. Apply gentle pressure. If it refuses to budge, call a plumber immediately; forcing it can snap the stem.
5. Verify Flow Cessation: Watch the open faucet. The water flow should slow down and stop completely within 10–15 seconds. Drain the remaining water in the pipes until the stream becomes a drip and then stops.
6. Restore Supply: Turn the main valve back to the open position. Observe the faucet as water returns. Listen for unusual banging noises (water hammer), which might indicate a need for air chambers or arrestors.
7. Check for Leaks: Inspect the main valve itself for any dripping around the stem or packing nut while the water is on. A slight weep here indicates the packing needs tightening or replacement.

Performing this test annually ensures that when a real emergency strikes, your Names Of Valves Going Into Water Supply In House Plumbing knowledge translates into immediate action.

Frequently Asked Questions (FAQ)

1. How often should I exercise my main water shut-off valve?

It is recommended to turn your main water shut-off valve off and on at least once a year. This prevents the internal mechanisms from seizing due to mineral buildup or corrosion, ensuring the valve works smoothly during a genuine emergency.

2. What is the difference between a gate valve and a ball valve?

A gate valve uses a round wheel and a rising gate mechanism, requiring multiple turns to operate; it is common in older homes but prone to failure. A ball valve uses a lever and a rotating ball with a hole through it, requiring only a quarter-turn; it is more reliable, durable, and preferred in modern plumbing.

3. Can I replace my own fixture shut-off valves?

Yes, if you are comfortable with basic DIY tasks. You must first shut off the main water supply, drain the specific line, and then unscrew the old valve. However, if you have soldered copper pipes, you may need a propane torch and flux, in which case hiring a professional is safer to avoid fire hazards or accidental leaks.

4. Why is water coming out of my pressure reducing valve?

If water is dripping from the bell-shaped body of a PRV, it usually indicates that the internal diaphragm has failed or the pressure setting is incorrect. This requires immediate attention, as a failing PRV can allow high city pressure to surge into your home, potentially bursting pipes.

5. Do I need a check valve if I have a backflow preventer?

Often, a backflow preventer contains check valves within its assembly. However, specific local codes vary. In some setups, a separate check valve is installed upstream of the backflow preventer for added security. Always consult your local plumbing code or a licensed professional to ensure compliance.

6. What should I do if my main valve is stuck and won’t turn?

Do not force it with excessive strength or large wrenches, as this can break the valve stem, causing a massive leak. Try applying a penetrating oil (like WD-40 Specialist Penetrant) to the stem and letting it sit for 15 minutes. Gently tap the valve body with a hammer to loosen corrosion. If it still doesn’t move, contact a plumber immediately to replace the valve before an emergency occurs.

Conclusion

Mastering the Names Of Valves Going Into Water Supply In House Plumbing is more than just trivia; it is a fundamental aspect of responsible homeownership. From the robust main shut-off valve that protects your entire structure to the precise angle stops saving you from a flooded bathroom, each component plays a vital role in maintaining a safe and efficient home. By understanding the differences between gate and ball valves, recognizing the importance of check valves and pressure regulators, and performing regular maintenance tests, you safeguard your property against costly water damage.

Don’t wait for a disaster to learn where your valves are. Take a few minutes today to locate them, label them clearly, and share this valuable knowledge with your family members. Share this article on your social media channels to help friends and neighbors become plumbing-prepared too. After all, an informed homeowner is the best defense against the unexpected chaos of a water emergency.
