Water Softener Plumbing: Connections & Operation Guide

Dealing with stubborn soap scum, dry skin, and limescale buildup in your pipes can be incredibly frustrating for any homeowner. You likely know that hard water is the culprit, but understanding exactly how a solution fits into your home’s infrastructure often feels overwhelming. This comprehensive guide provides a clear overview of plumbing connections and operation of residential water softener units, demystifying the process so you can make informed decisions about your home’s water quality. Whether you are planning a DIY installation or simply want to understand what your plumber is doing, we will walk you through every critical step with clarity and expertise.

What Is the Basic Workflow of a Water Softener?

Before diving into pipes and valves, it is essential to understand the core mechanism. A residential water softener does not “filter” water in the traditional sense; instead, it performs an ion exchange process. As hard water enters the unit, it passes through a tank filled with resin beads charged with sodium or potassium ions. These beads attract calcium and magnesium—the minerals responsible for hardness—and swap them for sodium ions.

According to industry standards, this process can remove up to 99% of hardness minerals, significantly extending the lifespan of your appliances. The system operates on a cycle: service (softening), backwash, brine draw, slow rinse, fast rinse, and brine tank refill. Understanding this cycle is crucial because the plumbing connections must support both the continuous flow of softened water to your faucets and the periodic discharge of wastewater during regeneration.

For a deeper scientific understanding of ion exchange mechanisms, you can refer to this detailed resource on Ion Exchange from Wikipedia.

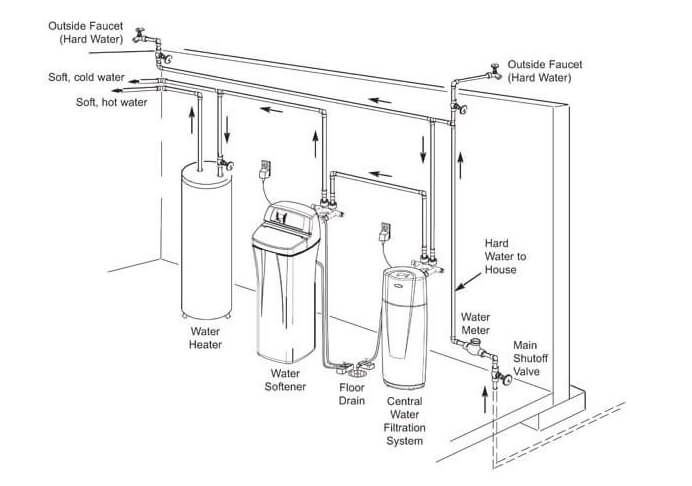

Where Should the Water Softener Be Installed in Your Home?

Location is the first critical decision in the installation process. The ideal spot is typically near the main water entry point, often in a garage, basement, or utility room. This ensures that all water entering the house is treated before reaching any fixture.

When selecting a location, consider the following factors:

• Proximity to Drain: The unit needs to discharge wastewater during the regeneration cycle. It must be within 30 feet of a floor drain, standpipe, or utility sink.
• Power Access: Most modern digital softeners require a standard 110V electrical outlet for the control valve.
• Temperature Control: The unit should be installed in an area where temperatures remain between 40°F and 100°F (4°C – 38°C) to prevent freezing or damage to internal components.
• Bypass Capability: Ensure there is enough space to install a bypass valve assembly, which allows you to shut off the softener for maintenance without cutting water to the entire house.

How Do You Execute the Plumbing Connections Step-by-Step?

Connecting a water softener requires precision to prevent leaks and ensure proper pressure. Below is a detailed, step-by-step tutorial for a standard bypass installation. Always turn off the main water supply before beginning.

Step 1: Prepare the Main Line

Cut the main cold water line where the softener will be inserted. If you are using copper piping, measure and cut a section approximately 24 inches long to accommodate the bypass valve assembly. For PEX tubing, ensure you have enough slack to maneuver the fittings.

Step 2: Install the Bypass Valve Assembly

The bypass valve is the heart of your plumbing setup, consisting of three valves: two isolation valves (inlet and outlet) and one bypass valve.

1. Connect the inlet side of the bypass assembly to the incoming main water line.
2. Connect the outlet side to the pipe leading to the rest of the house.
3. Ensure the arrows on the valve body point in the direction of water flow.
4. Use Teflon tape on all threaded connections to guarantee a watertight seal.

Step 3: Connect the Softener Inlet and Outlet

Most residential units use 3/4-inch or 1-inch NPT (National Pipe Thread) connections.

• Attach a flexible braided stainless steel hose or rigid copper/PEX piping from the bypass inlet port to the “In” port on the softener control valve.
• Attach a second line from the “Out” port on the softener to the bypass outlet port.
• Tip: Keep these lines as short and straight as possible to minimize pressure drop. Avoid sharp 90-degree elbows immediately at the valve entrance; use two 45-degree elbows if a turn is necessary.

Step 4: Install the Drain Line

This is arguably the most critical connection for operational safety. The drain line carries salty wastewater away during regeneration.

• Connect the drain saddle or elbow to the softener’s drain port.
• Run a 1/2-inch or 5/8-inch vinyl tubing to your floor drain or standpipe.
• Crucial Detail: The end of the drain tube must not be submerged in the standing water of the drain. Maintain an air gap of at least 1.5 inches above the flood level rim of the drain to prevent sewage backflow into your clean water system.
• Secure the tube loosely; do not tape it down, as it needs to breathe during the high-flow backwash cycle.

Step 5: Connect the Brine Tank

The brine tank (salt tank) connects to the softener via a thin plastic tube.

• Insert one end of the brine line into the designated port on the control valve.
• Place the other end into the brine well inside the salt tank.
• Ensure the float assembly inside the brine tank moves freely, as this safety mechanism stops salt water from overflowing if something malfunctions.

What Are the Critical Pressure and Flow Requirements?

A common mistake in DIY installations is ignoring flow dynamics. Water softeners create a slight pressure drop, typically between 5 to 15 PSI, depending on the model and flow rate.

If your home has low water pressure (below 40 PSI), you may need to install a booster pump upstream of the softener. Conversely, if pressure exceeds 80 PSI, a pressure reducing valve (PRV) is mandatory to protect the softener’s internal seals.

How Does the Regeneration Cycle Impact Daily Operations?

Understanding when and how your system regenerates is vital for efficient operation. There are two primary types of control valves: Timer-Based and Demand-Initiated Regeneration (DIR).

• Timer-Based: These regenerate on a set schedule (e.g., every Tuesday at 2 AM), regardless of how much water you used. This can lead to wasted water and salt if usage is low.
• Demand-Initiated (Metered): These track exactly how many gallons have passed through the unit. They only regenerate when the resin beads are nearly saturated. DIR systems are highly recommended for their efficiency and cost savings.

During regeneration, which usually lasts 60 to 90 minutes, the system cannot produce soft water. If you have a single-tank system, plan heavy water usage (like running multiple loads of laundry) outside of the scheduled regeneration time. Some advanced homeowners opt for twin-tank systems that allow one tank to soften water while the other regenerates, ensuring an uninterrupted supply.

Frequently Asked Questions (FAQ)

1. Can I install a water softener myself, or do I need a professional plumber?

While a handy homeowner with basic plumbing skills can install a water softener, hiring a professional is often advisable if you have complex piping (like galvanized steel) or limited space. Improper installation can lead to leaks, flooding, or voided warranties. However, if you follow the manufacturer’s instructions precisely and adhere to local codes, a DIY approach is feasible.

2. How often do I need to add salt to the brine tank?

This depends on your water hardness and household size. On average, a family of four will consume one 40-lb bag of salt every month. Check the salt level monthly; it should always be at least half full. Never let the salt level drop below the water line in the brine tank, as this can cause the system to stop softening effectively.

3. Will a water softener make my water taste salty?

Properly functioning water softeners add a negligible amount of sodium. For example, if your water has 10 grains per gallon (gpg) of hardness, the softening process adds roughly 75 mg of sodium per liter. This is significantly less than a slice of white bread or a glass of milk. However, those on strict low-sodium diets may prefer a potassium chloride alternative or a reverse osmosis system for drinking water.

4. What happens if the power goes out?

Most mechanical timer valves will continue to function but may lose their time setting. Digital metered valves usually have a battery backup or non-volatile memory that retains your programming and water usage data. Once power is restored, the unit will resume normal operation automatically. You may just need to reset the clock on older digital models.

5. Can I connect my water softener to a septic system?

Yes, modern water softeners are generally safe for septic systems. Studies have shown that the small amount of salt discharged during regeneration does not harm the beneficial bacteria in a properly functioning septic tank. In fact, the calcium and magnesium removed from the water can sometimes improve soil percolation in the drain field.

6. How do I know if my water softener is working correctly?

The easiest test is the “soap test.” Soft water lathers easily with very little soap, whereas hard water requires more soap and produces less foam. Additionally, check for scale buildup on showerheads over time; a working softener will keep fixtures shiny and free of white crust. You can also purchase simple hard water test strips to verify the output hardness is near zero.

Conclusion

Mastering the overview of plumbing connections and operation of residential water softener systems empowers you to protect your home from the damaging effects of hard water. By carefully selecting the right location, executing precise plumbing connections, and understanding the regeneration cycle, you ensure a lifetime of soft, clean water for your family. Remember, the initial effort in proper installation pays off through extended appliance life, softer skin, and reduced cleaning chores.
