Pentair 1 HP SuperFlo Pump: Installation & Re-Plumbing Guide

Is Your Old Pool Pump Dragging You Down?

Does your current pool pump sound like a jet engine taking off in your backyard? Are you noticing skyrocketing electricity bills while your water circulation feels weaker than ever? You are not alone; millions of US homeowners face this exact frustration every summer. Upgrading to a Pentair 1 Hp Superflo Pump Includes Installation And Re Plumbing services is often the most effective solution to restore peace, lower energy costs, and ensure crystal-clear water. In this comprehensive guide, we will walk you through everything you need to know about making this critical upgrade, from understanding the benefits to executing the physical installation with professional precision.

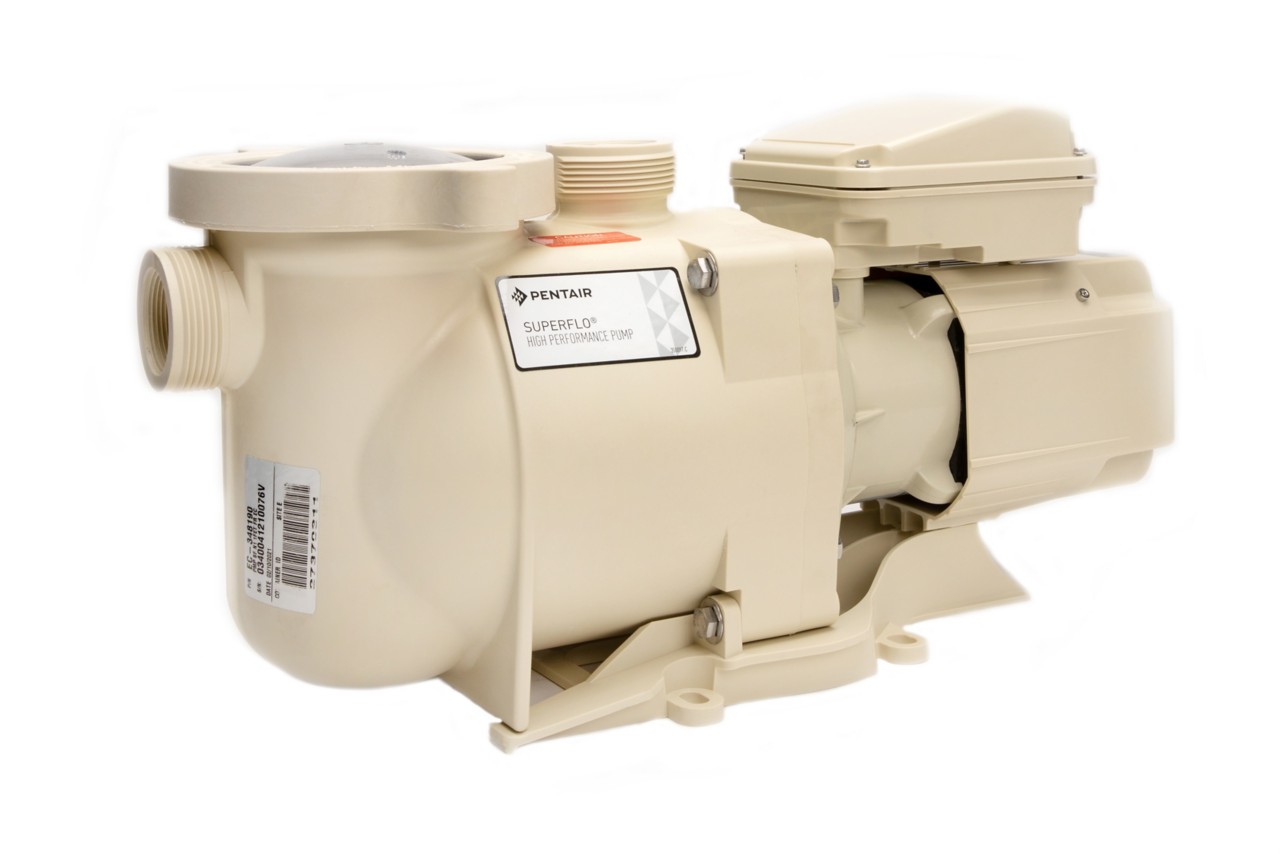

Why Upgrade to the Pentair SuperFlo VS?

Before we dive into the nuts and bolts of installation, it is crucial to understand why this specific pump is the industry gold standard. The Pentair SuperFlo VS (Variable Speed) is not just a replacement part; it is a complete system overhaul for your pool’s hygiene and your wallet.

According to the U.S. Department of Energy, pool pumps are among the largest energy consumers in a typical home, accounting for a significant portion of summer electricity usage. Switching from an old single-speed motor to a variable speed model like the SuperFlo can reduce energy consumption by up to 90%. This isn’t just marketing fluff; it is backed by physics and real-world data.

Key Benefits at a Glance

By choosing the Pentair 1 Hp Superflo Pump Includes Installation And Re Plumbing, you are investing in a system that pays for itself over time through energy savings. Many local utilities in California, Florida, and Texas even offer cash rebates for installing certified variable speed pumps, further shortening your return on investment.

Pre-Installation: Assessing Your Current Plumbing

One of the most common mistakes DIYers make is assuming the new pump will fit perfectly into the old footprint without modification. While the SuperFlo is designed to be a “drop-in” replacement for many models, the reality of re-plumbing often arises due to aged pipes, mismatched union sizes, or code updates.

When Do You Need Re-Plumbing?

You will likely need to modify your plumbing if:

• Your existing PVC pipes are brittle, discolored, or cracked.
• The inlet/outlet positions on your old pump differ significantly from the SuperFlo.
• You want to upgrade from 1.5-inch piping to 2-inch piping for better flow dynamics.
• Your current check valves or unions are corroded and cannot be reused safely.

Pro Tip: Always inspect the structural integrity of your equipment pad before starting. If the concrete is crumbling, now is the time to fix it before mounting a heavy new motor.

For a deeper understanding of fluid dynamics and how pipe diameter affects flow rate, you can refer to general engineering principles found on Wikipedia’s page on Fluid Dynamics. Understanding these basics helps explain why proper re-plumbing is just as important as the pump itself.

Step-by-Step Installation Guide

Installing a Pentair 1 Hp Superflo Pump Includes Installation And Re Plumbing requires careful attention to detail. Follow these steps to ensure a safe and efficient setup. Remember, safety first: always turn off the power at the circuit breaker before touching any electrical components.

Step 1: Preparation and Safety

Gather your tools: a hacksaw or PVC cutter, PVC primer and cement, a torque wrench, Teflon tape, and a multimeter. Ensure the area around the pump is dry and well-ventilated. Disconnect the power supply and verify it is dead using your multimeter.

Step 2: Removing the Old Pump

1. Close the suction and discharge valves to prevent water flooding.
2. Unscrew the union nuts connecting the pump to the plumbing.
3. Disconnect the electrical wiring. Take a photo of the wiring configuration before disconnecting for reference.
4. Lift the old pump out. If it is stuck due to rusted bolts, apply a penetrating oil and let it sit for 15 minutes.

Step 3: Evaluating and Cutting Pipes (Re-Plumbing Phase)

This is where the “re-plumbing” aspect comes into play. Measure the distance between your existing pipe ends and the new SuperFlo ports.

• Cutting: Use a PVC cutter to trim existing pipes. Ensure cuts are straight and burr-free. A rough cut can lead to leaks later.
• Fitting Unions: The SuperFlo typically comes with built-in unions. Dry-fit the new pump to ensure alignment. You may need to add short sections of 2-inch Schedule 40 PVC pipe to bridge gaps.
• Gluing: Apply purple primer to both the pipe end and the inside of the fitting. Wait 10 seconds, then apply clear PVC cement generously. Push the pieces together with a quarter-turn twist and hold for 30 seconds.
  • Critical Detail: Allow the cement to cure for at least 2 hours (or per manufacturer instructions based on temperature) before pressurizing the system. Rushing this step is the #1 cause of leaks.

Step 4: Electrical Connection

The Pentair SuperFlo VS requires specific voltage settings (usually 230V).

1. Open the motor lid.
2. Configure the voltage selector switch inside the motor to match your home’s supply.
3. Connect the ground wire first, followed by the line wires.
4. Secure the conduit connector tightly to prevent moisture ingress.
5. Replace the lid and ensure the O-ring is seated correctly.

Step 5: Priming and Testing

1. Open the valves slowly.
2. Remove the strainer basket lid and fill the pump housing with water until it overflows. This is called “priming.”
3. Replace the lid tightly.
4. Turn the power back on.
5. Set the pump to “Prime” mode or low speed initially. Watch for air bubbles in the basket. Once the water runs clear and steady, increase the speed to your desired filtration setting.

Common Installation Challenges and Solutions

Even experienced handymen encounter hurdles. Here is how to tackle the most frequent issues when handling a Pentair 1 Hp Superflo Pump Includes Installation And Re Plumbing project.

Issue 1: Air Leaks on the Suction Side

If your pump loses prime or makes a gurgling noise, you likely have an air leak.

• Solution: Check all union connections on the suction side. Apply Teflon tape to threaded connections and ensure O-rings are lubricated with silicone pool lube, not petroleum jelly (which degrades rubber).

Issue 2: Vibration and Noise

A properly installed pump should be nearly silent. Excessive vibration usually indicates misalignment.

• Solution: Ensure the pump sits flat on the pad. If the re-plumbing put stress on the pump ports, the motor will vibrate. You may need to cut and re-glue sections to relieve tension. The pump should connect freely without being forced into place.

Issue 3: Error Codes on the Display

The SuperFlo VS has a digital interface that may show error codes like “Over Voltage” or “Dry Run.”

• Solution: Consult the manual immediately. “Dry Run” often means the pump wasn’t primed correctly. “Over Voltage” suggests a wiring issue or unstable power supply.

Cost Analysis: DIY vs. Professional Installation

Many homeowners wonder if they should hire a pro or do it themselves. Let’s break down the economics.

• DIY Approach:
  • Pump Cost: ~$600 – $800
  • Plumbing Supplies: ~$50 – $100
  • Tools (if buying): ~$100
  • Total: ~$750 – $1,000
  • Risk: Potential for leaks or voided warranty if wired incorrectly.
• Professional Service (“Pentair 1 Hp Superflo Pump Includes Installation And Re Plumbing”):
  • Pump + Labor + Materials: ~$1,200 – $1,800
  • Benefit: Warranty protection, guaranteed leak-free work, and often includes disposal of the old unit.

If you are uncomfortable working with electricity or complex PVC layouts, the professional route is highly recommended. However, if you are handy and follow this guide meticulously, DIY can save you several hundred dollars.

FAQ Section

1. How long does it take to install a Pentair SuperFlo pump?

For a skilled DIYer, the entire process including re-plumbing usually takes 3 to 5 hours. This accounts for cutting pipes, gluing, waiting for cement to set, and electrical wiring. Professionals can often complete it in under 2 hours.

2. Do I really need to re-plumb, or can I use my old pipes?

If your existing pipes are in good condition and align perfectly with the new pump’s unions, re-plumbing might not be necessary. However, since the SuperFlo often uses 2-inch ports for optimal flow, adapting older 1.5-inch systems usually requires some degree of re-plumbing to maximize efficiency.

3. Can I install this pump myself, or do I need a licensed electrician?

While the mechanical plumbing can be done by anyone with basic skills, the electrical connection involves high voltage (230V). In many US states, local codes require a licensed electrician to perform the final hardwiring to ensure compliance and safety. Always check your local regulations.

4. What is the expected lifespan of the Pentair SuperFlo 1 HP?

With proper maintenance, such as cleaning the basket regularly and winterizing correctly, the Pentair SuperFlo VS can last 8 to 12 years. The variable speed motor experiences less wear and tear compared to traditional single-speed motors that run at full throttle constantly.

5. Will this pump work with my existing salt chlorine generator?

Yes, the Pentair SuperFlo VS is fully compatible with most salt chlorine generators and automated pool control systems. In fact, running the pump at lower speeds for longer durations often improves the efficiency of salt cells, extending their life as well.

6. How do I program the variable speeds?

The pump features an intuitive digital display. You can set up to three custom speed programs (e.g., Low Speed for filtration, Medium for cleaning, High for vacuuming). Pentair also offers a mobile app interface for newer models, allowing you to control settings from your smartphone.

Conclusion: Transform Your Pool Experience Today

Upgrading your pool system is one of the smartest home improvements you can make. By choosing a solution where the Pentair 1 Hp Superflo Pump Includes Installation And Re Plumbing, you are securing a future of quieter nights, clearer water, and significantly lower utility bills. The initial effort of installation—or the investment in a professional service—pays dividends every single month through energy savings and reduced maintenance headaches.

Don’t let an outdated, noisy pump ruin your summer enjoyment. Take control of your pool’s health today. If you found this guide helpful, please share it on Facebook, Twitter, or LinkedIn to help other pool owners discover the benefits of upgrading to the Pentair SuperFlo. Have questions about your specific setup? Leave a comment below, and let’s discuss how to get your pool running perfectly!
