PEX Plumbing Plans: The Ultimate 2-Story Home Guide

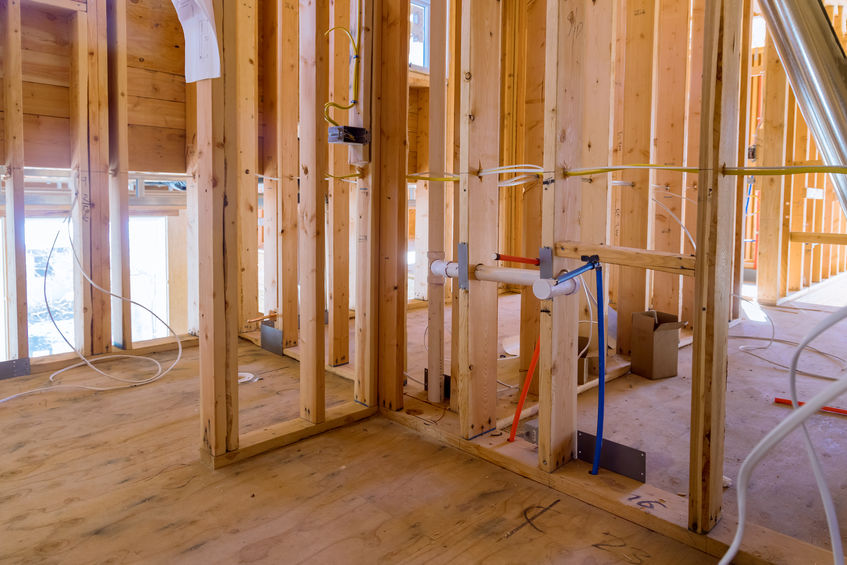

Building or renovating a two-story home is an exciting milestone, but it often comes with a hidden headache: ensuring consistent water pressure on the second floor without bursting pipes in the walls. Many homeowners struggle with complex copper layouts that are prone to leaks and difficult to modify later. This is where modern PEX plumbing plans and how to for 2 story homw (home) projects become a game-changer. By switching to Cross-linked Polyethylene (PEX), you gain flexibility, durability, and a simpler installation process that even confident DIYers can manage with the right guidance. Let’s dive into how you can design a flawless system for your multi-level sanctuary.

Why PEX is the Superior Choice for Two-Story Homes

When planning plumbing for a vertical structure, gravity and pressure dynamics play a massive role. Unlike rigid copper or CPVC, PEX tubing expands slightly when water freezes, reducing the risk of burst pipes—a critical feature for homes in varying climates. According to industry data, PEX installations have grown to dominate over 60% of new residential construction in the United States due to their reliability and cost-effectiveness.

For a two-story home, the primary advantage lies in the manifold system. Traditional “tree” branching methods often result in significant pressure drops when multiple fixtures are used simultaneously (e.g., someone showering upstairs while the dishwasher runs downstairs). A well-designed PEX plan utilizes a home-run manifold system, where a dedicated line runs from a central hub to every single fixture. This ensures that flushing a toilet on the first floor doesn’t cause a cold shock to someone bathing on the second.

By choosing PEX, you aren’t just picking a pipe; you are investing in a system designed for the specific hydraulic challenges of multi-level living.

Designing Your Layout: The Manifold Strategy

The heart of any successful PEX plumbing plans and how to for 2 story homw project is the manifold location. For a two-story house, the ideal placement is typically on the first floor, centrally located near the water heater and main water entry point. However, some advanced designs utilize a secondary manifold on the second floor fed by a large trunk line from below.

Calculating Pipe Sizes

Getting the diameter right is crucial for maintaining flow rate. If your pipes are too narrow, the shower on the second floor will feel like a trickle. If they are too wide, you waste money and increase heat loss.

• Main Supply Line (Street to Manifold): Usually ¾ inch or 1 inch, depending on municipal pressure and total fixture count.
• Trunk Lines (Manifold to Floor): Use ¾ inch PEX for the main feed going up to the second floor.
• Fixture Lines (Manifold to Tap): Use ½ inch PEX for individual runs to sinks, toilets, and showers.

Pro Tip: Always measure the distance from your manifold to the furthest fixture. If the run exceeds 100 feet, consider upsizing the trunk line to ¾ inch to mitigate friction loss, even for individual branches.

Mapping the Zones

Divide your home into logical zones.

1. Zone A (First Floor): Kitchen, guest bath, laundry, outdoor spigot.
2. Zone B (Second Floor): Master bath, secondary bedrooms’ baths, linen closet sink.

Create a visual map before buying materials. Mark every elbow, tee, and valve. Remember, with a home-run system, you need one continuous piece of PEX from the manifold to the fixture—no underground joints behind walls. This drastically reduces leak points. For more technical details on fluid dynamics in residential piping, you can refer to general engineering principles found on Wikipedia.

Step-by-Step Installation Guide for Two Stories

Installing PEX in a two-story home requires careful planning regarding vertical chases (the pathways pipes travel between floors). Follow this concrete, step-by-step tutorial to ensure a professional result.

Step 1: Gather Tools and Materials

Before cutting a single foot of pipe, ensure you have:

• PEX tubing (Red for hot, Blue for cold, or white/clear with tags).
• Expansion PEX tool (highly recommended for tighter turns) or Crimp tool.
• Manifold kit with shut-off valves for each line.
• Pipe hangers/clips (every 32 inches horizontally, every 6–8 feet vertically).
• Drill with long auger bits (for drilling through top plates).
• Stud shoes (metal plates to protect pipes from drywall screws).

Step 2: Install the Manifold

Mount the manifold securely to a wall in your utility area or basement. Ensure it is level. Connect the main water supply to the manifold inlet using a ¾-inch adapter. Install a master shut-off valve here for easy emergency control.

Step 3: Create Vertical Chases

To get water to the second story, you must drill through the top plate of the first-floor walls and the bottom plate of the second-floor walls.

• Locate the stud bay where pipes will run.
• Drill a hole centered in the top plate, approximately 2.5 inches in diameter to allow easy passage for ¾-inch PEX with insulation.
• Safety Note: Never drill within 1.25 inches of the edge of a stud without installing a steel stud shoe.

Step 4: Run the Trunk Lines

Feed the ¾-inch PEX lines up through the chase to the second floor.

• Do not pull tightly; leave a slight slack loop at the top and bottom to accommodate building settlement and thermal expansion.
• Secure the pipe with hangers every 6 feet in the vertical shaft.
• If running a secondary manifold upstairs, mount it now and connect the trunk lines. If running directly from the downstairs manifold, proceed to branch out.

Step 5: Connect Individual Fixtures

Run ½-inch PEX from the manifold (or secondary hub) to each fixture.

• Measure the length carefully. Cut the PEX using a dedicated cutter for a square edge.
• Slide the crimp ring or expansion collar onto the pipe.
• Insert the fitting fully until it bottoms out.
• Compress the ring with your tool. Wait for the indicator gauge to pass (if using a Go/No-Go gauge).
• Crucial Detail: When connecting to a toilet or sink, leave about 18 to 24 inches of coiled PEX behind the wall access point. This allows for future adjustments if fixtures are replaced.

Step 6: Pressure Testing

Before closing up any walls, you must test the system.

1. Close all fixture valves at the manifold.
2. Attach a pressure gauge to the system test port.
3. Fill the system with water slowly to remove air pockets.
4. Pressurize the system to 80 PSI (or 1.5 times your working pressure).
5. Wait 24 hours. If the pressure drops more than 5 PSI, you have a leak. Check every connection.

Common Mistakes to Avoid in Multi-Level PEX Projects

Even experienced DIYers can stumble when dealing with vertical plumbing. Here are the most frequent errors observed in PEX plumbing plans and how to for 2 story homw implementations:

• Ignoring Thermal Expansion: PEX expands and contracts with temperature changes. In long vertical runs between floors, failing to include expansion loops or offsets can cause the pipe to bow against studs, creating noise (“water hammer”) or eventual failure.
• Oversized Manifolds: Buying a 12-port manifold for a small bathroom wastes space and money. Count your fixtures exactly.
• UV Exposure: PEX degrades rapidly under sunlight. Never store PEX rolls outside or run them through attics with skylights without UV-resistant insulation sleeves.
• Sharp Bends: While PEX is flexible, bending it tighter than its minimum radius (usually 6 times the tube diameter) restricts flow and weakens the structural integrity. Use 90-degree elbow fittings for tight corners instead of forcing the bend.

FAQ: Everything You Need to Know

1. Can I mix PEX brands and fittings?

Generally, no. While the tubing dimensions are standardized (CTS – Copper Tube Size), the fitting systems (crimp, clamp, expansion) vary by manufacturer. Mixing a Uponor expansion fitting with a SharkBite crimp ring can lead to catastrophic leaks. Stick to one ecosystem for your entire PEX plumbing plans and how to for 2 story homw project.

2. How do I maintain water pressure on the second floor?

Pressure loss is usually due to friction in long pipes or undersized trunks. Using a dedicated ¾-inch line from the manifold to the second-floor distribution point, combined with a home-run layout, virtually eliminates pressure drops. If your municipal supply is naturally low (below 40 PSI), you may need to install a booster pump at the main entry.

3. Is PEX safe for drinking water?

Yes. Modern PEX tubing meets strict NSF/ANSI 61 standards for potable water safety. It does not corrode like copper, meaning no copper ions leach into your water, and it resists scale buildup better than rigid pipes.

4. What is the lifespan of a PEX plumbing system?

When installed correctly and protected from UV light, PEX systems are rated to last 50+ years. Many manufacturers offer 25-year warranties, but real-world data suggests they often outlast the homeowners themselves.

5. Do I need a permit to install PEX myself?

In most US jurisdictions, yes. Plumbing codes (like IPC or UPC) require permits and inspections for new installations or major renovations. Always check with your local building department before starting. They will want to see your PEX plumbing plans and perform a pressure test inspection.

6. Can PEX be used for both hot and cold water?

Absolutely. PEX is rated for temperatures up to 200°F (93°C) at specific pressures. Just remember the color-coding convention: Red for hot, Blue for cold. This helps future plumbers identify lines quickly inside the walls.

Conclusion

Transitioning to a modern piping system is one of the smartest investments you can make for a two-story home. By implementing robust PEX plumbing plans and how to for 2 story homw strategies, you ensure consistent water pressure, reduce the risk of leaks, and simplify future maintenance. The manifold system approach transforms chaotic plumbing into an organized, efficient network that serves your family reliably for decades.

Whether you are a seasoned contractor or a motivated homeowner, the flexibility and durability of PEX make it the undisputed champion of residential plumbing. Don’t let old-school copper limitations hold your dream home back. Take control of your water system today!
