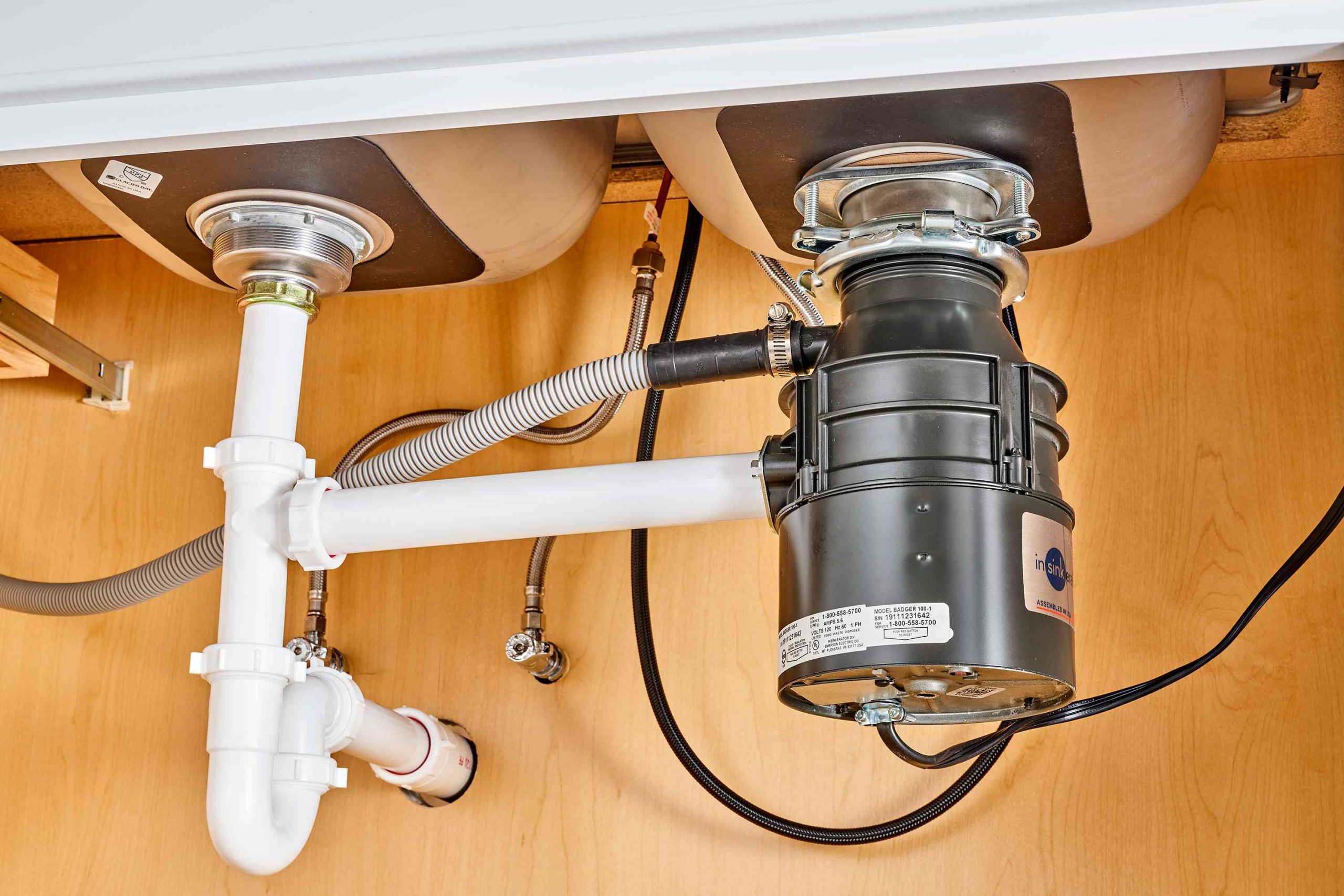

Photos of How to Plumb a Disposal With Single Sink Guide

Are you staring at your new garbage disposal unit, feeling overwhelmed by the tangle of pipes under your single-basin sink? You are not alone; many homeowners hesitate to tackle this project without seeing exactly how the pieces fit together. Finding accurate photos of how to plumb a disposal with single sink setups is the missing link between a confusing pile of parts and a fully functional kitchen. In this guide, we will walk you through every connection with clarity, ensuring you feel confident enough to grab your wrench and get the job done right.

Why Visual References Are Critical for Disposal Installation

When it comes to plumbing, reading text instructions is often insufficient. The spatial relationship between the disposal unit, the drain tailpiece, the P-trap, and the wall drain requires a three-dimensional understanding that only images can provide. According to home improvement statistics, nearly 40% of DIY plumbing failures result from incorrect alignment or missed washers, issues that are easily spotted with a proper visual reference.

Without clear photos of how to plumb a disposal with single sink configurations, you risk creating leaks that can damage cabinetry or cause mold growth. A single misplaced beveled washer can lead to a slow drip that goes unnoticed until significant water damage occurs. By relying on detailed visual guides, you align your work with industry best practices, ensuring a secure and long-lasting installation.

For a deeper understanding of standard plumbing codes and safety regulations regarding waste disposal systems, you can refer to authoritative resources like Wikipedia’s entry on Garbage Disposals, which outlines the historical and technical context of these units.

Essential Tools and Parts Checklist

Before diving into the installation, gathering the right tools is half the battle. Missing a specific wrench or a crucial gasket can halt your progress and lead to frustration. Here is what you need to have ready on your workbench:

• Adjustable Wrench or Basin Wrench: Essential for tightening mounting assemblies in tight spaces.
• Screwdriver Set: Both flathead and Phillips heads for securing electrical connections and mounting rings.
• Plumber’s Putty or Silicone Caulk: To create a watertight seal around the sink flange.
• PVC Pipe and Fittings: Typically 1-1/2 inch diameter for the tailpiece and P-trap.
• Hacksaw or PVC Cutter: For trimming pipes to the exact length required.
• Bucket and Towels: To catch residual water when removing old pipes.
• Voltage Tester: To ensure power is off before handling electrical wiring.

Comparison: Traditional vs. Quick-Connect Mounting Systems

Choosing the right mounting system can significantly alter the complexity of your project. Most modern residential units now feature quick-connect systems, which simplify the process depicted in photos of how to plumb a disposal with single sink tutorials.

Step-by-Step: Installing the Mounting Assembly

The foundation of a leak-free disposal is the mounting assembly attached directly to the sink. If this step is done incorrectly, no amount of pipe adjustment will stop water from leaking onto your floor.

1. Prepare the Sink Hole: Clean the area around the drain hole thoroughly. Remove any old putty or debris to ensure a smooth surface.
2. Apply Plumber’s Putty: Roll a rope of plumber’s putty about the thickness of a pencil and press it firmly around the underside of the new sink flange. Alternatively, use silicone caulk if recommended by the manufacturer.
3. Insert the Flange: Push the flange up through the drain hole from the top of the sink. Ensure it sits evenly.
4. Secure from Below: From under the sink, slide the fiber gasket, followed by the mounting ring, onto the threads of the flange. Tighten the mounting bolts evenly in a star pattern to prevent tilting.
5. Final Tightening: Use a screwdriver inserted into the crossbars of the mounting assembly to twist and lock the unit into place. Wipe away any excess putty that squeezes out from the top.

Pro Tip: When reviewing photos of how to plumb a disposal with single sink setups, notice how the flange sits flush with the sink basin. Any gap here is a future leak point.

Connecting the Disposal Unit to the Drain

Once the mounting assembly is secure, hanging the disposal unit is the next critical phase. This step varies slightly depending on whether you have a continuous feed or batch feed model, but the mechanical connection remains similar.

• Align the Unit: Lift the disposal unit and align the mounting lugs with the ramps on the mounting assembly.
• Twist and Lock: Rotate the lower mounting ring clockwise until you hear a solid “click” or feel the unit lock securely. Most units require about a quarter-turn.
• Support the Weight: Never let the weight of the disposal hang solely on the plastic threads during installation. Use a jack stand or have a helper hold it while you secure the locking ring.
• Check Alignment: Ensure the discharge outlet (where the water exits) is pointing directly toward your P-trap location. Misalignment here forces you to use excessive elbows, which increases clog risks.

In professional installations, the angle of the discharge tube is crucial. Data from plumbing associations suggests that maintaining a downward slope of at least 1/4 inch per foot prevents standing water and reduces odor buildup.

Configuring the P-Trap for a Single Sink Setup

This is the section where most DIYers consult photos of how to plumb a disposal with single sink diagrams most frequently. The P-trap is the U-shaped pipe that holds water to prevent sewer gases from entering your home. In a single sink setup, the geometry is straightforward but precise.

The Geometry of the Connection

1. Tailpiece Installation: Attach a straight tailpiece to the bottom of the disposal outlet. You may need to cut this pipe to length. Measure the distance from the disposal outlet to the top of the P-trap arm.
   • Measurement Guideline: Leave approximately 2 inches of overlap for the slip nuts to grip effectively.
2. P-Trap Assembly: Connect the curved P-trap piece to the tailpiece using a slip nut and beveled washer.
   • Critical Detail: Ensure the beveled side of the washer faces toward the nut, not the pipe joint. This creates the compression seal.
3. Wall Drain Connection: Connect the other end of the P-trap to the drain pipe coming out of the wall.
   • Alignment Check: The pipe entering the wall should be slightly lower than the disposal outlet to ensure gravity assists flow.

Common Mistakes to Avoid

• Over-tightening: Plastic threads can crack easily. Hand-tighten plus a quarter turn with a wrench is usually sufficient.
• Missing Washers: It is easy to drop a small white conical washer into the cabinet darkness. Always double-check that every joint has one.
• Incorrect Slope: If the pipe slopes upward toward the wall, water will pool, leading to immediate clogs and bad smells.

When looking at reference images, pay close attention to the direction of the beveled washers. This tiny detail is responsible for 90% of post-installation leaks.

Electrical Safety and Final Testing

Plumbing is only half the equation; the electrical connection must be handled with extreme caution. If you are uncomfortable working with electricity, hire a licensed electrician for this specific step.

1. Power Off: Go to your circuit breaker panel and switch off the circuit powering the kitchen sink. Verify with a voltage tester.
2. Access the Junction Box: Remove the cover plate on the bottom of the disposal unit.
3. Wire Connections: Match the wires: Black to Black (Hot), White to White (Neutral), and Green/Bare Copper to Green (Ground). Use wire nuts to secure them tightly.
4. Secure Cables: Ensure the electrical cable is clamped securely to the unit to prevent strain on the connections.
5. Replace Cover: Screw the junction box cover back on firmly.

The Water Test Protocol

Before running the motor, you must test for leaks statically.

• Step 1: Plug the sink drain with a stopper.
• Step 2: Fill the sink with about 2 liters of water.
• Step 3: Place a dry paper towel under every joint you assembled.
• Step 4: Remove the stopper and let the water rush through the system.
• Step 5: Inspect the paper towels. If they remain dry, proceed to run the disposal with cold water flowing for 30 seconds.

If you detect a leak, tighten the specific joint slightly. Do not overtighten immediately; sometimes re-seating the washer solves the issue better than force.

FAQ Section

What size pipes are standard for a single sink disposal setup?

Most residential kitchen sinks in the US use 1-1/2 inch diameter PVC or ABS pipes for the tailpiece, P-trap, and drain extension. Using the correct size is vital for maintaining proper flow velocity and preventing clogs.

Can I install a disposal if my sink drain is off-center?

Yes, you can. However, an off-center drain may require additional elbow fittings or an extended tailpiece to align the disposal outlet with the P-trap. When searching for photos of how to plumb a disposal with single sink with offset drains, look for diagrams showing “offset tailpieces” or adjustable tube kits.

How do I prevent odors from my new disposal?

Odors usually stem from food buildup in the grind chamber or a dried-out P-trap. Run cold water for 30 seconds after each use. Occasionally, grind ice cubes and citrus peels to clean the blades. Ensure your P-trap always holds water, as this is your primary gas barrier.

Is it necessary to use plumber’s putty, or can I use silicone?

Both are acceptable, but they serve slightly different purposes. Plumber’s putty is traditional and easier to remove later if you replace the sink. Silicone provides a stronger, more flexible bond and is better for granite or composite sinks where staining might be an issue. Always check your disposal manufacturer’s recommendation.

Why is my disposal humming but not spinning?

This usually indicates a jam. Never put your hand inside the unit. Turn off the power immediately. Locate the hexagonal hole on the bottom center of the disposal. Insert the provided Allen wrench (or a standard 1/4 inch hex key) and manually rotate it back and forth to dislodge the obstruction. Once it spins freely, reset the red button on the bottom of the unit and restore power.

Do I need a dedicated circuit for my garbage disposal?

While not always code-mandated for older homes, modern electrical codes often recommend or require a dedicated 15-amp or 20-amp circuit for garbage disposals, especially if a dishwasher shares the line. This prevents tripped breakers when both appliances run simultaneously.

Conclusion

Installing a garbage disposal in a single sink setup is a manageable DIY project when you have the right guidance and visual aids. By following the steps outlined above and referencing accurate photos of how to plumb a disposal with single sink configurations, you can save money on plumber fees and gain valuable home maintenance skills. Remember, the key to success lies in the details: proper washer orientation, correct pipe slope, and rigorous leak testing.
