Is your kitchen renovation stalling because the plumbing diagram looks like a tangled mess of pipes? You are not alone; many homeowners feel overwhelmed when facing the complexity of connecting a dual-basin sink with a garbage disposal unit. Understanding the Picbof typical kitchen sink plumbing with double sink and disposal is the first step toward a leak-free, efficient, and fully functional kitchen that meets modern US building codes. In this guide, we will demystify the process, offering you a clear, step-by-step roadmap to tackle this project with confidence.

Understanding the Anatomy of a Double Sink System

Before picking up a wrench, it is crucial to visualize how water flows through a double-basin system. Unlike a single sink, a double setup requires a specific configuration to ensure both basins drain correctly while integrating the garbage disposal without causing backups.

The core of this system relies on gravity and proper slope. Water from the primary basin (usually the one with the disposal) flows directly into the grinding chamber. Water from the secondary basin travels through a tailpiece and connects via a crossover pipe to the main drain line. If this balance is off, you risk standing water in one bowl or unpleasant gurgling sounds.

According to general plumbing principles documented by industry standards, the trap arm must maintain a consistent downward slope of 1/4 inch per foot to prevent siphoning and ensure smooth waste removal. Failure to adhere to these angles is the number one cause of slow drains in newly installed kitchens.

Key Components You Need

To replicate a professional Picbof typical kitchen sink plumbing with double sink and disposal, ensure you have the following high-quality components:

• Dual Outlet Drain Body: Specifically designed for disposal integration.
• P-Trap Assembly: Usually 1-1/2 inch diameter for kitchen sinks.
• Dishwasher Knockout Plug: Essential if connecting a dishwasher to the disposal.
• Plumber’s Putty or Silicone: For creating watertight seals around the strainer baskets.
• Pipe Wrenches and Basin Wrench: Specialized tools for tight spaces under the sink.

How Do You Connect a Garbage Disposal to a Double Sink?

One of the most common questions homeowners ask is how to integrate the disposal without compromising the second basin’s drainage. The secret lies in the baffle tee and the crossover connection.

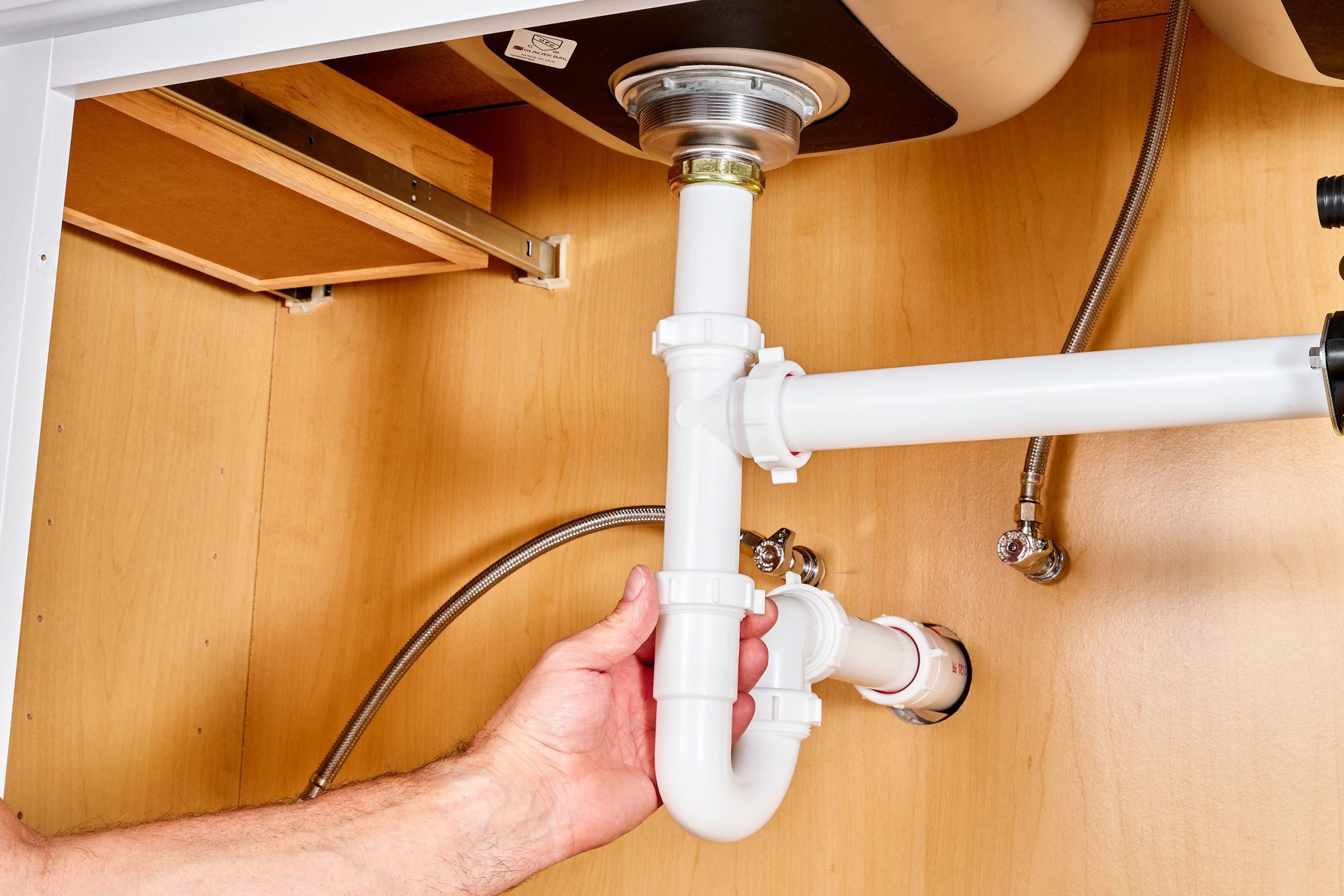

In a standard US residential setup, the garbage disposal is mounted directly under the left or right basin (depending on your cabinet layout and electrical outlet location). The other basin utilizes a standard strainer drain. These two separate drain lines meet at a specialized fitting often called a “continuous waste” kit.

Step-by-Step Connection Process

1. Mount the Disposal: Secure the disposal unit to the sink flange using the provided mounting assembly. Ensure it is tight enough to prevent vibration but not so tight that it cracks the porcelain.
2. Install the Second Strainer: Apply a rope of plumber’s putty around the rim of the second basin’s drain hole. Insert the strainer body and tighten the locknut from below.
3. Attach Tailpieces: Connect a straight tailpiece to the bottom of the disposal and a 90-degree bent tailpiece to the second strainer.
4. The Crossover Link: Use a horizontal pipe (usually 1-1/2 inch PVC or chrome-plated brass) to connect the outlet of the second strainer to the inlet side of the disposal or the baffle tee immediately following it.
5. Seal Connections: Always use slip-joint washers (beveled side facing the nut) to ensure a leak-proof seal without over-tightening.

Pro Tip: If your model requires it, remember to remove the knockout plug inside the disposal’s dishwasher inlet before connecting your dishwasher hose. Skipping this step is a frequent beginner error that leads to immediate flooding.

What Are the Critical Slope Requirements for Drain Pipes?

Gravity is your only pump in a standard sink system. Therefore, the angle of your pipes is non-negotiable. If the pipe is too flat, debris settles and causes clogs. If it is too steep, water rushes away faster than solid waste, leaving solids behind to dry and harden.

For the Picbof typical kitchen sink plumbing with double sink and disposal, the ideal gradient is precise. The Uniform Plumbing Code (UPC), widely adopted across the United States, mandates specific slopes for different pipe diameters.

When measuring your setup:

• Use a level with a slope vial or a digital angle finder.
• Measure the drop over a 4-foot run; you should see exactly a 1-inch drop from the trap weir to the wall entrance.
• Ensure the P-trap itself is level; an uneven trap can create air pockets that hinder flow.

For more detailed regulations regarding residential plumbing codes, you can refer to the comprehensive guidelines available on Wikipedia.org, which outlines the historical and technical evolution of the UPC and IPC standards used in the US.

Troubleshooting Common Leaks and Clogs

Even with a perfect installation, issues can arise. Being able to diagnose them quickly saves time and money. Here are the most frequent problems associated with double sink setups and how to fix them.

The “Gurgling” Sound

If you hear gurgling when the disposal runs or the second basin drains, you likely have a venting issue or a partial blockage in the P-trap.

• Solution: Check the P-trap for debris. If clear, the issue may be further down the line or related to the home’s main vent stack. Pouring 2 liters of hot water (temperature 45–50°C) down the drain can sometimes dissolve minor grease buildups causing the restriction.

Leaks at the Slip Joints

Water dripping from the white plastic nuts indicates a loose connection or a misplaced washer.

• Solution: Turn off the water, disassemble the joint, and check the rubber gasket. Ensure the beveled edge faces the direction of the water flow (towards the pipe end). Re-tighten by hand, then give it a quarter-turn with pliers. Do not overtighten, as this deforms the gasket.

Disposal Won’t Start

If the unit hums but doesn’t grind, it is jammed.

• Solution: Never put your hand inside. Locate the hexagonal hole on the bottom center of the disposal unit. Insert the provided Allen wrench and manually rotate the motor back and forth to dislodge the obstruction. Reset the red button on the bottom of the unit after clearing the jam.

Comparison: PVC vs. Chrome-Plated Brass Pipes

When assembling your Picbof typical kitchen sink plumbing with double sink and disposal, you have a choice of materials. Each has distinct advantages depending on your budget and aesthetic preferences.

PVC (Polyvinyl Chloride)

• Pros: Highly resistant to chemical corrosion, inexpensive, easy to cut and fit, and less prone to leaking due to thermal expansion.
• Cons: Not visually appealing if exposed; can become brittle over decades of extreme temperature fluctuations.
• Best For: Hidden installations inside cabinets where aesthetics do not matter.

Chrome-Plated Brass

• Pros: Extremely durable, offers a sleek, professional look if visible, and handles high heat exceptionally well.
• Cons: Significantly more expensive; requires more skill to install properly; susceptible to corrosion if the chrome plating chips.
• Best For: Open-concept kitchens or luxury renovations where the under-sink area might be seen.

Verdict: For most DIY homeowners focusing on functionality and ease of installation, PVC is the recommended choice. It provides a robust seal and forgives minor measurement errors better than rigid metal pipes.

FAQ Section

1. Can I install a garbage disposal on both sides of a double sink?

Technically, yes, but it is rarely necessary and often violates local plumbing codes due to space constraints and venting requirements. Standard practice involves installing one disposal unit on the primary basin and using a baffle tee to allow the secondary basin to drain into the same disposal outlet. This setup is sufficient for 99% of household needs.

2. Do I need a special circuit for my garbage disposal?

Yes. In the US, the National Electrical Code (NEC) typically requires a dedicated 15-amp or 20-amp circuit for the garbage disposal. It should also be GFCI (Ground Fault Circuit Interrupter) protected, especially if the outlet is within 6 feet of the sink edge. Always consult a licensed electrician if you are unsure about your current wiring.

3. Why is water backing up into the second sink when I run the disposal?

This usually indicates a blockage in the crossover pipe or the main drain line after the P-trap. When the disposal pushes water out, if the path forward is blocked, the water seeks the path of least resistance, which is up into the second basin. Check the horizontal crossover pipe first, as food particles often accumulate there.

4. How often should I clean my kitchen sink plumbing?

To maintain optimal flow and odor control, perform a maintenance flush once a month. Run cold water for 30 seconds, turn on the disposal, and gradually introduce a mixture of ice cubes and rock salt to sharpen the blades and scour the chamber. Follow this with 2 liters of water mixed with mild dish soap.

5. Is it okay to use chemical drain cleaners with a garbage disposal?

Generally, no. Harsh chemical drain cleaners can corrode the metal components of the disposal and damage the rubber gaskets in your Picbof typical kitchen sink plumbing with double sink and disposal system. Mechanical cleaning (using a plumber’s snake) or enzymatic cleaners are much safer alternatives that preserve the longevity of your unit.

6. What size P-trap do I need for a double kitchen sink?

The standard size for kitchen sink P-traps in the United States is 1-1/2 inches. While bathroom sinks often use 1-1/4 inch traps, kitchen drains handle larger volumes of water and solid food waste, necessitating the larger diameter to prevent frequent clogging.

Conclusion

Mastering the Picbof typical kitchen sink plumbing with double sink and disposal is entirely achievable with the right knowledge, tools, and attention to detail. By understanding the importance of proper slopes, selecting the right materials, and following a systematic installation process, you can create a kitchen drainage system that is both efficient and durable. Remember, the goal is not just to stop leaks, but to create a seamless workflow in your cooking space that stands the test of time.
