Why You Need a Visual Guide for Installing a Wall-Mounted Sink

Have you ever stared at a blank bathroom wall, wondering exactly how a heavy ceramic sink stays securely attached without visible legs? You are not alone. Many homeowners feel overwhelmed by the complexity of mounting a sink directly to studs, fearing water damage or structural failure if done incorrectly. Finding a clear picture of a plumber putting a sink on a wall is often the first step toward understanding the precise mechanics, bracket placement, and plumbing connections required for a successful DIY project or for verifying your contractor’s work.

In this comprehensive guide, we will break down the entire process with the clarity of a high-resolution photograph, ensuring you understand every bolt, pipe, and sealant line involved in this critical home improvement task.

What Does a Professional Installation Actually Look Like?

When you search for a picture of a plumber putting a sink on a wall, you aren’t just looking for aesthetics; you are looking for proof of competence. A professional installation differs significantly from an amateur attempt in terms of hidden support structures and precision leveling.

The Hidden Framework: Studs and Brackets

The most crucial element in any wall-mounted sink photo is what you cannot see immediately: the wooden studs behind the drywall. According to general construction standards, a wall-mounted sink must be anchored directly into at least two wooden studs to support weights exceeding 250 pounds when filled with water and under use.

A professional plumber will never rely solely on drywall anchors. In a typical installation image, you would observe:

• Heavy-Duty Metal Brackets: These are L-shaped or custom-fabricated steel supports bolted directly into the center of the studs.
• Precise Leveling: Before the sink even touches the bracket, a laser level is used to ensure the mounting points are perfectly horizontal. Even a 2-degree tilt can cause water to pool unevenly or drain poorly.
• Reinforcement Blocks: In new constructions, plumbers often install “blocking” (horizontal pieces of wood) between studs specifically where the sink will hang, providing a broader surface area for attachment.

Expert Insight: “The margin for error in wall-mounted fixtures is zero. Unlike pedestal sinks, there is no floor support to catch a mistake. The wall carries 100% of the dynamic load,” says industry data from major housing authorities. For more details on standard building codes regarding fixture loads, you can refer to resources like Wikipedia’s entry on Plumbing.

The Plumbing Rough-In

Another key feature in a professional photo is the positioning of the water supply lines and the drain.

• Supply Lines: Hot and cold water lines usually emerge from the wall exactly 4 inches apart, centered beneath the faucet holes of the sink.
• The P-Trap: The drain pipe must align perfectly with the sink’s outlet. In a wall-mount scenario, the P-trap is often exposed, making neatness and symmetry vital for the visual appeal of the final product.

Step-by-Step: How a Plumber Mounts a Sink to the Wall

If you were to freeze-frame a video of a professional at work, here is the exact sequence of actions you would see. This step-by-step breakdown mimics the detail found in the best instructional images.

Step 1: Marking and Stud Detection

The plumber begins by using an electronic stud finder to locate the vertical framing members. They mark the center of each stud with a pencil.

• Measurement: Determine the desired height. The standard comfortable height for a bathroom sink rim is between 31 to 34 inches from the finished floor.
• Template Usage: Most sinks come with a paper template. The plumber tapes this to the wall, aligns it with the studs, and marks the drilling points.

Step 2: Installing the Support Bracket

This is the most physically demanding part of the job visible in any picture of a plumber putting a sink on a wall.

1. Hold the metal mounting bracket against the wall, aligning the holes with the stud marks.
2. Drill pilot holes slightly smaller than the lag screws to prevent wood splitting.
3. Drive 3/8-inch diameter lag screws (minimum 3 inches long) through the bracket and deep into the studs.
4. Torque Check: Use a torque wrench to ensure tightness, typically around 40-50 ft-lbs, depending on the screw specification.

Step 3: Preparing the Sink

Before lifting the basin, the plumber pre-installs the faucet and drain assembly on the ground. This is much easier than trying to tighten nuts in the cramped space under a mounted sink.

• Sealant Application: A bead of 100% silicone caulk is applied to the top edge of the bracket or the back rim of the sink (depending on the model) to create a watertight seal against the wall.
• Gasket Placement: Rubber or foam gaskets are placed between the metal bracket and the ceramic sink to prevent cracking and reduce vibration noise.

Step 4: Mounting the Basin

With assistance (as ceramic sinks are heavy and awkward), the plumber lifts the sink onto the bracket.

• Alignment: The sink is slid forward until the faucet holes align with the water supply lines protruding from the wall.
• Securing: From underneath, large wingnuts or hex bolts are threaded onto the bracket rods to clamp the sink tightly against the wall.
• Final Level Check: A spirit level is placed across the basin rim one last time. If it bubbles off-center, the nuts are adjusted incrementally until perfect.

Step 5: Connecting Water and Drain

The final phase involves the intricate piping work.

• Supply Connection: Flexible braided stainless steel hoses are connected to the shut-off valves and the faucet tails. These are tightened by hand and then given a quarter-turn with a wrench—overtightening is a common cause of leaks.

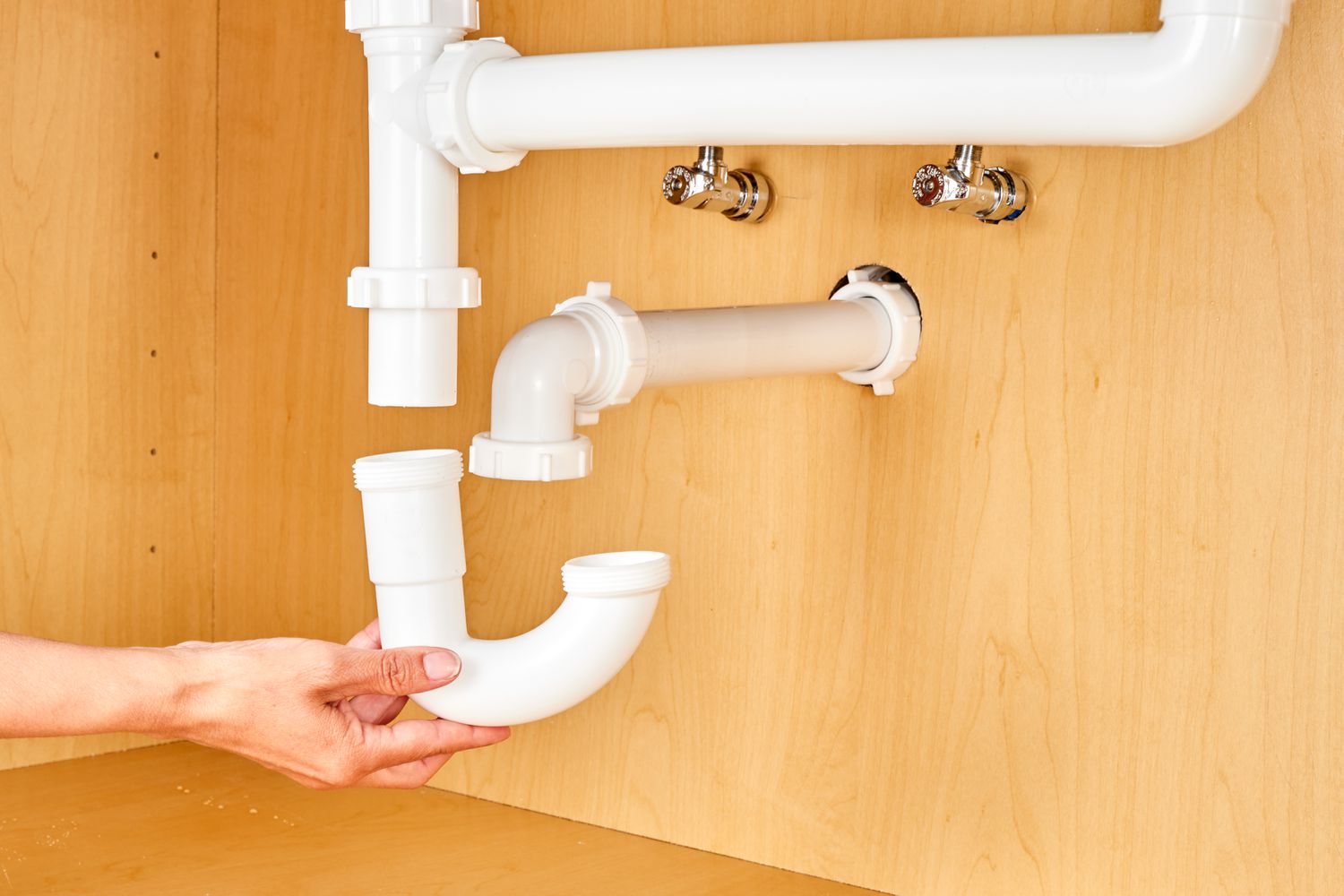

• Drain Assembly: The tailpiece extends from the sink drain into the P-trap. Slip-joint nuts are used here, allowing for slight adjustments.
• Testing: The plumber turns the water on fully and lets it run for 2 minutes, checking every joint for drips. They also fill the basin and release the stopper to test drainage speed and trap integrity.

Common Mistakes Visible in Poor Installation Photos

Not every image you find online represents best practices. Knowing what not to do is just as important as seeing the right way. Here is a comparison of correct vs. incorrect methods often spotted in DIY fails.

The Danger of Ignoring Studs

One of the most alarming “pictures” circulating in plumbing forums shows a sink that has ripped away from the wall, taking a chunk of drywall with it. This almost always happens because the installer used toggle bolts intended for hanging mirrors, not 50-pound basins filled with water. The dynamic force of someone leaning on the sink multiplies the static weight, leading to catastrophic failure.

Tools and Materials Required for the Job

To replicate the scene in a professional picture of a plumber putting a sink on a wall, you need the right toolkit. Attempting this without proper equipment leads to frustration and potential injury.

Essential Tools List

• Stud Finder: Electronic model with deep-scan capability.
• Laser Level: For hands-free horizontal alignment.
• Impact Driver or Drill: High-torque model for driving lag screws.
• Socket Set: Specifically for tightening lag bolts and mounting nuts.
• Basin Wrench: A specialized tool for reaching tight spaces behind the sink to tighten faucet nuts.
• Tube Gun: For applying silicone caulk smoothly.
• Adjustable Wrenches: Two are needed to hold fittings while tightening others.

Material Checklist

• Wall-Mount Sink Bracket Kit: Usually sold with the sink, but verify it is rated for your specific model’s weight.
• Lag Screws: Minimum 3/8″ x 3″ (if not included).
• Silicone Caulk: 100% silicone, mold-resistant, in a color matching your grout or white/clear.
• Flexible Supply Lines: Braided stainless steel, correct length (usually 12-20 inches).
• P-Trap Kit: Chrome or PVC, matching your drain size (typically 1.25 inches).
• Teflon Tape: For sealing threaded connections on the supply lines.

Frequently Asked Questions (FAQ)

1. Can I install a wall-mounted sink on a tile wall without removing the tiles?

Yes, you can. However, you must use a specialized carbide-tipped drill bit to penetrate the tile without cracking it. The critical factor remains hitting the wooden studs behind the tile. If the stud location does not align with your tile pattern, you may need to cut out a small section of tile to install a wooden backing block before re-tiling or using a decorative escutcheon.

2. How much weight can a properly installed wall sink hold?

When anchored correctly into two studs with appropriate lag screws and a manufacturer-rated bracket, a wall-mounted sink can typically support over 300 pounds (136 kg). This accounts for the sink’s weight, the water volume, and the downward pressure of a person leaning or sitting on the edge (though sitting is not recommended).

3. What is the ideal height for mounting a bathroom sink?

The standard comfort height ranges from 31 to 34 inches (79–86 cm) from the finished floor to the top rim of the sink. For wheelchair accessibility (ADA compliance), the rim must be no higher than 34 inches, with adequate knee clearance underneath. Always consider the height of the primary users in your household.

4. Do I need to shut off the main water supply to install a sink?

No, you generally do not need to shut off the main house supply. Most bathrooms have local shut-off valves located on the water lines coming out of the wall or under the existing vanity. If these valves are old and corroded, it is wise to turn off the main supply temporarily to replace the local valves before connecting the new sink.

5. Why is my new wall sink wobbling slightly?

A wobble indicates that the sink is not flush against the wall or the brackets are not tightened evenly. This could be due to an uneven wall surface or a gap between the bracket and the studs. Do not ignore this. Tighten the mounting nuts gradually and check with a level. If the wall itself is uneven, you may need to shim the bracket with plastic shims to create a solid, flat plane before final tightening.

6. Is it better to hire a pro or do it myself?

If you are comfortable locating studs, drilling into masonry or tile, and soldering or compressing plumbing fittings, DIY is feasible. However, if your walls are plaster (which is brittle) or if you lack the specific tools like a basin wrench, hiring a professional ensures the picture of a plumber putting a sink on a wall in your home ends with a secure, leak-free result rather than a costly water damage repair.

Conclusion

Finding the right picture of a plumber putting a sink on a wall is more than just a visual reference; it is a roadmap to safety, functionality, and aesthetic perfection in your bathroom renovation. By understanding the critical role of stud anchoring, precise leveling, and proper sealing, you can appreciate the skill involved in this trade or confidently tackle the project yourself with the right preparation.

Remember, the beauty of a floating sink lies in its apparent weightlessness, but that illusion is supported by rigorous engineering and strict adherence to installation protocols. Whether you are snapping a photo of your own handiwork or hiring an expert, ensure that the hidden structure is as robust as the visible finish.
