Have you ever stared at a complex set of construction blueprints, feeling completely lost when trying to locate the critical controls for your water system? You are not alone; many homeowners and junior contractors struggle to interpret technical schematics without proper guidance. Understanding exactly what a picture of a shut off valve in a plumbing drawing looks like is the first step toward mastering your home’s infrastructure or executing a flawless renovation project. In this guide, we will demystify these symbols, ensuring you can confidently identify where to turn off the water before disaster strikes.
What Does a Shut Off Valve Symbol Look Like on Blueprints?
When you examine a picture of a shut off valve in a plumbing drawing, you are rarely looking at a photorealistic image. Instead, you are interpreting a standardized graphic symbol designed by engineers to convey specific information quickly. In the United States, the most common representation of a standard gate valve or globe valve (the primary types used for shutting off water) resembles two triangles pointing toward each other, often connected by a line representing the pipe.
However, variations exist depending on the specific type of valve and the drafting standard used by the architect. For instance, a ball valve might be depicted as a circle with a line through it, while a check valve includes an arrow indicating flow direction. According to general engineering standards referenced by organizations like the American Society of Mechanical Engineers (ASME), consistency in these symbols is crucial for safety and clarity across different projects.
It is essential to note that color coding in digital drawings can also provide clues. While black and white prints rely solely on line weight and shape, modern CAD (Computer-Aided Design) files often use blue lines for cold water and red for hot water, with the valve symbol interrupting these lines. Recognizing these visual cues prevents costly mistakes during installation or emergency repairs.
Key Visual Identifiers
To help you spot these valves instantly, look for these distinct features:
- The Bowtie Shape: Two opposing triangles meeting at their points is the universal sign for a generic shut-off valve.
- The Circle Dot: A small circle at the intersection of pipes often indicates a specific valve location in simplified residential plans.
- Label Tags: Professional drawings almost always include a tag next to the symbol, such as “GV” (Gate Valve) or “BV” (Ball Valve), confirming its function.

Why Is Identifying These Valves Critical for Safety?
Misidentifying a valve in a schematic can lead to catastrophic real-world consequences. When a pipe bursts or a fixture leaks, seconds count. If a plumber or homeowner cannot quickly locate the main shut-off based on the picture of a shut off valve in a plumbing drawing, water damage can escalate from a minor cleanup to a structural nightmare within minutes.
Statistics from the Insurance Information Institute indicate that water damage claims are among the most frequent and expensive home insurance issues, with average claims often exceeding $10,000. A significant portion of this damage results from delayed response times due to confusion over valve locations. By mastering the ability to read these drawings, you empower yourself to act immediately, potentially saving thousands of dollars and preventing mold growth.
Furthermore, during renovations, accidentally cutting into a live pressurized line because a valve was misread can cause severe injury. Professional plumbers treat these drawings as sacred maps; ignoring them is akin to driving without a GPS in unfamiliar territory.
The Cost of Confusion
| Scenario | Consequence of Misidentification | Potential Cost Impact |
|---|---|---|
| Burst Pipe Emergency | Delayed shut-off leads to flooding | $5,000 – $50,000+ in damages |
| Renovation Project | Cutting live lines causes injury/damage | Medical bills + Repair costs |
| System Maintenance | Shutting off wrong zone affects entire building | Loss of business/residential utility |
How to Differentiate Between Main and Local Shut-Off Valves
Not all valves are created equal, and your plumbing drawing will reflect this hierarchy. Understanding the difference between a main shut-off and a local (fixture) shut-off is vital for targeted repairs. In a detailed picture of a shut off valve in a plumbing drawing, the main valve is typically located where the water service line enters the building foundation.
Main Shut-Off Valves
These are the “master switches” of your plumbing system. On blueprints, they are often drawn larger or with a specific notation like “MSV” (Main Shut Valve). They control the flow of water to the entire structure. If you need to replace a water heater or fix a major leak in the trunk line, this is the valve you must close.
Local Shut-Off Valves
Local valves serve individual fixtures such as sinks, toilets, and washing machines. In architectural drawings, these appear closer to the endpoint of the pipe runs. They allow you to isolate a single appliance without disrupting water service to the rest of the house. Identifying these on a plan helps in planning remodels where only specific areas need to be drained.

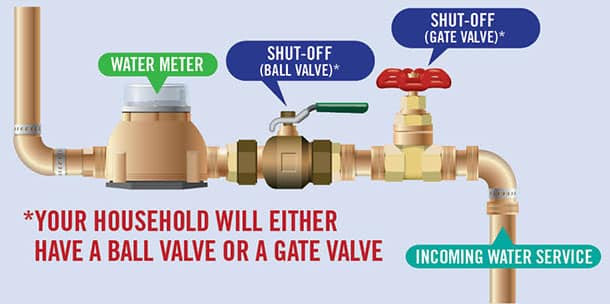

Pro Tip: Always trace the line from the street connection (usually marked with a meter symbol) inward. The first valve you encounter after the meter is almost invariably your main shut-off.
Step-by-Step Guide: Locating the Valve in Your Home Using Drawings
Reading the paper is one thing; finding the physical object is another. Follow this concrete, step-by-step process to bridge the gap between the picture of a shut off valve in a plumbing drawing and reality.
- Acquire the Correct Blueprint: Ensure you have the “As-Built” drawings if available, as original plans may differ from the final construction. Look for the “Plumbing Plan” sheet, usually denoted by a “P” series number (e.g., P-101).
- Identify the Scale and Orientation: Check the scale (commonly 1/4″ = 1′-0″ for residential). Align the drawing with your physical space by identifying fixed landmarks like stairwells, exterior walls, or utility closets.
- Trace the Water Entry Point: Locate the symbol for the water meter or the incoming service line from the municipal main. This is typically found in the basement, crawlspace, or near the garage.
- Pinpoint the Symbol: Look for the bowtie or circle symbol immediately following the entry point. Note the distance from the nearest wall or corner as indicated by dimension lines on the drawing.
- Verify Physically: Go to the estimated location. Use a flashlight to inspect behind access panels or under insulation. The physical valve should match the type indicated in the legend (e.g., a round wheel handle for a gate valve).
- Test the Operation: Once located, gently turn the valve clockwise to ensure it moves freely. Caution: Do not force old valves; if stuck, call a professional.
By following these steps with precision, you transform abstract lines on a page into actionable knowledge. Remember, accuracy is key; measuring twice ensures you don’t cut into drywall unnecessarily.
Common Mistakes When Reading Plumbing Schematics
Even experienced DIY enthusiasts make errors when interpreting a picture of a shut off valve in a plumbing drawing. Being aware of these pitfalls can save you time and frustration.
- Ignoring the Legend: Every drawing has a legend or key. Assuming a symbol means one thing without checking the specific project’s legend is a recipe for error. Some architects use custom symbols.
- Confusing Drain Lines with Supply Lines: Supply lines (pressurized) have valves; drain lines (gravity-fed) generally do not have shut-off valves in the same manner. Mixing these up leads to confusion about where water can actually be stopped.
- Overlooking Updates: Buildings change. A renovation performed ten years ago might have added a new shut-off valve that isn’t on the original 1980s blueprint. Always verify with a visual inspection.
- Scale Misinterpretation: Misreading the scale can lead you to search feet away from the actual location. Always double-check the measurement ratio provided on the sheet.
FAQ Section
1. What is the most common symbol for a shut-off valve in US plumbing drawings?
The most universally recognized symbol is two triangles pointing toward each other, resembling a bowtie, placed on the line representing the pipe. However, always consult the specific drawing’s legend as variations exist for ball valves, gate valves, and globe valves.
2. Can I rely solely on the blueprint to find my water shut-off in an older home?
No, you should not rely solely on blueprints for older homes. Renovations, unpermitted work, and changes over decades often mean the physical layout differs from the original picture of a shut off valve in a plumbing drawing. Use the blueprint as a guide, but verify physically.
3. How do I know if the valve on the drawing is for hot or cold water?
In colored CAD drawings, red lines typically indicate hot water and blue lines indicate cold water. In black-and-white prints, look for labels such as “H” or “C” near the pipe runs, or check the fixture connection points to deduce the line type.
4. What should I do if the symbol on the drawing doesn’t match the physical valve?
This is common in older properties. Prioritize the physical reality. If the drawing shows a gate valve (round handle) but you find a ball valve (lever handle), trust the physical valve for operation. Update your personal records to reflect the current state.
5. Are there digital tools that can help me visualize these drawings better?
Yes, many modern blueprint viewers and BIM (Building Information Modeling) software allow you to toggle layers, zoom in infinitely, and even view 3D renderings of the plumbing system. These tools can make interpreting a picture of a shut off valve in a plumbing drawing significantly easier for non-professionals.
6. Why is it important to distinguish between a stop valve and a check valve?
A stop valve (shut-off) allows you to manually stop water flow, whereas a check valve automatically prevents backflow but cannot be manually closed to stop supply. Confusing them could leave you unable to stop a leak during an emergency.
Conclusion
Mastering the ability to interpret a picture of a shut off valve in a plumbing drawing is more than just a technical skill; it is a crucial component of responsible homeownership and professional craftsmanship. By understanding the symbols, differentiating between valve types, and knowing how to translate 2D plans into 3D reality, you protect your property from devastating water damage and ensure smooth maintenance operations.
Remember, while blueprints provide the roadmap, your vigilance and verification are the keys to success. Don’t wait for a leak to occur before familiarizing yourself with your home’s plumbing layout. Take the time today to locate your main shut-off and understand your drawings.
