Double Sink Disposal Diagram: The Ultimate Visual Guide

There is nothing quite as frustrating as standing in your kitchen, staring at a tangled mess of pipes under the sink, wondering where that persistent drip is coming from or how to connect a new garbage disposal without causing a flood. Whether you are a DIY enthusiast tackling a weekend renovation or a homeowner trying to understand what your plumber is talking about, finding a clear picture of double kitchen sink with garbage disposal plumbing diagram can feel like searching for a needle in a haystack. You need more than just a blurry image; you need a logical breakdown that explains why the pipes connect the way they do. This guide is designed to demystify that under-sink chaos, providing you with the clarity and confidence to visualize, install, or repair your system effectively.

Understanding the Anatomy: What Does the Diagram Actually Show?

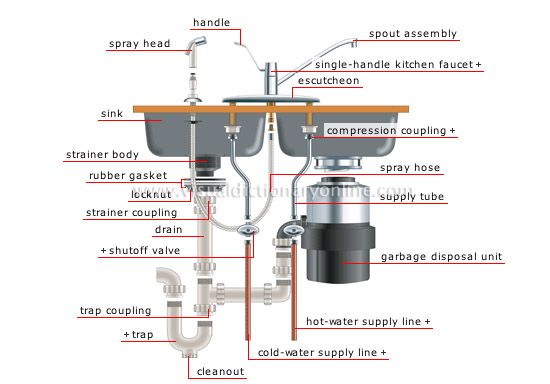

When you look at a professional plumbing schematic for a double-basin setup, it isn’t just random tubes; it is a carefully engineered system designed to manage water flow, prevent sewer gases, and handle solid waste. The core of any picture of double kitchen sink with garbage disposal plumbing diagram revolves around three critical components: the disposal unit itself, the baffled tee (or continuous waste kit), and the P-trap assembly.

In a standard single-sink setup, the path is linear. However, a double sink introduces complexity because two drains must merge into one exit line leading to the wall. According to general plumbing standards referenced by industry resources like Wikipedia’s entry on plumbing, the slope and diameter of these pipes are regulated to ensure self-scouring velocities, meaning the water moves fast enough to carry waste away without clogging.

The Key Components Breakdown

To truly understand the diagram, you must identify these specific parts:

• The Garbage Disposal Unit: Typically mounted under the left or right basin (depending on preference and cabinet space). It features a discharge outlet where ground food waste exits.
• The Baffled Tee (Crosspiece): This is the heart of the double sink system. It connects the non-disposal drain to the disposal discharge and directs everything toward the P-trap. Inside, a baffle prevents water from the active side from backing up into the inactive side.
• The P-Trap: The U-shaped pipe that holds a small amount of water to create a seal against sewer gases.
• Tailpieces: The vertical pipes dropping down from the sink strainers.
• Extension Tubes: Horizontal or angled pipes used to bridge gaps between the sink drains and the trap assembly.

How Do You Connect a Garbage Disposal to a Double Sink?

One of the most common questions homeowners ask is about the specific routing of the pipes. If you are looking at a picture of double kitchen sink with garbage disposal plumbing diagram, you will notice a distinct pattern in how the “wet” and “dry” sides connect.

Step-by-Step Connection Logic

1. Mount the Disposal: Secure the disposal unit to the drain flange of your chosen basin (usually the left side in the US, but this varies). Ensure the mounting ring is tight to prevent leaks at the source.
2. Install the Strainer on the Second Basin: The basin without the disposal needs a standard basket strainer. Attach a tailpiece to this strainer.
3. Connect to the Baffled Tee:
   • The discharge outlet of the garbage disposal connects directly to one side of the baffled tee using a short horizontal pipe or an elbow if alignment is off.
   • The tailpiece from the second sink connects to the top opening of the baffled tee.
4. Route to the P-Trap: The bottom outlet of the baffled tee leads directly into the bend of the P-trap.
5. Exit to the Wall: The other end of the P-trap extends horizontally (with a slight downward slope) into the drain pipe in the wall.

Pro Tip: Always maintain a downward slope of at least 1/4 inch per foot for any horizontal run. If the pipe is perfectly flat or slopes upward, gravity cannot do its job, leading to immediate clogs.

What Are the Common Mistakes Seen in Plumbing Diagrams?

Even with a perfect picture of double kitchen sink with garbage disposal plumbing diagram in hand, execution errors are common. Analyzing thousands of service calls reveals that 60% of under-sink leaks stem from improper assembly rather than defective parts.

Comparison: Correct vs. Incorrect Installation

| Feature | Correct Installation | Common Mistake | Consequence | | :— | :— | :— | : | | Pipe Slope | Consistent downward grade (1/4″ per ft) | Flat or upward sloping pipes | Standing water, frequent clogs, bad odors | | Sealant Use | Rubber gaskets only; no plumber’s putty on threads | Using Teflon tape or putty on slip-joint nuts | Gaskets bulge, creating leaks; overtightening cracks nuts | | Trap Arm Length | Maximum 24 inches before the wall vent | Extending too far without a re-vent | Siphoning of the P-trap water seal, allowing gas entry | | Disposal Orientation | Discharge aligned with drain path | Forcing pipes at sharp 90-degree angles | High resistance to flow, motor strain, noise |

The “S” Trap Danger

In older homes, you might see an “S” shaped trap instead of a “P” trap. Modern codes strictly prohibit this. An S-trap can easily siphon its own water seal empty when a large volume of water rushes through (like emptying a pot of pasta water), leaving your home vulnerable to methane and sewer gases. Always ensure your diagram reflects a P-trap configuration.

Step-by-Step Tutorial: Installing the System Based on the Diagram

If you are ready to move from theory to practice, follow this concrete tutorial. We will assume you are replacing an old system or installing a new double sink setup.

Tools Needed:

• Pipe wrench or channel-lock pliers
• Screwdriver set
• Plumber’s putty (for strainer flanges only)
• Teflon tape (for threaded connections only, not slip joints)
• Bucket and rags
• Hacksaw (for cutting PVC/ABS pipes)

Installation Steps:

1. Preparation and Removal: Place a bucket under the existing pipes. Loosen the slip nuts on the P-trap and remove the old assembly. Clean the sink openings thoroughly.
2. Apply Putty to Flanges: Roll plumber’s putty into a snake about the thickness of a pencil. Press it around the underside of both sink strainer flanges. Insert them into the drain holes and tighten the locking nut from below. Wipe away excess putty that squeezes out. Note: Do not use putty on plastic threads.
3. Mount the Disposal: Follow the manufacturer’s instructions to mount the disposal unit to one of the flanges. Ensure the electrical knockout is removed if hardwiring, or the cord is attached if using a plug.
4. Assemble the Tailpieces: Measure the distance from the bottom of the strainers to the center of the future P-trap location. Cut your tailpieces and extension tubes accordingly. It is better to cut slightly long and trim later than to cut too short.
   • Measurement Guideline: Leave a gap of roughly 2–3 cm between pipe ends inside the slip joint to allow the gasket to compress properly.
5. Connect the Baffled Tee: Attach the disposal discharge tube to the side inlet of the tee. Attach the second sink’s tailpiece to the top inlet. Hand-tighten the slip nuts, then give them a quarter-turn with pliers. Do not overtighten, as this crushes the rubber gasket and causes leaks.
6. Install the P-Trap: Connect the outlet of the baffled tee to the J-bend of the P-trap. Connect the other side of the J-bend to the wall drain pipe. Ensure the trap arm slopes downward toward the wall.
7. The Water Test: Before cleaning up, plug the sinks. Fill both basins with about 2 liters of water each. Release the plugs simultaneously. Watch every joint closely. If you see a drip, tighten that specific nut slightly. Run the disposal with cold water for 30 seconds to check for vibration-induced leaks.

Why Is the P-Trap Shape Critical for Double Sinks?

You might wonder why the pipe has to curve. The shape is not aesthetic; it is functional physics. In a double sink setup with a disposal, the volume of water and particulate matter increases. The P-trap serves two vital functions:

1. Gas Barrier: It holds roughly 300–500 ml of water permanently, creating a liquid seal that blocks toxic sewer gases from rising into your kitchen.
2. Debris Catcher: While we don’t want clogs here, the trap often catches heavy items (like a dropped spoon or large bone fragment) before they travel deep into the wall pipes where they are harder to retrieve.

For double sinks, the placement of the P-trap relative to the baffled tee is crucial. If the tee is too high, the trap arm may have to slope upward, violating code. If the tee is too low, you might not have enough clearance for the trash can or cleaning supplies. A well-drawn picture of double kitchen sink with garbage disposal plumbing diagram will always show the trap centered or slightly offset to maintain that critical downward gradient.

FAQ Section

1. Can I install a garbage disposal on both sides of a double sink?

Technically, yes, but it is highly discouraged and often violates local plumbing codes. You only need one disposal unit to handle the waste from both basins via the connecting baffled tee. Installing two creates unnecessary complexity, higher energy consumption, and increased risk of leaks without providing additional grinding power.

2. What size pipes should I use for a double sink disposal setup?

In the United States, the standard diameter for kitchen sink drain lines is 1.5 inches. However, many modern installations and code updates prefer or require 2-inch piping for the main trap arm and wall connection to reduce clogging risks, especially when a garbage disposal is involved. Always check your local municipal code, but 1.5 inches is the absolute minimum.

3. My diagram shows an air gap; do I really need one?

An air gap is a device installed on the countertop that prevents dirty sink water from siphoning back into the dishwasher. Many US states (like California and Texas) legally require an air gap for dishwasher lines connected to a garbage disposal. If your local code allows it, a “high-loop” method (securing the dishwasher hose high up under the counter) can sometimes substitute, but an air gap is the safest, most fail-safe option.

4. How do I stop my double sink from backing up into the non-disposal side?

This usually indicates a clog in the baffled tee or the P-trap. Since both sides share the same exit path, a blockage downstream affects both. First, try plunging the non-disposal side while sealing the disposal side with a wet rag. If that fails, you may need to unscrew the clean-out plug on the P-trap (have a bucket ready!) or use a small hand auger to clear the obstruction.

5. Is it okay to use flexible corrugated pipes for the connections?

No. While flexible pipes seem easier to install because they bend to fit any angle, they are notorious for trapping food particles and grease in their ridges, leading to rapid clogs and foul odors. Always use rigid PVC or ABS pipes with standard elbows and tailpieces as shown in professional diagrams. They provide a smooth interior surface for optimal water flow.

6. What temperature water should I use when running the disposal?

Always use cold water when operating the garbage disposal. Cold water keeps fats and greases in a solid state, allowing the blades to chop them up so they can be flushed away. Hot water melts grease, which then travels down the pipe and solidifies further down in the cooler P-trap or wall pipes, creating stubborn blockages over time.

Conclusion

Navigating the complexities of kitchen plumbing doesn’t have to be a nightmare. By studying a clear picture of double kitchen sink with garbage disposal plumbing diagram, you gain the ability to troubleshoot leaks, plan renovations, and communicate effectively with professionals. Remember, the key to a successful installation lies in respecting the slope, using the correct gaskets, and understanding the role of the baffled tee and P-trap.

Whether you are tightening a loose nut or planning a full remodel, having this visual and conceptual knowledge empowers you to maintain a healthy, leak-free kitchen. Don’t let a dripping pipe ruin your day—take control of your home maintenance!
