Have you ever worried about your washing machine leaking or causing water damage in your laundry room? You are not alone; water-related issues remain one of the top causes of home insurance claims in the United States. Properly installing a Plumb 2 In Washing Machine Water Supply Box With Vent is the most effective way to prevent disasters while ensuring your appliance runs efficiently. This guide will walk you through everything you need to know to achieve a professional, code-compliant result.
What Is a 2-Inch Washing Machine Water Supply Box with Vent?

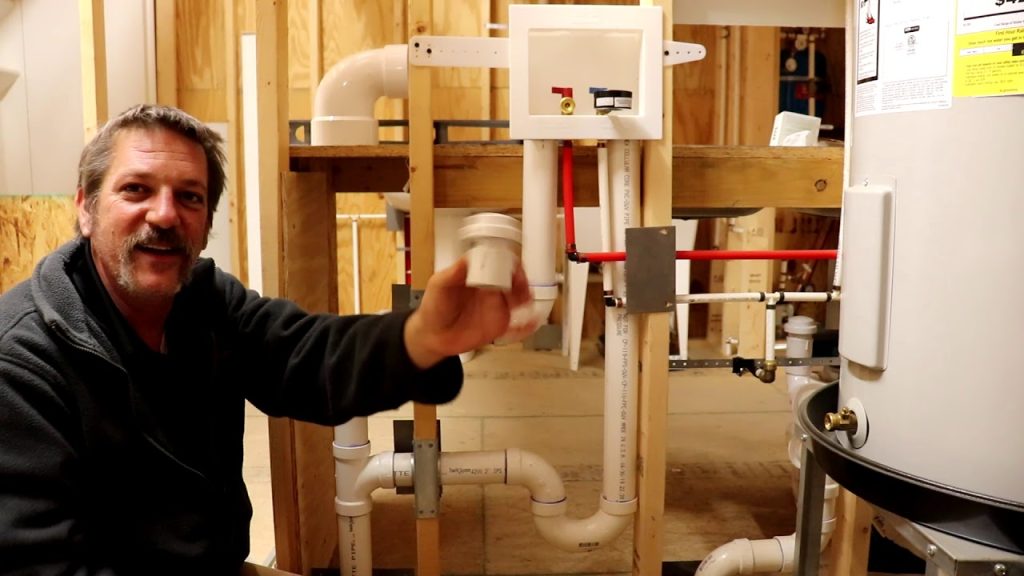

Before diving into the installation, it is crucial to understand what this component actually does. A Plumb 2 In Washing Machine Water Supply Box With Vent is an all-in-one plumbing fixture designed specifically for modern laundry rooms. It combines three critical functions into a single, wall-recessed unit:
- Water Supply: It houses the hot and cold water shut-off valves.
- Drainage: It provides a dedicated 2-inch drain outlet for the washer’s discharge hose.
- Venting: It includes an integrated air admittance valve (AAV) or a connection point for a traditional vent stack.
Why is the 2-inch size so important? According to the International Plumbing Code (IPC), a 2-inch drain is now the standard requirement for automatic clothes washers. Older 1.5-inch drains often cannot handle the high-velocity pump output of modern high-efficiency (HE) machines, leading to siphoning and slow drainage. By upgrading to a Plumb 2 In Washing Machine Water Supply Box With Vent, you ensure your system can handle up to 30 gallons of water discharged in under two minutes without backing up.
Why Do You Need a Vent in Your Laundry Drain System?
One of the most common questions homeowners ask is, “Can’t I just connect the drain hose directly to the pipe?” The short answer is no, and here is why.
When your washing machine pumps water out, it creates a strong surge. Without proper ventilation, this rushing water can create a vacuum effect inside the drain pipe. This vacuum sucks the water out of your P-trap—the U-shaped pipe that holds water to block sewer gases. Once the trap is dry, dangerous methane and hydrogen sulfide gases can enter your home. Furthermore, a lack of air pressure balance can cause the washer to drain slowly or even overflow.
The “Vent” part of the Plumb 2 In Washing Machine Water Supply Box With Vent solves this by allowing air to enter the system as water flows out. This equalizes the pressure, keeping your P-trap full and your drainage swift. While traditional vents require piping to run all the way to your roof, many modern supply boxes utilize an Air Admittance Valve (AAV). These mechanical valves open to let air in when needed and close tightly to prevent gas escape, making them ideal for retrofitting existing homes where running a roof vent is impractical. For more detailed information on plumbing ventilation standards, you can refer to the comprehensive guidelines on Wikipedia.org.
Key Features to Look for When Buying a Supply Box
Not all supply boxes are created equal. When shopping for a unit to plumb 2 in washing machine water supply box with vent capabilities, keep these features in mind to ensure longevity and ease of use.
Material Quality
Always choose a box made from high-grade ABS or PVC plastic. These materials are resistant to corrosion, chemicals found in detergents, and temperature fluctuations. Avoid cheap, thin plastics that may crack under the pressure of a heavy-duty wash cycle.
Valve Type
Look for quarter-turn ball valves rather than old-fashioned gate valves. Ball valves are more reliable, less prone to leaking over time, and easier to operate in an emergency. Some premium models even come with hammer arrestors built-in, which reduce the loud “bang” noise caused by water hammer when the washer valves shut off quickly.
Depth and Adjustability
Laundry room walls vary in thickness depending on whether you have drywall, tile, or wainscoting. Select a box with an adjustable depth collar. This ensures the faceplate sits flush against your finished wall, providing a clean, professional look without gaps where pests or dust could enter.
Comparison: Standard Box vs. 2-Inch Vented Box
| Feature | Standard 1.5″ Drain Box | 2″ Water Supply Box with Vent |
|---|---|---|
| Drain Capacity | Low; prone to overflow with HE washers | High; handles rapid discharge volumes |
| Venting | Requires separate roof vent installation | Integrated AAV or vent connection |
| Code Compliance | Often non-compliant with new IPC codes | Fully compliant with current US codes |
| Siphon Protection | Moderate risk of trap siphoning | Excellent protection against siphoning |
| Installation Cost | Lower initial cost, higher long-term risk | Slightly higher cost, prevents water damage |
Step-by-Step Installation Guide
Installing a Plumb 2 In Washing Machine Water Supply Box With Vent is a manageable DIY project if you have basic plumbing skills. However, always check your local building codes before starting, as regulations can vary by municipality.
Tools and Materials Needed:
- New 2-inch water supply box with vent
- 2-inch PVC or ABS drain pipe
- ½-inch copper or PEX water lines
- Pipe cutter and deburring tool
- PVC/ABS cement and primer
- Adjustable wrenches
- Level
- Drywall saw (if retrofitting)
Step 1: Shut Off Water and Prepare the Area
Turn off the main water supply to your house. If you are replacing an old box, disconnect the washing machine hoses and remove the old unit. Cut away the drywall carefully to expose the studs and existing plumbing. Ensure you have enough vertical space; the center of the drain should typically be between 34 and 42 inches from the floor.
Step 2: Install the Drain Pipe
Cut your 2-inch drain pipe to the correct length. The standpipe (the vertical part the hose goes into) must extend at least 18 inches but no more than 30 inches above the trap weir, according to most US plumbing codes. Apply primer and cement to connect the 2-inch pipe to the box’s drain inlet. Hold the pieces together firmly for 30 seconds to ensure a watertight seal.
Step 3: Connect the Water Lines
Connect your hot and cold water lines to the inlet ports on the back of the box. If using PEX, use crimp rings and a crimping tool. If using copper, solder the joints carefully. Tip: Use exactly 2 liters of water to test your connections later, but for now, ensure all fittings are tight. Make sure the hot line is on the left and the cold line is on the right, following standard plumbing conventions.
Step 4: Secure the Vent Mechanism
If your box uses an integrated AAV, ensure it is installed vertically and positioned at least 4 inches above the horizontal branch drain. This height is critical for the valve to function correctly. If you are connecting to a traditional vent stack, glue the vent pipe securely to the designated port on the box.
Step 5: Mount the Box and Finish the Wall
Slide the box into the wall cavity. Use a level to ensure it is perfectly straight. Secure the box to the stud using the provided mounting brackets or screws. Adjust the depth collar so it sits flush with your drywall surface. Once secured, you can patch the drywall around the edges and paint to match your room.
Step 6: Testing for Leaks
Turn the main water supply back on. Slowly open the hot and cold valves on the new box. Inspect every joint for drips. Run a short wash cycle on your machine. Watch the drain closely; the water should flow smoothly down the 2-inch pipe without gurgling or rising up the standpipe. If you smell sewer gas, check your AAV orientation immediately.
Common Mistakes to Avoid
Even experienced DIYers can make errors when trying to plumb 2 in washing machine water supply box with vent systems. Here are the pitfalls to watch out for:
- Ignoring the Standpipe Height: If the standpipe is too short, dirty water will overflow onto your floor. If it is too tall, the washer pump may struggle to push water out, leading to motor burnout. Stick to the 18–30 inch rule.
- Skipping the Trap: Never install a drain box without a P-trap. The trap is your first line of defense against sewer gases. Most supply boxes have a built-in trap or a direct connection for one; do not bypass it.
- Using the Wrong Glue: Ensure you use the correct cement for your pipe material (PVC cement for PVC, ABS cement for ABS). Mixing them can result in weak joints that fail under pressure.
- Forgetting Access Panels: If you install this box behind a tiled wall or in a hard-to-reach corner, consider installing an access panel. If the AAV fails or a valve leaks years later, you will thank yourself for not having to tear down the entire wall.
Frequently Asked Questions (FAQ)
1. Can I install a 2-inch supply box if my current drain is only 1.5 inches?
Yes, but it requires modification. You will need to cut out the existing 1.5-inch pipe and replace it with 2-inch piping back to the main stack. Simply adapting a 2-inch box to a 1.5-inch pipe defeats the purpose and may still cause drainage issues with high-efficiency washers.
2. Is an Air Admittance Valve (AAV) legal in my state?
AAVs are approved by the International Plumbing Code (IPC) and are legal in most US states. However, some local jurisdictions, particularly in California or specific cities, may have stricter amendments requiring a traditional roof vent. Always verify with your local building department before purchasing.
3. How often should I replace the Air Admittance Valve?
AAVs are mechanical devices with moving parts. While they are durable, they typically last between 5 to 10 years. If you notice slow draining or smell odors, the valve may be stuck closed or open and needs replacement. Many supply boxes allow you to swap the AAV without removing the entire unit.
4. What happens if I don’t use a 2-inch drain for my new washer?
Modern washers pump water out much faster than older models. A 1.5-inch drain often cannot keep up, causing the water to back up and overflow the standpipe. This leads to water damage on your floors and potential mold growth inside the wall cavities. Upgrading to a Plumb 2 In Washing Machine Water Supply Box With Vent mitigates this risk entirely.
5. Can I install this box myself, or do I need a licensed plumber?
If you are comfortable with basic tools and understand local plumbing codes, this is a feasible DIY project. However, if you need to move main stack lines or are unsure about venting requirements, hiring a licensed plumber is recommended to ensure code compliance and prevent costly mistakes.
6. Does the supply box come with hoses?
Most supply boxes do not include the flexible stainless steel braided hoses that connect to the washing machine. You will need to purchase these separately. It is highly recommended to buy high-quality, burst-resistant hoses to further protect your home from leaks.
Conclusion
Upgrading your laundry room with a Plumb 2 In Washing Machine Water Supply Box With Vent is one of the smartest investments you can make for your home. It not only ensures compliance with modern plumbing codes but also provides peace of mind against costly water damage and sewer gas leaks. By understanding the importance of proper venting, choosing the right materials, and following a careful installation process, you can enjoy a高效 (efficient) and safe laundry experience for years to come.
Don’t wait for a leak to teach you a lesson. Take action today to upgrade your plumbing infrastructure. If you found this guide helpful, please share it on your favorite social media platforms to help friends and family protect their homes too!
