Plumb Both Sides of Sink Into One Disposal

Is your double-basin kitchen sink causing headaches because only one side drains properly while the other backs up? You are not alone; this is a common frustration for homeowners who want the convenience of a single unit handling all their food waste without complex piping. The solution lies in learning how to correctly plumb both sides of the sink into one garbage disposal, a task that can save you hundreds of dollars in plumber fees if done right. In this guide, we will walk you through the exact process, ensuring your kitchen runs smoothly and efficiently.

Why Connect Both Basins to a Single Disposal Unit?

Before diving into the tools and steps, it is essential to understand why this configuration is the standard for most American kitchens. When you have a double-basin sink, the goal is to maximize utility while minimizing under-sink clutter. By routing both basins into a single motor unit, you reduce the number of electrical connections needed and simplify the drain line exiting your cabinet.

According to industry data from home improvement surveys, nearly 60% of kitchen plumbing issues stem from improper P-trap alignment or incorrect baffle usage in double-sink setups. When you plumb both sides of the sink into one garbage disposal, you create a unified drainage system. This setup ensures that water from the non-disposal side flows through the grinding chamber (or bypasses it via a baffle) before exiting the main drain, preventing stagnation and odor buildup.

However, this requires precision. If the slope is incorrect or the seals are loose, you risk leaks that can damage your cabinetry. Understanding the mechanics behind this setup is the first step toward a successful installation.

What Tools and Materials Do You Need?

Successful plumbing projects rely on preparation. Trying to improvise mid-installation often leads to stripped threads or cracked fittings. Here is the definitive checklist you need before starting.

Essential Tools

• Adjustable Wrenches (2): One for holding nuts steady, the other for tightening.
• Pipe Cutter or Hacksaw: For trimming PVC or metal pipes to exact lengths.
• Screwdriver Set: Both flathead and Phillips head for mounting assemblies.
• Plumber’s Putty or Silicone Caulk: To create watertight seals around the sink flange.
• Bucket and Towels: To catch residual water during removal of old parts.
• Safety Gear: Gloves and safety glasses are mandatory when working under sinks.

Required Parts

• Garbage Disposal Unit: Ensure it has enough horsepower (HP) for a double sink (minimum ½ HP recommended).
• Double Outlet Drain Kit: Specifically designed to connect two basins to one disposal.
• P-Trap Assembly: Usually 1-½ inch diameter, matching your local code.
• Dishwasher Knockout Plug Remover: If connecting a dishwasher.
• Teflon Tape: For sealing threaded connections.

Pro Tip: Always check your local building codes. While most US jurisdictions follow the International Plumbing Code (IPC), some municipalities have specific requirements regarding pipe materials and venting.

How Does the Plumbing Configuration Actually Work?

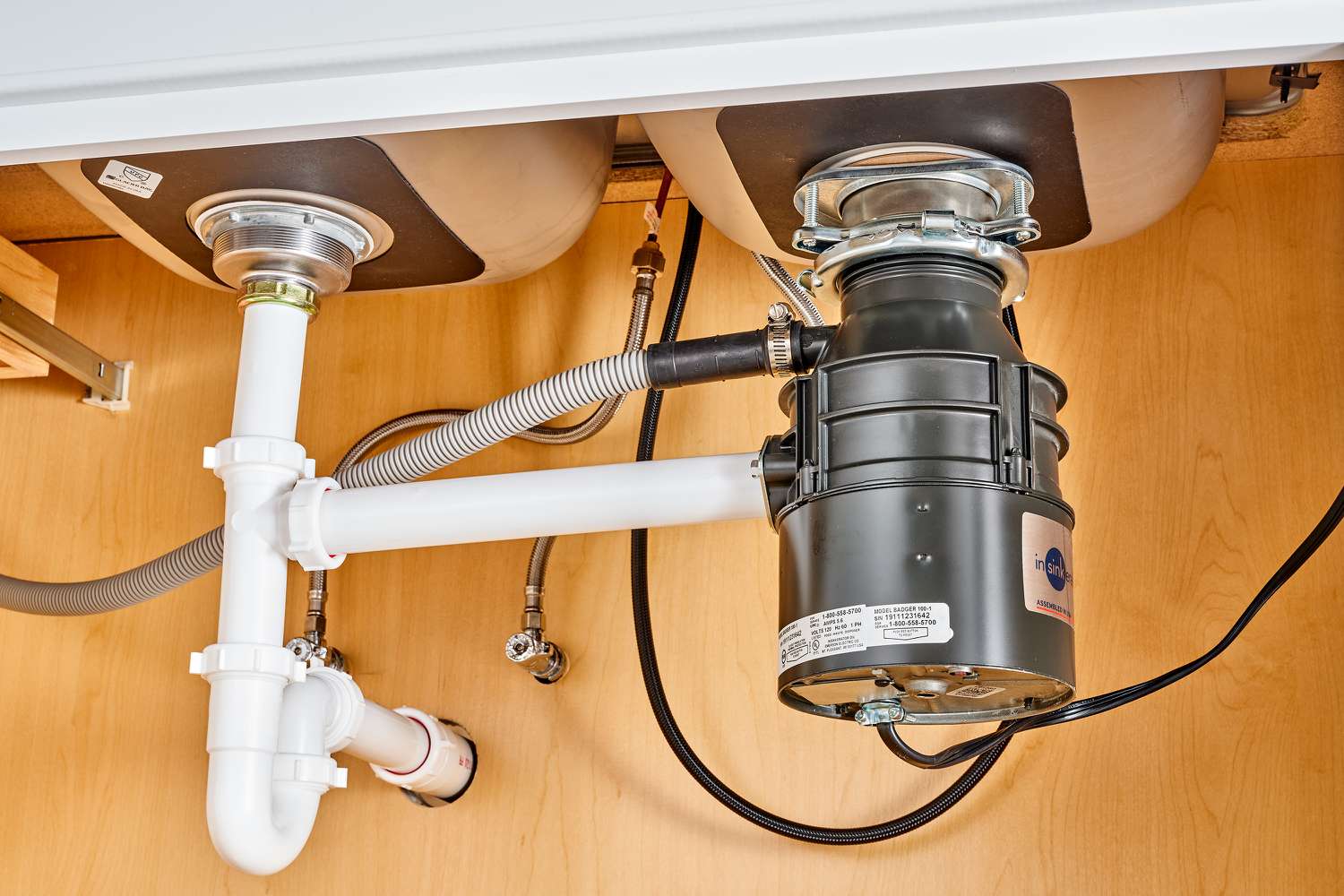

Understanding the flow of water is critical. In a standard double-sink setup with one disposal, the unit is mounted directly under the basin where you intend to grind food (usually the larger side). The second basin, often used for rinsing or soaking, connects to the disposal unit via a horizontal pipe called a “cross-over” or “bridge” pipe.

When water flows from the secondary basin, it travels horizontally into the disposal inlet. Inside the disposal flange, there is often a baffle or a specific port design that allows this water to enter the main discharge path without interfering with the grinding impellers. From there, the combined wastewater exits through the bottom of the disposal, goes through the P-trap, and into your home’s main sewer line.

For a deeper understanding of fluid dynamics in residential plumbing systems, you can refer to general principles outlined by authoritative sources like Wikipedia’s entry on Plumbing. This helps visualize how gravity and slope work together to prevent clogs.

Key Components Breakdown

Step-by-Step Guide: How to Plumb Both Sides Correctly

Follow these instructions precisely. Deviating from the measurements or order can result in leaks or poor drainage performance.

Step 1: Preparation and Removal

Turn off the power to the existing disposal at the circuit breaker. Place a bucket under the P-trap. Loosen the slip nuts and remove the old trap and disposal unit. Clean the sink openings thoroughly, removing any old plumber’s putty or corrosion.

Step 2: Install the New Sink Flanges

Apply a rope of plumber’s putty (about the thickness of a pencil) around the underside of the new sink strainer flanges. Insert the flange into the drain hole of both sink basins. From underneath, slide the friction ring, gasket, and mounting nut onto the threads. Tighten firmly until putty squeezes out evenly around the rim. Wipe away the excess putty immediately.

Note: If using a stainless steel sink, ensure the putty is labeled “stain-free” to prevent discoloration.

Step 3: Mount the Garbage Disposal

Attach the mounting assembly to the disposal unit according to the manufacturer’s instructions. Lift the disposal into place under the primary basin (the one designated for grinding). Rotate the mounting ring to lock it into the sink flange. Ensure the unit is secure and does not wobble.

Step 4: Connect the Secondary Basin

This is the crucial step to plumb both sides of the sink into one garbage disposal.

1. Attach the tailpiece to the strainer of the secondary (non-disposal) basin.
2. Measure the distance between this tailpiece and the inlet port on the side of the disposal unit.
3. Cut your cross-over pipe (usually 1-½ inch diameter) to length. It is better to cut it slightly long and trim more than to cut it too short.
4. Connect the pipe using slip nuts and washers. Crucial: Ensure the pipe slopes downward slightly from the secondary basin toward the disposal. A flat or upward-sloping pipe will cause standing water and clogs.

Step 5: Install the P-Trap and Drain Line

Attach the curved P-trap to the bottom outlet of the garbage disposal. Connect the other end of the P-trap to the wall drain pipe.

• Measurement Check: The vertical drop from the disposal outlet to the top of the P-trap should be minimal but sufficient to maintain the water seal.
• Alignment: Do not force the pipes. If they do not align naturally, adjust the angles of the slip joints rather than bending rigid pipes. Forced connections lead to cracks over time.

Step 6: Final Checks and Testing

Before turning the power back on:

1. Tighten all slip nuts by hand, then give them a quarter-turn with a wrench. Do not overtighten, as this can crack plastic nuts.
2. Remove the knockout plug from the dishwasher inlet if applicable (use a screwdriver and hammer to tap it out).
3. Turn the water on and let it run in both basins simultaneously.
4. Check every joint for drips.
5. Restore power and run the disposal with cold water flowing. Listen for unusual vibrations.

Common Mistakes to Avoid When Installing

Even experienced DIYers can make errors. Here are the most frequent pitfalls observed in the field:

• Ignoring the Slope: As mentioned, the cross-over pipe must slope toward the disposal. Water does not flow uphill; without gravity assistance, food particles from the second sink will settle in the pipe and rot.
• Overusing Teflon Tape: Slip-joint connections (the ones with rubber washers) do not need Teflon tape. The seal is made by the rubber washer compressing against the pipe. Adding tape can actually cause leaks by preventing the washer from seating correctly.
• Mismatched Pipe Diameters: Ensure all components are 1-½ inches. Adapting from 1-¼ to 1-½ incorrectly can create turbulence and clog points.
• Skipping the Cold Water Rule: Always run cold water when using the disposal. Hot water melts fats, which then re-solidify further down the pipe, causing major blockages. Use approximately 2 liters of water per minute during operation to ensure thorough flushing.

Frequently Asked Questions (FAQ)

Can I connect a dishwasher to this setup?

Yes, absolutely. Most modern garbage disposals have a dedicated inlet for dishwasher drain hoses. You must remember to remove the internal “knockout plug” inside that inlet before connecting the hose. If you forget this step, the dishwasher will not drain and could flood your kitchen.

What size garbage disposal do I need for a double sink?

For a double sink where both sides feed into one unit, a minimum of ½ Horsepower (HP) is recommended. However, if you cook frequently or have a large family, upgrading to a ¾ HP or 1 HP model provides better torque to handle increased volume and harder food waste, reducing the likelihood of jams.

Why is water backing up into the second sink when I run the disposal?

This usually indicates a blockage in the cross-over pipe or the P-trap. It can also happen if the venting system in your walls is clogged, creating an airlock. First, check the cross-over pipe for debris. If clear, you may need to snake the main drain line or check your roof vent.

Is it legal to plumb both sides into one disposal everywhere in the US?

Generally, yes. This is a standard practice accepted by the International Plumbing Code (IPC) and Uniform Plumbing Code (UPC). However, always verify with your local municipal building department, as some older cities have unique amendments regarding waste grinder installations.

How often should I clean the disposal to prevent clogs in a dual-sink setup?

Since two basins feed into one unit, maintenance is vital. Once a week, grind ice cubes and citrus peels to clean the blades and deodorize the unit. Monthly, pour a mixture of baking soda and vinegar followed by hot (not boiling) water to break down grease accumulation in the cross-over pipe.

What if my sink basins are different heights?

If your double sink has offset basins (one higher than the other), you may need an adjustable tailpiece kit or flexible corrugated piping (though rigid PVC is preferred for longevity) to manage the height difference while maintaining the necessary downward slope toward the disposal.

Conclusion

Learning how to plumb both sides of the sink into one garbage disposal is a valuable skill that enhances your kitchen’s functionality and saves you significant money on professional plumbing services. By following the correct slope, using the right seals, and understanding the flow dynamics, you can create a robust system that handles daily meal prep cleanup with ease. Remember, the key to longevity is regular maintenance and using cold water during operation.
