Solar + Gas Hot Water: The Ultimate Plumb Diagram Guide

Are you tired of skyrocketing energy bills while trying to maintain a steady supply of hot water in your home? Many homeowners face the dilemma of wanting to go green with solar power but fearing cloudy days will leave them with cold showers. This is where a well-designed plumb diagram for solar hot water with gas water heater becomes your most valuable asset. By combining the renewable power of the sun with the reliability of a gas backup, you create a system that is both eco-friendly and consistently comfortable. In this guide, we will break down exactly how these two systems connect, ensuring you have hot water 365 days a year.

Why Combine Solar Thermal with a Gas Backup System?

Before diving into the technical piping layouts, it is crucial to understand why this hybrid approach is the gold standard in modern residential plumbing. Relying solely on solar thermal can be risky in regions with inconsistent sunlight or during winter months. Conversely, using only a gas water heater means missing out on significant energy savings.

According to the U.S. Department of Energy, solar water heating systems can reduce your water heating bills by 50% to 80%. However, without a backup, system reliability drops significantly during peak demand or poor weather. A hybrid setup ensures that when the solar pre-heat tank doesn’t reach the desired temperature (usually around 120°F or 49°C), the gas unit instantly kicks in to bridge the gap. This synergy offers the best of both worlds: maximum efficiency and unwavering reliability.

Key Benefits at a Glance

Understanding the Core Components of the Diagram

To read or create a plumb diagram for solar hot water with gas water heater, you must first identify the key players in the system. Think of this as the “cast of characters” before we write the script of how they interact.

1. Solar Collectors: Usually mounted on the roof, these absorb sunlight to heat a transfer fluid (often a glycol mixture).
2. Storage Tank (Pre-heat Tank): This is where the solar-heated fluid transfers its energy to your domestic water.
3. Gas Water Heater: Acts as the booster or backup. It can be a traditional tank style or a tankless (on-demand) unit.
4. Heat Exchanger: Often internal to the storage tank, this separates the toxic glycol loop from your safe drinking water.
5. Controller & Sensors: The brain of the operation. It monitors temperatures and activates the circulation pump only when the solar collector is hotter than the tank.
6. Expansion Tank & Pressure Relief Valves: Critical safety components to manage pressure fluctuations caused by thermal expansion.

For a deeper scientific understanding of thermodynamics in these systems, you can refer to general principles outlined on Wikipedia.org.

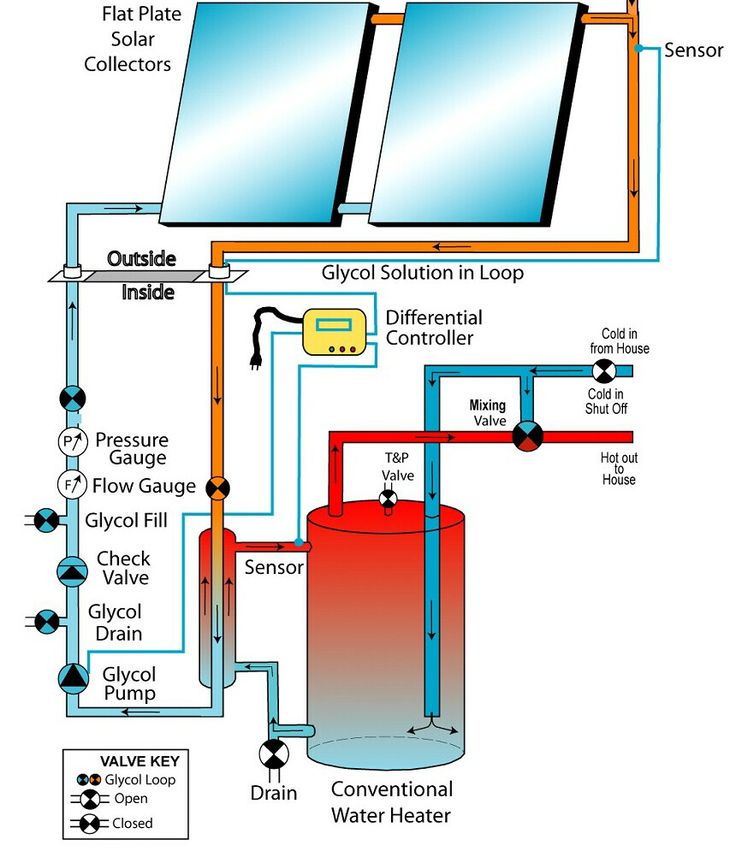

Step-by-Step: How to Read the Plumb Diagram

Reading a plumbing schematic can feel like deciphering an ancient map if you don’t know the symbols. However, the logic follows a simple flow: Cold Water In → Solar Pre-Heat → Gas Boost → Hot Water Out.

1. The Cold Water Entry Point

The journey begins at your main municipal water supply. In a hybrid diagram, the cold water line does not go directly to the gas heater. Instead, it feeds first into the bottom of the solar storage tank. This ensures that the coldest water gets the first chance to be heated by the sun.

2. The Solar Loop (Closed Circuit)

This is distinct from your drinking water. A separate pipe loop runs from the solar collectors down to the heat exchanger inside (or wrapped around) the solar storage tank.

• Flow Direction: Pump pushes fluid up to collectors → Fluid heats up → Returns to heat exchanger → Cools down → Repeats.
• Critical Detail: Always include a check valve in this loop to prevent reverse thermosiphoning (where heat escapes back to the roof at night).

3. The Handoff to the Gas Unit

Once water sits in the solar tank, it warms up passively. If the sun is shining brightly, the water might reach 140°F (60°C). If it’s cloudy, it might only reach 80°F (27°C).

• The Connection: A pipe exits the top of the solar storage tank and connects directly to the cold water inlet of the gas water heater.
• The Logic: The gas heater now receives “pre-warmed” water rather than freezing cold groundwater. Because the incoming water is already warm, the gas burner has to work much less, or not at all, to reach the final setpoint.

4. Final Delivery

The hot water exits the gas unit and travels to your faucets, showers, and appliances. If the solar tank did its job perfectly, the gas heater’s sensor detects the water is already hot and remains off. If the solar tank underperformed, the gas burner ignites automatically to finish the job.

Installation Best Practices and Safety Protocols

Installing a hybrid system requires precision. A mistake in the plumb diagram for solar hot water with gas water heater setup can lead to inefficiency or even dangerous pressure buildups. Here are the non-negotiable rules used by professional plumbers.

Temperature and Pressure Management

Water expands when heated. In a closed solar loop, this expansion can burst pipes if not managed.

• Requirement: Install an expansion tank on the cold water inlet side of the solar storage tank.
• Safety Valve: A Temperature and Pressure (T&P) relief valve must be installed on both the solar tank and the gas heater. Set these to release at 150 psi or 210°F (99°C), whichever comes first.

Pipe Insulation is Mandatory

Heat loss is the enemy of efficiency. Any pipe carrying hot water from the roof to the tank, or between the tanks, must be heavily insulated.

• Specification: Use Armaflex or equivalent closed-cell foam insulation with a minimum thickness of ¾ inch (19mm) for outdoor lines.
• Impact: Poor insulation can reduce system efficiency by up to 20%, negating the benefits of the solar investment.

Freeze Protection Strategies

If you live in an area where temperatures drop below freezing, your diagram must account for freeze protection.

• Drain-back Systems: These automatically drain the water from the collectors into the tank when the pump stops.
• Glycol Loops: More common in retrofit scenarios. A propylene glycol mixture circulates in the collector loop, preventing freezing down to -20°F (-29°C). Ensure your diagram clearly marks the glycol loop to avoid cross-contamination with potable water.

Common Mistakes to Avoid in Hybrid Plumbing

Even experienced DIYers often stumble when integrating these two distinct systems. Avoiding these pitfalls will save you money and headaches.

• Incorrect Pump Sizing: Using a pump that is too powerful wastes electricity and causes noise; too weak, and the fluid won’t circulate effectively. Always calculate the head pressure and flow rate (GPM) required for your specific roof height and pipe length.
• Skipping the Check Valve: Without this, heat can siphon backward from the tank to the cold collectors at night, cooling your stored water.
• Mixing Up Inlets and Outlets: Connecting the solar tank outlet to the gas heater’s hot outlet instead of the cold inlet is a fatal error. This prevents the gas heater from sensing the incoming water temperature correctly.
• Ignoring Local Codes: Plumbing codes vary by state and municipality. Some areas require specific backflow prevention devices or licensed professionals for gas connections. Always check local regulations before cutting a single pipe.

FAQ Section

1. Can I connect my existing gas water heater to a new solar system?

Yes, in most cases. Your existing gas water heater can serve as the “backup” or “booster” tank. You simply plumb the output of your new solar storage tank into the cold water inlet of your current gas unit. However, ensure your gas heater is in good condition; if it is near the end of its life, it may be more cost-effective to replace both simultaneously.

2. What happens if the solar system overheats the water?

Overheating (stagnation) can occur when there is high sun but no water usage. Professional diagrams include a tempering valve (mixing valve) at the output of the solar tank or the gas heater. This valve mixes cold water with the super-hot water to ensure the water reaching your taps never exceeds a safe 120°F (49°C), preventing scalding.

3. Does the gas heater run constantly in this setup?

No. The gas heater operates on demand based on the temperature of the water entering it. If the solar tank delivers water at 115°F and your setpoint is 120°F, the gas burner will only fire briefly or not at all. This intermittent operation drastically reduces gas consumption compared to a standalone system.

4. How difficult is it to maintain a hybrid system?

Maintenance is relatively low but essential. You should inspect the glycol levels (if applicable) every 2–3 years, check the pressure gauge monthly, and flush the sediment from both tanks annually. The controller usually has a diagnostic screen that alerts you to pump failures or sensor errors.

5. Is a tankless gas heater better than a tank-style for solar integration?

Both work well, but they serve slightly different roles. A tank-style gas heater provides additional storage volume, which is helpful for large families with simultaneous hot water needs. A tankless unit saves space and eliminates standby heat loss but requires a higher flow rate to activate. For solar integration, a small buffer tank before a tankless unit is often recommended to prevent “short cycling.”

6. Will this system work during a power outage?

The solar thermal collection process is passive and does not require electricity. However, the circulation pump and the controller do need power. If the grid goes down, the pump stops, and the system reverts to passive thermosiphoning (if designed for it) or simply holds the heat already in the tank. The gas heater will also require electricity for its ignition and controls unless it is a specific millivolt model.

Conclusion

Designing and implementing a plumb diagram for solar hot water with gas water heater is one of the smartest investments a homeowner can make for long-term sustainability and cost savings. By mastering the flow from cold intake to solar pre-heating and finally to gas boosting, you secure a relentless supply of hot water while slashing your carbon footprint. Remember, the devil is in the details: proper insulation, correct valve placement, and adherence to safety codes are what separate a functioning system from a problematic one.

Ready to take the plunge into energy independence? Review your current plumbing setup, consult with a certified solar installer to finalize your specific diagram, and start enjoying the warmth of the sun mixed with the reliability of gas. Don’t forget to share this guide with friends and family on social media who are looking to upgrade their homes! Together, we can build a more efficient future, one hot shower at a time.
