3/4 Inch CPVC to Sweat Adapter: The Ultimate Guide

Have you ever stood in your basement, staring at a leaky pipe, wondering how to connect your modern plastic piping to an old copper system? You are not alone. Many homeowners across the United States face this exact dilemma when renovating bathrooms or fixing burst pipes. The solution often lies in finding the right plumbing 3 4 inch Cpvc To Sweat Adapter Or Unin (union). Whether you are a DIY enthusiast or a professional plumber, understanding how to bridge these two different materials safely is crucial for preventing future leaks and ensuring water quality. In this comprehensive guide, we will walk you through everything you need to know about selecting, installing, and maintaining these vital connectors.

What Exactly Is a 3/4 Inch CPVC to Sweat Adapter?

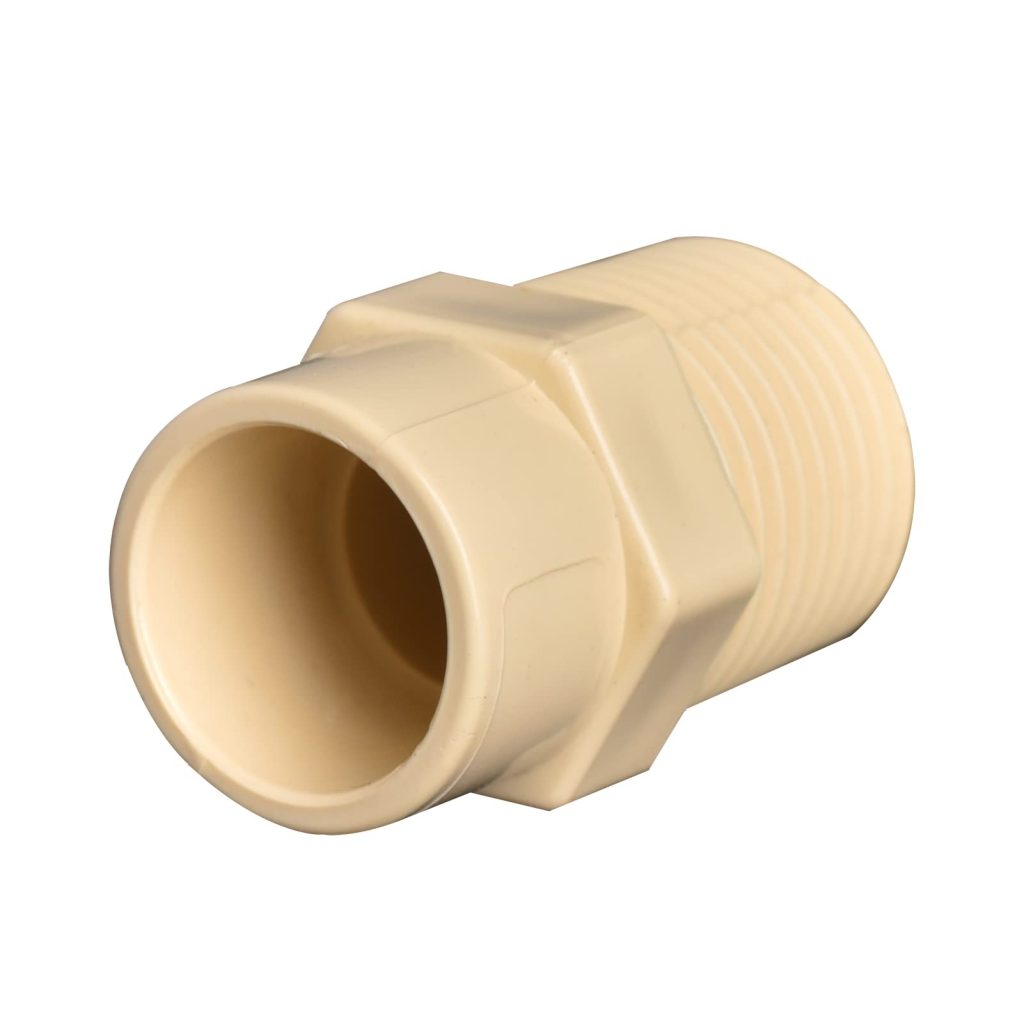

Before diving into the installation, it is essential to understand what this fitting actually is. A plumbing 3 4 inch Cpvc To Sweat Adapter Or Unin is a specialized transition fitting designed to join Chlorinated Polyvinyl Chloride (CPVC) pipe to copper tubing.

The term “sweat” refers to the soldering process used on the copper side of the fitting. One end of the adapter is designed with a socket that accepts the CPVC pipe and is secured using solvent cement. The other end features a copper cup where you apply heat and solder to create a watertight seal with the copper pipe.

Why is the 3/4-inch size so critical? In residential plumbing, 3/4-inch pipes are the standard for main water supply lines feeding showers, bathtubs, and multiple fixtures. Using the correct diameter ensures optimal water pressure and flow rate throughout your home. According to industry standards, mismatched diameters can lead to significant pressure drops and turbulent flow, which may cause noise and premature wear on your plumbing system.

Key Components of the Fitting

• CPVC Socket: Designed for chemical bonding with CPVC primer and cement.
• Copper Cup: Prepared for soldering (sweating) onto copper tubing.
• Brass Body: Most high-quality adapters use brass as the core material because it resists corrosion and handles thermal expansion differences between plastic and metal.

Adapter vs. Union: Which One Do You Need?

One of the most common points of confusion for beginners is choosing between a standard adapter and a union. While both serve to connect CPVC to copper, their applications differ significantly.

The Standard Sweat Adapter

A standard adapter is a permanent connection. Once you glue the CPVC side and solder the copper side, the joint is fixed.

• Best For: Locations where you do not anticipate needing to disconnect the pipe in the future.
• Pros: Lower cost, fewer potential leak points, compact size.
• Cons: If repairs are needed later, you must cut the pipe and replace the entire fitting.

The CPVC to Copper Union

A union consists of three parts: two ends and a central nut. This allows you to disconnect the two pipes without cutting them.

• Best For: Connections near water heaters, pumps, or valves where future maintenance is likely.
• Pros: Easy disassembly for repairs or replacements; ideal for tight spaces where twisting pipes is difficult.
• Cons: More expensive than a standard adapter; slightly larger footprint; introduces an extra gasket or seat that could theoretically fail over time.

When deciding on a plumbing 3 4 inch Cpvc To Sweat Adapter Or Unin, consider the location. If this fitting is behind a finished wall, a permanent adapter is usually preferred to minimize failure points. If it is under a sink or near a water heater, a union offers peace of mind for future service.

Step-by-Step Installation Guide

Installing these fittings requires precision. Mistakes here can lead to costly water damage. Follow this detailed tutorial to ensure a professional-grade result.

Tools and Materials Needed

• 3/4 inch CPVC to sweat adapter or union
• CPVC pipe cutter or fine-tooth hacksaw
• Emery cloth or sandpaper (120-grit)
• CPVC primer (clear or purple) and CPVC solvent cement
• Propane torch or MAP-Pro gas torch
• Lead-free solder and flux paste
• Heat shield cloth
• Safety glasses and gloves
• Rag and bucket of water (for cooling)

Step 1: Preparation and Safety

Turn off the main water supply and drain the lines completely. Water remaining in the copper pipe will prevent the solder from melting correctly, leading to a failed joint. Put on your safety glasses and gloves. Ensure your workspace is well-ventilated, especially when working with solvents and torch fumes.

Step 2: Cutting and Cleaning the Pipes

Cut the CPVC pipe squarely using a dedicated pipe cutter. A jagged cut prevents a proper seal. Deburr the inside and outside edges lightly. For the copper pipe, cut it cleanly and use emery cloth to shine the outside of the tube until it looks like a new penny. You must remove all oxidation. As noted by general engineering principles regarding metal joining, surface preparation is 90% of a successful bond. You can read more about the properties of copper and its role in plumbing systems on Wikipedia.

Step 3: Applying Primer and Cement (CPVC Side)

Apply a generous layer of CPVC primer to the outside of the CPVC pipe and the inside of the adapter’s plastic socket. This softens the plastic chemically. Wait about 10–15 seconds (or per manufacturer instructions). Next, apply a thin, even coat of CPVC solvent cement to both surfaces. Immediately push the pipe into the fitting with a quarter-turn twist to distribute the cement evenly. Hold it firmly for 30 seconds to prevent it from pushing out. Do not disturb this joint for at least 15 minutes.

Step 4: Fluxing and Heating (Copper Side)

While the CPVC side sets, prepare the copper end. Apply a thin layer of flux paste to the cleaned copper pipe and the inside of the adapter’s copper cup. Slide the pipe into the cup fully. Light your torch and adjust the flame to a sharp blue cone. Begin heating the fitting, not the solder. Move the flame around the base of the cup to heat it evenly. Avoid directing the flame directly onto the CPVC side of the adapter; use a heat shield cloth if the fitting is close to the plastic section to prevent melting.

Step 5: Sweating the Joint

Once the fitting is hot enough (usually 10–20 seconds depending on ambient temperature), touch the tip of the solder wire to the edge of the joint opposite the flame. If the temperature is correct, the solder will melt instantly and be drawn into the gap by capillary action. Feed solder until a small bead appears all the way around the rim. Pro Tip: Use approximately 1 inch of solder for a 3/4-inch joint. Do not overfill, as excess solder can drip inside the pipe and restrict water flow.

Step 6: Cooling and Inspection

Immediately wipe away excess flux with a damp rag while the joint is still warm (but not molten). Let the joint cool naturally for at least 2–3 minutes. Do not quench it with water immediately, as rapid cooling can crack the solder or stress the CPVC bond. Once cool, turn the water back on slowly and check for leaks.

Common Mistakes to Avoid

Even experienced plumbers can make errors when transitioning between materials. Here are the top pitfalls to watch out for:

1. Overheating the CPVC: The biggest risk is conducting too much heat from the torch to the plastic side. This can deform the socket, ruining the seal. Always keep the flame focused on the copper cup and use a wet rag or heat shield between the metal and plastic sections.
2. Skipping the Primer: Some DIYers think they can skip the CPVC primer. This is a fatal error. Without primer, the solvent cement cannot chemically fuse the plastic, leading to leaks within days or weeks.
3. Using the Wrong Solder: Never use acid-core solder (used for electronics or gutters) on potable water lines. It causes corrosion. Always use lead-free, rosin-core, or water-soluble flux solder specifically rated for drinking water.
4. Ignoring Thermal Expansion: CPVC expands and contracts more than copper with temperature changes. If the run is long, ensure you have adequate expansion loops or offsets so the rigid adapter doesn’t snap under stress.

Frequently Asked Questions (FAQ)

1. Can I use a regular PVC adapter instead of CPVC for hot water?

No, absolutely not. Regular PVC is not rated for hot water and will soften and fail at temperatures above 140°F (60°C). CPVC is specifically chlorinated to withstand higher temperatures up to 200°F. Using PVC for a hot water line is a code violation and a safety hazard.

2. How long should I wait before turning the water on after installation?

While the solder cools in minutes, the CPVC solvent cement takes time to cure fully. Most manufacturers recommend waiting at least 2 hours before pressurizing the system for cold water and 24 hours for hot water or high-pressure testing. Check the specific cure time on your cement canister.

3. Is a dielectric union necessary when connecting CPVC to copper?

Technically, no. Galvanic corrosion occurs when two dissimilar metals touch (like copper and steel). Since CPVC is plastic, it acts as a natural insulator, breaking the electrical circuit between copper sections if any exist. Therefore, a standard brass adapter is sufficient, though some local codes may have specific requirements.

4. What if my copper pipe is slightly oval or damaged?

If the copper pipe is not perfectly round, the solder will not seal correctly. Use a pipe reamer or a specialized rounding tool to restore its shape before applying flux. If the damage is severe, cut the pipe back to a clean, round section and use a coupling to extend it.

5. Can I reuse a CPVC to copper union after taking it apart?

You can reuse the metal components of a union if they are in good condition. However, the CPVC side is generally not reusable once glued. If you disassemble a union, you will likely need to cut the CPVC pipe and glue on a new adapter or insert for the next installation.

6. Are there push-fit alternatives to sweating?

Yes, brands like SharkBite offer push-to-connect fittings that join CPVC to copper without glue or solder. These are excellent for temporary fixes or extremely tight spaces where a torch cannot fit. However, traditional sweat adapters are generally considered more permanent and cost-effective for extensive renovations.

Conclusion

Mastering the installation of a plumbing 3 4 inch Cpvc To Sweat Adapter Or Unin is a valuable skill for any homeowner or tradesperson in the US. By understanding the difference between adapters and unions, preparing your surfaces meticulously, and following the correct heating and gluing procedures, you can create durable, leak-free connections that last for decades. Remember, the key to success lies in patience and attention to detail—rushing the curing times or overheating the plastic are the most common causes of failure.
