Best Plumbing 45 Degree Elbow 1/2 NPT Male X Female Guide

Why You Need the Right Fitting Today

Have you ever faced a frustrating leak just because the wrong pipe fitting was used? Or perhaps you are trying to navigate a tight corner in your piping system and standard 90-degree elbows simply won’t fit? Many homeowners and professional plumbers struggle with alignment issues that lead to stress on pipes and eventual failure. The solution often lies in selecting the precise component for the job: a plumbing 45 degree elbow 1/2 NPT male x female. This specific fitting allows for smoother fluid dynamics and easier installation in constrained spaces, saving you time, money, and future headaches.

What Exactly Is a 45 Degree Elbow 1/2 NPT?

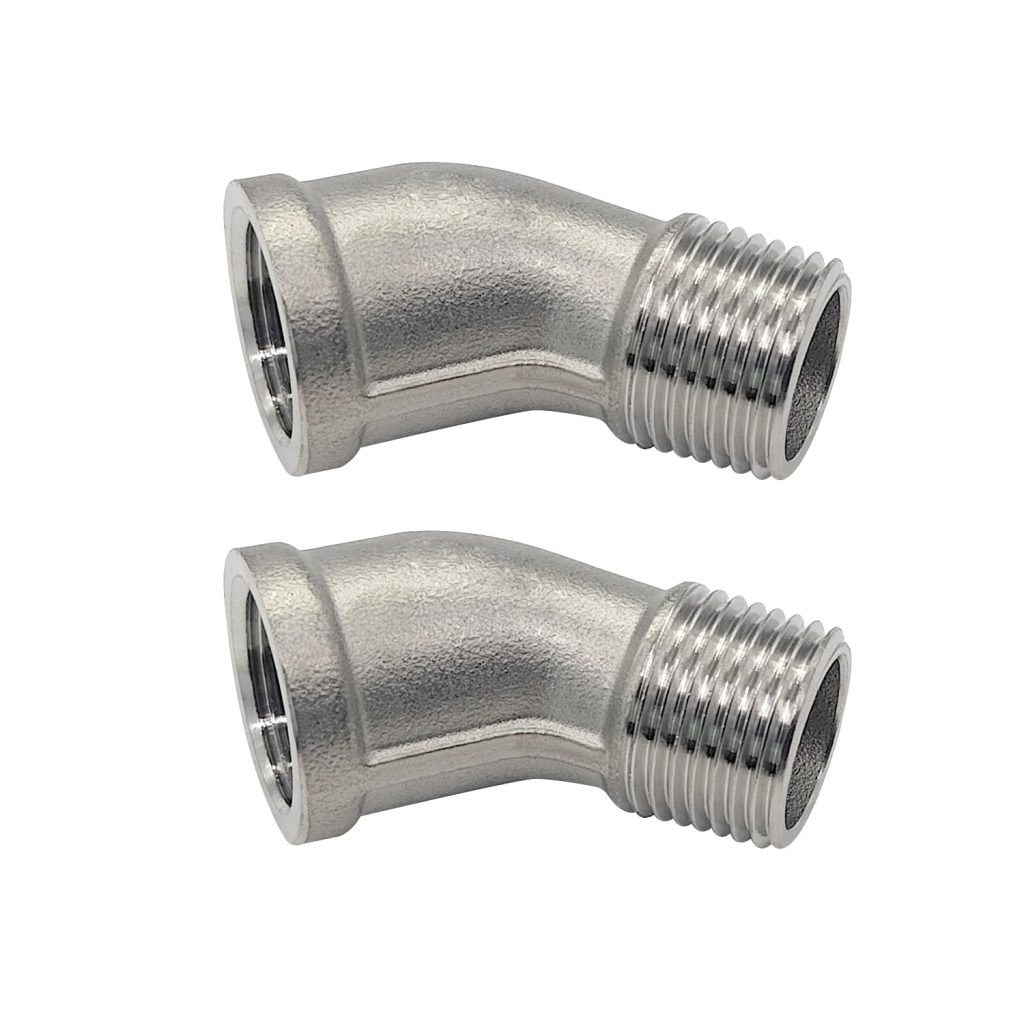

When diving into pipe fittings, terminology can feel overwhelming. Let’s break it down simply. A plumbing 45 degree elbow 1/2 NPT male x female is a specialized connector designed to change the direction of a pipe run by 45 degrees. Unlike a sharp 90-degree turn, this gentler angle reduces turbulence and pressure loss within the system.

The “1/2” refers to the nominal pipe size, which is approximately half an inch in diameter, a common size for residential water lines and gas applications. “NPT” stands for National Pipe Tapered, the United States standard for threaded pipes and fittings. The “Male x Female” designation means one end of the fitting has external threads (male) to screw into a female port, while the other end has internal threads (female) to accept a male pipe end. This versatility makes it an essential adapter for connecting different sections of a pipeline without needing extra couplers.

According to industry standards, using the correct angle is crucial for maintaining system integrity. A study by the American Society of Mechanical Engineers (ASME) highlights that gradual turns significantly reduce wear and tear compared to sharp angles, extending the lifespan of your plumbing infrastructure.

When Should You Use a 45-Degree Angle Instead of 90?

One of the most common questions DIYers ask is, “Why not just use two 45s to make a 90, or why not always use a 90?” The answer lies in flow efficiency and physical space.

Flow Efficiency and Pressure Drop

Fluid dynamics dictate that water or gas flows more smoothly around a curve than against a sharp wall. A 90-degree elbow creates significant resistance, causing a drop in pressure and increasing noise (that annoying “water hammer” sound). A plumbing 45 degree elbow 1/2 NPT male x female offers a streamlined path.

• Turbulence Reduction: Reduces chaotic flow patterns.
• Pressure Conservation: Maintains higher PSI at the outlet.
• Noise Control: Minimizes banging sounds in walls.

Space Constraints

Sometimes, the geometry of your project doesn’t allow for a full 90-degree turn. Perhaps you are routing a pipe through a stud bay or connecting to an appliance offset by a few inches. The 45-degree fitting provides the flexibility to “walk” the pipe over or around obstacles gradually.

For more detailed technical specifications on pipe threading standards, you can refer to the comprehensive resources available on Wikipedia.

Material Matters: Choosing the Right Composition

Not all elbows are created equal. The material you choose depends entirely on what you are transporting (water, gas, chemicals) and the environment (indoor, outdoor, underground).

Brass Fittings

Brass is the gold standard for many residential applications, especially for the plumbing 45 degree elbow 1/2 NPT male x female.

• Pros: Highly corrosion-resistant, durable, handles high temperatures well, and naturally inhibits bacterial growth (biofouling).
• Cons: More expensive than plastic; not suitable for highly acidic environments.
• Best For: Potable water lines, natural gas lines, and heating systems.

Stainless Steel

If you need extreme durability or are working in an industrial setting, stainless steel (often 304 or 316 grade) is the choice.

• Pros: Exceptional strength, resistant to rust and extreme temperatures.
• Cons: Can be difficult to thread manually without proper tools; highest cost.
• Best For: Chemical processing, outdoor exposed piping, and high-pressure steam.

PVC and CPVC

Plastic fittings are common for drainage and cold/hot water respectively.

• Pros: Inexpensive, easy to cut and glue, immune to electrolytic corrosion.
• Cons: Cannot handle high heat (PVC), brittle in freezing temps, usually solvent-welded rather than threaded (though threaded adapters exist).
• Best For: Drain-waste-vent (DWV) systems and irrigation.

Expert Tip: Always match the metal type. Connecting brass directly to galvanized steel can cause galvanic corrosion, eating away at the weaker metal. Use a dielectric union if you must connect dissimilar metals.

Step-by-Step Installation Guide

Installing a plumbing 45 degree elbow 1/2 NPT male x female correctly ensures a leak-free seal. Follow these precise steps to guarantee success.

Tools and Materials Needed

• Pipe wrenches (two are recommended)
• PTFE tape (Teflon tape) or pipe dope (thread sealant)
• Pipe cutter or hacksaw
• Deburring tool or file
• Rag for cleaning
• The 1/2 NPT 45-degree elbow fitting

Installation Process

1. Prepare the Pipes: Cut your pipe to the required length using a pipe cutter. Ensure the cut is perfectly square. Use a deburring tool to remove any sharp edges or metal shavings from both the inside and outside of the pipe end. A rough edge can cut through your sealant tape, causing leaks.
2. Clean the Threads: Wipe the male threads of the pipe and the female threads of the elbow with a clean rag. Remove any oil, dirt, or old sealant. Clean threads are vital for a tight seal.
3. Apply Sealant: Wrap PTFE tape around the male threads of the pipe.
   • Start at the second thread from the end.
   • Wrap in the direction of the threads (clockwise when looking at the end of the pipe).
   • Apply 3 to 4 layers of tape. Do not cover the very first thread, as this can cause tape to shred and enter the water line.
   • Alternatively, apply a thin, even coat of pipe dope to the male threads.
4. Hand-Tighten First: Screw the male end of the pipe into the female end of the plumbing 45 degree elbow 1/2 NPT male x female by hand. Turn it until it is snug. This prevents cross-threading, which ruins fittings instantly.
5. Wrench Tightening: Place one pipe wrench on the fitting body to hold it steady (preventing torque on the rest of the system) and the second wrench on the pipe. Tighten the connection.
   • Crucial Detail: For NPT threads, you generally tighten until the fitting is hand-tight plus 2 to 3 additional turns. Over-tightening can crack brass fittings or strip threads.
6. Align the Angle: Because it is a 45-degree elbow, ensure the angle is oriented correctly for your next pipe run before the sealant sets completely. Once tightened fully, the position is fixed.
7. Pressure Test: Allow the sealant to cure according to the manufacturer’s instructions (usually 2–4 hours for water, longer for gas). Turn on the water supply slowly and inspect for drips. If a leak appears, do not just tighten further; disassemble, re-clean, re-tape, and try again.

Common Mistakes to Avoid

Even experienced plumbers can make errors. Here are pitfalls to watch out for when working with NPT fittings:

• Over-taping: Using too much Teflon tape prevents the threads from engaging deeply enough, leading to a weak joint that may burst under pressure.
• Under-tightening: NPT threads rely on the taper wedging together to create a seal. If not tightened sufficiently, the seal will fail immediately upon pressurization.
• Ignoring Orientation: With a 45-degree elbow, visualizing the final direction is key. Misjudging the plane (vertical vs. horizontal tilt) can force you to cut new pipes.
• Using Water Tape for Gas: Ensure you use yellow PTFE tape specifically rated for gas lines if this fitting is part of a natural gas or propane system. White tape is for water only.

Frequently Asked Questions (FAQ)

1. Can I use a plumbing 45 degree elbow 1/2 NPT male x female for gas lines?

Yes, absolutely. However, you must ensure the fitting is made of a material approved for gas, such as black iron, brass, or stainless steel. Additionally, you must use yellow PTFE tape or a thread sealant specifically rated for combustible gases. Never use standard white water tape for gas applications.

2. What is the difference between NPT and NPS threads?

NPT (National Pipe Tapered) threads are tapered, meaning they get slightly smaller in diameter toward the end. This taper creates the seal when tightened. NPS (National Pipe Straight) threads are parallel and do not seal on the threads themselves; they require a gasket or O-ring. A plumbing 45 degree elbow 1/2 NPT male x female will not seal properly if connected to an NPS fitting without a gasket.

3. How do I remove a stuck 45-degree elbow without breaking the pipe?

If the fitting is seized due to corrosion, apply a penetrating oil (like WD-40 Specialist Penetrant) and let it sit for 15–20 minutes. Use two wrenches: one to hold the pipe steady and one to turn the fitting counter-clockwise. Apply steady, firm pressure rather than jerking motions. If heat is permissible (not on plastic or near flammables), gently heating the fitting with a propane torch can expand the metal and break the bond.

4. Is it better to use two 45-degree elbows to make a 90-degree turn?

In many cases, yes. Using two 45-degree elbows to create a 90-degree turn (often called a “kick”) provides a smoother radius for water flow compared to a single 90-degree elbow. This reduces pressure loss and noise. It also allows for slight adjustments in alignment during installation, offering more forgiveness if your measurements are slightly off.

5. What torque should I apply to a 1/2 inch brass NPT fitting?

While specific torque values vary by manufacturer and lubrication, a general rule for 1/2-inch brass NPT fittings is to tighten until the fitting is hand-tight plus 2 to 3 turns. Excessive torque can split the brass collar. If you are using a torque wrench, aim for approximately 15–20 ft-lbs, but always prioritize the “feel” of the taper seating over a specific number if you lack manufacturer data.

6. Can I reuse a 45-degree elbow after taking it apart?

It is generally not recommended to reuse threaded fittings once they have been sealed and pressurized. The threads may have deformed slightly to create the initial seal, and old sealant residue can prevent a proper seal the second time. For critical applications like gas or high-pressure water, always install a new plumbing 45 degree elbow 1/2 NPT male x female.

Conclusion

Selecting the right components is the backbone of any successful plumbing project. The plumbing 45 degree elbow 1/2 NPT male x female is more than just a connector; it is a strategic tool for improving flow efficiency, reducing noise, and navigating complex piping layouts. By understanding the differences in materials, avoiding common installation mistakes, and following the step-by-step guide provided, you can ensure a durable, leak-free system that stands the test of time.

Whether you are a seasoned contractor or a motivated DIY homeowner, paying attention to these details saves you from costly repairs down the road. Did you find this guide helpful in solving your plumbing challenge? Share this article with your friends on social media or send it to a fellow DIY enthusiast who might be struggling with their next pipe installation!
