Have you ever stood in your kitchen, frustrated by a weak trickle of water from your new faucet, only to realize the supply lines don’t match your home’s existing pipes? It is a common and annoying scenario for many homeowners attempting a simple upgrade. You are not alone in facing the challenge of plumbing a 1/2 inch pipe going to 3/8“, a task that requires precision to avoid leaks and maintain adequate water flow. In this guide, we will walk you through exactly how to bridge this gap safely, efficiently, and in full compliance with modern plumbing standards.
Understanding the Basics: Why Size Matters in Plumbing
Before picking up a wrench, it is crucial to understand why we have different pipe sizes and what happens when we connect them. In residential plumbing, the main supply lines running through your walls are typically 1/2 inch in diameter. This size is standard because it balances cost with the ability to deliver sufficient water volume (measured in Gallons Per Minute, or GPM) to fixtures.
However, many modern fixtures, such as single-handle faucets, toilet fill valves, and certain showerheads, utilize 3/8 inch supply lines. This reduction is often intentional by manufacturers to regulate flow and save water. The critical issue arises when you need to connect these two disparate sizes directly. If done incorrectly, you risk creating a bottleneck that drastically reduces water pressure or, worse, a joint that fails under the constant stress of 40–80 PSI (pounds per square inch) of water pressure.
According to general engineering principles found in fluid dynamics resources like Wikipedia, reducing the cross-sectional area of a pipe increases the velocity of the fluid but can lead to significant pressure drops if the transition is too abrupt or if the downstream pipe is too long. Therefore, the goal is not just to make the pieces fit, but to ensure the hydraulic performance of your system remains optimal.
Can You Connect a 1/2 Inch Pipe Directly to a 3/8 Inch Line?
The short answer is yes, but never by forcing a smaller pipe into a larger one without the proper intermediary. You cannot simply solder or glue a 3/8″ tube directly into a 1/2″ fitting without a specific adapter designed for this purpose. Doing so would leave gaps, cause turbulence, and almost certainly result in a leak within days.

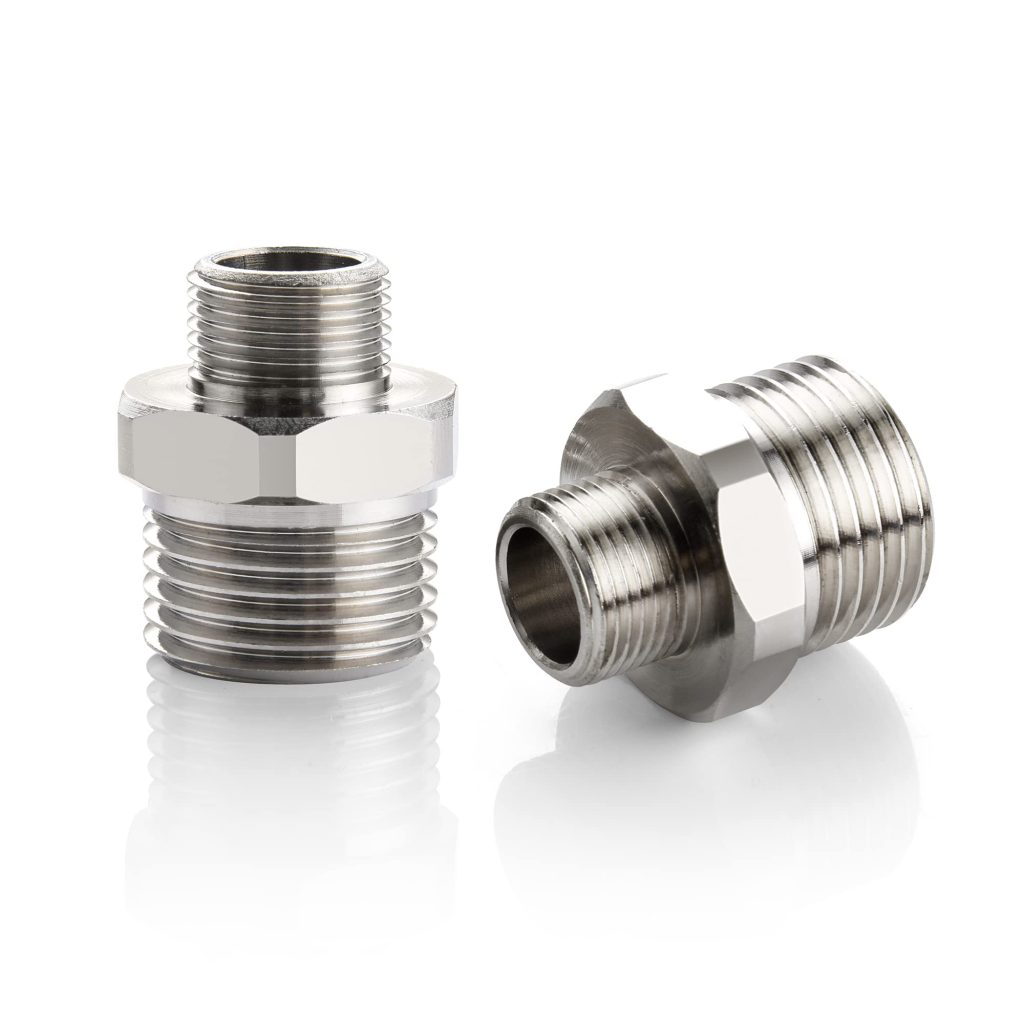

The industry standard solution is the use of a reducer fitting. These are specialized connectors manufactured specifically to transition between nominal pipe sizes. When plumbing a 1/2 inch pipe going to 3/8″, you are essentially creating a “step-down” connection.
Types of Reducer Fittings
Depending on your existing piping material (Copper, PEX, or CPVC), the type of reducer you choose will vary:
- Copper Systems: You will need a sweat (soldered) reducer bushing or a coupling with one end sized for 1/2″ and the other for 3/8″.
- PEX Systems: A brass or polymer insert reducer with crimp rings or expansion clamps is required.
- Threaded Connections: Often found at the fixture shut-off valve, where a 1/2″ NPT (National Pipe Thread) male inlet connects to a 3/8″ compression outlet.
Using the wrong type of fitting is a leading cause of DIY plumbing failures. Always match the fitting material to your pipe material to prevent galvanic corrosion, especially when mixing metals like copper and steel.
Step-by-Step Tutorial: How to Make the Connection Safely
If you are ready to tackle this project, follow these precise steps. We will assume a common scenario: connecting a rigid copper 1/2″ supply line to a flexible 3/8″ faucet line using a soldered copper reducer.
Tools and Materials Needed
- Pipe cutter (for a clean, square cut)
- Emery cloth or sandpaper (120-grit)
- Flux paste and flux brush
- Lead-free solder
- Propane torch
- 1/2″ x 3/8″ Copper Reducer Coupling
- Heat shield cloth (to protect surrounding walls)
- Wet rag or fire extinguisher (safety first)
The Installation Process
- Shut Off the Water: Locate the main water shut-off valve for your home or the local isolation valve for the specific line. Open a faucet downstream to drain remaining water and relieve pressure. Never attempt to solder a pressurized line.
- Cut the Pipe: Using your pipe cutter, trim the existing 1/2″ copper pipe. Ensure the cut is perfectly square; an angled cut will prevent the fitting from seating correctly. Leave enough room to slide on the reducer.
- Clean the Surfaces: Use the emery cloth to scrub the outside of the 1/2″ pipe end and the inside of the 1/2″ side of the reducer until they shine like new pennies. Repeat this process for the 3/8″ side if you are attaching a rigid pipe, or prepare the compression nut if attaching a flexible line. Cleanliness is non-negotiable for a good seal.
- Apply Flux: Brush a thin, even layer of flux paste onto the cleaned outer surface of the pipe and the inner surface of the fitting. Do not glob it on; a light coat is sufficient.
- Assemble the Joint: Slide the reducer onto the 1/2″ pipe. If you are connecting a rigid 3/8″ pipe next, flux and slide that on now. If using a flexible line, you will attach that after soldering.
- Heat and Solder: Put on your safety glasses. Light your propane torch and apply heat to the fitting, not the solder. Move the flame around the joint evenly. Once the copper is hot enough (usually indicated when the flux sizzles lightly), touch the tip of the solder wire to the seam opposite the flame.
- Critical Detail: The solder should melt instantly and be drawn into the joint by capillary action. Apply approximately 2–3 grams of solder for a 1/2″ joint. You should see a shiny ring of solder appear all the way around the seam.
- Cool and Clean: Remove the heat immediately once the joint is full. Let it cool naturally for about 30 seconds. Wipe away any excess flux with a damp rag while the joint is still warm (but not scorching hot) to prevent future corrosion.
- Connect the 3/8″ Line: If using a flexible braided stainless steel line, hand-tighten the 3/8″ compression nut onto the reducer, then give it an additional quarter-turn with a wrench. Do not overtighten, as this can crush the ferrule and cause leaks.
- Test for Leaks: Slowly turn the water back on. Inspect the joint closely for any drips. Run water through the fixture for 2 minutes to flush out any debris and confirm stable pressure.
Common Mistakes to Avoid When Downsizing Pipes
Even experienced plumbers can make errors when rushing. Here are the most frequent pitfalls when plumbing a 1/2 inch pipe going to 3/8″ and how to avoid them.
| Mistake | Consequence | Solution |
|---|---|---|
| Overtightening Compression Fittings | Cracks the brass fitting or deforms the ferrule, causing a slow leak. | Tighten until snug, then add only 1/4 to 1/2 turn more. |
| Insufficient Cleaning | Solder does not adhere, leading to immediate failure under pressure. | Shine the copper until no oxidation remains before applying flux. |
| Heating the Solder Directly | Creates a cold joint where solder sits on top rather than penetrating. | Heat the base metal (pipe/fitting) until it melts the solder on contact. |
| Ignoring Flow Restriction | Excessive length of 3/8″ pipe causes poor water volume at the faucet. | Keep the 3/8″ run as short as possible (ideally under 24 inches). |
The Impact on Water Pressure
A frequent concern is whether dropping from 1/2″ to 3/8″ will ruin water pressure. In reality, for short distances (like the final connection to a sink), the impact is negligible. However, if you extend the 3/8″ piping for several feet through a wall, you will notice a significant drop in flow rate.
- 1/2 inch pipe: Can comfortably deliver ~4–5 GPM depending on pressure.
- 3/8 inch pipe: Typically limits flow to ~2–3 GPM over similar distances.
If you are installing a high-flow rain showerhead, do not reduce the pipe size until the very last connection point at the valve. For standard bathroom sinks, the 3/8″ limitation is actually beneficial as it prevents splashing and conserves water.
Expert Tips for Long-Term Durability
To ensure your repair lasts decades, consider these professional insights:
- Support the Pipe: A 3/8″ line is more flexible and prone to vibration. Use pipe clips every 18–24 inches to prevent movement that could fatigue the joint.
- Dielectric Unions: If you are connecting copper to galvanized steel or iron, always use a dielectric union to prevent electrolysis, which can eat through pipes from the inside out.
- Temperature Checks: If this line carries hot water, ensure the flexible hose (if used) is rated for temperatures up to 90°C (194°F). Standard cheap hoses may degrade prematurely under high heat.
FAQ Section
1. Will reducing my pipe from 1/2″ to 3/8″ lower my water pressure significantly?
For short runs (under 2 feet), such as connecting a sink faucet, the pressure drop is minimal and often unnoticeable. However, if you run 3/8″ piping for long distances (over 5 feet), you will experience a noticeable reduction in water volume (GPM), though static pressure may remain similar until the water is flowing.
2. What is the best fitting to use for copper to 3/8″ flexible lines?
The best option is a 1/2″ x 3/8″ copper reducer coupling with a flare or compression end. Solder the 1/2″ side to your hard line, and then screw the 3/8″ flexible braided line directly onto the threaded or compression end of the reducer. This provides the most secure and leak-proof connection.
3. Can I use Teflon tape on a compression fitting?
No. You should never use Teflon tape or pipe dope on compression fittings. These fittings seal via mechanical compression of a ferrule (olive) against the pipe. Adding tape interferes with this seal and can actually cause leaks. Only use tape on threaded (NPT) connections.
4. Is it code-compliant to downsize plumbing pipes?
Yes, it is fully compliant with the International Plumbing Code (IPC) and Uniform Plumbing Code (UPC) to downsize pipes for individual fixture supplies, provided the fixture’s flow requirements are met. Most codes explicitly allow 3/8″ tubing for lavatories and toilets.
5. What if I don’t have a torch to solder the connection?
If you cannot use an open flame, consider using a push-to-connect fitting (such as SharkBite). These fittings allow you to simply push the 1/2″ pipe in one side and the 3/8″ tube in the other. They are certified for permanent installation behind walls and require no tools other than a deburring tool.
6. How do I know if my leak is from the solder joint or the compression nut?
Dry the area completely. Turn the water on and observe. If water beads up immediately at the seam where the metal meets the metal, it is a solder issue. If water drips from beneath the hex nut where the flexible line connects, the compression nut likely needs a slight tighten or the ferrule is damaged.
Conclusion
Successfully plumbing a 1/2 inch pipe going to 3/8“ is a manageable task that bridges the gap between your home’s main infrastructure and modern, efficient fixtures. By understanding the hydraulics involved, selecting the correct reducer fittings, and following a meticulous installation process, you can ensure a leak-free system that maintains optimal water pressure. Remember, the key lies in preparation: clean your pipes thoroughly, respect the limitations of smaller tubing lengths, and always test your work before closing up walls.
