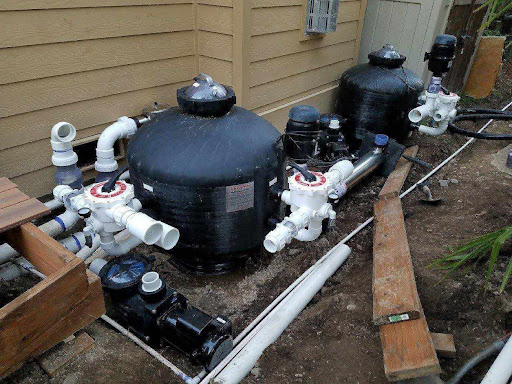

Plumbing a Sand and Gravel Filter to Your Koi Pond

Nothing breaks a koi keeper’s heart faster than seeing crystal-clear water turn into a murky green soup overnight. You’ve invested time, money, and love into your aquatic friends, yet traditional mechanical filters often struggle to handle heavy biological loads without constant cleaning. This is where plumbing a sand and gravel filter to a koi pond becomes a game-changer, offering superior mechanical and biological filtration that mimics natural ecosystems. In this guide, we will walk you through the precise engineering required to connect these robust systems, ensuring your koi thrive in pristine conditions.

Why Choose a Sand and Gravel Filter for Koi?

Before diving into the wrenches and PVC pipes, it is crucial to understand why this specific filtration method is gaining traction among serious hobbyists in the United States. Unlike standard bead filters or box filters, sand and gravel beds provide a massive surface area for beneficial bacteria to colonize.

According to general aquaculture principles found on resources like Wikipedia, effective filtration relies on three pillars: mechanical removal of debris, biological conversion of toxins, and adequate water flow. A sand and gravel system excels in all three. The layered media traps fine particulates (mechanical) while the deep bed hosts nitrifying bacteria that convert harmful ammonia into less toxic nitrates (biological).

The Efficiency Difference

• Standard Mechanical Filters: Often clog within 24–48 hours in heavily stocked ponds, requiring frequent backwashing.
• Sand/Gravel Systems: Can run for weeks before needing maintenance due to the depth of the filtration bed (often 24–36 inches).
• Water Clarity: Users report a significant reduction in suspended solids, leading to water clarity measured at less than 5 NTU (Nephelometric Turbidity Units) compared to 15–20 NTU in standard setups.

Essential Components and Tools Required

Successful plumbing a sand and gravel filter to a koi pond starts with gathering the right materials. Skipping quality components here can lead to leaks, pressure drops, or even structural failure of the filter vessel.

The Hardware Checklist

1. Filter Vessel: A high-pressure tank rated for at least 50 PSI. Common sizes range from 16 to 24 inches in diameter for residential koi ponds.
2. Filtration Media:
   • #3 Silica Sand (0.45–0.55 mm grain size).
   • Pea Gravel (3/8 inch) for the bottom layer.
   • Optional: Zeolite or activated carbon for chemical filtration.
3. Multi-Port Valve: Essential for switching between “Filter,” “Backwash,” “Rinse,” and “Waste” modes.
4. PVC Piping: Schedule 40 PVC pipes (usually 1.5 or 2 inches depending on pump flow rate).
5. Unions and Ball Valves: For easy disassembly and flow control.
6. Primer and Cement: Specifically designed for pressure applications.

Tool Kit

• PVC pipe cutter or hacksaw.
• Deburring tool.
• Tape measure and marker.
• Teflon tape for threaded connections.
• Level (crucial for the filter tank).

Step-by-Step Guide: Plumbing the System

This section details the exact process of plumbing a sand and gravel filter to a koi pond. Precision is key; improper slopes or tight bends can restrict flow, causing the pump to overwork or the filter to channel (where water bypasses the media).

Step 1: Positioning the Filter Tank

Place your filter tank on a stable, level concrete pad or reinforced wooden platform. The tank must be perfectly level; otherwise, the multi-port valve gasket may not seal correctly, leading to leaks during backwashing.

• Pro Tip: Ensure the filter is located after your pump but before any UV clarifiers or water features. The ideal height is slightly above the pond water level to allow gravity return, reducing pump head pressure.

Step 2: Configuring the Inlet Line (From Pump)

The water flows from your pond pump directly into the top of the filter.

1. Cut a piece of 2-inch Schedule 40 PVC to connect the pump outlet to the “Pump” port on the multi-port valve.
2. Use two 90-degree elbows if necessary to navigate corners, but try to keep the run as straight as possible to maintain laminar flow.
3. Install a union before the valve. This allows you to remove the valve for service without cutting the pipe later.
4. Apply primer and cement generously. Hold the joint firmly for 15 seconds to prevent push-out under pressure.

Step 3: Setting Up the Return Line (To Pond)

Once filtered, water exits the “Return” port and heads back to the pond.

1. Connect the “Return” port to your main return line using 2-inch PVC.
2. Critical Detail: Install a ball valve on this line. This allows you to throttle the flow rate. For a sand filter, you typically want a flow rate of 10–15 gallons per minute (GPM) per square foot of filter area. Too fast, and you disturb the sand bed; too slow, and filtration is inefficient.
3. If your pond is elevated, ensure the piping supports the vertical lift without sagging.

Step 4: Installing the Waste Line

During backwashing, dirty water needs somewhere to go. Never plumb the waste line directly back into the pond!

1. Connect the “Waste” port to a dedicated discharge line.
2. Route this line to a storm drain, dry well, or garden area (note: backwash water is high in nitrogen and great for non-edible plants, but avoid direct runoff into local waterways).
3. Ensure the waste line has no restrictions; a blocked waste line during backwash can blow the gasket off your multi-port valve.

Step 5: Loading the Media

This is the most delicate part of plumbing a sand and gravel filter to a koi pond. Incorrect loading causes media to enter the return lines.

1. Fill with Water First: Fill the tank about 1/3 full with clean water. This cushions the fall of the gravel and protects the lateral pipes at the bottom.
2. Add Gravel Layer: Pour in 2–3 inches of pea gravel. This acts as a support base.
3. Add Sand Layer: Slowly pour the silica sand until the tank is about 2/3 full. Do not overfill; leave 6–8 inches of air space above the sand for the backwash expansion zone.
4. Clean Up: Wipe the rim of the tank thoroughly. Any sand grain caught in the O-ring will cause a leak.

Step 6: Initial Rinse and Commissioning

Before connecting to the koi pond fully, you must rinse the media.

1. Set the multi-port valve to “Rinse”.
2. Turn on the pump for 2–3 minutes. Watch the sight glass (if equipped) or the waste output. The water will be cloudy initially.
3. Switch to “Backwash” for 3 minutes until the water runs clear.
4. Finally, switch to “Filter” mode.
5. Check all joints for leaks. Tighten unions if necessary, but do not overtighten PVC threads.

Troubleshooting Common Flow Issues

Even with perfect plumbing, issues can arise. Here is a quick comparison table to help you diagnose problems quickly.

Expert Insights on Maintenance Frequency

Maintaining your system is just as important as the installation. How often should you backwash?

• Standard Rule: Backwash when the pressure gauge reads 8–10 PSI higher than your starting “clean” pressure.
• Seasonal Adjustment: In autumn, when leaves fall, you may need to backwash weekly. In winter (if the pond is active), monthly checks suffice.
• Deep Clean: Once a year, consider removing the sand entirely to inspect the laterals and replace about 20% of the media, as sand grains can become rounded and less effective over 5–7 years.

“The longevity of a koi pond ecosystem depends entirely on the stability of its nitrogen cycle. A properly plumbed sand filter provides the most stable environment for these bacteria to flourish.” — Dr. A. Henderson, Aquatic Systems Specialist.

Frequently Asked Questions (FAQ)

1. Can I use regular play sand instead of silica sand?

No, you should strictly use #3 silica sand. Play sand is too fine and will compact, restricting water flow and potentially damaging your pump. It also lacks the specific grain shape required for optimal biological colonization.

2. What size pump do I need for a sand filter?

Your pump should match the filter’s design flow rate. For a typical 20-inch residential sand filter, a pump delivering 40–60 GPM (Gallons Per Minute) is ideal. Always check the manufacturer’s specifications for both the pump and the filter tank to ensure compatibility.

3. How long does the backwashing process take?

A complete backwash and rinse cycle typically takes 5 to 7 minutes. You backwash until the water in the sight glass is clear (usually 3 minutes), then rinse for another 2 minutes to settle the bed before returning to “Filter” mode.

4. Will this setup remove algae from my koi pond?

A sand filter is excellent at removing suspended algae (green water) mechanically. However, for single-cell algae that passes through sand, you should pair this system with a UV Clarifier installed after the sand filter return line for maximum effectiveness.

5. Is it difficult to winterize a sand filter?

Winterizing is straightforward. You must drain all water from the pump, filter tank, and pipes to prevent freezing cracks. Remove the drain plug at the bottom of the filter tank and store the multi-port valve indoors if possible to protect the gaskets from extreme cold.

6. Can I automate the backwashing process?

Yes, advanced setups can include an automated timer and motorized actuator on the multi-port valve. However, for most residential koi ponds, manual backwashing once every few weeks is sufficient and allows you to visually inspect the water quality.

Conclusion

Mastering the art of plumbing a sand and gravel filter to a koi pond is one of the best investments you can make for your aquatic ecosystem. By following these detailed steps, you ensure a robust filtration system that delivers crystal-clear water, reduces maintenance frequency, and provides a healthy habitat for your prized koi. Remember, the secret lies in the details: proper leveling, correct media layering, and strategic valve placement.
