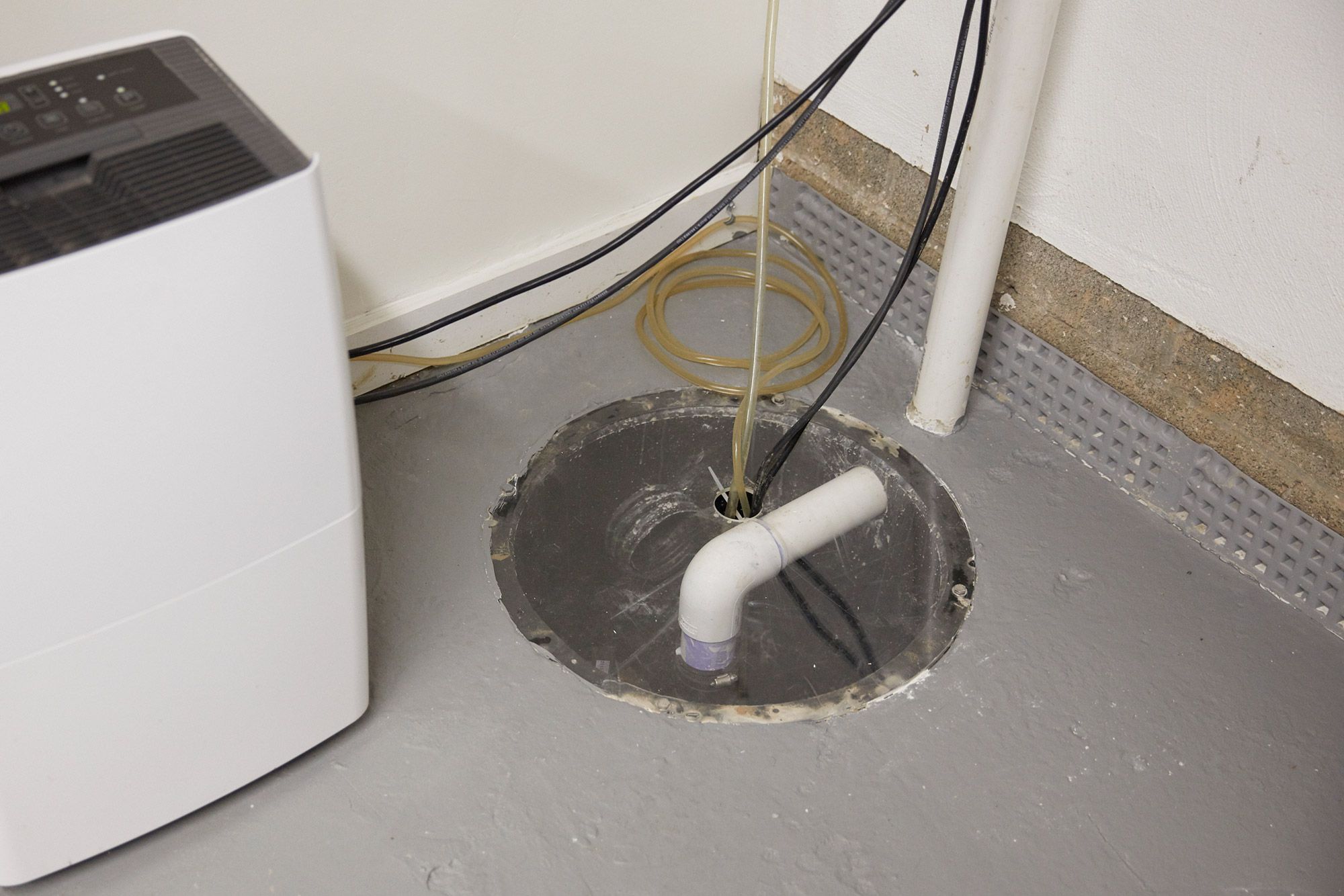

Can You Plumb a Sump Pump Into a Higher Floor Drain?

There is nothing more stressful than watching water rise in your basement during a heavy storm, knowing your current drainage setup might not be enough. Many homeowners face a unique challenge where the existing floor drain sits higher than their sump pump basin, creating a confusing dilemma about gravity and flow. If you are considering plumbing a sump pump into a higher floor drain pipe, you are likely looking for a solution that balances code compliance with effective water removal. This guide will walk you through the physics, the risks, and the step-by-step engineering required to make this work without causing a catastrophic backup.

The Physics of Water: Why “Higher” is a Problem

Before we pick up a wrench, we must address the fundamental law of physics governing your plumbing: water does not flow uphill on its own. When people ask about connecting a sump pump to a floor drain that is positioned higher than the pump’s discharge point, they are often misunderstanding the direction of flow or the role of pressure.

In a standard gravity-fed system, water moves from high to low. However, a sump pump is designed to create pressure to push water upward and out of your home. The critical issue arises when you try to connect the pump’s discharge line into a floor drain stack that relies on gravity, especially if that connection point is elevated relative to the pump’s optimal output curve.

According to basic fluid dynamics, every foot of vertical lift (head height) reduces the flow rate of your pump. If you are attempting plumbing a sump pump into a higher floor drain pipe, you are essentially asking the pump to fight gravity twice: once to reach the height of the pipe, and again to overcome any resistance within that shared drain line. Without a properly installed check valve and adequate pump horsepower, this setup can lead to water sliding back down into your basement the moment the pump cycles off.

Can You Connect a Sump Pump to a Floor Drain Stack?

This is one of the most common questions found in “People Also Ask” sections across search engines. The short answer is: Yes, but with strict conditions.

Connecting a sump pump to an existing floor drain stack is sometimes necessary in older homes where dedicated exterior discharge lines are impossible to install due to landscaping or foundation constraints. However, this practice is heavily regulated by local building codes in the United States.

The Risk of Sewage Backflow

The primary danger lies in the type of drain you are connecting to.

• Storm Drains: If the floor drain leads directly to a storm sewer or daylight, the risk is lower, though still present regarding freezing or clogging.
• Sanitary Sewers: If the floor drain connects to the main sanitary sewer line (which handles toilet and sink waste), connecting your sump pump here is often illegal. During heavy rains, municipal sewer systems can become overloaded. If your sump pump pushes water into this line, and the main line backs up, raw sewage can be forced up through your floor drain and into your basement.

Expert Insight: The Environmental Protection Agency (EPA) and many local municipalities strictly prohibit sump pump discharge into sanitary sewers to prevent treatment plant overload. Always check your local codes before proceeding. For a deeper understanding of municipal wastewater infrastructure, you can review resources on Wikipedia.org.

Comparison: Dedicated Line vs. Floor Drain Connection

Step-by-Step Guide: How to Execute the Connection Safely

If you have confirmed with your local building department that plumbing a sump pump into a higher floor drain pipe is permitted in your area, and you have determined the drain is suitable, follow these precise steps. This process assumes you are using a submersible sump pump with sufficient head pressure.

Tools and Materials Needed

• Submersible sump pump (rated for the required vertical lift)
• 1½ inch or 2-inch PVC discharge pipe (Schedule 40)
• Two (2) full-port brass or PVC check valves
• PVC primer and cement
• Pipe cutter or hacksaw
• Unions (for easy pump removal)
• Rubber coupling bands (no-hub couplings)
• Teflon tape

Step 1: Calculate the Total Dynamic Head (TDH)

Do not guess the pump size. You must calculate the total height the water needs to travel.

1. Measure the vertical distance from the bottom of the sump pit to the entry point of the higher floor drain pipe. Let’s say this is 8 feet.
2. Add the horizontal distance multiplied by 0.1 (friction loss estimate). If you have 20 feet of horizontal run, add 2 feet.
3. Add 1 foot for every elbow or check valve in the line. With 3 elbows and 2 check valves, add 5 feet.
4. Total Head: 8 + 2 + 5 = 15 feet. Ensure your pump is rated to move at least 2,000 gallons per hour (GPH) at 15 feet of head.

Step 2: Install the Primary Check Valve

Immediately after the pump discharge outlet, install the first check valve. This prevents water from flowing back into the pit immediately after the pump shuts off.

• Orient the arrow on the valve so it points away from the pump (upward).
• Place this valve within 12 inches of the pump outlet, but ensure it is accessible for service.

Step 3: Route the Discharge Line Vertically

Run your PVC pipe vertically from the pump toward the higher floor drain connection point.

• Secure the pipe to the wall every 4 feet using pipe hangers to prevent vibration noise.
• Avoid sharp 90-degree turns if possible; use two 45-degree elbows to create a smoother flow path, which reduces friction loss.

Step 4: Install the Secondary Check Valve and Union

Before reaching the connection point at the higher floor drain, you must install a second line of defense.

• Install a union fitting first (to allow you to disconnect the pipe later without cutting).
• Install a second check valve above the union. This dual-check system is crucial when discharging into a shared stack, as it protects against back-pressure from other fixtures draining into that same stack.

Step 5: Making the Connection to the Higher Pipe

This is the most critical phase of plumbing a sump pump into a higher floor drain pipe.

1. Cut into the existing floor drain vent or standpipe carefully. Note: Do not cut into the main sewer trap arm below the water level, as this breaks the seal.
2. The ideal entry point is above the flood rim of the lowest fixture connected to that stack, or via a dedicated wye fitting installed specifically for this purpose.
3. Use a rubber no-hub coupling to connect your new PVC discharge line to the existing cast iron or PVC stack. Tighten the stainless steel clamps firmly with a nut driver.
4. Crucial Detail: Ensure the connection angle directs your pumped water downstream with the natural flow of the drain, not against it.

Step 6: Testing the System

Never assume the job is done until tested.

1. Fill the sump pit with approximately 20 liters of water manually.
2. Observe the pump activation. It should kick on smoothly.
3. Watch the discharge flow. Listen for “water hammer” (loud banging), which indicates the check valve is slamming shut too hard.
4. Once the pump shuts off, mark the water level in the pit. Wait 15 minutes. If the water level rises significantly, your check valves are leaking, and water is sliding back from the higher floor drain pipe.

Common Mistakes to Avoid

Even experienced DIYers make errors when dealing with complex drainage. Here are the pitfalls to watch out for:

• Ignoring the Air Gap: In many jurisdictions, you cannot hard-plumb a sump pump directly into a sanitary line without an air gap. An air gap prevents sewage from ever touching the potable water system or being siphoned back into the pump.
• Undersizing the Pipe: Using 1¼ inch pipe for a long run to a higher elevation creates excessive friction. Stick to 1½ inch or 2-inch piping to maintain flow velocity.
• Missing the Relief Hole: Drill a 3/16-inch “weep hole” in the discharge pipe between the pump and the first check valve. This prevents the pump from becoming “air-locked” and ensures the check valve resets properly.
• Freezing Concerns: If the higher floor drain pipe runs through an unheated crawlspace or attic, the water you pump up there can freeze, blocking the line and burning out your motor. Insulate all exposed pipes rigorously.

Frequently Asked Questions (FAQ)

1. Is it legal to plumb a sump pump into a floor drain in the US?

It depends entirely on your municipality. Many cities prohibit connecting sump pumps to sanitary sewers because it overloads treatment plants during storms. It is often legal only if the floor drain leads to a separate storm sewer system. Always contact your local building inspector before starting.

2. What happens if the floor drain backs up?

If the main line clogs or the city sewer surcharges, water (potentially mixed with sewage) can back up through the floor drain. If your sump pump is connected directly without proper backflow prevention, this contaminated water can be pushed right back into your sump pit and overflow into your basement. This is why dual check valves and backwater valves are essential.

3. Can I use a flexible hose to reach the higher drain?

While flexible corrugated hose is easy to install, it is not recommended for pressurized discharge lines, especially for vertical lifts. The ridges inside the hose create significant turbulence and friction, reducing pump efficiency and increasing the likelihood of clogs. Always use rigid Schedule 40 PVC for the main run.

4. How do I prevent noise when the pump pushes water up?

Water moving quickly through PVC pipes can be noisy. To mitigate this, wrap the discharge pipe in foam pipe insulation before securing it to the wall. Additionally, ensure the pipe is tightly strapped; loose pipes vibrate against studs, amplifying the sound of the water flow.

5. Do I need a battery backup for this setup?

Absolutely. If you are relying on a complex setup like plumbing a sump pump into a higher floor drain pipe, a power outage during a storm is your worst-case scenario. Without power, the pump stops, and gravity may pull water from the higher stack back down if your check valves aren’t perfect. A battery backup system provides peace of mind.

6. What size pump do I need for a 10-foot vertical lift?

For a 10-foot vertical lift plus horizontal run, a standard 1/3 HP pump might struggle to move sufficient volume. It is generally advisable to upgrade to a ½ HP or ¾ HP cast-iron sump pump with a high-head rating. Check the manufacturer’s performance curve chart to ensure it delivers at least 2,500 GPH at your specific total head height.

Conclusion

Successfully plumbing a sump pump into a higher floor drain pipe is a feasible project, but it demands precision, respect for local codes, and a solid understanding of hydraulic pressure. By calculating your head height correctly, installing dual check valves, and ensuring your connection point avoids sewage backflow risks, you can protect your home from water damage even with a challenging layout. Remember, the goal isn’t just to move water out; it’s to keep it from coming back in.
