Mastering Plumbing: Elbow to Straight Arm Pulldown Traps

Is your kitchen sink draining slowly, or worse, emitting that unpleasant sewer gas smell? You are not alone; millions of homeowners face these frustrating issues due to improper trap configurations. Whether you are renovating an old home or fixing a persistent leak under the sink, understanding plumbing and trap fittings pipes elbow to straight arm pulldown is the key to a healthy, functional drainage system. In this guide, we will walk you through everything you need to know to solve these problems with confidence, ensuring your plumbing works smoothly for years to come.

Why Do You Need an Elbow-to-Straight Arm Configuration?

When dealing with modern kitchen sinks, especially those equipped with high-arc faucets or pull-down sprayers, the space under the basin can be surprisingly cramped. Traditional S-traps often fail to fit or violate current building codes because they lack proper venting, leading to siphoning issues.

The transition from an elbow fitting to a straight arm pulldown setup is designed to maximize limited cabinet space while maintaining the essential water seal. This configuration ensures that wastewater flows efficiently without allowing dangerous gases to escape into your home. According to the International Plumbing Code (IPC), maintaining a proper trap seal depth of between 2 to 4 inches is critical for preventing sewer gas entry.

By optimizing this specific connection, you address two major pain points:

• Space Constraints: Fitting pipes neatly behind deep sink basins.
• Code Compliance: Ensuring your setup meets modern safety standards regarding venting and flow.

For a deeper understanding of historical and modern plumbing standards, you can refer to the comprehensive overview on Wikipedia’s Plumbing page.

Understanding the Components: Elbows, Traps, and Arms

Before grabbing your wrench, it is vital to understand the anatomy of the system. Confusion over parts is the number one reason DIY projects fail.

The Role of the Elbow Fitting

The elbow (usually a 90-degree or 45-degree bend) acts as the directional guide. It connects the vertical tailpiece coming down from the sink strainer to the horizontal run of the pipe. In tight spaces, a street elbow (male thread on one end, female on the other) is often preferred to reduce the number of joints and potential leak points.

The Trap Assembly

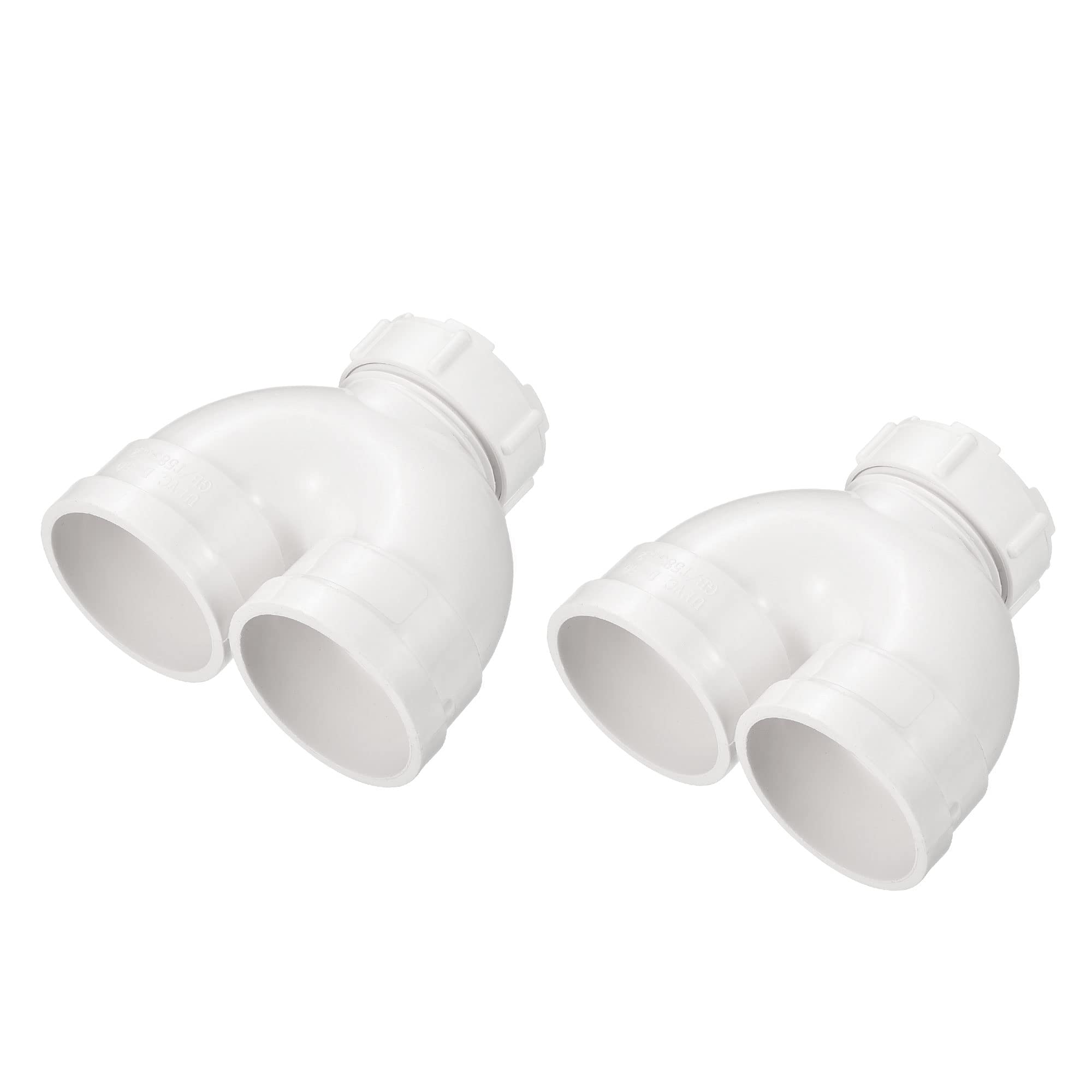

The trap is the U-shaped or P-shaped section that holds water. This water block is your primary defense against sewer gases. When converting to a straight arm setup, you typically use a P-trap adapted with an extension arm.

The Straight Arm Pulldown Extension

This is the horizontal pipe that extends from the trap outlet to the wall drain. In “pulldown” scenarios, this often refers to the ability to adjust or extend the arm to reach a distant wall outlet without compromising the slope.

Step-by-Step Installation Guide

Installing plumbing and trap fittings pipes elbow to straight arm pulldown requires precision. Follow these concrete steps to ensure a watertight seal.

Step 1: Preparation and Measurement

Turn off the water supply and place a bucket under the existing pipes. Remove the old trap assembly. Clean the sink strainer threads thoroughly.

• Measurement Tip: Measure the distance from the center of the sink drain to the center of the wall drain outlet. Subtract 2 inches to allow for the trap curvature.
• Temperature Check: If using solvent cement for PVC, ensure the room temperature is between 22–28°C (72–82°F) for optimal curing.

Step 2: Installing the Tailpiece and Elbow

Attach the new tailpiece to the sink strainer using a slip nut and washer. Ensure the beveled side of the washer faces the nut.

• Screw the 90-degree elbow onto the bottom of the tailpiece.
• Torque Warning: Hand-tighten first, then give it a quarter turn with channel-lock pliers. Over-tightening can crack plastic nuts.

Step 3: Assembling the P-Trap

Connect the curved section of the P-trap to the elbow.

• Use 2 liters of water to test the alignment before final tightening. Pour it slowly to check for immediate drips.
• Ensure the trap dip is level; if it tilts, the water seal may be uneven, leading to evaporation on one side.

Step 4: Connecting the Straight Arm

Attach the straight arm extension to the outlet of the P-trap.

• Slope Requirement: The pipe must slope downward toward the wall drain at a rate of 1/4 inch per foot. This gravity-fed slope is non-negotiable for preventing clogs.
• If the wall drain is too high, you may need to lower it or use a specialized adjustable flange. Never install a horizontal pipe with an upward slope.

Step 5: Final Testing

Once all connections are secure, run hot water for at least 3 minutes.

• Check every joint with a dry paper towel; even a tiny bead of moisture will darken the paper.
• Listen for gurgling sounds, which indicate a venting issue.

Common Mistakes to Avoid

Even experienced plumbers can make errors when working in confined spaces. Here are the most frequent pitfalls:

• Double Trapping: Never install two traps in series (e.g., an S-trap followed by a P-trap). This creates air locks that stop drainage completely.
• Incorrect Washer Orientation: Placing the flat side of the washer against the fitting instead of the beveled side is a guaranteed way to get a leak.
• Ignoring Expansion Gaps: Plastic pipes expand and contract with temperature changes. Leave a tiny gap (about 1/8 inch) inside the fitting before tightening to prevent buckling.
• Using Teflon Tape on Slip Joints: Slip nuts rely on compression washers, not threaded seals. Adding tape here can prevent the nut from tightening enough to compress the washer.

Troubleshooting: What If It Still Leaks?

If you have followed the guide for plumbing and trap fittings pipes elbow to straight arm pulldown and still see water, consider these factors:

1. Cross-threading: Did you force the nut? Unscrew it completely and restart to ensure smooth threading.
2. Debris in the Seal: A single grain of sand or a shred of old plumber’s putty can break the seal. Disassemble and clean all mating surfaces.
3. Wall Drain Alignment: If the straight arm is forced up or down to meet the wall drain, it creates tension. Use an adjustable extension tube to relieve this stress.

Expert Insight: “Ninety percent of under-sink leaks are not due to bad parts, but rather misaligned pipes creating constant tension on the joints,” says Mark Henderson, a master plumber with 25 years of experience. “Always aim for a ‘dry fit’ where the pipes sit naturally before applying any sealants or tightening nuts.”

FAQ Section

H2: Frequently Asked Questions

Q1: Can I use an S-trap instead of a P-trap for my straight arm setup? A: Generally, no. Most modern building codes in the US prohibit S-traps because they are prone to siphoning their own water seal, allowing sewer gas to enter. Always opt for a P-trap configuration with proper venting.

Q2: How far can the straight arm extend from the trap to the wall? A: While local codes vary, the general rule is that the distance from the trap weir (the highest point of the inner curve) to the vent should not exceed 5 feet for a 1.5-inch pipe and 6 feet for a 2-inch pipe. Exceeding this can lead to sluggish drainage.

Q3: My sink gurgles when the dishwasher drains. Is this related to the elbow fitting? A: Likely, yes. Gurgling indicates a venting problem or a partial blockage. Ensure your straight arm has the correct downward slope and that the main vent stack is not obstructed. The elbow configuration itself rarely causes gurgling unless it is installed upside down or restricts flow.

Q4: Should I glue the joints or use slip nuts? A: For the connection between the sink and the trap, always use slip nuts. This allows for future cleaning and adjustments. Glue (solvent weld) is typically reserved for the permanent drain line running inside the wall, not the accessible trap assembly.

Q5: What material is best: PVC or Chrome Brass? A: PVC is durable, corrosion-resistant, and easier for DIYers to cut and fit. Chrome brass looks aesthetically pleasing in open cabinetry but can corrode over time and is harder to adjust without specialized tools. For hidden cabinets, PVC is often the practical choice.

Q6: How often should I clean the trap in a kitchen with a garbage disposal? A: It is recommended to inspect and clean the P-trap every 6 to 12 months if you have a garbage disposal. Food particles and grease can accumulate faster, leading to odors and slow drains.

Conclusion

Mastering the intricacies of plumbing and trap fittings pipes elbow to straight arm pulldown empowers you to tackle one of the most common household maintenance challenges. By understanding the correct components, adhering to slope requirements, and avoiding common installation errors, you can ensure a leak-free, odor-free kitchen environment. Remember, proper plumbing is not just about stopping leaks; it is about protecting your home’s health and complying with safety codes.
