Plumbing Code: Chlorine PPM for 12″ Main in 12 Hours

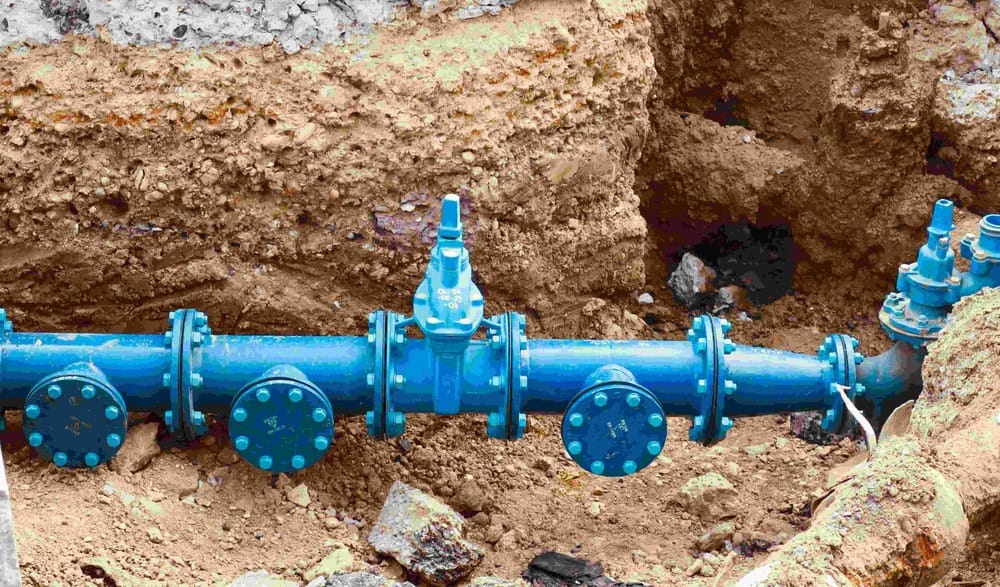

Installing a new water main is a massive undertaking, but the job isn’t truly finished until the water flowing through it is safe to drink. Many contractors face anxiety when facing tight deadlines, wondering if they can meet strict safety regulations within a specific timeframe. If you are managing a project involving a large-diameter pipe and need to know the plumbing code chlorine ppm for 12 main in 12 hours, you are in the right place. This guide breaks down the complex regulations into actionable steps, ensuring your project passes inspection without compromising public health.

Understanding the Core Standards: AWWA C651

When discussing disinfection protocols in the United States, one standard reigns supreme: AWWA C651. Published by the American Water Works Association, this document details the methods for disinfecting water mains. While local plumbing codes may vary slightly from city to city, almost all jurisdictions adopt AWWA C651 as the baseline for compliance.

The core principle of these regulations is not just about dumping chlorine into a pipe; it is about maintaining a specific concentration over a defined period to kill harmful pathogens like E. coli and Giardia. For a 12-inch main, the volume of water is significant, making precise calculations critical. Failure to adhere to these standards can result in failed bacterial cultures, costly re-flushing, and potential legal liabilities.

According to data from the Centers for Disease Control and Prevention (CDC), proper chlorination reduces waterborne disease outbreaks by over 90%. Therefore, understanding the nuance between “initial fill” concentrations and “maintenance” concentrations is vital for any professional plumber or civil engineer. You can read more about the history and importance of water treatment standards on Wikipedia.org.

What Is the Required Chlorine PPM for a 12-Inch Main?

One of the most common questions professionals ask is whether the diameter of the pipe changes the required parts per million (PPM) of chlorine. The short answer is no, the concentration requirement remains consistent regardless of pipe size, but the total amount of chlorine needed changes drastically.

Under the standard tablet method or continuous feed method outlined in AWWA C651, the target free chlorine residual is generally 25 mg/L (25 ppm) for the initial fill. This high concentration is necessary to overcome the “chlorine demand” of the new pipe material, soil contaminants, and any organic matter present.

However, if you are using the continuous feed method where water is flushed through while being chlorinated, the requirement drops to a minimum of 10 mg/L (10 ppm) maintained throughout the pipeline.

Key Concentration Targets:

• Initial Slug/Static Fill: 25 ppm minimum.
• Continuous Feed Method: 10 ppm minimum at the farthest point.
• Final Flushing Target: Must be reduced to <4.0 ppm (or local drinking water limits) before consumer use.

It is crucial to note that these levels must be verified at the farthest point of the 12-inch main, not just at the injection site. In a long run, chlorine dissipates; therefore, starting with a higher concentration at the source ensures the tail end meets the code.

Can You Complete Disinfection in Just 12 Hours?

The phrase “in 12 hours” often refers to the contact time or the project deadline. Here lies a critical distinction in the plumbing code. Standard contact time is typically 24 hours.

AWWA C651 generally mandates that the chlorinated water must remain static in the pipe for at least 24 hours before sampling. However, there is an exception. If the water temperature is significantly high, or if a higher concentration of chlorine is used, the contact time may be reduced, but this requires explicit approval from the local Authority Having Jurisdiction (AHJ).

The Temperature Factor

Chemical reactions occur faster in warmer water. The standard assumes a water temperature of roughly 20°C (68°F).

• If the water temperature is above 25°C (77°F), some jurisdictions allow a reduction in contact time to 12 hours, provided the chlorine residual remains above the required threshold throughout the period.
• If the water is cold (below 10°C / 50°F), you may need to extend the contact time beyond 24 hours.

Warning: Attempting to force a 12-hour turnaround without verifying local code exceptions is risky. Most inspectors will reject samples taken before the 24-hour mark unless prior arrangements were made. Always confirm with your local health department if a 12-hour contact time is permissible for your specific project conditions.

Step-by-Step Guide: Disinfecting a 12-Inch Main

If your local jurisdiction allows for an accelerated timeline or if you are planning a standard 24-hour cycle that fits within a 12-hour work window for preparation and flushing, follow this precise protocol.

Step 1: Calculate the Volume

First, determine the volume of water in the 12-inch main.

• Formula: Volume (gallons) = Length (feet) × 5.87 (gallons per foot for 12″ pipe).
• Example: For a 1,000-foot section: $1,000\times 5.87=5,870$1,000×5.87=5,870 gallons.

Step 2: Determine Chlorine Dosage

Using calcium hypochlorite tablets (usually 65% available chlorine):

• To achieve 25 ppm in 5,870 gallons, you need approximately 1.9 pounds of pure chlorine.
• Since tablets are 65% strength: $1.9\mathrm{/}0.65\approx 2.9$1.9/0.65≈2.9 pounds of tablets.
• Always add a safety margin of 10-15% to account for demand.

Step 3: Injection and Filling

1. Place the calculated number of tablets in the pipe as it fills, or use a chemical feed pump for continuous injection.
2. Ensure the water temperature is between 22–28°C (72–82°F) if aiming for faster reaction times, though ambient temperature is usually acceptable.
3. Fill the pipe slowly to avoid air pockets, which can shield bacteria from the chlorine.

Step 4: Verification and Contact Time

1. Once full, test the chlorine residual at the furthest outlet. It must read at least 25 ppm (for static) or 10 ppm (for continuous).
2. Seal all outlets.
3. Begin the contact timer. If approved for a 12-hour window due to high temperature/high dose, monitor the pressure and seals closely.

Step 5: Flushing and Sampling

1. After the contact period, flush the main vigorously until the chlorine level drops below 4.0 ppm (or local potable limits).
2. Collect bacteriological samples from designated taps.
3. Submit samples to a certified lab within 6 hours of collection.

Comparison: Static vs. Continuous Disinfection Methods

Choosing the right method can impact your ability to meet tight deadlines. Below is a comparison to help you decide.

Pros of Static Method: Less water waste, easier to calculate dosage, no need for complex pumping equipment.
Cons of Static Method: Longer mandatory wait times, difficult to verify mixing in very long pipes.

Pros of Continuous Method: Ensures fresh chlorine reaches the end of the line, potentially faster turnover if local codes permit.
Cons of Continuous Method: Massive water waste, requires constant monitoring of injection rates, environmental disposal issues for high-chlorine wastewater.

Common Mistakes That Cause Inspection Failures

Even experienced crews can stumble. Avoid these pitfalls to ensure your plumbing code chlorine ppm for 12 main in 12 hours strategy succeeds:

• Ignoring Chlorine Demand: New PVC or ductile iron pipes absorb chlorine. If you dose exactly for 25 ppm but the pipe absorbs 10 ppm immediately, your effective dose is only 15 ppm, leading to failure. Always over-dose slightly.
• Sampling Too Soon: Impatience is the enemy. Taking samples at hour 11 when the code requires 12 (or 24) guarantees a fail.
• Poor Flushing: If you don’t flush out the high-chlorine water completely, the remaining residue can skew bacterial sample results or damage customer plumbing.
• Temperature Neglect: Performing a winter disinfection without adjusting for cold water slows the chemical reaction, rendering the 12-hour window ineffective.

FAQ Section

1. What is the absolute minimum chlorine ppm required for a 12-inch water main?

The absolute minimum depends on the method. For the continuous feed method, it is 10 ppm. For the static slug method, it is 25 ppm. These levels must be maintained at the furthest point of the pipeline during the contact period.

2. Can I reduce the 24-hour contact time to 12 hours legally?

Generally, no, unless specific conditions are met. Some jurisdictions allow reduced contact time if the water temperature is high (above 77°F/25°C) or if a significantly higher chlorine concentration is used. You must get written approval from your local health department or engineering inspector before attempting this.

3. How much chlorine do I need for 1,000 feet of 12-inch pipe?

For 1,000 feet of 12-inch pipe (approx. 5,870 gallons), to achieve a 25 ppm dose, you will need roughly 3 pounds of 65% calcium hypochlorite tablets. Always calculate based on exact length and verify with a test kit.

4. What happens if my bacterial sample comes back positive?

If the sample fails, the entire section must be re-disinfected. This involves flushing the line, re-calculating the dosage (often increasing it), refilling, waiting the full contact time again, and resampling. This causes significant delays and cost overruns.

5. Does the material of the pipe (PVC vs. Ductile Iron) change the PPM requirement?

The required PPM in the water does not change based on material; the code standard is universal. However, ductile iron often has a higher initial chlorine demand than PVC, meaning you may need to inject more chlorine initially to maintain the required residual level throughout the contact time.

6. How do I safely dispose of the high-chlorine water after flushing?

You cannot discharge high-chlorine water directly into storm drains or natural waterways as it is toxic to aquatic life. It must be dechlorinated (using sodium thiosulfate) before discharge into sanitary sewers, or discharged according to local environmental protection agency (EPA) guidelines.

Conclusion

Navigating the regulations for disinfecting a 12-inch water main requires precision, patience, and a deep understanding of the plumbing code chlorine ppm for 12 main in 12 hours. While the standard calls for 25 ppm and a 24-hour contact time, specific project constraints and environmental factors like temperature can influence your approach. By strictly adhering to AWWA C651, calculating your volumes accurately, and communicating with local inspectors, you can ensure a safe, compliant, and successful project launch.

Remember, the goal isn’t just to pass an inspection; it’s to guarantee safe drinking water for the community. If you found this guide helpful in clarifying your disinfection strategy, please share this article with your fellow contractors and engineers on LinkedIn or Twitter. Let’s raise the standard of safety in our industry together!
