Island Sink Venting: Master the Mass Code Drawings

The Hidden Challenge of Island Sinks

Installing a sink on a kitchen island is a dream for many homeowners, offering unparalleled workflow and social interaction. However, for DIY enthusiasts and contractors alike, the lack of an adjacent wall creates a nightmare scenario: how do you vent the drain without breaking the floor or violating strict regulations? If you are searching for accurate plumbing code drawings for a island sink venting Mass Code, you likely know that getting this wrong can lead to slow drains, sewer gas leaks, or failed inspections. Let’s walk through exactly how to solve this puzzle safely and legally, ensuring your project stands the test of time.

Understanding the Core Constraint: Why Walls Matter

The fundamental issue with an island sink is simple physics and biology. Every plumbing fixture needs a vent to allow air into the drainage system. Without this air, water flowing down the pipe creates a vacuum (siphonage) that sucks the water out of your P-trap. Once that trap seal is gone, raw sewer gases enter your home.

In a standard setup, the vent pipe runs up through the wall behind the sink. On an island, there is no wall. You cannot simply run a pipe horizontally along the floor because gravity would cause waste to fill the pipe, blocking the airflow entirely. This is where specific engineering solutions, often visualized in plumbing code drawings for a island sink venting Mass Code, become critical. The solution usually involves a “loop vent” or a “circuit vent,” which allows the pipe to rise as high as possible under the counter before descending to connect to the main drain line.

Decoding the Massachusetts Plumbing Code Requirements

Massachusetts adopts a modified version of the International Plumbing Code (IPC), often with stricter local amendments enforced by individual city or town boards. When reviewing plumbing code drawings for a island sink venting Mass Code, you must adhere to specific height and diameter constraints that differ slightly from other states.

According to general principles found in authoritative resources like Wikipedia’s overview of plumbing codes, local jurisdictions prioritize preventing cross-contamination and ensuring positive airflow. In Massachusetts, the key rules generally include:

• Maximum Horizontal Run: The vent pipe cannot run horizontally below the flood rim level of the fixture until it has reached a specific height.
• Vent Height: The loop must typically rise to at least the same level as the countertop or higher before turning down.
• Pipe Diameter: The vent size must match the drain size (usually 2 inches for a standard kitchen sink) to prevent restriction.

Failure to follow these nuances is the number one reason inspections fail in the Bay State. It is not enough to just “get air in”; the geometry of the pipe must prevent wastewater from ever entering the vent portion of the loop.

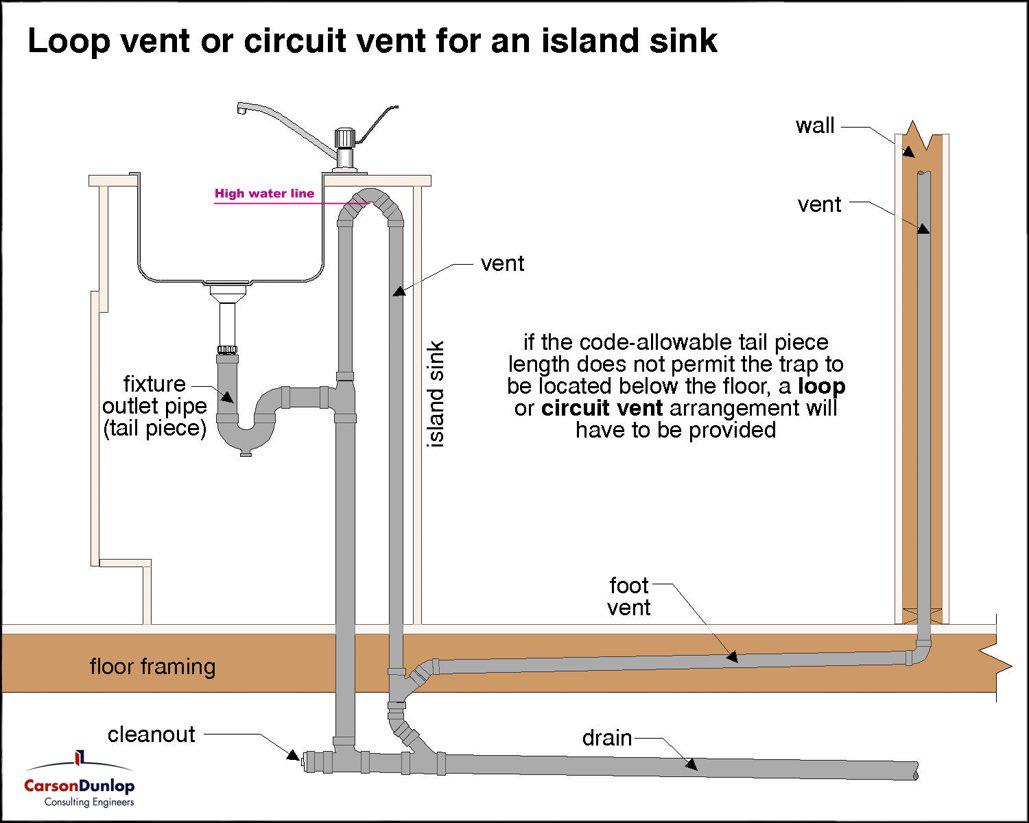

Step-by-Step: Constructing the Loop Vent Diagram

To visualize the correct installation, imagine the shape of a candy cane or an inverted “U” hidden beneath your cabinetry. Here is the precise, step-by-step methodology to create a compliant loop vent, based on standard professional practices aligned with Massachusetts requirements.

Step 1: Establish the P-Trap Connection

Begin directly under the sink basin. Install a standard 2-inch P-trap. Ensure the trap arm (the pipe exiting the trap) slopes downward at a rate of 1/4 inch per foot. This slope is non-negotiable; too steep, and water rushes away leaving solids behind; too flat, and clogs form immediately.

Step 2: The Vertical Rise

Instead of connecting the trap arm directly to the horizontal drain, you must turn it upward. Use a 90-degree elbow (or two 45-degree elbows for smoother flow) to direct the pipe vertically.

• Critical Measurement: This vertical section must rise to a point at least 6 inches above the flood rim of the sink. For a standard 36-inch counter with a 6-inch backsplash/sink depth, your pipe should reach approximately 42 to 44 inches from the finished floor.
• Note: Some Massachusetts local boards require the vent to go even higher, potentially tying into the cabinet top frame. Always verify with your local inspector.

Step 3: The Horizontal Bridge

Once the pipe reaches the required peak height, run it horizontally across the island cabinet.

• Slope Requirement: Unlike drain lines, this horizontal vent section does not need a downward slope toward the drain yet. However, it must be perfectly level or slightly sloped back toward the sink to ensure no condensation pools.
• Length Limitation: Keep this horizontal run as short as possible. While codes vary, exceeding 4–6 feet horizontally at this height can sometimes trigger additional requirements.

Step 4: The Descent and Connection

After crossing the cabinet space, turn the pipe downward using another 90-degree elbow. This descending leg will now connect to the main sanitary drain line running under the floor.

• Connection Point: The connection to the main drain must happen below the floor level or immediately after the pipe drops below the flood rim level, but crucially, the connection must be made via a sanitary tee or a combination wye and 1/8 bend, never a sharp 90-degree turn into the flow of the main drain.

Step 5: Cleanout Installation

Massachusetts code is particularly strict about accessibility. You must install a cleanout plug at the base of the loop vent or on the horizontal section if accessible. This allows a plumber to snake the line if the island sink ever clogs, which is harder to access than a wall sink.

Visualizing the Data: Loop Vent vs. Traditional Vent

To help you understand why the island method is more complex, consider this comparison table. This highlights why finding accurate plumbing code drawings for a island sink venting Mass Code is so vital.

Common Pitfalls and How to Avoid Them

Even experienced plumbers make mistakes when dealing with islands. Here are the most frequent errors observed in failed inspections across Massachusetts:

1. Insufficient Peak Height: If the top of the loop is lower than the sink rim, a slow drain could fill the entire pipe with water, sealing off the air supply. This defeats the purpose of the vent.
2. Improper Fittings: Using a standard short-radius 90-degree elbow at the bottom of the descent can cause turbulence and clogging. Professionals prefer long-sweep elbows or a combo fitting to maintain smooth laminar flow.
3. Ignoring the “Flood Rim”: Many DIYers measure from the countertop surface, forgetting that the “flood rim” is the very top edge of the sink basin itself. If your sink sits below the counter (undermount), your calculations must adjust accordingly.
4. Undersized Piping: Do not attempt to save money by using 1.5-inch pipe for the vent if the drain is 2 inches. The volume of air required to break the suction of a large kitchen sink demands equal diameter piping.

Expert Insight: The Physics of Siphonage

Why is the Massachusetts code so particular? It comes down to fluid dynamics. When 2 liters of water are dumped rapidly from a pot into the sink, it travels at a velocity that can generate significant negative pressure behind it.

Imagine a straw in a glass of water. If you suck hard, the water rises. In plumbing, the rushing wastewater acts like that suction. If the vent loop isn’t high enough, the wastewater itself bridges the gap in the horizontal section, acting like a piston. This pushes air ahead of it and pulls a vacuum behind it, instantly siphoning the P-trap dry. By forcing the pipe to rise well above the flood level, we ensure that even if the pipe fills partially, gravity pulls the water back down before it can create a complete seal that blocks air intake.

FAQ: Frequently Asked Questions About Island Sink Venting

1. Can I use an Air Admittance Valve (AAV) instead of a loop vent in Massachusetts?

Generally, no. While some states allow AAVs (mechanical vents that open only when needed) for island sinks, Massachusetts is notoriously strict. Most local boards in MA do not permit AAVs as the primary venting method for new construction or major renovations, preferring the reliability of a physical loop vent. Always check with your specific town’s building department before purchasing an AAV.

2. What is the minimum diameter for an island sink vent pipe?

For a standard kitchen sink, the drain is typically 2 inches. Therefore, the vent loop must also be 2 inches in diameter. Using a smaller size restricts airflow and violates code, leading to sluggish draining and potential gurgling noises.

3. How high exactly must the loop vent rise?

The universal rule adopted in Massachusetts requires the vent to rise to a point at least 6 inches above the flood level rim of the fixture. If your sink rim is 36 inches off the floor, the top of your loop must be at least 42 inches high. Some inspectors prefer it to be tied securely to the underside of the countertop for stability.

4. Do I need a cleanout for an island sink vent?

Yes. Because accessing a clog in an island sink is difficult without removing cabinetry, Massachusetts code typically mandates an accessible cleanout. This is usually installed at the base of the vent loop or on the horizontal run if it can be reached through a drawer cutout or access panel.

5. Can the horizontal part of the loop vent slope downward toward the drain?

No, not initially. The horizontal section at the top of the loop should be level. If it slopes down immediately, wastewater can travel too far into the vent pipe before dropping, increasing the risk of the pipe filling up and blocking air. The drop should only occur after the pipe has traversed the necessary distance to clear the sink area.

6. What happens if my island sink vent fails inspection?

If you fail inspection, you will be issued a correction notice. You will likely have to open up the cabinetry, cut the pipes, and reconfigure the heights or fittings. This doubles your labor costs and delays your project. Investing time in reviewing plumbing code drawings for a island sink venting Mass Code before cutting any pipe is the cheapest insurance policy you can buy.

Conclusion: Build with Confidence and Compliance

Navigating the complexities of island sink ventilation doesn’t have to be a source of anxiety. By understanding the logic behind the plumbing code drawings for a island sink venting Mass Code, you transform a confusing regulatory hurdle into a straightforward engineering task. Remember, the goal is simple: keep the water flowing out and the air flowing in, all while maintaining that crucial water seal in your P-trap.

Whether you are a homeowner planning a renovation or a contractor looking to refine your craft, adhering to these steps ensures safety, longevity, and approval from your local Massachusetts inspector. Don’t guess with your plumbing; precision is paramount.
