Plumbing Code Slope: 3 & 4 Inch Pipe Rules

Have you ever dealt with a stubbornly slow drain or a sewage backup that just won’t clear? Often, the root cause isn’t a blockage but an improper installation angle that defies basic physics. Getting the plumbing code slope per foot 3 and 4 inch pipe specifications right is the single most critical factor in ensuring your wastewater flows smoothly and efficiently. Whether you are a DIY enthusiast tackling a basement renovation or a contractor verifying your blueprints, understanding these gradients is essential to avoid costly repairs and failed inspections. Let’s dive into the exact numbers and rules you need to know to get it right the first time.

The Golden Rule: What Is the Correct Slope?

When installing horizontal drainage piping, gravity is your only engine. If the pipe is too flat, water moves too slowly, leaving solids behind to create clogs. If it is too steep, water rushes away faster than the waste, leaving solids stranded on the pipe walls—a phenomenon known as “solids separation.”

For the specific sizes mentioned in your project, the International Plumbing Code (IPC) and the Uniform Plumbing Code (UPC), which govern most of the United States, have clear mandates.

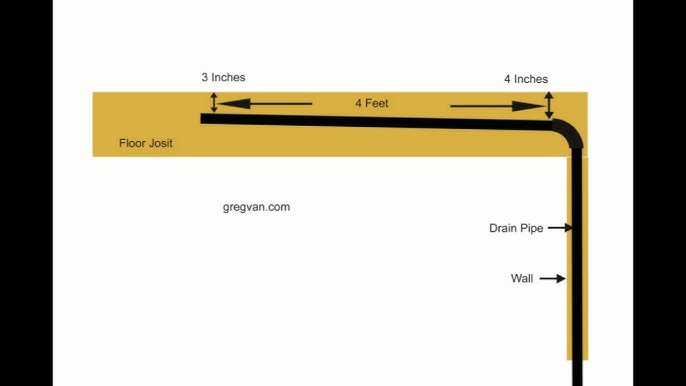

The Standard Gradient for 3-Inch and 4-Inch Pipes

For both 3-inch and 4-inch diameter pipes, the universally accepted standard slope is:

• 1/4 inch per foot (approximately 2% grade).

This means that for every linear foot of pipe you install, the elevation must drop by exactly one-quarter of an inch. This specific gradient creates a flow velocity of roughly 2 feet per second, which is the “self-scouring” speed required to carry solid waste without eroding the pipe material over time.

Note: While 1/8″ per foot is sometimes permitted for very large pipes (6 inches+), it is generally not recommended for 3 or 4-inch residential lines unless the run is exceptionally short and approved by a local inspector.

Why Precision Matters: The Physics of Drainage

You might wonder, “Does a slight deviation really matter?” The answer is a resounding yes. The relationship between pipe diameter, slope, and flow volume is governed by fluid dynamics principles often referenced in engineering textbooks like those found on Wikipedia.

The Danger of Under-Sloping

If you install a 4-inch pipe with a slope of only 1/8 inch per foot:

• Sediment Buildup: Water lacks the kinetic energy to push heavy solids (like toilet paper and organic waste) forward.
• Frequent Clogs: These pipes will require snaking far more often than properly sloped lines.
• Corrosion: Standing water accelerates the degradation of certain pipe materials, particularly older cast iron or even modern PVC if chemical cleaners are used frequently.

The Risk of Over-Sloping

Conversely, installing a pipe with a steep slope of 1 inch per foot sounds like it would help water flow faster, but it creates a different problem:

• Liquid Separation: Water races ahead, leaving solids behind on the bottom of the pipe.
• Dry Traps: In extreme cases, excessive velocity can siphon water out of P-traps, allowing sewer gases to enter your home.
• Noise: High-velocity water creates significant noise within the wall cavities.

Step-by-Step Guide: Calculating and Installing the Perfect Slope

Installing a drainage line requires precision. You cannot simply “eyeball” the angle. Follow this concrete, step-by-step tutorial to ensure your plumbing code slope per foot 3 and 4 inch pipe installation meets professional standards.

Tools You Will Need

• Laser level or a high-quality 4-foot spirit level with a slope vial.
• Tape measure.
• Pipe hangers or straps (adjustable).
• Marker or chalk line.
• Calculator (or smartphone).

Step 1: Measure the Total Run

Determine the exact distance the pipe needs to travel from the fixture connection to the main stack or septic tank entry.

• Example: Let’s assume your total run is 20 feet.

Step 2: Calculate the Total Drop

Multiply the total length of the run by the required slope (0.25 inches).

• Calculation: 20 feet × 0.25 inches/foot = 5 inches.
• This means the end of your 20-foot pipe must be exactly 5 inches lower than the starting point.

Step 3: Set Your Reference Line

Using your laser level or string line, mark the starting elevation at the fixture outlet. Then, measure down the calculated total drop (5 inches in our example) at the destination point. Snap a chalk line between these two points. This line represents the bottom of your pipe (or the center, depending on your leveling method, but consistency is key).

Step 4: Install Hangers with Precision

Do not wait until the pipe is laid to check the slope. Install your pipe hangers first, aligning them strictly to your reference line.

• Place a hanger every 4 feet for 3-inch and 4-inch PVC pipes to prevent sagging between supports.
• Pro Tip: Use adjustable metal strapping rather than plastic clips for long runs, as they allow for micro-adjustments before tightening.

Step 5: Verify Before Gluing

Once the dry-fit pipe is in place, place your level on top of the pipe at multiple intervals (start, middle, end).

• Ensure the bubble indicates a consistent drop.
• Check for “bellies” (low spots where water could pool) or “high spots” (reverse slopes). Even a small dip of 1/8 inch can become a major clog point over five years.

Step 6: Final Connection and Testing

After confirming the slope, glue the joints according to manufacturer instructions (priming and cementing). Once cured, perform a water test.

• Test Method: Pour 10 gallons of water rapidly into the system while observing the exit point. The water should surge through quickly without backing up, and no leaks should appear at the joints.

Common Mistakes to Avoid During Installation

Even experienced plumbers can make errors when rushing a job. Here are the most frequent pitfalls regarding pipe gradients:

• Ignoring Floor Joist Obstructions: Sometimes, a floor joist forces a pipe to go up and then down. Never create a reverse slope to get over an obstacle. Instead, you must notch the joist (within code limits) or route the pipe around it to maintain the continuous downward gradient.
• Relying Solely on the Subfloor: Never assume your subfloor is level. Construction floors often have crowns or dips. Always use a dedicated level or laser, not the floor itself, as your guide.
• Compacting Backfill Too Early: If burying the line underground, do not compact the soil directly on top of the pipe until you have verified the slope. Heavy machinery or aggressive tamping can shift the pipe, creating low spots.

FAQ: Frequently Asked Questions About Pipe Slope

1. Can I use a slope of 1/8 inch per foot for a 4-inch pipe?

Generally, no. While some older codes or specific municipal amendments might allow 1/8 inch per foot for 4-inch pipes if the flow rate is guaranteed to be high, the standard IPC and UPC requirement is 1/4 inch per foot. Using 1/8 inch increases the risk of clogs significantly and may fail a final inspection. Always check with your local building department, but aim for 1/4 inch to be safe.

2. What happens if my slope is too steep, like 1 inch per foot?

If the slope exceeds 1/2 inch per foot, the water velocity becomes too high. The liquid waste outruns the solid waste, leaving solids behind on the pipe bottom. Over time, this leads to chronic blockages that are difficult to clear because the water never builds up enough pressure behind the clog to push it through.

3. How do I calculate the slope if my run includes elbows and turns?

The slope calculation applies to the total horizontal distance, not the length of the pipe including fittings. Measure the straight-line distance from the start point to the end point horizontally. The vertical drop is based on this horizontal measurement. Turns and elbows add friction but do not change the required gravitational drop per foot of horizontal travel.

4. Does the type of pipe material (PVC vs. Cast Iron) change the slope requirement?

No, the plumbing code slope per foot 3 and 4 inch pipe requirement remains 1/4 inch per foot regardless of whether you are using PVC, ABS, or Cast Iron. However, smoother materials like PVC may tolerate slight deviations better than rougher cast iron, but you should always adhere to the code standard for consistency and insurance purposes.

5. Can I correct a bad slope after the pipe is glued and buried?

Correcting a bad slope after installation is extremely difficult. If the pipe is accessible (e.g., in a basement ceiling), you may be able to cut sections out and re-hang them. If it is buried under a slab or deep underground, you might need to excavate or consider installing an ejector pump to force the waste uphill to a point where proper gravity flow can resume. Prevention during installation is far cheaper than remediation.

6. Is there a maximum length for a 3-inch or 4-inch drain line?

While there is no strict “maximum length” defined by slope alone, practical limitations exist. As the line gets longer, maintaining a perfect 1/4 inch per foot slope can result in the pipe going too deep underground. For runs exceeding 100 feet, engineers often increase the pipe diameter to 6 inches to maintain proper flow dynamics without requiring excessive depth.

Conclusion

Mastering the plumbing code slope per foot 3 and 4 inch pipe guidelines is fundamental to any successful plumbing project. By adhering to the golden rule of 1/4 inch of drop per foot, you ensure that your drainage system operates efficiently, minimizes maintenance, and passes rigorous building inspections. Remember, gravity is a relentless force; work with it, not against it. Proper planning, precise calculation, and careful installation will save you from the headache of future backups and costly repairs.
