Mastering Plumbing Copper Fitting Tee & 3-Way Elbow Choices

Have you ever faced a leaking pipe joint or struggled to route water lines around a tight corner in your home? These common plumbing headaches often stem from choosing the wrong connector for your specific layout. Whether you are renovating an old house or building a new one, understanding the nuances of Plumbing Copper Fitting Tee Type 3 Way Elbow Pipe Fittings is crucial for creating a leak-free, long-lasting water distribution system that stands the test of time.

In the United States, where copper remains the gold standard for residential potable water lines, selecting the right fitting isn’t just about making connections; it’s about ensuring safety, efficiency, and code compliance. This guide will walk you through everything you need to know, from distinguishing between a standard tee and a complex 3-way elbow to mastering the soldering techniques that professional plumbers use daily.

What Exactly Are Copper Tee and 3-Way Elbow Fittings?

When diving into residential plumbing, terminology can get confusing. Many DIY enthusiasts mistakenly interchange “tees” and “elbows,” but they serve distinctly different purposes in your piping network.

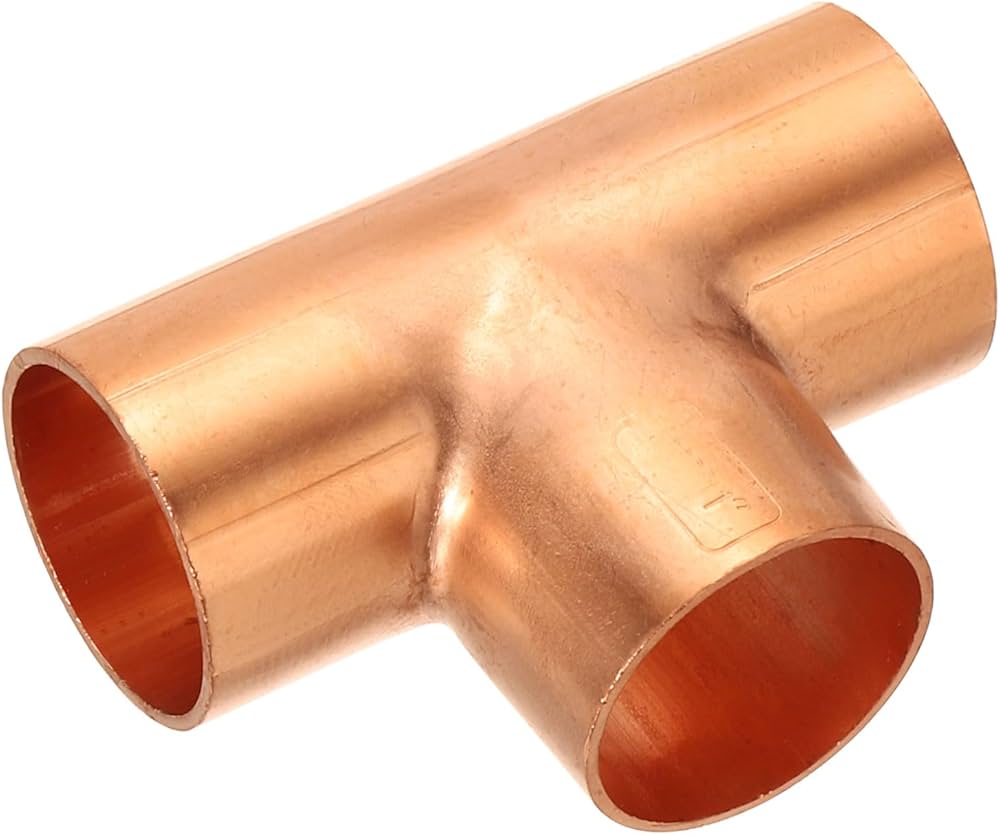

A Copper Tee is a T-shaped fitting used to combine or split fluid flow. It has three openings: two in a straight line and one perpendicular to them. This is ideal when you need to branch off a main water line to supply a sink, toilet, or shower without interrupting the main flow.

On the other hand, a 3-Way Elbow (often referred to as a sanitary tee or a specific angled branch fitting depending on the configuration) allows for direction changes while simultaneously branching off. While a standard elbow only changes direction (90° or 45°), a 3-way variant facilitates flow in three directions, often used in complex drainage or venting systems where space is limited.

According to industry standards, the material quality of these fittings is paramount. Copper fittings are prized because they are naturally resistant to corrosion and can withstand high temperatures and pressures. For a deeper understanding of copper’s properties and its historical significance in infrastructure, you can refer to this comprehensive resource on Copper.

Key Differences at a Glance

Why Choose Copper Over PEX or PVC for These Fittings?

You might wonder, “With the rise of PEX (cross-linked polyethylene), why stick with copper?” While PEX is flexible and cheaper, copper fittings like the Plumbing Copper Fitting Tee Type 3 Way Elbow Pipe Fittings offer unmatched durability and safety profiles that are critical for certain applications.

The Longevity Factor

Data from the National Association of Home Builders (NAHB) suggests that copper piping systems can last over 50 years, significantly outlasting many plastic alternatives which may degrade under UV exposure or extreme temperature fluctuations. Copper does not permeate oxygen, which prevents corrosion in boilers and radiators—a key consideration for heating systems.

Health and Safety

Copper is naturally bacteriostatic, meaning it inhibits the growth of bacteria within the water lines. In an era where water quality is a top concern for US homeowners, this intrinsic property provides an extra layer of protection against contaminants like Legionella. Furthermore, copper is fire-resistant. In the event of a house fire, copper fittings will not melt or release toxic fumes, unlike some plastic variants.

Resale Value

Real estate experts often note that homes with copper plumbing command higher resale values. Buyers perceive copper as a premium, “set-it-and-forget-it” investment, reducing their fear of future leaks or water damage.

How to Select the Right Size and Type for Your Project

Choosing the correct size is not a guessing game; it requires precise measurement and an understanding of your system’s pressure requirements. Using the wrong size can lead to turbulent flow, noise (water hammer), and reduced water pressure.

Understanding Nominal Sizes

In the US, copper pipes and fittings are measured by nominal size, which roughly corresponds to the inner diameter but is actually based on the outer diameter (OD). Common sizes for residential use include:

• ½ inch: Typically used for branch lines supplying individual fixtures like sinks and toilets.
• ¾ inch: The standard for main supply lines running through walls or basements.
• 1 inch and above: Used for main entry lines from the street or for large commercial applications.

Always measure the outside diameter of your existing pipe before purchasing a Plumbing Copper Fitting Tee Type 3 Way Elbow Pipe Fittings. A ½-inch pipe will not fit into a ¾-inch fitting, and forcing it can crack the metal or create a weak seal.

Type M, L, or K?

Copper tubing comes in three primary wall thicknesses, identified by color-coded markings:

1. Type M (Red Mark): Thinnest wall. Suitable for residential interior water supply where pressure is moderate. It is the most cost-effective option.
2. Type L (Blue Mark): Medium thickness. The industry standard for general residential use, offering a great balance of durability and cost. Recommended for both hot and cold water lines.
3. Type K (Green Mark): Thickest wall. Used primarily for underground service lines or high-pressure commercial applications.

For most indoor projects involving tees and elbows, Type L is the safest and most recommended choice by professional plumbers across the US.

Step-by-Step Installation Guide for Copper Fittings

Installing a copper tee or 3-way elbow requires patience and the right tools. Unlike push-fit connectors, soldered (sweated) joints create a permanent, molecular bond that is incredibly strong. Follow these steps precisely to ensure a leak-free connection.

Tools and Materials Needed

• Propane or MAP-Pro torch
• Lead-free solder (95/5 or 96/4 tin-antimony/silver mix)
• Flux paste (water-soluble)
• Pipe cutter
• Emery cloth or wire brush
• Heat shield cloth
• Damp rag

The Installation Process

Step 1: Cut and Clean Turn off the water supply and drain the lines completely. Water remaining in the pipe will prevent the joint from heating up enough to melt the solder. Use a pipe cutter to make a clean, square cut. Rotate the cutter around the pipe, tightening slightly with each rotation until it snaps cleanly. Crucial Detail: Clean the outside of the pipe and the inside of the fitting with emery cloth until they shine like new pennies. Any oxidation will prevent the solder from bonding.

Step 2: Apply Flux Using a flux brush, apply a thin, even layer of flux to the cleaned outside of the pipe and the inside of the fitting. Do not glob it on; a light coat is sufficient. The flux cleans the metal chemically during heating and helps draw the solder into the joint via capillary action.

Step 3: Assemble the Joint Push the pipe fully into the fitting. Give it a slight twist to spread the flux evenly. Wipe away any excess flux that squeezes out with a rag. Ensure the pipe bottoms out against the shoulder of the fitting.

Step 4: Heat the Fitting Put on safety glasses. Light your torch and adjust the flame to a sharp blue cone. Play the flame over the fitting, not the pipe. Move the flame back and forth to heat the entire circumference of the fitting evenly. Pro Tip: Touch the solder to the joint opposite the flame. When the fitting reaches the correct temperature (approx. 400°F / 200°C), the solder will melt instantly upon contact.

Step 5: Feed the Solder Once the solder melts, remove the flame and feed the solder wire into the joint. Capillary action will pull the molten solder deep into the gap between the pipe and fitting. You should see a shiny ring of solder appear all the way around the joint. Quantity Check: For a ½-inch joint, approximately ½ inch of solder wire is usually sufficient. For ¾-inch, use about ¾ inch. Over-soldering can cause blockages inside the pipe.

Step 6: Cool and Clean Let the joint cool naturally for a few seconds. Do not blow on it or touch it while molten, as this can weaken the bond. Once cool, wipe the joint with a damp rag to remove residual flux, which can be corrosive over time if left unchecked.

Common Mistakes to Avoid When Working with Copper

Even experienced DIYers can make errors that lead to costly leaks. Being aware of these pitfalls can save you hours of rework.

• Incomplete Draining: As mentioned, even a small amount of water acts as a heat sink, preventing the joint from reaching soldering temperature. If you cannot drain the line completely, consider using a bread slice trick (inserting white bread to temporarily block water) or switching to a compression fitting for that specific spot.
• Overheating: Applying too much heat can burn the flux, rendering it useless. Burnt flux turns black and loses its cleaning ability, leading to a “dry joint” that looks sealed but leaks under pressure.
• Undersized Pipes: Using a ½-inch tee on a line that demands ¾-inch flow can restrict water volume, causing poor performance in showers and appliances. Always calculate the fixture unit load before downsizing.
• Ignoring Expansion: Copper expands and contracts with temperature changes. In long straight runs, ensure you have enough flexibility or expansion loops to prevent stress on the Plumbing Copper Fitting Tee Type 3 Way Elbow Pipe Fittings, which could eventually cause fatigue cracks.

FAQ Section

1. Can I connect copper fittings to PEX pipes?

Yes, absolutely. You can use transition fittings specifically designed to connect copper to PEX. These usually feature a copper sweat end (for soldering to the copper pipe) and a crimp or clamp end for the PEX tubing. This hybrid approach is very common in modern renovations where homeowners want the durability of copper at the source but the flexibility of PEX for running lines through walls.

2. Is lead-free solder mandatory for drinking water lines?

Yes. Since the Safe Drinking Water Act amendments in 1986, the use of lead-based solder in potable water systems has been banned in the United States. Always ensure your solder is labeled “Lead-Free” (containing less than 0.2% lead). Using leaded solder poses serious health risks and violates building codes.

3. What is the difference between a “Street” elbow and a regular elbow?

A regular elbow has female sockets on both ends, requiring a piece of pipe to be inserted into both sides. A “Street” elbow has one male end (which fits directly into another fitting) and one female end. Street elbows are useful for saving space and reducing the number of joints in tight areas, but they require careful alignment during soldering.

4. How do I fix a pinhole leak in a copper tee?

Pinhole leaks are often caused by localized corrosion or improper flux cleaning. While epoxy putty can serve as a temporary emergency patch, the only permanent fix is to cut out the damaged section and replace the fitting. Attempting to solder over a wet or corroded leak rarely works; the area must be completely dry and clean.

5. Do I need a permit to replace copper fittings in my home?

Regulations vary by state and municipality. In many US jurisdictions, minor repairs (like fixing a single leaky tee) do not require a permit. However, if you are rerouting significant portions of your plumbing or adding new branches, a permit and subsequent inspection are likely required. Always check with your local building department before starting major work.

6. Why is my solder joint dull and lumpy instead of shiny?

A dull, lumpy appearance usually indicates that the joint was moved before the solder fully solidified or that the temperature was too low (cold joint). It can also result from dirty pipes or insufficient flux. A proper joint should be smooth, concave, and shiny. If the joint looks poor, it is best to reheat it, add a little more flux, and try again, or cut it out and restart.

Conclusion

Mastering the selection and installation of Plumbing Copper Fitting Tee Type 3 Way Elbow Pipe Fittings is a valuable skill that empowers you to maintain a safe, efficient, and durable home water system. By understanding the differences between fitting types, respecting the nuances of copper grades, and following precise soldering techniques, you can avoid common pitfalls like leaks and restricted flow.

Remember, while DIY projects are rewarding, plumbing involves high stakes regarding water damage and health safety. If you ever feel unsure about a complex configuration or local code requirements, consulting a licensed professional is always the wisest course of action.
