Baptismal Tank Plumbing: Filter, Heater & Pump Diagram Guide

Home » Baptismal Tank Plumbing: Filter, Heater & Pump Diagram Guide

·

Installing or maintaining a baptismal tank is a sacred responsibility that requires both spiritual reverence and technical precision. Nothing disrupts the solemnity of a baptism ceremony more than cloudy water or uncomfortable temperatures, which is why understanding the correct plumbing diagram for filter heater and pump in baptismal tank systems is essential for church facility managers. Whether you are building a new sanctuary or upgrading an existing pool, this guide will walk you through the critical components needed to create a safe, clean, and inviting environment for candidates and congregants alike.

Understanding the Core Components of a Baptismal System

Before diving into the specific piping layout, it is crucial to understand the three pillars of any aquatic system: filtration, heating, and circulation. In residential pools, these systems run continuously, but in a church setting, they often operate on an intermittent schedule, making efficiency and rapid heat-up times vital.

A standard system consists of a centrifugal pump to move water, a sand or cartridge filter to remove debris, and an electric or gas heater to maintain comfort. According to general engineering principles found in fluid dynamics, the balance between flow rate (GPM) and pressure (PSI) is delicate; if the pipe diameter is too small for the pump’s power, you risk cavitation and equipment failure. For those interested in the broader history of water management systems, Wikipedia offers excellent context on how modern plumbing evolved from ancient aqueducts to today’s complex pressurized networks.

In a baptismal context, the stakes are higher regarding safety. The water must be crystal clear to symbolize purity, and the temperature must be consistently warm to prevent hypothermia, especially for infants or elderly candidates. A poorly designed loop can lead to “dead zones” where bacteria grow or cold spots that shock the user. Therefore, the plumbing diagram for filter heater and pump in baptismal tank is not just a schematic; it is a blueprint for safety and dignity.

How Do You Design the Ideal Flow Sequence?

The most common question facility managers ask is: “In what order should the equipment be connected?” Getting the sequence wrong can damage your heater or render your filter ineffective. The golden rule of hydraulic design is that water must be filtered before it is heated.

The Standard Equipment Order

To ensure optimal performance and longevity of your equipment, the water flow should follow this strict sequence:

  1. Suction Side (Tank to Pump): Water leaves the tank through the main drain and skimmer.
  2. Pump: The heart of the system pulls water in and pressurizes it.
  3. Filter: Pressurized water enters the filter to remove particulates.
  4. Heater: Clean water enters the heater to be warmed.
  5. Return Side (Heater to Tank): Warm, clean water returns to the baptismal tank.

Why this order matters: If you place the heater before the filter, sediment and debris can accumulate inside the heater’s internal copper coils or heat exchanger. This buildup acts as an insulator, causing the heater to overheat, trip its safety sensors, or eventually crack, leading to costly leaks. By filtering first, you ensure only clean water touches the sensitive heating elements.

Sizing Your Pipes Correctly

Pipe sizing is another critical factor often overlooked in DIY church projects. Using pipes that are too narrow increases friction loss, forcing the pump to work harder and reducing flow to the heater.

ComponentRecommended Pipe Size (Standard Residential/Small Church)Recommended Pipe Size (Large Cathedral Tanks)
Suction Line2 inches (50mm)2.5 to 3 inches (63-75mm)
Return Line1.5 to 2 inches (40-50mm)2 to 2.5 inches (50-63mm)
Equipment PadsMatch pump inlet/outletMatch pump inlet/outlet

Note: Always consult the specific manufacturer’s manual for your pump and heater, as requirements vary by horsepower and BTU output.

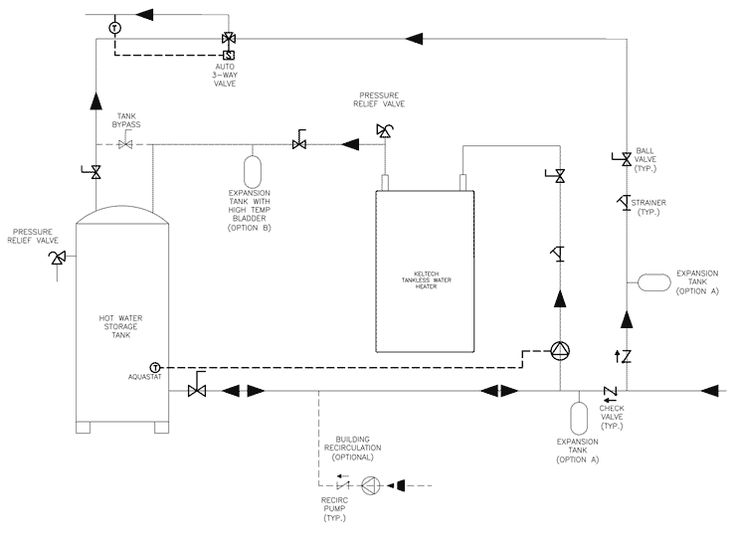

Plumbing Diagram For Filter Heater And Pump In Baptismal Tank

What Are the Critical Safety Valves and Bypasses?

A robust plumbing diagram for filter heater and pump in baptismal tank installations must include specific valves that allow for maintenance without draining the entire tank. Imagine needing to change a filter bag right before Sunday service; without proper valving, you would have to empty hundreds of gallons of blessed water.

The Three-Valve Bypass System

Professional plumbers recommend installing a bypass loop around the heater and filter. This typically involves three ball valves:

  • Valve A (Inlet): Controls water entering the equipment pad.
  • Valve B (Bypass): Allows water to skip the heater/filter entirely.
  • Valve C (Outlet): Controls water returning to the tank from the equipment.

When all equipment is running, Valves A and C are open, and Valve B is closed. When you need to service the heater, you close A and C, then slowly open B. This keeps water circulating through the tank (preventing stagnation) while isolating the equipment for safe repair.

Essential Safety Features

Beyond basic flow control, your diagram must account for human safety:

  • Check Valve: Install a check valve on the return line after the heater. This prevents hot water from siphoning back into the filter when the pump turns off, which could warp filter internals.
  • Pressure Relief Valve: Mandatory on the filter tank to release excess pressure and prevent explosions.
  • Thermal Regulator: Modern electric heaters for baptistries come with high-limit switches that cut power if water exceeds 40°C (104°F), preventing scalding injuries.

Step-by-Step Installation Guide for Church Volunteers

If your church team is handling the installation, follow this concrete, step-by-step process to ensure a leak-free and efficient system. Remember, precision is key.

Phase 1: Preparation and Layout

  1. Drain the Tank: Ensure the baptismal tank is completely empty.
  2. Mark Locations: Determine the location of the equipment pad. It should be within 3–5 meters of the tank to minimize heat loss in the pipes. Ensure the pad is level and has access to electrical power (usually 220V for heaters).
  3. Cut Openings: Drill holes in the tank wall for the suction (bottom or side near bottom) and return (side, opposite the suction) fittings. Use marine-grade bulkhead fittings with rubber gaskets to ensure a watertight seal.

Phase 2: Piping the Suction Line

  1. Connect Bulkhead: Attach the suction fitting to the tank.
  2. Install Union: Immediately after the bulkhead, install a union joint. This allows you to disconnect the pipe later without cutting it.
  3. Run Pipe to Pump: Run your PVC pipe (primed and glued) to the pump inlet. Keep the run as straight as possible.
  4. Add Shut-off Valve: Install a ball valve before the pump inlet. This isolates the pump for service.

Phase 3: Connecting the Equipment Train

  1. Pump to Filter: Connect the pump outlet to the filter inlet using flexible hose or rigid PVC with unions. Tip: Use flexible hose here to reduce vibration noise transmission to the tank structure.
  2. Filter to Heater: Connect the filter outlet to the heater inlet. Ensure the flow direction arrow on the heater matches the water flow.
  3. Heater Outlet: Connect the heater outlet to the return line piping.

Phase 4: The Return Line and Final Checks

  1. Run Return Pipe: Route the pipe from the heater back to the tank’s return fitting.
  2. Install Return Fitting: Attach the return jet in the tank. Angle it slightly downward to encourage circulation across the floor of the tank.
  3. Pressure Test: Before filling the tank with fresh water, cap the ends and pressurize the lines with air or water to check for leaks at the glue joints.
  4. Electrical Hookup: Have a licensed electrician connect the pump and heater. Never attempt high-voltage connections yourself.

Phase 5: Commissioning

  1. Prime the Pump: Fill the pump basket with water manually to prime it.
  2. Start System: Turn on the pump. Check for air bubbles in the filter sight glass. Bleed air from the filter until a steady stream of water appears.
  3. Set Temperature: Set the heater thermostat to your target range, ideally between 28°C and 32°C (82°F – 90°F) for maximum comfort during immersion.

Troubleshooting Common Flow Issues

Even with a perfect diagram, issues can arise. Here is a quick reference for common problems:

  • Low Flow Error on Heater: Usually caused by a dirty filter. Backwash or clean the filter media. If the problem persists, check for a closed valve or a clogged impeller in the pump.
  • Air Bubbles in Return Jets: Indicates an air leak on the suction side (between the tank and the pump). Tighten unions or apply Teflon tape to threaded connections.
  • Water Not Heating: Verify the pump is running at the correct speed. Many heaters require a minimum flow rate (e.g., 40 GPM) to engage the heating element. If the flow is too low, the safety switch prevents heating.

FAQ Section

1. What is the ideal water temperature for a baptismal tank?

The recommended temperature range is between 28°C and 32°C (82°F – 90°F). Water below 26°C (79°F) can cause shock, particularly for infants, the elderly, or those being fully immersed multiple times. Water above 33°C (91°F) may feel stifling and promote bacterial growth.

2. How often should I change the filter media in a church pool?

For sand filters, the sand should be replaced every 5 to 7 years, depending on usage frequency. Cartridge filters require cleaning every month during active seasons and replacement every 2 to 3 years. Regular pressure gauge readings will tell you when cleaning is needed; if the pressure rises 8-10 PSI above the clean starting pressure, it is time to clean.

3. Can I use a standard residential pool heater for a baptismal tank?

Yes, provided the BTU output matches the volume of your tank. However, baptismal tanks are often deeper and narrower than residential pools, which can affect circulation. It is advisable to use a heater with a precise digital thermostat rather than a simple dial to ensure accurate temperature control for sensitive candidates.

4. Do I need a saltwater system or chlorine for a baptismal tank?

While saltwater systems are gentle on the skin, many denominations prefer traditional chlorine or bromine sanitation due to the symbolic nature of “living water” and ease of testing. Regardless of the method, maintain a chlorine level of 1.0 to 3.0 ppm and a pH between 7.2 and 7.6 to prevent eye irritation and ensure effective sanitation.

5. What size pump do I need for a 500-gallon baptismal tank?

For a 500-gallon tank, you generally want to turnover the water (filter all of it) at least once every 4 to 6 hours. A 1 HP variable speed pump is usually sufficient. Variable speed pumps are highly recommended as they can run quietly at low speeds for continuous filtration and ramp up only when heating or vacuuming.

6. Is it necessary to have a bypass valve for the heater?

Absolutely. A bypass valve is critical for two reasons: it protects the heater from excessive pressure if the filter becomes clogged, and it allows you to circulate water without heating it during warmer months, saving significant energy costs.

Conclusion

Creating a functional and safe baptismal environment goes beyond aesthetics; it requires a meticulously planned plumbing diagram for filter heater and pump in baptismal tank systems. By following the correct sequence of filtration before heating, installing essential safety valves, and adhering to proper pipe sizing, your church can ensure that every baptism is conducted in dignified, warm, and crystal-clear water.

Remember, the goal is to remove distractions so that the focus remains entirely on the spiritual significance of the moment. Regular maintenance and a well-designed system will serve your congregation for decades. If you found this guide helpful, please share it with your church facilities team or post it on your ministry’s social media channels to help other communities build safer baptismal spaces.
