There is nothing more frustrating than turning on the faucet in your recreational vehicle only to hear a sputtering sound or experience weak, inconsistent water flow. Whether you are boondocking in the desert or parked at a full-hookup campsite, reliable water pressure is essential for a comfortable journey. This comprehensive guide provides the definitive plumbing diagram for installing RV water pump and pressure tank systems, ensuring you can solve these hydration headaches with confidence and precision.
Understanding the Core Components of Your RV Water System
Before diving into the installation specifics, it is crucial to understand how the pieces fit together. An RV water system is not just about moving water; it is about managing pressure and volume efficiently. Most modern RVs utilize a demand-style water pump, which activates only when a faucet is opened. However, without a properly sized pressure tank (or accumulator tank), the pump cycles on and off rapidly, leading to noise, wear, and that annoying “pulsing” water flow.
According to industry standards, a well-designed system balances the pump’s flow rate (measured in gallons per minute, or GPM) with the tank’s pre-charge pressure. If you are upgrading from a standard setup to one including an accumulator tank, you are essentially adding a shock absorber to your plumbing lines. This small addition can extend the life of your pump by up to 40% and significantly smooth out water delivery. For a deeper technical understanding of fluid dynamics in closed systems, you can refer to general engineering principles found on Wikipedia.org.
Why Do You Need a Plumbing Diagram for Installing RV Water Pump and Pressure Tank?
Many DIY enthusiasts skip the planning phase, assuming all plumbing connections are universal. This is a costly mistake. A specific plumbing diagram for installing RV water pump and pressure tank acts as your roadmap, preventing leaks, airlocks, and incorrect valve placements. Without a visual guide, it is easy to install the check valve backward or place the accumulator tank too far from the pump, rendering it ineffective.
The primary reasons to follow a strict diagram include:
- Preventing Short Cycling: Ensures the tank is positioned correctly to absorb pressure spikes.

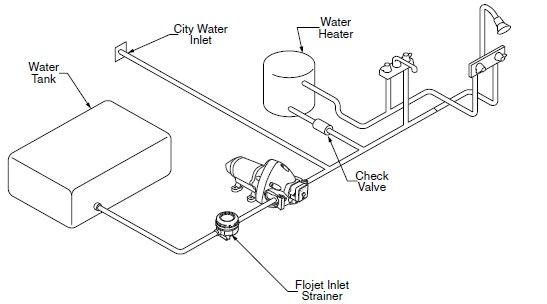

- Optimizing Flow Direction: Guarantees water moves from the fresh water tank to the pump, then to the accumulator, and finally to the fixtures.
- Ease of Maintenance: A logical layout makes future winterizing or repairs much faster.
Step-by-Step Installation Guide: From Theory to Practice
Installing this system requires attention to detail. Below is a concrete, step-by-step tutorial based on best practices for 12V DC diaphragm pumps commonly found in US RVs.
Step 1: Gather Your Tools and Materials
Before cutting any pipes, ensure you have the following:
- 12V RV Water Pump (3.0 to 5.0 GPM recommended).
- Accumulator/Pressure Tank (0.5 to 1.0 gallon capacity).
- PEX tubing (3/8 inch or 1/2 inch depending on existing lines).
- Brass fittings (elbows, tees, and shut-off valves).
- Check valve (if not built into the pump).
- Teflon tape and pipe thread sealant.
- Wire crimpers, heat shrink tubing, and a multimeter.
Step 2: Locate the Ideal Mounting Position
The pump should be mounted as close to the freshwater tank as possible to minimize suction lift. The ideal location is below the water line of the tank to ensure positive head pressure.
- Mounting Surface: Use a solid wooden board or metal bracket. Never mount directly to the thin RV wall, as vibration will cause noise and structural fatigue.
- Isolation: Place a rubber mat or vibration isolator pads under the pump feet.
Step 3: Configure the Suction Line (Input)
Connect the inlet side of the pump directly to the freshwater tank.
- Install a shut-off valve between the tank and the pump. This allows you to service the pump without draining the entire system.
- Use rigid piping or reinforced hose for the first 6 inches to prevent collapse under suction.
- Ensure all connections are airtight; even a tiny leak here can cause the pump to lose prime.
Step 4: Install the Pressure Tank (Accumulator)
This is the critical step where many diagrams differ. The accumulator tank must be installed on the output (pressure) side of the pump, but before any branch lines go to faucets or heaters.
- Connection Point: Use a tee fitting immediately after the pump outlet.
- Orientation: While most tanks work in any orientation, mounting them vertically with the air valve on top is often preferred for bleeding air.
- Pre-Charge Check: Before connecting, verify the air pressure in the tank using a tire gauge. It should be set to 20 PSI (or 2 PSI below the pump’s cut-on pressure). Note: Always check the manufacturer’s specific recommendation.
Step 5: Complete the Distribution Lines
From the accumulator tank, run your main supply line to the city water inlet check valve and then distribute to your hot/cold lines.
- Install a second shut-off valve after the accumulator. This isolates the house plumbing from the pump/tank assembly.
- Use color-coded PEX (Red for hot, Blue for cold) to maintain clarity for future troubleshooting.
Step 6: Electrical Wiring and Safety
Proper wiring is non-negotiable for safety and performance.
- Wire Gauge: Use 10 AWG wire for runs up to 10 feet; switch to 8 AWG for longer distances to prevent voltage drop.
- Fusing: Install an inline fuse (usually 10A to 15A) within 18 inches of the battery positive terminal.
- Switch: Wire a manual override switch in a convenient location, though most systems rely on the automatic pressure switch inside the pump.
Troubleshooting Common Installation Issues
Even with a perfect plumbing diagram for installing RV water pump and pressure tank, issues can arise during the commissioning phase. Here is a quick comparison of common symptoms and their solutions:
| Symptom | Likely Cause | Solution |
|---|---|---|
| Pump cycles rapidly | Low air pre-charge in tank | Add air to the accumulator until it reaches 20 PSI. |
| No water flow | Air lock or dry run | Prime the pump by pouring water into the inlet line; check for suction leaks. |
| Loud banging noise | Water hammer | Ensure the accumulator is functional; install water hammer arrestors if needed. |
| Weak pressure at faucet | Clogged filter or kinked line | Check the inlet screen and inspect all PEX lines for sharp bends. |
Expert Tips for Long-Term Reliability
To truly act like a pro, consider these advanced tips that go beyond the basic diagram:
- Insulate Your Lines: If you travel in varying climates, wrap your exposed plumbing with foam insulation. This prevents freezing in winter and condensation in summer.
- Sediment Filtration: Install an inline sediment filter between the tank fill port and the pump. This protects the pump diaphragm from grit and sand, extending its lifespan significantly.
- Winterizing Protocol: Always bypass the water heater and blow out the lines with compressed air before storing your RV in freezing temperatures. The accumulator tank must also be drained completely.
FAQ Section
H2: Frequently Asked Questions About RV Water Systems
Q1: Where exactly should the pressure tank be placed in relation to the pump? The pressure tank (accumulator) should always be installed on the discharge (output) side of the water pump. Ideally, it should be connected via a tee fitting as close to the pump outlet as possible, before the water reaches any faucets, the water heater, or the city water check valve. This placement allows the tank to effectively dampen pressure fluctuations generated by the pump.
Q2: What air pressure should I set in my RV accumulator tank? For most standard RV water pumps that cut on at 25 PSI and cut off at 45 PSI, the accumulator tank’s air pre-charge should be set to approximately 20 PSI. A good rule of thumb is to set the air pressure 2 to 5 PSI below the pump’s “cut-on” pressure. Always measure this when the water system is depressurized (no water in the tank).
Q3: Can I install an RV water pump higher than the water tank? While it is technically possible, it is not recommended. Pumps work best when they are “pushed” by gravity rather than having to “pull” water up. If the pump is mounted significantly higher than the water level in the fresh tank, it may struggle to prime, leading to cavitation and premature failure. If you must mount it high, ensure the suction line is short, wide, and absolutely airtight.
Q4: Why does my water pulse even after installing a new pressure tank? Pulsing usually indicates that the accumulator tank has lost its air charge or the bladder inside has ruptured. First, check the air pressure with a tire gauge. If air comes out of the water valve when you press the Schrader valve, the bladder is broken, and the tank needs replacement. If the pressure is low, simply recharge it to 20 PSI.
Q5: Do I need a check valve if my pump already has one built-in? Most modern RV pumps come with internal check valves. However, adding an external check valve on the inlet side provides an extra layer of security against backflow, especially if you frequently switch between city water and the onboard tank. It ensures water never flows backward into the fresh tank, maintaining system hygiene.
Q6: How do I winterize a system with an accumulator tank? You must drain the accumulator tank completely. After blowing out the lines with air, open the faucet and press the Schrader valve on the tank to release any trapped water and air. If water remains inside the bladder, it can freeze, expand, and rupture the tank. Some owners prefer to remove the tank and store it indoors during extreme cold snaps.
Conclusion
Mastering the plumbing diagram for installing RV water pump and pressure tank is a game-changer for any RVer. By following this detailed guide, you transform a noisy, inefficient water system into a silent, high-pressure luxury that rivals your home plumbing. Remember, the key lies in correct placement, proper pre-charging of the accumulator, and secure, leak-free connections.
Don’t let water woes ruin your next adventure. Take control of your RV maintenance today, share this guide with your fellow camping enthusiasts on social media, and hit the road with confidence knowing your water system is built to last. Safe travels and happy camping!
