No Direct Vent? Master Your Plumbing Drainage System

Have you ever stared at a complex renovation plan only to realize that running a traditional vent pipe through your roof is impossible? Whether you are dealing with an island sink, a basement bathroom, or a historic home with strict preservation rules, the inability to install a standard vent can feel like a dead end for your project. You need a reliable solution that prevents sewer gases from entering your home while ensuring water flows smoothly. Fortunately, modern plumbing codes and engineering innovations have made it entirely possible to design a plumbing drainage system without the use of a direct vent. In this guide, we will explore how these systems work, the specific devices that make them legal, and how you can implement them safely in your US home.

How Can You Drain Without a Traditional Roof Vent?

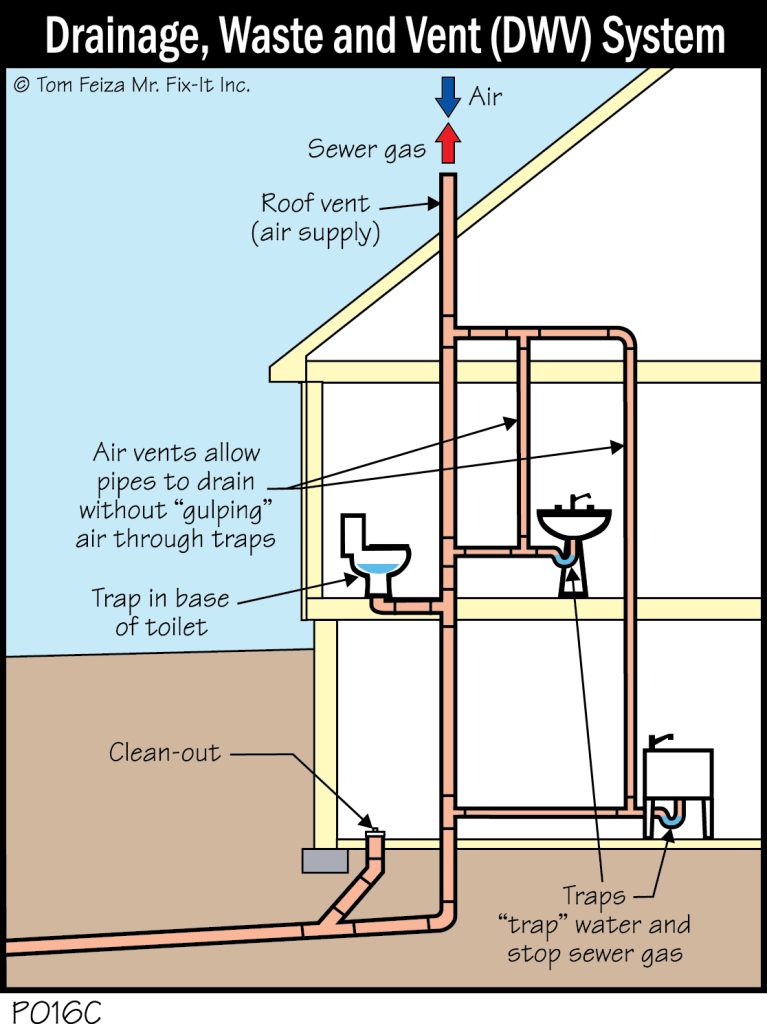

The primary function of a vent in any plumbing system is twofold: it allows sewer gases to escape outdoors and, perhaps more critically, it lets air into the drain lines to prevent a vacuum. When water rushes down a pipe, it can create negative pressure that sucks the water out of your P-traps, leaving a direct path for toxic gases to enter your living space. Traditionally, this was solved by extending a pipe vertically through the roof, known as a “direct vent.”

However, when architectural constraints prevent this, plumbers utilize Air Admittance Valves (AAVs). These are mechanical, one-way valves that open to let air in when negative pressure occurs (during drainage) and snap shut immediately when the pressure equalizes or if positive pressure (sewer gas) tries to push out. According to the International Plumbing Code (IPC) and many local US adaptations, AAVs are a recognized and approved method for venting fixtures where connecting to a conventional vent stack is impractical.

It is important to understand that an AAV does not eliminate the need for the main house vent stack entirely; rather, it eliminates the need for individual direct vents for every single fixture. The main stack still usually terminates outside, but branch lines can be terminated internally using these valves. This distinction is vital for maintaining a plumbing drainage system without the use of a direct vent for specific problem areas like kitchen islands or remote bathrooms.

Are Air Admittance Valves (AAVs) Legal and Safe?

One of the most common concerns homeowners have is whether bypassing a roof penetration is up to code. The short answer is yes, but with conditions. The legality of AAVs varies slightly by jurisdiction within the United States. While the IPC widely accepts them, some local municipalities may have stricter amendments. Always check with your local building department before installation.

From a safety perspective, AAVs are engineered with high durability. High-quality units, such as those meeting ASSE 1051 standards, are tested to open and close reliably over hundreds of thousands of cycles. They are designed to fail in the closed position, meaning if the mechanism breaks, it seals tight, preventing gas leaks (though this might cause slow draining due to lack of air intake).

For further reading on the history and mechanics of plumbing ventilation standards, you can refer to the general overview of plumbing systems on Wikipedia, which details the evolution from simple waste removal to complex pressurized and vented systems.

What Are the Best Alternatives for Island Sinks?

Kitchen islands present a unique challenge because they are often surrounded by cabinetry on all sides, making it impossible to run a vertical vent pipe up through the floor and roof without significant structural modification. Before AAVs became commonplace, plumbers used “loop vents” or “island vents,” which required elaborate piping that went up under the counter, across, and then down again before connecting to the main drain. While effective, these took up valuable cabinet space and were prone to clogging if not pitched perfectly.

Today, the preferred method for a plumbing drainage system without the use of a direct vent in island scenarios is the countertop-mounted or under-sink AAV.

Step-by-Step Installation Guide for an Island Sink AAV

If you are tackling this as a DIY project or want to understand what your plumber is doing, here is the precise process:

1. Prepare the Drain Line: Ensure your P-trap is installed correctly. The outlet of the P-trap should connect to a sanitary tee.
2. Position the Valve: The AAV must be installed vertically. It requires a minimum clearance above the trap weir (the highest point of water in the trap). Generally, the valve must be at least 4 inches (10 cm) above the horizontal branch drain or flood rim level of the fixture.
3. Access Panel Requirement: Codes strictly mandate that AAVs must be accessible for future replacement. You cannot seal them permanently behind drywall or glued cabinetry. You must install an access panel or ensure the valve is located inside a removable cabinet drawer or door.
4. Connection: Use a solvent weld (for PVC) or threaded connection compatible with your pipe size (usually 1.5 or 2 inches). Apply primer and cement evenly if using PVC, holding the joint for 30 seconds to ensure a secure bond.
5. Testing: Once installed, pour approximately 2 liters of water quickly into the sink to simulate a heavy dump. Listen for the distinct “hiss” of the valve opening to admit air. If you hear gurgling, the valve may be stuck or undersized for the flow rate.

How Do Loop Vents Compare to Mechanical Vents?

While AAVs are the modern standard, understanding the traditional “loop vent” helps in appreciating why the mechanical alternative is superior for many renovations. A loop vent creates a physical loop of pipe that rises from the drain, goes horizontally under the counter, and drops back down into the drain line downstream.

Pros of Loop Vents:

• No moving parts to fail.
• Accepted in virtually every jurisdiction without special approval.
• Passive operation requires no maintenance.

Cons of Loop Vents:

• Consumes significant cabinet storage space.
• Complex installation requiring precise slope calculations (typically 1/4 inch per foot).
• Higher risk of debris accumulation in the horizontal section of the loop.

Pros of Mechanical Vents (AAVs):

• Compact footprint; fits easily in tight spaces.
• Simplifies piping layout, reducing potential leak points.
• Eliminates the risk of freezing since they are indoors.

In most modern US residential applications, the efficiency and space-saving benefits of AAVs outweigh the passive reliability of loop vents, provided the homeowner adheres to accessibility requirements.

What Maintenance Is Required for Non-Vented Systems?

A plumbing drainage system without the use of a direct vent relies heavily on the integrity of its mechanical components. Unlike a copper or PVC pipe that can last 50 years untouched, an AAV contains a spring and a sealing gasket. Over time, grease, soap scum, and dust can accumulate on the sealing surface, potentially causing the valve to stick open or closed.

To maintain your system:

• Annual Inspection: Once a year, remove the access panel and visually inspect the valve. Look for signs of corrosion or debris.
• Cleaning: If the valve appears dirty, wipe the sealing surface gently with a damp cloth. Do not use harsh chemicals or lubricants, as these can degrade the rubber gasket.
• Replacement Schedule: Even with perfect maintenance, plan to replace the AAV every 20 to 25 years. They are relatively inexpensive compared to the cost of repairing water damage or mitigating sewer gas issues.

If you notice slow draining across multiple fixtures or smell faint odors near your sinks, the AAV is the first component to investigate. It is often easier to swap out a $20 valve than to snake a clogged loop vent hidden behind cabinetry.

Frequently Asked Questions (FAQ)

1. Can I use an AAV for a toilet?

Generally, no. Most US plumbing codes restrict the use of Air Admittance Valves to fixtures other than toilets. Toilets require a significant volume of air displacement during a flush, and most standard AAVs are not rated for the airflow capacity needed. Toilets usually must connect to a traditional vent stack or a specialized large-capacity venting system approved by local codes.

2. Will an AAV prevent all sewer smells?

When functioning correctly, an AAV effectively prevents sewer gases from escaping into the home by staying tightly closed under positive pressure. However, if the P-trap dries out due to lack of use, gases can bypass the trap regardless of the vent type. Always run water in unused drains periodically to keep traps sealed.

3. Is a permit required to install an AAV?

Yes, in most US jurisdictions, altering the plumbing drainage system requires a permit, even if you are just adding an AAV. This ensures the installation meets current code requirements regarding height, accessibility, and sizing. Skipping the permit process can lead to fines and issues when selling your home.

4. Can I install an AAV in an attic or crawl space?

You can, but it is not recommended unless the space is conditioned (heated/cooled) and accessible. AAVs should not be installed in areas where they could be exposed to freezing temperatures or excessive dust and insulation fibers, which could jam the mechanism. They perform best within the conditioned envelope of the house, such as under a vanity or inside a cabinet.

5. What happens if the AAV fails?

If an AAV fails in the closed position, you will experience slow draining and gurgling sounds as the system struggles to pull air through the trap. If it fails in the open position, sewer gases may enter the room. Because they are required to be accessible, replacement is straightforward: unscrew the old unit and screw in a new one of the same diameter and rating.

6. Does using an AAV affect my home insurance?

Typically, no. Since AAVs are code-compliant devices recognized by major plumbing codes, their use does not negatively impact home insurance policies. However, improper installation (such as hiding them behind walls) that leads to damage could result in a denied claim. Always follow manufacturer instructions and local codes.

Conclusion

Designing a functional and safe plumbing drainage system without the use of a direct vent is no longer a compromise; it is a smart, code-compliant choice for modern homes. By utilizing Air Admittance Valves, homeowners can solve complex drainage challenges in kitchen islands, basement bathrooms, and renovation projects without the hassle and expense of cutting through roofs and framing. These systems offer reliability, ease of maintenance, and peace of mind, provided they are installed correctly and kept accessible.
