Plumbing Fire Protection with Calculations: Free Project Narrative PDF

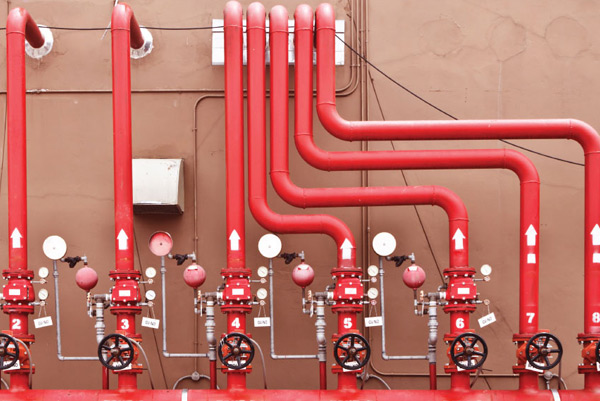

If you’re an engineer, contractor, or student working on fire protection systems, you know how critical precise plumbing calculations are for life safety and code compliance. Yet, finding a clear, structured, and professionally formatted Plumbing Fire Protection with Calculations Project Narrative PDF can feel like searching for a needle in a haystack.

That’s why we’ve put together this definitive guide—not just to explain what goes into such a document, but how to build one that meets NFPA 13 standards, passes plan review, and actually works in real-world applications.

What Is a “Plumbing Fire Protection with Calculations Project Narrative”?

A Project Narrative for fire protection plumbing is a technical document that outlines the design philosophy, system components, hydraulic calculations, and code compliance rationale for a fire sprinkler or standpipe system. It’s not just a report—it’s your engineering story.

Think of it as the “why” behind the numbers. Municipal reviewers, fire marshals, and inspectors rely on this narrative to verify that your system will activate properly during a fire emergency.

According to the National Fire Protection Association (NFPA), properly designed fire sprinkler systems reduce fire death risk by 87% in home fires and 80% in structure fires overall (NFPA, 2023). That’s why accuracy in both narrative and calculations isn’t optional—it’s lifesaving.

Why Do You Need Hydraulic Calculations in Fire Protection?

Hydraulic calculations determine whether your water supply can deliver adequate pressure and flow to the most demanding part of the sprinkler system—typically the farthest or highest sprinkler head.

Without these calculations:

• Your system may fail during a fire.
• You risk non-compliance with NFPA 13, International Building Code (IBC), or local fire codes.
• Insurance underwriters may deny coverage.

💡 Pro Tip: The “most remote area of sprinkler operation” is usually a 1,500 sq ft zone (per NFPA 13 for Light Hazard occupancies). Your calculations must prove sufficient flow (e.g., 0.10 gpm/sq ft × 1,500 = 150 gpm) at the required pressure.

Key Components of a Fire Protection Plumbing Project Narrative

A high-quality Plumbing Fire Protection with Calculations Project Narrative PDF should include:

1. Project Overview
   • Building type, occupancy classification (e.g., Light Hazard, Ordinary Hazard Group 1)
   • System type: wet, dry, deluge, or pre-action
2. Design Criteria
   • Design area (e.g., 1,500 sq ft)
   • Density (e.g., 0.10 gpm/sq ft)
   • Hazard classification per NFPA 13
3. Water Supply Analysis
   • Static, residual, and flow test data from the municipal hydrant
   • Required vs. available pressure at the base of the riser
4. Hydraulic Calculation Summary
   • Pipe sizes, lengths, and fittings
   • Friction loss (using Hazen-Williams formula: P = 4.52 × Q^1.85 / (C^1.85 × d^4.87))
   • Total pressure demand at the water supply source
5. Equipment Specifications
   • Fire pump (if required): rated at 100% flow / 150% pressure per NFPA 20
   • Backflow preventer type
   • Alarm check valve details
6. Code Compliance Statement
   • Reference to NFPA 13 (2022 edition), IBC 2021, and local amendments

🔗 For a deeper dive into fire sprinkler system types, see the NFPA Fire Sprinkler Systems overview on Wikipedia.

Step-by-Step: Creating Your Own Project Narrative with Calculations

Follow this practical workflow to build a compliant, inspection-ready document:

Step 1: Classify the Hazard

Identify occupancy type using NFPA 13 Chapter 5.

• Example: An office building = Light Hazard
• Density: 0.10 gpm/sq ft
• Design Area: 1,500 sq ft → 150 gpm minimum

Step 2: Gather Water Supply Data

Conduct a flow test or use municipal records.

• Static pressure: 65 psi
• Residual pressure at 1,000 gpm: 42 psi
• Use this to plot your water supply curve

Step 3: Perform Hydraulic Calculations (Manual or Software)

Use software like HydraCAD, AutoSPRINK, or manual spreadsheets.

• Start from the most remote sprinkler
• Calculate K-factor flow: Q = K√P (e.g., K=5.6, P=7 psi → Q ≈ 14.8 gpm)
• Add flows node by node, accounting for elevation and friction loss

Step 4: Compare Demand vs. Supply

• If system demand = 165 gpm @ 58 psi
• And water supply provides 180 gpm @ 60 psi → PASS

Step 5: Document Everything Clearly

Use tables like this:

Step 6: Format as a Professional PDF

Include:

• Cover page with project name, address, date
• Table of contents
• Calculation sheets (annotated)
• Narrative explaining assumptions
• Conclusion & compliance statement

Common Mistakes to Avoid

Even experienced professionals slip up. Here’s what to watch for:

• ❌ Using outdated NFPA editions – Always confirm local authority’s adopted version
• ❌ Ignoring elevation pressure loss – Every 1 ft of elevation = 0.433 psi loss
• ❌ Overlooking hose stream allowance – Add 250–500 gpm for standpipe systems
• ❌ Poor documentation – If it’s not written down, it didn’t happen (in the inspector’s eyes)

Real-World Case Study: Office Building Retrofit

In a 2023 Chicago project, an engineer submitted a fire sprinkler narrative without verifying residual pressure during peak demand hours. The system passed static tests but failed during a live flow test at 3 PM due to municipal pressure drop.

Lesson: Always use the worst-case water supply scenario—not just the best available data.

After recalculating with time-of-day flow data and upsizing the feed main from 4″ to 6″, the revised Plumbing Fire Protection with Calculations Project Narrative PDF was approved within 48 hours.

FAQ Section

Q1: Is a fire protection plumbing narrative required by code?
Yes. While NFPA 13 doesn’t explicitly mandate a “narrative,” most AHJs (Authorities Having Jurisdiction) require a written design basis and calculation summary for plan review. It’s standard practice for commercial projects.

Q2: Can I use a template for my project narrative?
Absolutely—but customize it for your specific building. Generic templates often omit hazard-specific details, leading to rejection. Always align with your project’s occupancy, water supply, and layout.

Q3: What software is best for hydraulic calculations?
Popular options include HydraCALC (by CADmep), AutoSPRINK, and PIPE-FLO. Many offer free trials. For small projects, Excel-based calculators (using Hazen-Williams) are acceptable if documented clearly.

Q4: Do residential systems need the same level of detail?
Not always. NFPA 13D (for 1- and 2-family homes) allows simplified designs. However, if your residential project uses NFPA 13 (e.g., a townhouse complex), full calculations and narrative are required.

Q5: Where can I download a sample Plumbing Fire Protection with Calculations Project Narrative PDF?
Many engineering firms publish redacted samples online. The Society of Fire Protection Engineers (SFPE) and NICET also offer guidance documents. Always verify that any sample matches your local code edition.

Q6: How long should the narrative be?
Typically 5–15 pages. It should be concise but complete—enough to justify every design decision without overwhelming the reviewer.

Conclusion

A well-crafted Plumbing Fire Protection with Calculations Project Narrative PDF isn’t just paperwork—it’s proof that your system will perform when lives are on the line. By following NFPA standards, documenting your hydraulic math, and clearly explaining your design logic, you’ll speed up approvals and ensure real-world reliability.

📘 Ready to build your own? Use the framework above, double-check your local codes, and never skip the water supply analysis.

👉 Found this guide helpful? Share it with your engineering team or on LinkedIn! Let’s make fire protection design clearer, safer, and smarter for everyone.

Stay safe, stay compliant—and always design like lives depend on it (because they do).
