Unequal Sink Depths? Master Double Bowl Plumbing Today

There is nothing quite as frustrating as standing in your kitchen, ready to install a beautiful new fixture, only to realize the two basins sit at completely different heights. Whether you are renovating an older home with unique cabinetry or installing a specialized workstation sink for serious cooking, mismatched levels create a genuine headache for drainage. You need a solution that prevents leaks, eliminates gurgling noises, and handles wastewater efficiently without requiring a complete overhaul of your under-sink cabinetry. This guide provides professional, step-by-step instructions for managing plumbing for a double bowl sink when sinks are different depths, ensuring your project meets the highest standards of safety and functionality.

Understanding the Challenge of Uneven Basins

When both bowls of a double sink are level, the plumbing is straightforward: two tailpieces drop down to a single crossbar, feeding into one P-trap. However, when one bowl is deeper than the other, the geometry changes drastically. The tailpiece from the deeper bowl will hang significantly lower than the shallow one. If you attempt to connect them using standard, rigid fittings, you will likely encounter misalignment, stress on the joints, and inevitable leaks.

In the United States, where kitchen standards vary from modern farmhouse designs to industrial-style workstations, this issue is increasingly common. According to general building codes referenced by organizations like the International Association of Plumbing and Mechanical Officials (IAPMO), the primary goal of any drain system is to maintain a proper water seal and prevent siphoning. When depths differ, the risk of breaking this seal increases if the slope of the connecting pipes is incorrect.

The core issue isn’t just aesthetic; it’s hydraulic. Water must flow freely from both basins into the main drain line. If the connection between the two tailpieces is too steep or forced, it can create airlocks or cause water from the deeper bowl to back up into the shallower one. Solving this requires a combination of adjustable components, precise measurements, and an understanding of how gravity affects wastewater flow.

How Do You Connect Drains with Different Heights?

The most common question homeowners ask is whether they can simply use a longer pipe for the higher side. The short answer is no; extending a pipe arbitrarily often leads to poor drainage angles. Instead, the professional solution lies in using adjustable slip-joint fittings and potentially reconfiguring the layout of the trap arm.

The Role of Adjustable Tailpieces

Standard tailpieces are rigid tubes, usually 6 to 12 inches long. For uneven sinks, these are insufficient. You must purchase telescoping tailpieces. These allow you to extend or retract the length of the pipe by several inches, accommodating the vertical gap between the two strainer bodies.

• Deep Bowl Side: Usually requires a standard or slightly shortened tailpiece depending on how low the strainer sits.
• Shallow Bowl Side: Requires a fully extended telescoping tailpiece to reach the level of the deep bowl’s outlet.

Aligning the Crossbar

The horizontal bar that connects the two vertical drops (often called the bridge or crossbar) must remain perfectly level, even if the inputs coming into it are at different vertical starting points. In many modern kits, the crossbar itself has sliding nuts that allow the vertical pipes to enter at slightly offset positions, but there is a limit to this flexibility.

If the height difference exceeds 3 to 4 inches, a standard continuous waste kit may not suffice. In such cases, plumbers often employ a “staggered” approach where the drain from the higher bowl drops down vertically before making a 90-degree turn to join the horizontal run of the lower bowl’s drain. This ensures that both streams of water merge smoothly without turbulence.

Step-by-Step Installation Guide for Uneven Sinks

Installing plumbing for a double bowl sink when sinks are different depths requires precision. Follow these concrete steps to ensure a leak-free setup. Note that all measurements should be double-checked before tightening any nuts.

Tools and Materials Needed

• Telescoping tailpieces (2 units)
• Continuous waste kit with slip-joint nuts and washers
• P-trap assembly (adjustable preferred)
• Pipe cutter or hacksaw
• Silicone plumber’s putty or thread seal tape
• Bucket and rags
• Level
• Channel-lock pliers

Step 1: Measure the Vertical Discrepancy

Before buying parts, measure the distance from the bottom of the strainer basket to the center of the intended crossbar connection point for both bowls.

• Example: If the deep bowl strainer is 10 inches below the rim and the shallow one is 6 inches below, you have a 4-inch vertical differential.
• Record this number; it dictates how much extension your telescoping tailpiece needs.

Step 2: Install the Strainer Bodies

Apply a rope of plumber’s putty around the underside of each strainer flange. Insert them into the sink holes and tighten the locking nut from below. Ensure they are snug but do not overtighten, which can crack ceramic or composite sinks. Wipe away excess putty immediately.

Step 3: Attach Telescoping Tailpieces

Screw the telescoping tailpieces onto the threaded ends of the strainers.

• For the shallow bowl, extend the tailpiece fully so its bottom end aligns horizontally with the tailpiece of the deep bowl.
• For the deep bowl, adjust the length so it matches the same horizontal plane.
• Critical Check: Use your level across the bottom openings of both tailpieces. They must be within 1/8 inch of being perfectly level with each other to attach the crossbar effectively.

Step 4: Connect the Continuous Waste Bar

Slide the slip-joint nuts and beveled washers onto the tailpieces. Insert the ends of the tailpieces into the continuous waste bar (the horizontal connector).

• Ensure the beveled side of the washer faces the nut.
• Hand-tighten the nuts first, then give them a quarter-turn with pliers. Over-tightening can crush the plastic washers, leading to leaks.

Step 5: Configure the P-Trap

This is where the depth difference often causes issues. The outlet of the continuous waste bar must connect to the P-trap, which then connects to the wall drain.

• If the continuous waste bar is now lower than usual (due to the deep bowl), you may need to lower the entire P-trap assembly.
• Use an extension tube on the trap arm if the wall inlet is too high relative to your new setup.
• Ensure the slope from the trap to the wall is downward at a rate of 1/4 inch per foot to facilitate gravity flow, as recommended by standard plumbing practices found in resources like Wikipedia’s entry on Plumbing.

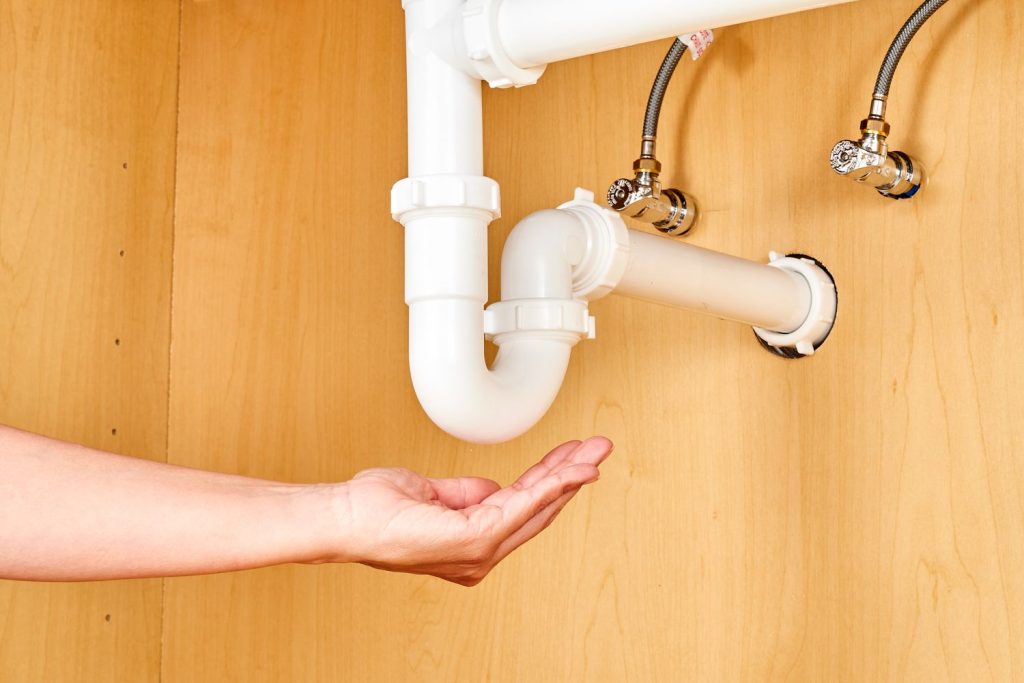

Step 6: The Water Test

Before closing the cabinet doors, perform a rigorous test.

1. Plug both sinks.
2. Fill the deep bowl with 2 liters of water (approx. half a gallon).
3. Fill the shallow bowl with 1 liter of water.
4. Release the plugs simultaneously.
5. Observe the flow. Watch specifically for any dripping at the slip-joint connections.
6. Run the garbage disposal (if applicable) for 30 seconds to check for vibration-induced leaks.

Common Mistakes to Avoid

Even experienced DIYers can stumble when dealing with irregular sink configurations. Here is a comparison of common errors versus the correct professional approach.

Expert Tips for Long-Term Durability

To truly master plumbing for a double bowl sink when sinks are different depths, consider these pro tips that go beyond basic installation:

1. Support the Weight: If the depth difference requires long extensions, the weight of the water-filled pipes can sag over time. Use a pipe strap or a simple wooden block cut to size to support the horizontal crossbar from underneath, attaching it to the cabinet floor.
2. Temperature Considerations: In colder climates (like the Northern US), pipes under sinks with poor insulation can freeze. If your deep bowl extends very low near an exterior wall, consider wrapping the tailpieces in foam insulation sleeves.
3. Garbage Displacement: If you have a garbage disposal on the deeper side, remember that the motor adds significant weight and vibration. Ensure the mounting assembly is secured with the provided locking ring and that the discharge tube has a slight downward angle to prevent food buildup.
4. Regular Maintenance: Once a year, remove the P-trap and flush the lines with hot water mixed with a cup of baking soda and vinegar. This prevents grease accumulation, which is more likely to stick in the angled joints of uneven setups.

FAQ Section

Q1: Can I use a flexible corrugated drain pipe to solve the height difference?

A: While flexible corrugated pipes seem like an easy fix, most professional plumbers in the US advise against them for permanent installations. The ridges inside the pipe trap food particles and grease, leading to frequent clogs and foul odors. It is always better to use rigid or telescoping smooth-wall PVC/ABS pipes with slip-joint fittings to maintain proper flow velocity.

Q2: What is the maximum height difference I can manage with a standard kit?

A: Most standard continuous waste kits with telescoping tailpieces can accommodate a height difference of up to 4 to 6 inches. If your sinks differ by more than this, you will likely need to custom-fabricate the connection using separate elbows and straight pipes rather than a pre-made kit, or consult a licensed plumber to reconfigure the cabinetry.

Q3: Will having different sink depths affect my garbage disposal performance?

A: Generally, no, provided the plumbing is installed correctly. The disposal is mounted to the deeper bowl usually. As long as the drain line exiting the disposal slopes downward immediately and the P-trap is aligned correctly, the depth of the adjacent shallow bowl will not impact the disposal’s ability to grind and eject waste.

Q4: My shallow bowl keeps backing up when I run water in the deep bowl. Why?

A: This indicates a blockage in the shared crossbar or the P-trap, or an improper venting issue. When water rushes from the deep bowl, it creates air pressure. If the path to the main drain is restricted, that pressure pushes water back up the path of least resistance—the shallow bowl. Check for clogs first, then verify that your vent stack is clear.

Q5: Do I need a special permit to install uneven sinks in my home?

A: In most US jurisdictions, replacing a sink and its associated drain lines (without moving the main water supply lines or altering the structural wall) does not require a permit. However, local codes vary. If you are changing the location of the drain entrance in the wall, you should check with your local building department.

Q6: How often should I check the connections for leaks after installation?

A: Perform an initial check immediately after installation. Then, inspect the connections visually after 24 hours and again after one week. Temperature changes and the settling of the house can cause fittings to loosen slightly. After the first month, a visual check during your annual spring cleaning is usually sufficient.

Conclusion

Navigating plumbing for a double bowl sink when sinks are different depths might seem daunting at first, but with the right tools and a methodical approach, it is a manageable DIY project. By utilizing telescoping tailpieces, ensuring perfect alignment of your crossbar, and respecting the physics of gravity flow, you can achieve a professional-grade installation that lasts for years. Remember, the key lies in patience and precision—rushing the measurement phase is the primary cause of future leaks.
