Ford Master Cylinder: Front & Rear Line Guide

There is nothing quite as unsettling as the feeling of a soft brake pedal or the sight of fluid leaking under your classic or modern Ford truck. For DIY mechanics and professional technicians alike, understanding the hydraulic heart of your braking system is critical for safety. When you are tackling the specific task of plumbing front and rear lines on a Ford master cylinder, precision isn’t just about performance; it is about saving lives. This guide will walk you through the exact procedures, torque specifications, and safety protocols needed to get your Ford stopping power back to factory standards.

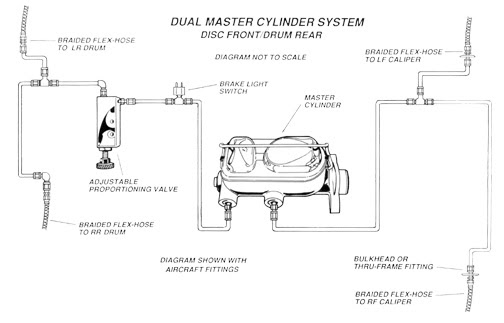

Understanding the Ford Dual-Reservoir System

Before picking up a wrench, it is essential to understand why Ford, like most modern manufacturers, utilizes a dual-reservoir master cylinder. Unlike older single-piston systems that could leave you with zero braking power if one line failed, the dual-circuit design separates the hydraulic pressure.

In most Ford configurations (from the F-150 to the Mustang), the master cylinder divides the system into two distinct circuits:

• Front Circuit: Typically controls the front disc brakes.
• Rear Circuit: Controls the rear drums or discs, often routed through a proportioning valve first.

This separation ensures that if a line bursts in the front, you still retain rear braking capability, and vice versa. According to basic principles of automotive engineering documented by sources like Wikipedia, this redundancy became a mandatory safety standard in the US during the late 1960s and remains the backbone of vehicle safety today. Confusing these lines during installation can lead to catastrophic brake failure or a complete loss of pedal pressure.

Identifying Front vs. Rear Ports on Your Ford Master Cylinder

One of the most common questions we receive from customers in Detroit, Houston, and across the US is: “Which port goes to the front, and which goes to the rear?”

While it might seem intuitive that the front port connects to the front wheels, this is not always the case with Ford vehicles. The configuration depends heavily on the model year and whether the vehicle uses a diagonal split or a front/rear split system.

The General Rule for Ford Trucks and Muscle Cars

For the vast majority of Ford trucks (F-Series) and rear-wheel-drive cars produced after 1967:

• The Port Closer to the Firewall (Rear Port): Usually connects to the Front Brakes.
• The Port Closer to the Front of the Car (Front Port): Usually connects to the Rear Brakes (often feeding into the proportioning valve first).

Why is it backwards? This design minimizes the risk of air trapping. Since the front brakes generally require higher pressure and volume, routing them directly from the piston closest to the pushrod (the primary piston) ensures the most direct hydraulic path.

Pro Tip: Never guess. Always consult the specific service manual for your VIN. However, if you are working on a standard 1970s–1990s Ford F-150, the “Firewall = Front Brakes” rule applies 90% of the time.

Tools and Materials Required for Precision Work

To ensure a job done right the first time, gather the following tools before starting. Using improper tools can strip flare nuts, leading to expensive repairs later.

Step-by-Step: Plumbing Front and Rear Lines

Follow this detailed procedure to install your lines correctly. We will assume you are replacing lines on a bench-mounted or newly installed master cylinder.

Step 1: Pre-Bleed the Master Cylinder

Installing a dry master cylinder introduces massive amounts of air into the system, making bleeding at the wheels nearly impossible.

1. Mount the master cylinder securely in a vise using soft jaws.
2. Attach clear vinyl tubes from a bench bleeder kit to both outlet ports.
3. Submerge the other ends of the tubes into a reservoir filled with fresh brake fluid.
4. Slowly depress the piston using a screwdriver or specialized tool. Use a stroke of approximately 1.5 inches.
5. Repeat this action 10–15 times until no air bubbles are visible in the tubes.
6. Critical: Keep the reservoir topped up so the ports never expose themselves to air.

Step 2: Prepare the Brake Lines

If you are fabricating new lines:

• Cut your steel tubing to length using a tube cutter, not a hacksaw (to avoid metal shavings).
• Create a double flare (ISO or SAE depending on your Ford’s year) on the ends. A single flare will leak under high pressure.
• Slide the flare nut onto the tube before flaring.

Step 3: Connecting the Rear Circuit (Proportioning Valve Side)

1. Identify the port designated for the rear axle (usually the front-most port on the cylinder body).
2. Hand-tighten the flare nut onto the master cylinder port. Ensure the tubing is not under tension or bending sharply.
3. Route the line toward the proportioning valve (located on the frame rail).
4. Tighten the fitting at the master cylinder using a flare nut wrench.
   • Torque Specification: Apply 12–15 ft-lbs (144–180 in-lbs). Do not overtighten, as this can crack the cast iron or aluminum housing.

Step 4: Connecting the Front Circuit

1. Identify the rear port (closest to the firewall).
2. Connect the line running directly to the front wheel calipers or the distribution block.
3. Ensure the line has a gentle curve to absorb engine vibration; rigid straight lines will eventually fatigue and crack.
4. Torque the fitting to the same specification: 12–15 ft-lbs.

Step 5: Final System Bleeding

Once the car is assembled:

1. Fill the master cylinder reservoir to the “MAX” line.
2. Start at the wheel furthest from the master cylinder (usually Rear Passenger), then Rear Driver, Front Passenger, and finally Front Driver.
3. Have an assistant press the pedal slowly, hold it, open the bleeder screw, close the screw, and then release the pedal.
4. Repeat until the fluid stream is completely free of air bubbles.

Common Mistakes and How to Avoid Them

Even experienced mechanics can stumble when plumbing front and rear lines on a Ford master cylinder. Here are the top pitfalls:

• Cross-Threading the Flare Nuts: This destroys the port. Always start every nut by hand. If it doesn’t spin easily for the first three turns, back it off and realign.
• Using Copper Coil Tubing for Main Lines: While easy to bend, coiled copper is illegal for main brake lines in many US states and fails safety inspections. Stick to double-flared steel.
• Ignoring the Proportioning Valve: On older Fords, the rear line must go through the proportioning valve before reaching the wheels. Bypassing this can cause the rear wheels to lock up prematurely during hard stops.
• Contaminated Fluid: Brake fluid is hygroscopic (absorbs water). Never use fluid from an old, opened bottle. Water in the system lowers the boiling point and causes internal corrosion.

Comparison: OEM Steel Lines vs. Aftermarket Solutions

When replacing your lines, you have choices. Here is how they stack up:

Note: While CuNi is easier to work with, ensure it meets DOT/FMVSS standards before purchasing.

FAQ Section

1. What happens if I swap the front and rear brake lines on a Ford master cylinder?

If you swap the lines, the braking balance will be severely compromised. The front brakes (which handle 70% of stopping power) may receive insufficient pressure, while the rears might lock up instantly upon light pedal application. In vehicles with a residual pressure valve built into the master cylinder for drum brakes, swapping lines can prevent the drums from releasing fully, causing drag and overheating.

2. Do I need to bench bleed the master cylinder if I’m careful?

Yes, absolutely. Even if you fill the reservoir carefully, the internal chambers of the master cylinder contain air. Without bench bleeding, you will pump the pedal hundreds of times at the wheel bleaders and likely still fail to get a firm pedal. Bench bleeding removes 95% of the air before the unit even touches the car.

3. What type of brake fluid should I use for my classic Ford?

Most Fords from the 1960s through today are designed for DOT 3 or DOT 4 glycol-based fluids. These are compatible with each other. Do not use DOT 5 (silicone-based) unless the entire system has been completely flushed and rebuilt with silicone-compatible seals, as it can cause seal swelling and brake failure in standard systems.

4. Why is my brake pedal spongy after plumbing the lines?

A spongy pedal almost always indicates trapped air. Re-check your bleeding sequence. Another possibility is a flexible hose expanding under pressure (common in old rubber hoses); consider upgrading to stainless steel braided hoses. Finally, ensure your master cylinder mounting bolts are torqued correctly, as a flexing cylinder body can mimic a spongy pedal.

5. Can I use compression fittings instead of flared fittings?

No. Compression fittings are not rated for the dynamic pressure spikes and vibrations found in automotive brake systems. They are prone to leaking and sudden failure. Always use inverted double-flare (SAE) or ISO bubble flare fittings specifically designed for hydraulic brakes.

Conclusion

Successfully plumbing front and rear lines on a Ford master cylinder is a task that blends mechanical skill with a deep respect for safety systems. By understanding the unique port configurations of Ford vehicles, using the correct double-flare techniques, and adhering to strict torque specifications, you ensure that your vehicle stops exactly when you need it to. Remember, brakes are the most critical system on your car; there is no room for shortcuts.
