There is nothing quite as unsettling as hearing a strange hissing sound coming from your water heater or discovering a puddle of water on your garage floor. For many homeowners, this signals a potential issue with the temperature and pressure relief (TPR) system, raising an urgent question: plumbing hot water heater pressure relief valve what size pipe is actually required for safety? Getting this wrong isn’t just a minor inconvenience; it can lead to catastrophic tank failure or dangerous scalding incidents. In this guide, we will walk you through the exact specifications, code requirements, and installation steps to ensure your home remains safe and compliant.
Understanding the Critical Role of the TPR Valve
Before diving into pipe dimensions, it is essential to understand why this specific component exists. The Temperature and Pressure Relief (TPR) valve is the last line of defense between a functioning appliance and a potential explosion. When water is heated, it expands. If the thermostat fails and the water continues to heat beyond safe limits, or if the pressure inside the tank exceeds the design limit (usually 150 psi), the TPR valve opens automatically to release excess steam and water.
According to data from the Consumer Product Safety Commission (CPSC), thousands of injuries occur annually due to scalding from improperly managed hot water systems. A correctly sized discharge pipe ensures that when this valve activates, the scalding water is directed safely away from people and property, rather than spraying uncontrollably into the room. Ignoring the correct sizing can cause backpressure, preventing the valve from opening fully when you need it most.
What Is the Standard Pipe Size for a Water Heater Relief Valve?

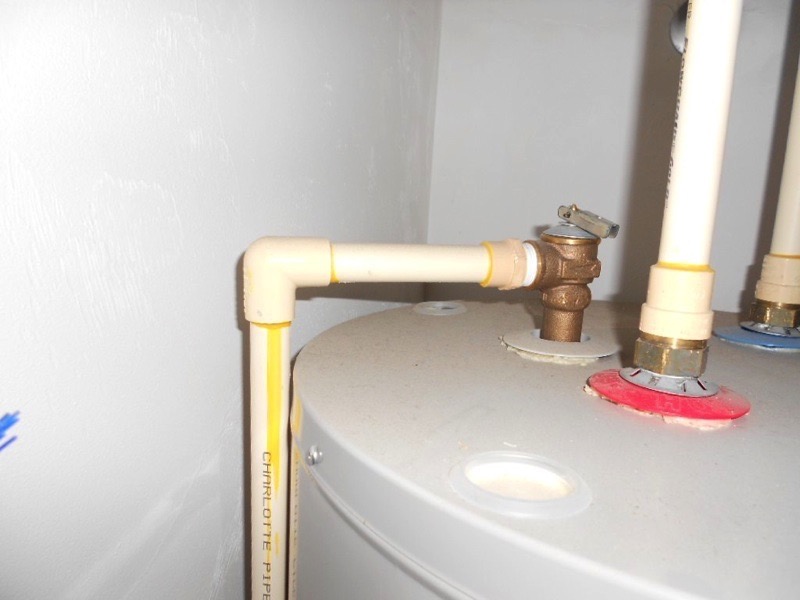

This is the core question most homeowners face during installation or inspection. The short answer is that the discharge pipe must match the outlet size of the valve itself. In the vast majority of residential installations in the United States, the TPR valve has a ¾-inch NPT (National Pipe Thread) outlet. Therefore, the discharge pipe must also be ¾-inch.
However, “matching the size” is only the beginning of the requirement. You cannot simply reduce the pipe size at any point after the valve. The International Plumbing Code (IPC) and the Uniform Plumbing Code (UPC) are very strict on this matter: the effective area of the discharge pipe must not be less than the area of the valve outlet.
| Component | Standard Residential Size | Material Requirement |
|---|---|---|
| TPR Valve Outlet | ¾ inch NPT | Brass or Bronze |
| Discharge Pipe | ¾ inch (Minimum) | Copper, PEX, CPVC, or Galvanized Steel |
| Reducer Fittings | Prohibited | N/A |
| Threaded Adapters | Allowed (if same size) | Metal preferred near valve |
Using a smaller pipe, such as ½-inch, creates a bottleneck. If the valve tries to release 50 gallons of water per minute during a failure event, a ½-inch pipe cannot handle the volume. This creates backpressure, which can keep the valve from lifting completely, rendering your safety device useless. As noted in general engineering principles found on Wikipedia, safety valves rely on unobstructed flow paths to function correctly under high-pressure scenarios.
People Also Ask: Common Questions About Discharge Piping
To provide comprehensive clarity, let’s address the specific questions users frequently search for regarding this topic. These answers are derived from current plumbing codes and expert installer guidelines.
Can I Use PVC Pipe for the TPR Discharge?
Generally, no. Standard PVC (Polyvinyl Chloride) is not rated for the high temperatures that a TPR valve might discharge. When a valve opens due to overheating, the water temperature can exceed 212°F (100°C), turning into steam. Standard PVC can soften, melt, or deform at these temperatures, causing the pipe to fail exactly when you need it to work.
You must use materials rated for high heat and pressure. Acceptable materials typically include:
- Copper: The gold standard for durability and heat resistance.
- CPVC (Chlorinated Polyvinyl Chloride): Specifically designed for hot water applications (ensure it is labeled for hot water use).
- PEX: Only if specifically rated by the manufacturer for TPR discharge applications (check local codes, as some jurisdictions restrict this).
- Galvanized Steel: Acceptable but prone to corrosion over time.
How Long Can the Discharge Pipe Be?
The length of the pipe is just as critical as its diameter. Most codes stipulate that the discharge pipe should not exceed 6 feet (1.8 meters) in horizontal run, though vertical drops are treated differently. The goal is to minimize friction and resistance.
Furthermore, the pipe must terminate within 6 to 24 inches above the floor or an external drain. It cannot be capped, plugged, or connected directly to a sewer line without an air gap. An air gap is crucial because it prevents contaminated wastewater from siphoning back into your potable water supply if a negative pressure event occurs in the drainage system.
Does the Pipe Need to Slope?
Yes. The discharge pipe must slope downward from the valve to the termination point. This ensures that gravity assists the flow of water and prevents water from pooling inside the pipe. Standing water in the discharge line can lead to mineral buildup, corrosion, or freezing in colder climates, all of which can block the valve. A slope of at least ¼ inch per foot is recommended to ensure proper drainage.
What Happens If I Install the Wrong Size Pipe?
Installing an undersized pipe is a severe code violation and a major safety hazard. If the pipe is too small:
- Backpressure builds up, preventing the valve from opening fully.
- The tank may rupture because the pressure cannot escape fast enough.
- Scalding water may spray sideways if the pipe bursts or leaks at the fittings due to excessive pressure.
- Home Insurance Claims may be denied if an investigation reveals non-compliant plumbing work contributed to the damage.
Step-by-Step Guide: Installing the Correct Discharge Pipe
If you have determined that your current piping is incorrect or missing, follow these concrete steps to install a compliant system. Always turn off the power (electric) or gas supply and shut off the cold water inlet before working on the water heater.
Tools and Materials Needed:
- ¾-inch copper or CPVC pipe (cut to measured length)
- ¾-inch female adapter (if connecting to threaded valve)
- Pipe cutter or hacksaw
- Pipe wrench
- Teflon tape (for threads only, not the flare)
- Bucket and towels
Installation Steps:
- Measure the Distance: Measure the distance from the TPR valve outlet to your desired termination point (floor drain or outside wall). Ensure the total length does not exceed code limits (typically max 6 feet of horizontal run).
- Cut the Pipe: Using your pipe cutter, cut the ¾-inch pipe to the required length. For example, if the distance is 4 feet, cut a piece slightly longer to account for fittings, then trim to fit. Aim for a clean, square cut to ensure a good seal.
- Prepare the Connection: Wrap Teflon tape clockwise around the threads of the TPR valve outlet. Do not apply tape to the smooth end of the pipe that will go into a fitting. Screw the appropriate ¾-inch adapter onto the valve and tighten it with a pipe wrench. Be careful not to overtighten and crack the valve body.
- Assemble the Run: Connect your cut pipe to the adapter. If using copper, you may need to solder the joints (ensure the valve is protected from heat with a wet rag). If using CPVC, apply primer and cement according to the manufacturer’s instructions.
- Check the Slope: Before the cement sets or final tightening, verify that the pipe slopes downward continuously toward the exit. There should be no dips or sagging sections where water could collect.
- Terminate Safely: Ensure the end of the pipe stops 6 inches above the floor or drain. Do not thread the end of the pipe; it must remain open to the atmosphere.
- Test the System: Turn the water supply back on and fill the tank. Once full, restore power or gas. Lift the test lever on the TPR valve briefly to allow a burst of water through the new pipe. Check for leaks at all connections and verify that water flows freely out of the end without spraying excessively.
Comparison: Compliant vs. Non-Compliant Installations
To visualize the differences clearly, consider this comparison of common installation scenarios:
| Feature | Compliant Installation | Non-Compliant (Dangerous) |
|---|---|---|
| Pipe Diameter | Matches valve (¾”) exactly. | Reduced to ½” to save money. |
| Material | Copper or CPVC rated for high heat. | Standard PVC or garden hose. |
| Termination | Open end, 6″ above floor/drain. | Capped off or buried in a wall. |
| Direction | Slopes downward continuously. | Runs upward or has low spots. |
| Fittings | Minimal elbows; smooth flow. | Multiple sharp 90-degree turns. |
| Safety Outcome | Prevents explosion/scalding. | High risk of tank rupture. |
Frequently Asked Questions (FAQ)
1. How often should I test my TPR valve?
Experts recommend testing the TPR valve manually at least once a year. To do this, lift the lever briefly to allow a small amount of water to discharge. If water does not flow, or if the valve continues to leak after you release the lever, it needs to be replaced immediately by a licensed plumber.
2. Why is water dripping from my relief valve pipe?
Occasional dripping during the heating cycle can be normal due to thermal expansion, especially if you don’t have an expansion tank. However, continuous leaking usually indicates a faulty valve, excessive water pressure (above 80 psi), or a thermostat set too high. If the pipe is constantly wet, investigate the root cause rather than just plugging the leak.
3. Can I extend the discharge pipe to the outside of my house?
Yes, extending the pipe to the exterior is often a great solution, provided it meets code requirements. The pipe must still be the correct size (¾”), slope downward, and terminate no more than 24 inches above the ground. In freezing climates, ensure the pipe is insulated or routed in a way that prevents ice blockage, which could be fatal to the system.
4. Is it legal to cap the end of the relief valve pipe?
Absolutely not. Capping the discharge pipe is one of the most dangerous plumbing mistakes you can make. If the valve activates and the pipe is capped, the pressure has nowhere to go, turning your water heater into a bomb. This is a direct violation of every major plumbing code in North America.
5. Do I need a permit to replace the discharge pipe?
Regulations vary by municipality. In many areas, minor repairs like replacing a discharge pipe do not require a permit if the work is done by the homeowner. However, if you are moving the termination point or altering the plumbing significantly, a permit and inspection may be required. Always check with your local building department to be sure.
Conclusion
Ensuring your plumbing hot water heater pressure relief valve what size pipe configuration is correct is not merely a box to check for inspectors; it is a vital safeguard for your family and your home. By adhering to the standard ¾-inch diameter, using heat-resistant materials like copper or CPVC, and following proper slope and termination guidelines, you eliminate the risk of catastrophic failure. Remember, the TPR valve is the silent guardian of your water heating system—it only speaks when there is trouble, and it needs a clear voice to be heard.
Don’t wait for a leak or a loud bang to take action. Inspect your setup today, and if you find any discrepancies, correct them immediately. If you found this guide helpful in securing your home, please share this article on your social media channels to help friends and neighbors stay safe. Your knowledge could prevent someone else’s disaster.
