Fix Off-Center Drain in Double Basin Sinks Fast

There is nothing quite as frustrating as standing over a messy kitchen counter, watching water pool in one side of your sink while the other remains dry, all because the pipes underneath simply don’t seem to line up. Many homeowners face this exact dilemma when attempting plumbing in a double basin sink with off center drain, where standard kits often fail to provide the necessary flexibility for a leak-free connection. If you are feeling overwhelmed by the tangle of pipes and unsure where to start, take a deep breath; you are not alone, and with the right approach, this is a manageable DIY project that can save you hundreds of dollars in plumber fees.

Understanding the Challenge of Off-Center Drains

When dealing with a double basin setup, the geometry of the under-sink cabinet often dictates the placement of the main waste outlet. Unlike single-basin sinks where the drain is usually centered, double basins frequently require one bowl’s drainage to travel horizontally before dropping into the main P-trap. This configuration creates unique hydraulic challenges.

According to general engineering principles found in resources like Wikipedia’s entry on Plumbing, proper slope and venting are critical to prevent siphoning and ensure waste moves efficiently. When the drain is off-center, the horizontal run between the two basket strainers becomes the weak point. If the slope is too flat, debris accumulates; if it is too steep, the connection points may stress the plastic nuts, leading to cracks and leaks.

Why Standard Kits Often Fail

Most “universal” sink plumbing kits sold at big-box stores assume a symmetrical layout. They often include straight tailpieces and fixed-length connectors that cannot accommodate the offset required when one drain is significantly to the left or right of the main wall outlet.

• Rigid Connections: Standard kits lack the swivel joints needed for angular adjustments.
• Incorrect Lengths: The horizontal pipe connecting the two bowls is often too short or too long, forcing installers to use excessive force.
• Poor Seal Quality: Cheap rubber gaskets included in budget kits degrade quickly under the tension of an off-center setup.

Essential Tools and Materials Checklist

Before diving into the installation, gathering the correct materials is half the battle. Using high-quality components ensures longevity and reduces the likelihood of future emergency calls.

Step-by-Step Installation Guide

Follow these precise steps to execute plumbing in a double basin sink with off center drain successfully. Precision here prevents leaks later.

Step 1: Prepare the Sink Basins

Start by installing the basket strainers. Clean the rim of the drain hole thoroughly to remove any manufacturing residue. Roll a rope of plumber’s putty about the thickness of a pencil (approx. 6mm) and press it firmly around the underside of the strainer flange. Insert the strainer into the hole from the top.

From underneath, slide the rubber gasket, followed by the friction ring, and then the locking nut. Tighten the nut using a large screwdriver or specialized strainer wrench.

• Pro Tip: Tighten until you see a small bead of putty squeeze out evenly around the entire circumference. Wipe away the excess immediately with a damp cloth. Do not overtighten, as this can crack the porcelain or composite material of the sink.

Step 2: Measure and Cut the Crossover Pipe

This is the most critical step for an off-center configuration. You must connect the tailpiece of the secondary basin (the one further from the wall) to the primary basin (the one aligned with the wall drain).

1. Attach the tailpiece to the secondary strainer but do not fully tighten the slip nut yet.
2. Hold the crossover pipe against the tailpiece and the inlet of the primary strainer assembly.
3. Mark the pipe where it needs to be cut. Remember to account for the depth the pipe will insert into the slip nuts (usually about 1 inch or 2.5 cm on each end).
4. Use a hacksaw or PVC cutter to make a clean, square cut. Burrs left on the edge can prevent the washer from sealing correctly.

Step 3: Assemble the Horizontal Connection

Slide the slip nut onto the pipe first, followed by the beveled rubber washer. Ensure the beveled edge of the washer faces toward the fitting it is sealing against. This design allows the washer to compress tightly as the nut is tightened.

Connect the crossover pipe between the two tailpieces. Because the drain is off-center, you may need to use an extension tube or a specific angled adapter if the distance is greater than standard kits allow. Hand-tighten the nuts first, then give them an additional quarter-turn with channel-lock pliers.

• Warning: Avoid over-tightening plastic nuts. Over-torquing can strip the threads or crush the washer, causing immediate leakage.

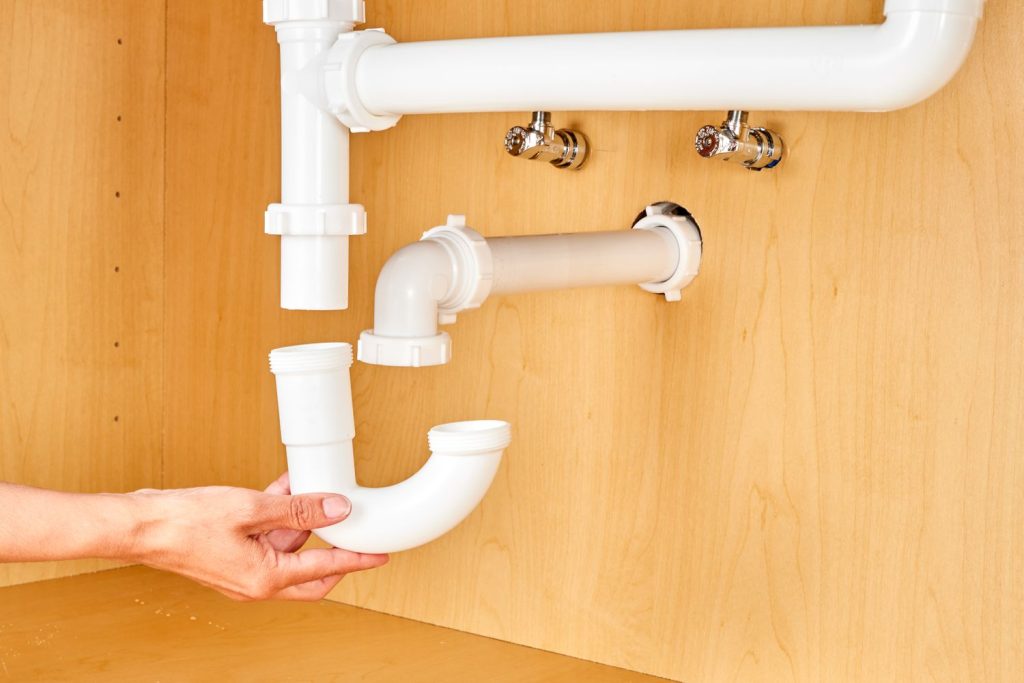

Step 4: Install the P-Trap and Wall Connection

Now, address the primary drain leading to the wall. Attach the curved P-trap arm to the bottom of the primary strainer assembly. The P-trap serves a vital function: it holds a standing column of water (typically 2 to 3 inches deep) that acts as a gas barrier.

Connect the other end of the P-trap to the waste arm coming out of the wall. If the wall outlet does not align perfectly with your P-trap outlet, use a telescopic P-trap or an adjustable extension tube. These allow for slight vertical and horizontal shifts to accommodate the off-center nature of your specific cabinet layout.

Ensure every joint has a beveled washer installed correctly. Tighten all slip nuts securely.

Step 5: The Water Test

Never skip the testing phase. Place a bucket under the P-trap just in case.

1. Plug both sink basins.
2. Fill each basin with approximately 2 liters of water.
3. Release the plugs simultaneously to test the flow capacity and check for leaks at the crossover joint.
4. Once drained, fill them again and let them sit for 5 minutes to check static leaks.
5. Run the garbage disposal (if applicable) to check for vibration-induced leaks.

Dry every pipe with a paper towel before testing. If a leak appears, the wet spot on the dry paper towel will pinpoint the exact failing joint immediately.

Troubleshooting Common Issues

Even with careful planning, issues can arise during plumbing in a double basin sink with off center drain. Here is how to solve the most frequent problems.

Issue: Persistent Dripping at the Crossover Joint

• Cause: The washer is likely installed backward (flat side facing the fitting) or the pipe cut was not square.
• Solution: Disassemble the joint. Inspect the washer for nicks. Re-cut the pipe if edges are jagged. Reinstall ensuring the tapered side of the washer presses into the receiving funnel of the nut.

Issue: Slow Drainage in One Bowl

• Cause: Improper slope. The crossover pipe might be level or sloping upward toward the main drain.
• Solution: Water flows by gravity. Ensure the secondary bowl’s tailpiece is slightly higher than the connection point on the primary side. A drop of 1/4 inch per foot is ideal. You may need to lower the primary strainer assembly or raise the secondary one using adjustable tailpieces.

Issue: Gurgling Sounds

• Cause: Airlock or improper venting.
• Solution: While rare in simple sink swaps, this can happen if the P-trap is too deep or the pipe runs are too long without venting. Ensure the P-trap is not installed upside down and that the path to the wall is direct.

Frequently Asked Questions (FAQ)

1. Can I use flexible corrugated pipes for the crossover connection?

While flexible pipes seem like an easy solution for off-center drains, professional plumbers generally advise against them for permanent installations. The ridges inside corrugated pipes trap food particles and grease, leading to frequent clogs. It is always better to measure carefully and use rigid PVC or ABS pipes with slip-joint nuts for a smooth interior surface.

2. What is the maximum distance allowed between the two basin drains?

Standard crossover pipes usually span up to 18 inches. If your sinks are wider apart, you will need to purchase a separate length of 1-1/2″ tailpiece pipe and two additional slip nuts and washers to create a custom bridge. There is no strict code limit on the horizontal distance between bowls, provided the slope is maintained and the pipe is supported so it does not sag.

3. Do I need to apply plumber’s tape to slip-joint connections?

No. Slip-joint connections rely on the compression of the rubber washer against the smooth surface of the pipe to create a seal. Teflon tape (plumber’s tape) is designed for threaded metal connections where there is no washer. Adding tape to a slip-joint can actually prevent the washer from seating properly, causing leaks.

4. How do I handle a garbage disposal on an off-center double sink?

Typically, the garbage disposal is installed on one side (usually the larger bowl), and a baffle tee or crossover kit connects the second bowl to the disposal inlet. The discharge from the disposal then goes directly into the P-trap. Ensure the knockout plug inside the disposal inlet is removed if connecting a dishwasher, and verify that the weight of the disposal is supported by the mounting assembly, not the pipes.

5. Why does my sink smell even after cleaning?

If the smell persists, the P-trap may have been installed incorrectly, allowing sewer gas to bypass the water seal, or the water in the trap has evaporated due to infrequent use. Another possibility is debris trapped in the rough interior of a cheap crossover pipe. Pouring a mixture of baking soda and vinegar followed by hot water can help, but inspecting the physical installation is often necessary.

6. Is it normal for the pipes to move slightly when I push the sink?

Some movement is normal, but excessive shifting indicates loose nuts or a lack of support. Over time, this movement can break the seal. If the pipes are swinging freely, consider adding a pipe strap to secure the horizontal run to the back of the cabinet wall, ensuring stability without putting stress on the joints.

Conclusion

Mastering plumbing in a double basin sink with off center drain is entirely within your reach when you approach the task with patience, the right measurements, and quality materials. By understanding the importance of proper slope, utilizing beveled washers correctly, and avoiding the temptation of quick-fix flexible pipes, you can create a durable, leak-free system that rivals professional work. Not only does this save you money, but it also gives you the confidence to tackle future home improvement projects.
