Mastering Plumbing Isometric for Rear Discharge Toilets

Are you struggling to visualize complex pipe runs for a multi-story commercial restroom? Many contractors and DIY enthusiasts face confusion when aligning waste lines for plumbing isometric for multiple floor mount rear discharge toilet installation, leading to costly rework and leaks. This guide simplifies the process, offering clear, step-by-step instructions to ensure your project meets strict US building codes while saving time and materials. Whether you are a seasoned plumber or a project manager, mastering this skill is essential for efficient vertical stacking.

What Is a Plumbing Isometric and Why Does It Matter?

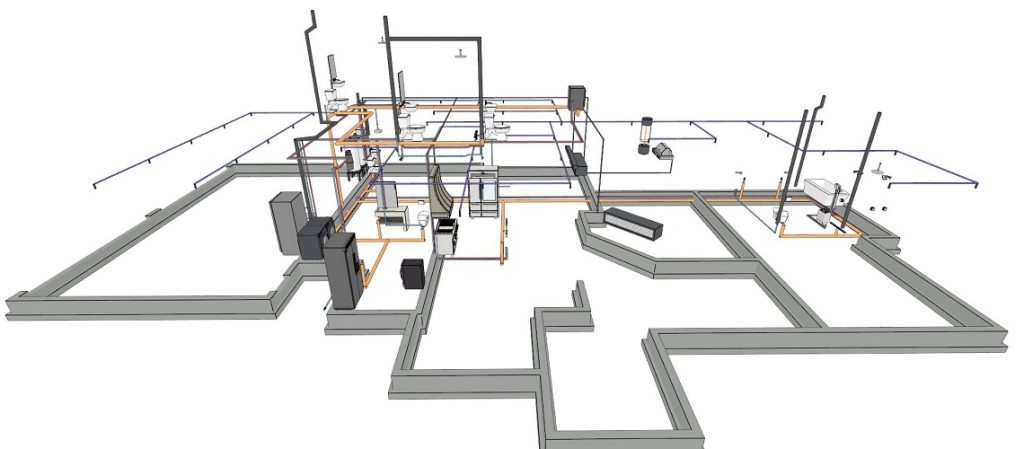

A plumbing isometric drawing is a 3D representation of a piping system on a 2D surface. Unlike standard blueprints that show top-down views, an isometric view allows installers to see elevation changes, pipe slopes, and fitting angles clearly.

For multiple floor mount rear discharge toilet installation, these drawings are critical. Rear discharge toilets (also known as back-outlet toilets) connect to the wall rather than the floor, requiring precise horizontal and vertical alignment across different stories. A single miscalculation in the isometric plan can cause:

• Improper slope leading to frequent clogs.
• Misaligned rough-ins requiring demolition of finished walls.
• Venting issues that break siphon traps.

According to industry standards, nearly 30% of plumbing callbacks in commercial projects stem from incorrect rough-in measurements that could have been prevented with accurate isometric planning. By visualizing the system before cutting a single pipe, you adhere to the principle of “measure twice, cut once.”

Key Components of the Isometric View

To read or draw these effectively, you must understand the symbols:

• Solid Lines: Represent waste pipes (usually 3″ or 4″ diameter).
• Dashed Lines: Indicate vent pipes.
• Triangles/Circles: Denote fittings like elbows, tees, and wyes.
• Elevation Marks: Show the height of the pipe centerline relative to the finished floor (AFF).

How Do You Calculate the Rough-In for Multiple Floors?

The most common question professionals ask is: “How do I ensure the outlet aligns perfectly on every floor?”

For a floor mount rear discharge toilet, the critical measurement is the distance from the finished wall to the center of the waste outlet. In the US, the standard rough-in is typically 10 inches or 12 inches, but rear discharge models often vary based on the manufacturer’s specific flange adapter.

Step-by-Step Calculation Method

1. Determine the Finished Wall Line: Never measure from the stud. Always calculate based on the final drywall and tile thickness (usually adding 5/8″ for drywall + 3/8″ for tile).
2. Identify the Offset Distance: Rear discharge toilets require an offset closet flange. Check the spec sheet; if the toilet requires a 12-inch rough-in but uses a 45-degree offset elbow, your vertical stack position shifts.
3. Account for Floor-to-Floor Height: In multi-story buildings, the vertical drop between floors is usually consistent (e.g., 10 feet). However, you must subtract the thickness of the ceiling assembly and the floor structure of the level above.
4. Apply the Slope Rule: Waste lines must slope at 1/4 inch per foot for 3-inch pipes and 1/8 inch per foot for 4-inch pipes, as mandated by the International Plumbing Code (IPC).

Pro Tip: When designing for multiple floors, create a “stack diagram” first. Draw a vertical line representing the main soil stack. Mark each floor level. From each mark, draw the horizontal branch line going to the toilet location. Ensure the vertical drop between the branch connection and the toilet flange allows for the required slope without dipping below the structural slab.

For deeper technical definitions on piping systems and fluid dynamics, you can refer to authoritative resources like Wikipedia’s entry on Piping.

What Are the Critical Steps for Installing Rear Discharge Toilets?

Installing a plumbing isometric for multiple floor mount rear discharge toilet installation isn’t just about drawing; it’s about execution. Here is a concrete, data-driven tutorial for a typical 3-story commercial build.

Phase 1: Material Preparation

Gather the following specific materials to ensure compatibility:

• Pipe: Schedule 40 PVC or Cast Iron (depending on local fire/sound codes).
• Fittings: Long-sweep 90-degree elbows (never use short 90s for waste), combination wye-and-1/8-bend fittings.
• Sealant: PVC primer and cement approved for pressure applications.
• Support: Heavy-duty riser clamps every 10 feet vertically and hangers every 4 feet horizontally.

Phase 2: The Installation Process

Step 1: Establish the Vertical Stack Install the main soil stack plumb (perfectly vertical). Use a laser level to verify. Any deviation greater than 1/8 inch over 10 feet can cause turbulence and noise issues. Secure the stack with riser clamps at every floor penetration to prevent settlement stress.

Step 2: Cut the Branch Openings Based on your isometric drawing, mark the centerline for the toilet branch on the stack.

• Measurement: If the floor-to-floor height is 10 feet (120 inches), and the toilet flange needs to be 14 inches above the finished floor of the level below, mark your cut accordingly.
• Action: Cut the stack and install a sanitary tee or wye fitting. Ensure the inlet faces the direction of the toilet wall.

Step 3: Run the Horizontal Branch Connect the horizontal pipe from the stack to the wall location.

• Slope Check: Place a torpedo level on the pipe. For a 5-foot run, the drop must be exactly 1.25 inches (5 ft x 0.25 in/ft).
• Support: Install a hanger within 12 inches of the fitting and every 4 feet thereafter. Sagging pipes create low spots where waste accumulates.

Step 4: Install the Rear Outlet Flange This is the most crucial step for rear discharge units.

• Attach the specific carrier frame or offset flange to the wall studs.
• Ensure the face of the flange is flush with the finished wall surface, not the stud face.
• Temperature Note: If working in extreme cold (below 40°F / 4°C), allow PVC cement to cure for double the recommended time before pressure testing.

Step 5: Pressure and Leak Testing Before closing walls, perform a water test.

• Plug the end of the line.
• Fill the system with water up to the highest point.
• Wait 15 minutes. If the water level drops, you have a leak.
• Volume Metric: For a standard 3-inch line test, maintaining a head pressure of roughly 10 feet of water column is standard practice.

Comparison: Rear Discharge vs. Standard Floor Discharge

Understanding why you are choosing this specific setup helps in selling the design to clients or justifying the complexity of the plumbing isometric for multiple floor mount rear discharge toilet installation.

Data Insight: In high-rise retrofits, rear discharge systems reduce installation time by 20% because they eliminate the need to core through existing concrete floor slabs for every unit.

Common Mistakes to Avoid in Multi-Story Projects

Even experienced plumbers make errors when dealing with vertical stacks. Here are the top pitfalls:

1. Ignoring Thermal Expansion: In tall buildings, plastic pipes expand and contract significantly with temperature changes. Failure to install expansion joints every 30 feet can cause the stack to bow or break fittings.
2. Incorrect Venting Distance: The trap arm (distance from the toilet trap to the vent) cannot exceed 5 feet for a 3-inch pipe. Exceeding this siphons the trap dry, allowing sewer gas into the building.
3. Misinterpreting “Finished Floor”: Measuring from the subfloor instead of the finished floor leads to flanges being too high or too low. Always confirm the final flooring material thickness (tile, vinyl, hardwood) before setting heights.
4. Overlooking Sound Transmission: In multi-family units, water rushing down a stack is loud. Failing to wrap the stack with sound-deadening insulation violates many US housing codes and leads to tenant complaints.

FAQ Section

1. What is the standard rough-in dimension for a rear discharge toilet?

While standard floor toilets are almost always 12 inches, rear discharge toilets vary. Common rough-ins are 10 inches or 12 inches from the finished wall to the center of the outlet. However, always consult the specific manufacturer’s template, as some European-style models differ.

2. Can I use a standard closet flange for a rear discharge toilet?

No. Rear discharge toilets require a specialized offset flange or a carrier system designed to connect horizontally to the wall drain. Using a standard floor flange will result in an incompatible connection and inevitable leaks.

3. How do I handle venting for multiple floors in an isometric design?

Each floor branch typically connects to a continuous vent stack that runs parallel to the soil stack. The vent must extend through the roof. For multiple floors, ensure the vent diameter increases as more fixtures are added upstream to prevent airlock, following IPC Table 906.1.

4. Is a plumbing isometric required for residential permits?

In many US jurisdictions, simple residential jobs only require a schematic. However, for multiple floor mount rear discharge toilet installation in multi-unit dwellings or commercial spaces, a detailed isometric drawing is almost always mandatory for permit approval to verify slope and venting compliance.

5. What happens if the slope is too steep (more than 1/2 inch per foot)?

Contrary to intuition, too much slope is bad. If the water flows too fast, it leaves solid waste behind (“solids stranding”), leading to chronic clogs. Stick strictly to the 1/4 inch per foot guideline for 3-inch pipes.

6. How do I accommodate different ceiling heights in an isometric drawing?

If floor-to-ceiling heights vary between stories (e.g., a lobby vs. office floors), your isometric must adjust the vertical drop of the stack accordingly. You may need to insert additional offsets in the main stack to maintain the correct branch elevation relative to each specific finished floor.

Conclusion

Mastering the plumbing isometric for multiple floor mount rear discharge toilet installation is a hallmark of professional expertise. It bridges the gap between theoretical design and practical, leak-free execution. By adhering to precise slope calculations, understanding the nuances of rear-discharge fittings, and utilizing detailed 3D planning, you ensure safety, compliance, and longevity for any multi-story project.

Remember, a well-drawn isometric saves thousands of dollars in corrective labor and protects the structural integrity of the building. Don’t leave your plumbing layout to chance.
