Plumbing Part 3/4 X 1/4 Copper Capped T: Expert Guide

Dealing with a tricky branch line or pressure relief connection? The Plumbing Part 3/4 X 1/4 Copper Capped T offers a precise, leak-resistant solution for specialized copper piping systems. If you’re a homeowner or DIY enthusiast navigating complex pipe configurations, understanding this fitting can save you time, money, and future headaches.

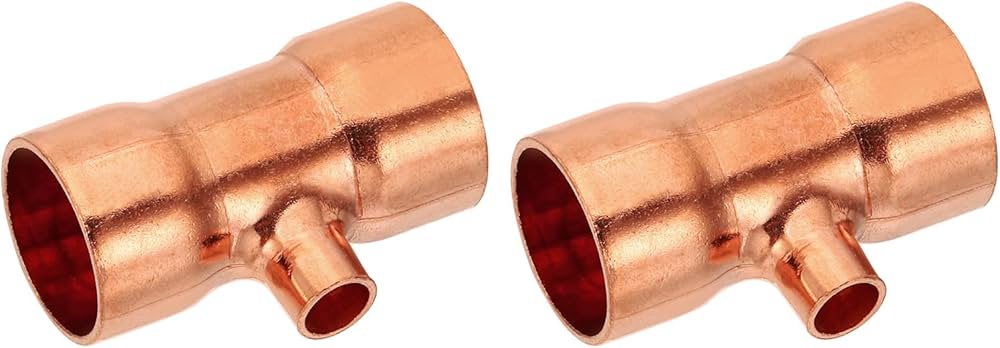

What Exactly Is a Plumbing Part 3/4 X 1/4 Copper Capped T?

A Plumbing Part 3/4 X 1/4 Copper Capped T is a specialized copper fitting shaped like the letter “T.” It features:

• One 3/4-inch inlet/outlet (standard main line size)
• One 1/4-inch branch port (often for gauges, valves, or drip lines)
• One end permanently capped (sealed), creating a dead-end for future expansion or pressure testing

This fitting is crafted from durable, corrosion-resistant copper (typically Type L or M), making it ideal for potable water, hydronic heating, and certain gas lines where local codes permit. Its precision sizing ensures a secure, soldered (sweat) connection that withstands high pressure and temperature fluctuations.

Expert Insight: According to plumbing standards, copper fittings must meet ASTM B88 specifications for dimensions and material integrity. Always verify your fitting carries this certification for long-term reliability.

When Should You Use This Specific Capped T Fitting?

This isn’t a generic part. Its unique 3/4″ x 1/4″ capped design serves distinct purposes:

• Pressure Gauge or Sensor Installation: The 1/4″ branch is perfect for attaching pressure gauges, temperature sensors, or air vents without modifying the main 3/4″ flow line.
• Future-Proofing Plumbing Lines: The capped end allows you to easily extend a line later (e.g., adding a sink or appliance) by simply removing the cap and soldering a new pipe.
• System Drain or Test Port: The small port can serve as a dedicated drain point or a connection for pressure testing equipment during system commissioning.
• Hydronic Heating Systems: Commonly used in boiler manifolds to connect small-diameter tubing for zone controls or air separators.

Quick Comparison: Capped T vs. Standard Tee

Step-by-Step: How to Install a Copper Capped T Fitting

Safety First: Turn off water supply, drain lines, and wear safety glasses. Ensure work area is well-ventilated.

Tools & Materials Needed:

• Plumbing Part 3/4 X 1/4 Copper Capped T
• Copper pipe cutter or hacksaw
• Emery cloth or pipe brush
• Flux & flux brush
• Lead-free solder & torch
• Heat shield cloth
• Pipe wrenches (for holding, not tightening soldered joints)

Installation Steps:

1. Measure & Cut: Cut the main 3/4″ copper pipe at the desired insertion point. Ensure cuts are square and deburred. Dry-fit the capped T to confirm alignment.
2. Clean Thoroughly: Use emery cloth to shine the outside of the pipe ends and the inside of all fitting sockets (including the 1/4″ branch and capped end) until bright. Cleanliness is critical for a strong solder bond.
3. Apply Flux: Brush a thin, even layer of flux onto the cleaned pipe ends and fitting sockets. Avoid excess flux, which can cause corrosion.
4. Assemble: Push the fitting onto the pipes fully. Give it a slight twist to spread flux evenly. Wipe away any squeezed-out flux.
5. Heat & Solder: Using a propane torch, heat the fitting (not the solder) evenly around the joint. Touch lead-free solder to the joint seam; it should melt instantly and be drawn in by capillary action. Apply solder until a thin bead appears all around. Repeat for the 1/4″ branch connection.
6. Cool & Clean: Let the joint cool naturally (do not quench with water). Once cool, wipe away any residual flux with a damp cloth to prevent long-term corrosion.
7. Pressure Test: Before concealing the work, slowly restore water pressure and check all new joints for leaks. For the 1/4″ port, attach your gauge or valve using appropriate thread sealant (if threaded).

Pro Tip: For the small 1/4″ connection, use a smaller torch tip to avoid overheating and damaging the fitting. Learn more about copper pipe joining techniques on Wikipedia.

Key Benefits & Potential Considerations

✅ Advantages:

• Durability: Copper resists corrosion, handles high pressure (up to 700 PSI for Type K), and lasts 50+ years.
• Precision: The 3/4″ x 1/4″ sizing eliminates the need for bulky reducers, creating a cleaner, more reliable connection.
• Code Compliance: Meets UPC, IPC, and NSF standards for potable water when installed correctly.
• Heat Tolerance: Ideal for hot water lines and heating systems (rated for temperatures up to 400°F).

⚠️ Things to Note:

• Cost: Copper fittings are more expensive than PVC or PEX alternatives.
• Skill Required: Soldering demands practice; improper technique leads to leaks.
• Compatibility: Not for use with acidic water (pH < 6.5) or in direct contact with dissimilar metals without dielectric unions.

Frequently Asked Questions (FAQ)

H2: Your Top Questions, Answered

Q1: Can I use this capped T for natural gas lines? A: Only if explicitly rated and labeled for gas service by the manufacturer and approved by your local building code. Never assume a water-rated fitting is safe for gas.

Q2: What’s the difference between Type L and Type M copper for this fitting? A: Type L has a thicker wall than Type M, offering higher pressure ratings and durability. Type L is generally recommended for in-wall plumbing and higher-stress applications.

Q3: How do I remove the cap if I need to extend the line later? A: The “capped” end is typically a permanent solder seal. To extend, you must cut off the capped end entirely, clean the newly exposed pipe, and solder a new fitting or extension. It is not a removable threaded cap.

Q4: Is this fitting compatible with PEX or CPVC pipe? A: Not directly. Copper fittings require soldered connections to copper pipe. To connect to PEX or CPVC, you would need a transition fitting (e.g., copper x PEX adapter) on the open ends.

Q5: Where can I buy a genuine Plumbing Part 3/4 X 1/4 Copper Capped T? A: Reputable plumbing supply houses (Ferguson, Hajoca), major home centers (Home Depot, Lowe’s), or specialized online retailers. Always verify the part number and ASTM certification before purchasing.

Q6: What size solder should I use for the 1/4″ connection? A: Use 1/4-inch diameter lead-free solder. The smaller diameter allows for better control and prevents excess solder from obstructing the small port.

Conclusion: Master Your Plumbing Project with Confidence

The Plumbing Part 3/4 X 1/4 Copper Capped T is a powerhouse solution for precise, professional-grade plumbing modifications. By understanding its specific applications, following meticulous installation steps, and respecting material limitations, you can achieve a leak-free, code-compliant result that stands the test of time. Remember, when in doubt, consult a licensed plumber—especially for gas lines or complex system integrations.
