Plumbing Riser Diagram For Dishwasher And Sink With Grease Trap: The Ultimate Guide

Are you struggling to visualize how your commercial kitchen’s drainage system connects without causing dangerous backups or code violations? Many restaurant owners and facility managers face costly fines and operational downtime simply because their plumbing riser diagram for dishwasher and sink with grease trap was poorly planned or misunderstood. Getting this blueprint right isn’t just about moving water; it’s about protecting your business from health hazards and ensuring smooth daily operations. In this guide, we will break down exactly how to design, interpret, and implement a compliant riser diagram that keeps your kitchen flowing efficiently.

What Exactly Is a Plumbing Riser Diagram in a Commercial Kitchen?

Before diving into the specifics of dishwashers and grease traps, it is crucial to understand the foundation. A plumbing riser diagram is a 2D or 3D schematic representation of a building’s plumbing system viewed from the side. Unlike a floor plan which shows horizontal layout, a riser diagram illustrates the vertical relationships between fixtures, pipes, vents, and interceptors.

In a commercial kitchen context, this diagram is your roadmap. It details:

• The elevation changes from the fixture drain to the main sewer line.
• The specific location of the grease interceptor (trap).
• The venting strategy to prevent siphoning.
• The integration of high-temperature dishwasher discharge.

According to general engineering principles found on Wikipedia, proper vertical alignment in drainage systems is critical to maintain self-scouring velocities, ensuring waste moves effectively without settling and causing blockages. Without a precise riser diagram, you are essentially building blind.

Why Do You Need a Specific Diagram for Dishwashers and Grease Traps?

You might wonder why a standard sink diagram isn’t enough. The answer lies in the unique physical properties of what goes down these drains.

The Grease Factor

Commercial sinks discharge FOG (Fats, Oils, and Grease). If not intercepted, FOG solidifies in cooler sewer pipes, causing massive blockages. The riser diagram must show the grease trap positioned correctly relative to the sink to allow gravity to do its work before the water hits the trap.

The Heat and Chemical Factor

Commercial dishwashers operate differently. They discharge water at extremely high temperatures (often exceeding 140°F or 60°C) and contain harsh detergents.

• Heat Risk: Hot water can melt existing grease inside a trap, allowing it to pass through into the municipal sewer, which is a violation.
• Chemical Risk: Strong detergents can emulsify grease, defeating the purpose of the trap.

Therefore, the plumbing riser diagram for dishwasher and sink with grease trap must often include a specialized cooling tank or an air gap before the water enters the grease interceptor. Ignoring this detail in your diagram can lead to immediate failure during health inspections.

Key Components of a Compliant Riser Diagram

When drafting or reviewing your diagram, ensure these specific elements are clearly labeled and dimensioned.

1. Fixture Drain Connections

The diagram must specify the pipe diameter. Typically, a commercial three-compartment sink requires a 3-inch drain line, while a dishwasher may require a 2-inch line. These lines must slope correctly.

• Standard Slope: 1/4 inch per foot is the industry standard for pipes up to 3 inches.
• Maximum Slope: Avoid slopes greater than 1/2 inch per foot, as water may outrun solid waste, leaving debris behind.

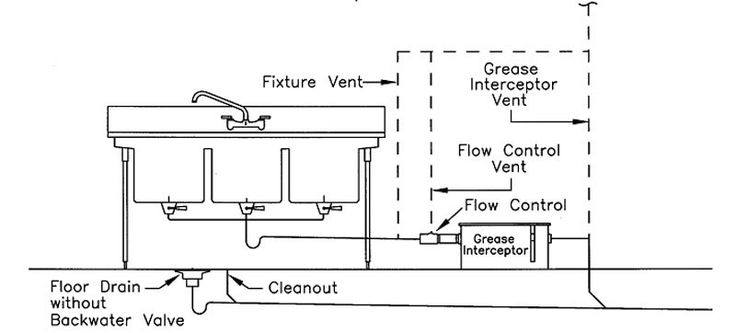

2. The Grease Interceptor (Trap) Placement

Your riser diagram must indicate the elevation of the grease trap inlet and outlet.

• Inlet Elevation: Must be lower than the fixture drain to ensure gravity flow.
• Outlet Elevation: Must be high enough to maintain the required seal depth within the trap but low enough to connect to the building drain.
• Type Specification: Clearly note if it is a hydromechanical grease interceptor (under-sink) or a gravity grease interceptor (outside/basement).

3. Venting Strategy

A common failure point in DIY diagrams is improper venting. Every trap needs a vent to prevent siphoning (which pulls the water seal out) and to allow sewer gases to escape.

• Individual Vents: Each fixture (sink and dishwasher) should ideally have its own vent stack rising through the roof.
• Common Vents: If space is tight, a common vent may be used, but the riser diagram must show the connection point is above the flood level rim of the highest fixture.

4. Air Gaps and Backflow Prevention

For dishwashers, an air gap is non-negotiable in most US jurisdictions. The diagram must show a physical vertical separation between the dishwasher drain hose and the flood level of the receptor (sink or floor drain). This prevents contaminated water from siphoning back into the dishwasher.

Step-by-Step: Designing Your Plumbing Riser Diagram

If you are creating this diagram for a new installation or a renovation, follow these concrete steps to ensure accuracy and compliance.

Step 1: Determine Fixture Elevations

Measure the exact height of the sink drain outlet and the dishwasher discharge pump.

• Example: Sink drain outlet is at 30 inches above the finished floor (AFF).
• Example: Dishwasher pump discharge is at 6 inches AFF.

Step 2: Calculate Pipe Slopes and Lengths

Determine the horizontal distance to the grease trap.

• Calculation: If the sink is 10 feet away from the trap, and you need a 1/4″ slope, the pipe must drop 2.5 inches over that distance.
• Action: Mark the inlet elevation of the grease trap at 27.5 inches AFF (30″ – 2.5″) or lower to maintain flow.

Step 3: Integrate the Cooling Tank (If Required)

Many local codes require a cooling tank for dishwasher discharge before it hits the grease trap.

• Specification: Include a tank with a minimum capacity (e.g., 50 gallons) in the riser.
• Flow: Show the dishwasher draining into the top of the tank, and the overflow from the tank draining into the grease trap. This allows hot water to cool and chemicals to dilute.

Step 4: Map the Vent Stack

Draw the vent line rising from the trap arm.

• Requirement: The vent must extend at least 6 inches above the roof line.
• Connection: Ensure the vent connects to the drain line downstream of the trap but upstream of any other fixture connections to prevent cross-siphoning.

Step 5: Label Materials and Sizes

Clearly annotate every section of the drawing.

• Pipes: “3” PVC Schedule 40″ or “4” Cast Iron”.
• Fittings: “Sanitary Tee,” “Long Sweep Elbow.”
• Trap: “Hydromechanical Grease Interceptor, 20 GPM flow rate.”

Common Mistakes to Avoid in Your Diagram

Even experienced draftsmen make errors that lead to field failures. Here is a comparison of common pitfalls versus best practices.

FAQ: Frequently Asked Questions

1. Can the dishwasher and sink share the same grease trap?

Yes, in most commercial applications, the dishwasher and prep sinks share a single hydromechanical grease interceptor. However, the dishwasher discharge usually requires a cooling tank or an indirect connection to prevent hot water from liquefying the captured grease inside the trap. Always check your local plumbing code, as some municipalities have stricter separation rules.

2. How high should the vent stack be in the riser diagram?

According to the International Plumbing Code (IPC), the vent stack must extend through the roof and terminate at least 6 inches above the roof surface. Additionally, it must be at least 10 feet horizontally from any openable window or air intake to prevent sewer gas from entering the building.

3. What size grease trap do I need for a standard 3-compartment sink and dishwasher?

Sizing depends on the flow rate of your fixtures. A typical commercial 3-compartment sink might require a 20 to 35 GPM (gallons per minute) interceptor. When adding a dishwasher, you must calculate the surge load. It is often safer to upsize to a 50 GPM unit to handle the simultaneous discharge. A licensed plumber should perform a precise calculation based on fixture units (DFU).

4. Is an air gap mandatory for commercial dishwashers?

Absolutely. An air gap is the only universally accepted method for backflow prevention on commercial dishwashers in the US. A simple check valve is generally not sufficient for health code compliance. Your riser diagram must clearly show this physical break in the piping.

5. How often does the grease trap need to be pumped if both fixtures are connected?

When combining a high-volume sink and a dishwasher, the grease trap fills faster. While standard recommendations suggest pumping when 25% of the capacity is FOG, a busy kitchen with a combined system may need service every 30 to 90 days. Your diagram should include an access note for regular maintenance scheduling.

Conclusion

Creating an accurate plumbing riser diagram for dishwasher and sink with grease trap is more than a regulatory hurdle; it is the backbone of a functional, safe, and efficient commercial kitchen. By carefully mapping out elevations, slopes, venting, and safety devices like air gaps and cooling tanks, you protect your business from costly repairs, health code violations, and environmental damage.

Remember, while this guide provides a robust framework, local codes vary significantly. Always have your final diagram reviewed by a licensed professional engineer or master plumber before breaking ground.
