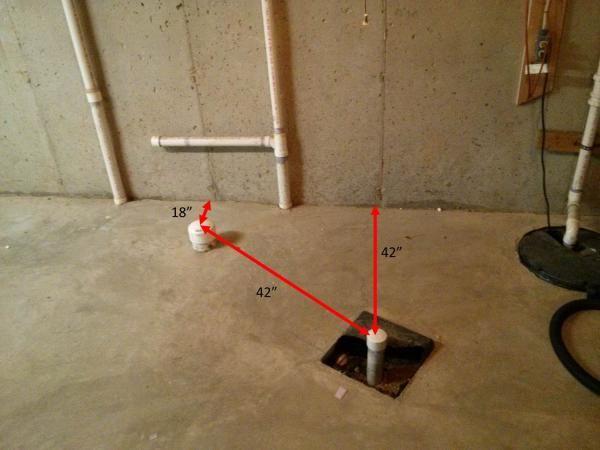

Plumbing Rough In For A Shower Drain In The Basement: The Ultimate DIY Guide

Transforming an unfinished basement into a functional living space often hinges on adding a bathroom, yet few tasks intimidate homeowners more than the plumbing rough in for a shower drain in the basement. Dealing with concrete floors, limited slope, and complex waste lines can feel overwhelming, especially when a single mistake could lead to costly water damage or sewage backups. However, with the right planning, tools, and understanding of local codes, you can confidently tackle this project and significantly increase your home’s value. This guide will walk you through every critical step, ensuring your new shower drains perfectly from day one.

Why Is Basement Shower Drainage Different from Upper Floors?

Installing a shower on the main floor usually involves dropping a drain line down through open joists. In a basement, the challenge is inverted: you are working below the main sewer line or dealing with a slab-on-grade foundation.

The primary issue is gravity. Waste water must flow downhill. If your basement floor is lower than the main sewer exit point (the stack), you cannot rely on gravity alone. According to general plumbing principles, a standard drain requires a slope of 1/4 inch per foot to function correctly without clogging.

In many basements, achieving this slope means breaking up concrete to bury the pipe deep enough or building a raised platform for the shower base. A study by the National Association of Home Builders (NAHB) indicates that bathroom additions, particularly in basements, offer a return on investment (ROI) of approximately 60-70%, making the effort to get the rough-in right financially worthwhile.

Expert Insight: “The most common failure in basement showers is insufficient slope. Always measure your drop from the trap to the main connection before cutting any concrete.” – Senior Plumbing Contractor, 20+ Years Experience.

For a deeper understanding of wastewater systems and gravity flow mechanics, you can refer to this resource on Sanitary Sewer Systems.

What Are the Essential Tools and Materials Needed?

Before breaking ground, gathering the correct materials is crucial for a smooth workflow. Using subpar materials can lead to leaks behind walls or under slabs, which are nightmares to fix.

Essential Material List

• PVC Piping: Typically 2-inch diameter for shower drains (check local codes; some require 3-inch).
• P-Trap: A 2-inch PVC P-trap specifically designed for showers.
• Clamping Drain Assembly: Essential if you are pouring a new mortar bed or using a liner system.
• PVC Primer and Cement: Purple primer and clear or gray cement rated for pressure and drain applications.
• Concrete Mix: Quick-setting concrete for patching trenches.
• Gravel: 3/4-inch crushed stone for bedding the pipe.

Required Tool Kit

• Rotary Hammer or Jackhammer: For breaking concrete.
• Pipe Cutter or Reciprocating Saw: For clean cuts on existing pipes.
• Tape Measure and Chalk Line: For precise layout.
• Level and Torpedo Level: To verify your slope.
• Shovel and Wheelbarrow: For debris removal and mixing concrete.

How Do You Plan the Layout and Calculate the Slope?

Proper planning prevents poor performance. The plumbing rough in for a shower drain in the basement begins long before the first pipe is cut. You must determine the exact location of the shower relative to the main soil stack.

Step-by-Step Slope Calculation

1. Measure the Distance: Measure the horizontal distance from the center of your future shower drain to the connection point on the main stack. Let’s assume this distance is 8 feet.
2. Calculate Required Drop: Multiply the distance by the required slope (0.25 inches per foot).
   • Calculation: $8\text{ feet}\times 0.25\text{ inches}=2\text{ inches}$8 feet×0.25 inches=2 inches.
3. Verify Depth: Check if your existing main line is deep enough to accommodate a 2-inch drop while maintaining the height of the P-trap.
   • The top of the P-trap must be below the finished shower floor but above the connection point.
   • If the math doesn’t work (i.e., the pipe would need to go underground too deep), you may need to raise the shower floor using a curb or a pre-fab elevated base.

Critical Rule: Never exceed a slope of 1/2 inch per foot for a 2-inch pipe. Too much slope causes water to rush away faster than solid waste, leaving debris behind to cause clogs (a phenomenon known as “solids stripping”).

Step-by-Step Guide: Executing the Rough-In

This section details the physical installation. Precision here ensures longevity.

Step 1: Mark and Break the Concrete

Using your chalk line, mark the path of the new drain line from the shower location to the main stack. Don’t forget to account for the width of the trench; it should be wide enough to work comfortably (approx. 12 inches wide).

• Use a rotary hammer to score the perimeter of your trench.
• Switch to a jackhammer to break out the concrete.
• Safety First: Wear safety goggles, heavy gloves, and a respirator mask to avoid silica dust inhalation.

Step 2: Excavate and Bed the Trench

Once the concrete is removed, dig the earth below to allow for gravel bedding.

• Dig down an additional 3 to 4 inches below your calculated pipe bottom.
• Pour 2 liters of water (or enough to dampen) the soil to reduce dust and compact it slightly.
• Add a 2-inch layer of 3/4-inch gravel. This provides a stable, non-shifting bed for the PVC pipe, preventing cracks over time.

Step 3: Dry Fit the Pipes

Before gluing, assemble the entire run dry.

• Connect the P-trap to the shower drain location.
• Run the 2-inch pipe toward the main stack.
• Use your torpedo level on top of the pipe. Place the level at the start; the bubble should be slightly off-center toward the flow. Move it every foot to ensure a consistent 1/4 inch drop.
• Mark the pipe and fittings with a marker to remember the orientation.

Step 4: Prime and Cement

Disassemble the dry fit and begin the permanent installation.

• Apply purple primer liberally to both the inside of the fitting and the outside of the pipe. Wait roughly 10 seconds for it to soften the plastic.
• Apply a generous coat of PVC cement to the same areas.
• Push the pipe into the fitting and give it a quarter turn to distribute the glue evenly. Hold firmly for 30 seconds to prevent push-back.
• Wipe away excess glue immediately with a rag.

Step 5: Tie into the Main Stack

This is the most critical junction.

• If connecting to a PVC stack, use a sanitary tee or a wye fitting angled at 45 degrees to encourage smooth flow. Never use a sharp 90-degree elbow underground.
• If connecting to cast iron, use a shielded no-hub coupling. Tighten the clamps to the manufacturer’s torque specification (usually 60 in-lbs) using a torque wrench.

Step 6: Test for Leaks

Before backfilling, you must test the system.

• Cap the open end of the shower drain.
• Fill the pipe with water until it reaches the top of the P-trap or the vent connection.
• Mark the water level with a marker. Wait 15 minutes.
• If the water level drops, you have a leak. Inspect joints and re-cement if necessary.

Step 7: Backfill and Patch

Once the test passes:

• Cover the pipe with another 2 inches of gravel. Tamp it down gently.
• Mix your concrete. Aim for a temperature of 22–28°C (72–82°F) for optimal curing if working in a cold basement; use warm water for mixing if necessary.
• Pour the concrete to fill the trench, smoothing it flush with the existing floor.
• Allow the concrete to cure for at least 24 to 48 hours before walking on it or proceeding with framing.

Common Mistakes to Avoid During Rough-In

Even experienced DIYers can stumble. Here are the pitfalls that compromise a plumbing rough in for a shower drain in the basement:

• Ignoring Venting Requirements: A drain without a vent will siphon the water out of the P-trap, allowing sewer gas into your home. Ensure your design includes a proper vent tie-in within the allowable distance (usually 5 feet for a 2-inch drain, but check local codes).
• Insufficient Concrete Cover: Pipes buried under less than 2 inches of concrete can crack under the weight of the shower base or foot traffic.
• Using DWV Fittings Incorrectly: Do not use short-sweep 90-degree elbows for horizontal-to-horizontal changes. Always use long-sweep elbows or two 45-degree fittings to maintain flow velocity.
• Skipping the Leak Test: Trusting your glue job without testing is a gamble. Water finds the weakest point, often months after the floor is tiled.

FAQ Section

1. Can I install a shower drain in a basement without breaking concrete?

It is difficult but possible. You can install an upflush toilet and shower system (like a Saniflo unit) that macerates waste and pumps it up to the main sewer line. Alternatively, you can build a raised wooden platform for the shower to accommodate the piping above the slab, though this reduces ceiling height.

2. What size pipe do I need for a basement shower drain?

Most modern plumbing codes (IPC and UPC) require a 2-inch diameter pipe for shower drains. Older codes sometimes allowed 1.5 inches, but 2 inches is the standard for new installations to prevent clogging and ensure adequate flow.

3. How deep should the trench be for the drain pipe?

The depth depends on your slope calculation. Generally, you need enough depth to accommodate the pipe, the gravel bed (2 inches), and at least 2 inches of concrete cover. If your main line is shallow, you may only have a few inches to work with, necessitating a raised shower floor.

4. Do I need a permit for a basement shower rough-in?

Yes. Almost all municipalities require a plumbing permit for adding new fixtures or altering waste lines. This ensures your work is inspected for safety and code compliance. Skipping this can lead to fines and issues when selling your home.

5. What if my basement floor is lower than the main sewer line?

If gravity drainage is impossible because the main sewer is higher than your basement floor, you must install a sewage ejector pump. This system collects waste in a basin and pumps it upward to the main sewer line. This is a common solution for deep basements.

6. How long should I wait to use the shower after the rough-in?

The rough-in itself is just the piping. Once the concrete patch is poured, wait at least 48 hours before framing or installing the shower base. Full curing of concrete takes 28 days, but you can proceed with construction after 2-3 days. The shower cannot be used until the final trim-out (drain cover, walls, and waterproofing) is complete.

Conclusion

Successfully completing the plumbing rough in for a shower drain in the basement is a milestone project that blends technical precision with strategic planning. By carefully calculating your slope, selecting high-quality materials, and rigorously testing for leaks, you lay the foundation for a durable and functional bathroom that will serve your family for decades. Remember, while this guide empowers you to take on the task, always consult your local building codes and consider hiring a licensed professional for the final inspection to ensure absolute safety and compliance.
