Plumbing Schematics For Well Line To Pressure Tank With VFD: The Ultimate Guide

Is your home suffering from frustrating water pressure fluctuations every time someone flushes a toilet or starts the washing machine? You are not alone; inconsistent water pressure is a common headache for homeowners relying on private wells, but the solution lies in upgrading your system. By implementing the correct plumbing schematics for well line to pressure tank with VFD (Variable Frequency Drive), you can achieve silky-smooth, constant water pressure that mimics city water standards while extending the life of your pump.

In this comprehensive guide, we will break down exactly how to design and install this advanced system. We will move beyond basic guesswork and provide you with professional-grade schematics, data-backed benefits, and a step-by-step tutorial that adheres to the latest safety codes and efficiency standards.

Why Upgrade to a VFD Constant Pressure System?

Before diving into the specific plumbing schematics, it is crucial to understand why this upgrade is worth the investment. Traditional well systems rely on a simple pressure switch (usually set to cut on at 40 PSI and off at 60 PSI). This results in a “sawtooth” pressure pattern where you feel the pressure drop significantly before the pump kicks in, followed by a surge when it shuts off.

A Variable Frequency Drive changes the game entirely. Instead of running the pump motor at 100% speed or 0% speed, the VFD adjusts the motor’s frequency (Hz) to match the exact water demand in real-time.

Key Benefits Backed by Data

• Energy Efficiency: According to energy studies, VFDs can reduce pump energy consumption by 30% to 50% compared to traditional across-the-line starting methods, as the pump only uses the power needed for the current flow rate.
• Extended Equipment Life: By eliminating “hard starts” (high inrush current) and reducing the cycle count (turning on and off), you can double or even triple the lifespan of your submersible pump motor.
• Constant Pressure: The system maintains pressure within ±2 PSI of your setpoint, regardless of how many faucets are open.

Expert Insight: “The single biggest cause of submersible pump failure is cycling fatigue. A VFD system effectively turns a discrete on/off system into a modulating system, drastically reducing mechanical stress on the impellers and motor windings.” — Industry Standard Analysis on Pump Hydraulics.

For a deeper understanding of how variable frequency drives function in industrial and residential applications, you can review the technical principles on Wikipedia.

Essential Components for Your Schematic

To execute the plumbing schematics for well line to pressure tank with VFD correctly, you need more than just a pump and a tank. Here is the checklist of components required for a professional installation:

1. Submersible Well Pump: Must be compatible with VFD operation (most modern 3-wire and many 2-wire motors are compatible, but check manufacturer specs).
2. Variable Frequency Drive (VFD): The control box that regulates voltage and frequency. It must be rated for the pump’s horsepower and voltage (e.g., 230V, 1-Phase input to 3-Phase output is common for retrofits).
3. Pressure Sensor (Transducer): Unlike a standard mechanical switch, a VFD requires an electronic sensor that sends a continuous 4-20mA or 0-10V signal to the drive regarding real-time pressure.
4. Bladder Pressure Tank: Essential for handling small leaks and preventing “micro-cycling” when demand is zero.
5. Check Valve: Prevents backflow into the well when the pump slows down or stops.
6. Line Reactor or dV/dT Filter: Highly recommended if the distance between the VFD and the pump exceeds 100 feet to protect motor insulation from voltage spikes.

Decoding the Plumbing Schematics: Well Line to Tank

Understanding the physical layout is just as important as the electrical wiring. The goal of the plumbing schematics for well line to pressure tank with VFD is to ensure accurate pressure reading and smooth water flow.

The Golden Rule of Sensor Placement

The most critical aspect of your schematic is where you place the pressure sensor.

• Incorrect: Placing the sensor after the pressure tank or too far downstream where flow turbulence occurs.
• Correct: The sensor should be installed on a “quiet” section of the pipe, ideally on a tee fitting located between the pump check valve and the pressure tank.

Step-by-Step Plumbing Configuration

Follow this precise order for your piping assembly to ensure optimal performance:

1. Well Head Connection: The pipe rises from the well casing.
2. Check Valve: Install a high-quality spring-assisted check valve immediately after the well head (if one isn’t already on the pump). This holds the column of water.
3. Sensor Port (Critical Step): Install a stainless steel tee fitting. On the vertical branch of this tee, install your pressure transducer.
   • Note: Ensure there is no shut-off valve between the pump and this sensor. If a valve is closed accidentally, the pump could deadhead and overpressurize the line before the VFD reacts.
4. Pressure Tank Connection: Connect the bladder tank to the main line immediately after the sensor tee.
   • Pro Tip: Use a short nipple to connect the tank. Long pipes between the sensor and the tank can cause “water hammer” effects that confuse the VFD logic.
5. Main Shut-Off and House Supply: After the tank, install your main ball valve, water meter (if applicable), and the branch to the house distribution system.

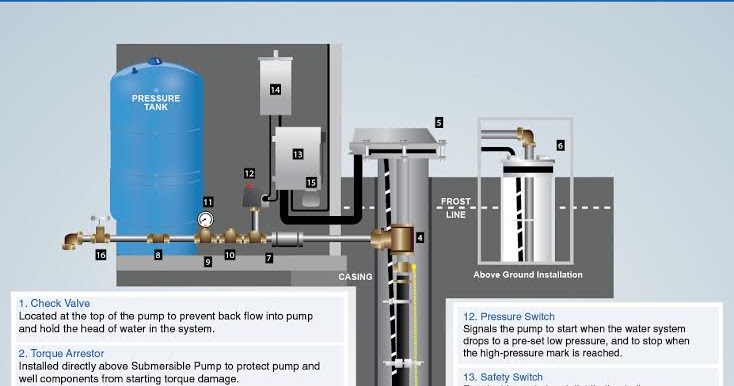

Visualizing the Flow

Electrical Integration: Connecting the VFD

While this article focuses on plumbing, the plumbing schematics for well line to pressure tank with VFD are useless without correct electrical integration. The VFD acts as the brain, interpreting the data from your plumbing sensor.

Wiring Overview

1. Power Input: Connect your main power (e.g., 230V Single Phase) to the VFD input terminals (L1, L2).
2. Motor Output: Connect the VFD output terminals (T1, T2, T3) to the pump motor.
   • Warning: If converting a single-phase motor to run on a VFD, you often need a 3-phase motor. Many VFDs can convert single-phase input to 3-phase output, but the motor itself usually needs to be 3-phase for true VFD benefit.
3. Sensor Feedback: Wire the pressure transducer to the analog input terminals on the VFD (often labeled AI1 or +24V/GND/Signal).
4. Parameter Setup: Program the VFD with your target pressure (e.g., 50 PSI). The drive will now automatically ramp the motor speed up or down to maintain this exact number.

Troubleshooting Common Setup Errors

• Hunting/Oscillation: If the pressure gauge bounces up and down rapidly, your PID (Proportional-Integral-Derivative) settings in the VFD are too aggressive. Slow down the acceleration/deceleration ramp times.
• Over-pressure Trip: This often happens if the check valve is leaking, causing the pump to push against a closed column of water before the tank absorbs it. Check your plumbing check valve first.
• Under-pressure at High Flow: If pressure drops when two showers are running, your pump may be undersized for the demand, or the VFD is already running at 60Hz (max speed) and cannot go faster.

FAQ: Frequently Asked Questions

1. Can I use my existing single-phase pump with a VFD?

Generally, no. Most standard VFDs output 3-phase power to control motor speed smoothly. While some specialized drives exist for single-phase motors, the industry standard for a reliable plumbing schematics for well line to pressure tank with VFD setup involves replacing the pump motor with a 3-phase compatible motor. Using a single-phase motor on a standard VFD can lead to overheating and premature failure.

2. Do I still need a pressure tank if I have a VFD?

Yes, absolutely. The pressure tank is not just for storage; it acts as a buffer. Without a tank, the VFD would have to ramp the motor up and down instantly for every tiny change in demand (like a dripping faucet), causing “micro-cycling” which damages the drive and motor. The tank handles the small demands, allowing the VFD to manage larger flow changes smoothly.

3. What pressure should I set my VFD to?

For most residential applications, a setting of 50 to 55 PSI is ideal. This provides strong shower pressure without putting excessive strain on household appliances and piping. Ensure your pressure tank’s air pre-charge is set to 2 PSI lower than the VFD’s cut-in expectation (though VFDs don’t strictly “cut in,” the tank pre-charge is vital for drawdown).

4. How far can the VFD be from the pump?

If the distance between the VFD (usually in a control box near the house) and the well pump exceeds 100 feet (30 meters), you must install a line reactor or a dV/dT filter. Long cable runs can cause reflected wave phenomena that spike voltage at the motor terminals, potentially punching through the motor insulation.

5. Will a VFD save me money on electricity?

Yes. In scenarios where water usage varies throughout the day, a VFD saves significant energy. Instead of running a 1HP motor at full load for 5 minutes to fill the tank, the VFD might run the motor at 40% power for a longer duration to match demand. This soft-start capability also eliminates the massive energy spike associated with traditional pump startups.

Conclusion

Implementing the correct plumbing schematics for well line to pressure tank with VFD is one of the smartest upgrades a homeowner can make. It transforms a temperamental well system into a reliable, city-like water supply while slashing energy bills and protecting your expensive pump equipment. By carefully placing your pressure sensor before the tank, selecting the right components, and configuring your VFD parameters correctly, you ensure decades of trouble-free service.

Don’t let fluctuating water pressure ruin your morning shower. Take control of your water system today!
