Plumbing Set Up Pipe Slope: The 1-in-4 Rule Explained

There is nothing more frustrating for a homeowner than a slow-draining sink or a sewer line that constantly backs up. Often, the culprit isn’t a blockage of debris, but a fundamental error in how the pipes were installed during the initial plumbing set up pipe slope 1 inch every 4 feet. Getting this gradient right is the single most critical factor in ensuring wastewater flows smoothly away from your home by gravity alone. In this guide, we will break down exactly why this specific ratio matters, how to calculate it perfectly, and the steps to ensure your plumbing system lasts for decades without issue.

Why Is the 1-Inch-Per-4-Feet Slope the Golden Standard?

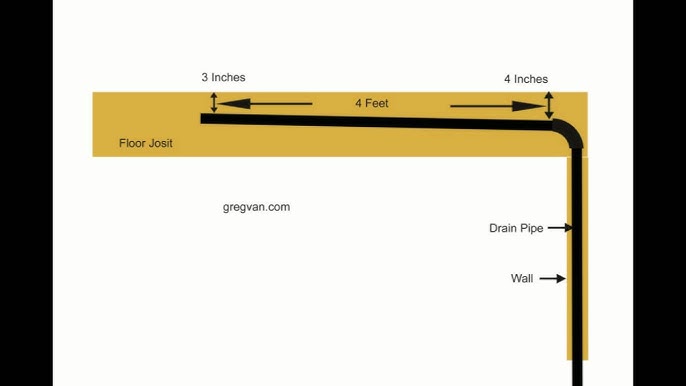

When discussing residential drainage, you will often hear plumbers refer to a “quarter-inch slope.” But what does that actually mean, and why is it so universally accepted? The standard requirement for most horizontal drain lines (specifically those 3 inches in diameter or smaller) is a drop of 1/4 inch per foot. When you do the math over a 4-foot span, this equals exactly 1 inch of drop.

This specific gradient is not arbitrary; it is the result of decades of hydraulic engineering and real-world testing.

• Too Flat (Less than 1/4″ per foot): Water moves too slowly. Solids (waste and toilet paper) settle at the bottom of the pipe before the water can push them out, leading to frequent clogs.
• Too Steep (More than 1/2″ per foot): Water runs away too quickly, leaving solids behind. This is known as “solids separation.” The water rushes ahead, and the waste gets stranded on the dry upper section of the pipe.

According to the International Plumbing Code (IPC) and Uniform Plumbing Code (UPC), maintaining this 1 inch every 4 feet balance ensures that the water velocity is just right to carry solids along without scouring the pipe walls excessively or allowing sedimentation.

The Physics of Gravity Drainage

Gravity is the engine of your drainage system. Unlike supply lines that use pressure, drain lines rely entirely on elevation changes. If you are setting up a pipe run that is 8 feet long, you need a total drop of 2 inches. If the run is 12 feet, you need a 3-inch drop. Consistency is key; a pipe that sags in the middle creates a “belly,” which becomes an immediate trap for waste, regardless of the overall slope.

How Do You Calculate the Exact Pipe Drop?

One of the most common questions homeowners ask is, “How do I measure this accurately without being a math genius?” The good news is that the calculation is straightforward, but precision is vital.

The Formula

The formula for calculating the total drop is: $\text{Total Drop (inches)}=\text{Length of Pipe (feet)}\times 0.25$Total Drop (inches)=Length of Pipe (feet)×0.25

Since 0.25 inches is equivalent to 1/4 inch, for every foot of pipe, you drop a quarter of an inch.

Practical Calculation Table

To make your plumbing set up pipe slope easier, here is a quick reference table for common pipe lengths:

Tools You Need for Accuracy

Guessing the slope with your eye is a recipe for disaster. To achieve the perfect 1 inch every 4 feet gradient, you must use the right tools:

1. Torpedo Level with Grade Vials: These levels have specific vials marked for 1/4″, 1/8″, and 1/2″ slopes.
2. Laser Level: For long runs, a rotary laser level set to the correct fall is the most accurate method.
3. String Line and Line Level: A traditional method where you snap a string from the high point to the low point and measure the drop.

Pro Tip: Always measure from the invert (the very bottom inside surface) of the pipe, not the top. Pipe diameters can vary slightly due to manufacturing tolerances or fitting types, and measuring from the top can throw off your slope calculation.

Step-by-Step: Installing a Drain Line with Perfect Slope

Installing a new drain line requires careful planning and execution. Follow these concrete steps to ensure your plumbing set up pipe slope 1 inch every 4 feet is executed flawlessly.

Step 1: Plan Your Route and Measure

Before cutting any pipe, map out the path from the fixture (sink, toilet, shower) to the main stack or sewer line. Measure the total horizontal distance.

• Example: If your sink is 6 feet from the main stack, you need a total drop of $6\times 0.25=1.5$6×0.25=1.5 inches.
• Check for obstructions like floor joists, electrical wiring, or other pipes. You may need to drill holes through joists, but remember: never cut more than 1/3 of a joist’s depth, or you compromise structural integrity.

Step 2: Establish Your High and Low Points

Mark your starting point (high) and ending point (low) on the wall or framing.

• Use a laser level to project a level line across the room.
• From this level line, measure down $X$X inches at the start and $X+\text{Total Drop}$X+Total Drop inches at the end.
• Snap a chalk line between these two marks. This line represents the bottom of your pipe (the invert).

Step 3: Install Hangers and Supports

Pipe hangers are crucial for maintaining slope. If supports are too far apart, the pipe will sag over time due to the weight of the water and waste.

• Spacing: For PVC DWV (Drain-Waste-Vent) pipe, install hangers every 4 feet for horizontal runs.
• Adjustment: Use adjustable strap hangers or all-thread rods so you can fine-tune the height of the pipe to match your chalk line exactly.
• Secure the first hanger at the high point and the last hanger at the low point. Run a string between them to guide the placement of intermediate hangers.

Step 4: Cut and Dry-Fit the Pipe

Cut your PVC or ABS pipe using a ratchet cutter or a saw. Ensure cuts are square; angled cuts can disrupt flow and create turbulence.

• Lay the pipe into the hangers without glue first (dry fit).
• Place your torpedo level with the 1/4″ slope vial on the pipe.
• Adjust the hangers until the bubble is perfectly centered. This confirms your 1 inch every 4 feet slope is accurate.

Step 5: Prime and Cement

Once the slope is verified:

1. Apply purple primer to the outside of the pipe end and the inside of the fitting.
2. Apply clear cement over the primed area.
3. Push the pipe into the fitting with a slight quarter-turn to distribute the cement evenly.
4. Hold firmly for 15–30 seconds to prevent the pipe from pushing back out.
5. Crucial: Do not disturb the pipe for at least 15 minutes (or per manufacturer instructions) to allow the joint to set. Moving it while wet can break the seal or alter the slope.

For more detailed technical specifications on piping materials and standards, you can refer to the comprehensive resources available on Wikipedia regarding Plumbing.

Common Mistakes That Ruin Drainage Systems

Even experienced DIYers can make errors that lead to chronic plumbing issues. Avoid these pitfalls to ensure your system functions correctly.

1. The “Backwards Slope”

It sounds impossible, but it happens. If you accidentally install the pipe so it slopes up toward the drain, water will never leave the fixture. Always double-check your level before gluing.

2. Ignoring the “Belly”

A belly occurs when the middle of the pipe sags lower than the end. Even if your start and end points are perfect, a sag in the middle creates a pool where waste accumulates. This is why support spacing (every 4 feet) is non-negotiable.

3. Over-Sloping for Long Runs

While a steep slope sounds like it would help, it causes problems for long runs (over 10-15 feet). As mentioned earlier, water can outrun solids. If you have a very long run, you may need to install a cleanout or adjust the slope to stay within the maximum code limit (usually 1/2 inch per foot).

4. Using the Wrong Pipe Diameter

The 1/4 inch per foot rule generally applies to pipes 3 inches in diameter or smaller. Larger pipes (4 inches or more) often require a shallower slope (1/8 inch per foot) because the larger volume of water creates enough momentum even at a flatter angle. Always check local codes.

FAQ: Everything You Need to Know About Pipe Slope

1. What happens if my pipe slope is less than 1 inch every 4 feet?

If the slope is too flat (less than 1/4 inch per foot), the water velocity decreases. This allows solid waste to settle at the bottom of the pipe rather than being suspended in the water flow. Over time, this accumulation leads to stubborn clogs that snaking cannot easily clear, eventually requiring pipe replacement.

2. Can I have a slope that is steeper than 1 inch every 4 feet?

Yes, but with limits. A slope up to 1/2 inch per foot (2 inches every 4 feet) is generally acceptable for smaller pipes. However, if the slope is too steep, water drains faster than solid waste, leaving solids behind on the pipe walls. This also causes excessive noise and can erode pipe fittings over time due to high-velocity impact.

3. Does the 1-inch-every-4-feet rule apply to vent pipes?

No. Vent pipes serve a different purpose: they regulate air pressure in the drainage system to allow water to flow smoothly. Vent pipes should generally be installed vertically or with enough slope to prevent condensation from pooling, but they do not carry waste, so the strict 1/4 inch per foot drainage rule does not apply to them in the same way.

4. How do I fix a pipe that has the wrong slope after it’s glued?

Unfortunately, there is no easy fix once PVC cement has cured. The incorrect section must be cut out and replaced. This is why dry-fitting and checking the slope with a level before gluing is the most critical step in the process. Trying to force a sagging pipe up with hangers after gluing can stress the joints and cause leaks.

5. Is the slope requirement different for a shower drain vs. a toilet drain?

The general rule of 1/4 inch per foot applies to the horizontal branch lines for both showers and toilets (assuming 3-inch or smaller piping). However, the shower pan itself requires a much steeper slope (1/2 inch per foot) on the sub-floor to direct water to the weep holes. The horizontal pipe carrying the water away follows the standard 1-in-4 rule.

6. Do I need a permit to change the slope of my drain pipes?

In most jurisdictions, altering the drainage plumbing within your home requires a permit and an inspection. This ensures that the work meets safety codes and that the slope is verified by a professional inspector. Always check with your local building department before starting major plumbing projects.

Conclusion

Mastering the plumbing set up pipe slope 1 inch every 4 feet rule is the difference between a plumbing system that works silently and efficiently for decades and one that causes nightly nightmares with clogs and backups. By understanding the physics of gravity flow, using the right tools like grade-specific levels, and meticulously supporting your pipes, you can ensure optimal performance. Remember, precision in the installation phase saves thousands of dollars in repair costs later.
