Plumbing Sewer Grating & Trough 4 X 36 X 6”: The Ultimate Guide

Dealing with water accumulation in commercial kitchens, industrial warehouses, or large residential driveways can be a nightmare if your drainage system isn’t up to the task. Many property owners struggle with finding the right balance between heavy-duty durability and precise sizing, often leading to costly retrofits. If you are looking for a robust solution specifically designed for high-traffic areas, understanding the Plumbing Sewer Grating & Trough 4 X 36 X 6” is your first step toward a dry, safe, and compliant facility.

What Exactly Is a 4 X 36 X 6” Sewer Grating and Trough System?

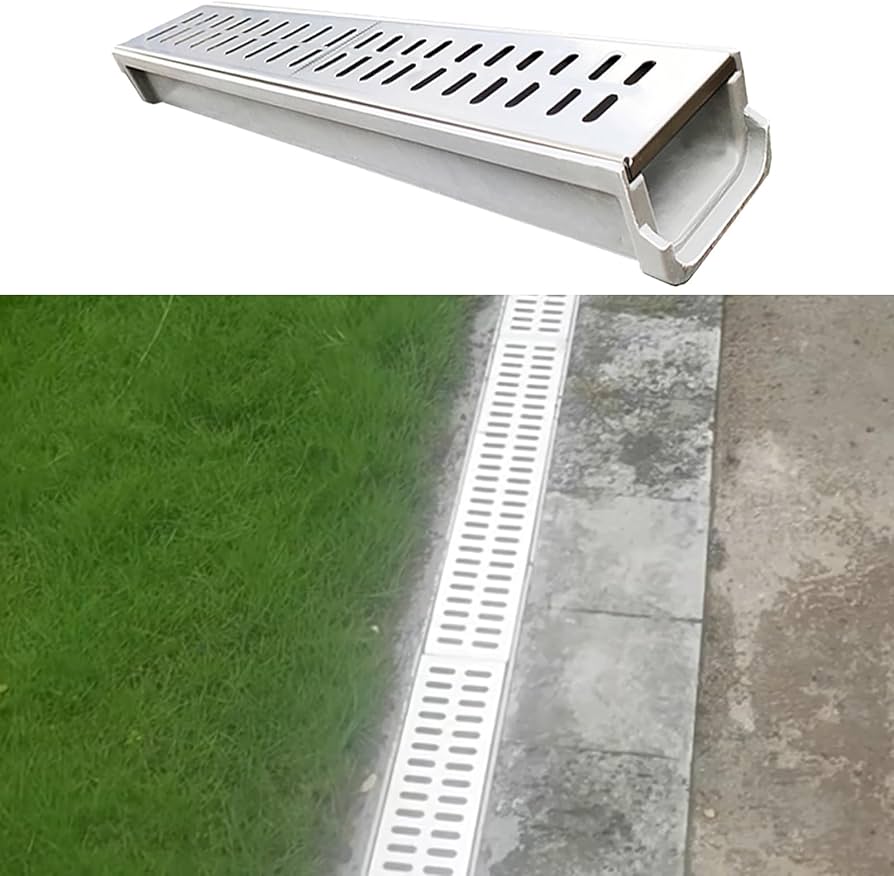

When professionals refer to a Plumbing Sewer Grating & Trough 4 X 36 X 6”, they are describing a specific dimensional configuration of a trench drain system. This isn’t just a random pipe; it is a linear drainage solution engineered for surface water management. Let’s break down those numbers so you know exactly what you are buying:

• 4 Inches: This typically refers to the width of the channel (the trough) at the top opening. It is narrow enough to fit in tight spaces but wide enough to handle significant flow rates.
• 36 Inches: This is the length of the individual grate section. Standardizing at 3 feet makes transportation and installation much easier for contractors.
• 6 Inches: This indicates the depth of the trough. A 6-inch depth provides substantial water volume capacity before overflow occurs, making it ideal for areas with sudden heavy runoff.

These systems are commonly constructed from polymer concrete, fiberglass, or cast iron, depending on the load requirements. Unlike traditional round pipe drains, this linear “trough” style captures water across a wider surface area, preventing pooling more effectively.

According to general engineering principles found on Wikipedia, linear drainage systems are increasingly preferred in modern architecture because they can be integrated seamlessly into flooring designs while offering superior hydraulic performance compared to point drains.

Where Should You Install a 4 X 36 X 6” Trough Drain?

One of the most common questions we get is, “Is this size right for my project?” The 4x36x6 configuration is a versatile workhorse, but it shines in specific environments.

Ideal Applications

• Commercial Kitchens: In restaurants, grease and water spillage is constant. The 6-inch depth allows for sediment traps, while the 4-inch width fits neatly along prep lines.
• Industrial Warehouses: Forklifts and heavy machinery require grates that won’t bend. When paired with a ductile iron grate, this trough size handles Class C or D load ratings easily.
• Outdoor Patios and Pool Decks: The 36-inch length is perfect for spanning across standard paver layouts without requiring excessive cutting.
• Car Wash Bays: High water volume needs quick evacuation. The linear design captures water from the entire vehicle width as it moves over the trough.

Comparison: Point Drain vs. Linear Trough (4x36x6)

Material Matters: Choosing the Right Grate for Your Trough

The “Trough” is usually made of polymer concrete for chemical resistance, but the “Grating” (the cover) varies based on traffic. Selecting the wrong material here is a leading cause of system failure.

1. Cast Iron Grating

• Best For: Heavy industrial zones, airports, and fire lanes.
• Pros: Extremely durable, highest load-bearing capacity (up to Class F900).
• Cons: Heavy to install, prone to rust if not coated, expensive.

2. Ductile Iron Grating

• Best For: Commercial parking lots and loading docks.
• Pros: Stronger than standard cast iron, more impact-resistant, lighter weight.
• Cons: Still requires anti-corrosion treatment in salty environments.

3. Galvanized Steel Grating

• Best For: Food processing plants and indoor facilities.
• Pros: Corrosion-resistant, good strength-to-weight ratio, cost-effective.
• Cons: Not suitable for extreme heavy-load vehicular traffic.

4. Polymer/Fiberglass Grating

• Best For: Chemical plants, pools, and pedestrian zones.
• Pros: Completely rust-proof, chemically inert, lightweight.
• Cons: Lower load rating compared to metal options.

Expert Tip: Always check the load class rating (A through F) required by your local building code before purchasing. Using a pedestrian-grade grate in a trucking lane is a liability lawsuit waiting to happen.

Step-by-Step Installation Guide

Installing a Plumbing Sewer Grating & Trough 4 X 36 X 6” requires precision. A poorly installed trench drain will leak, shift, or crack under pressure. Follow these concrete steps for a professional result.

Tools and Materials Needed

• Concrete saw or excavation tools
• Laser level
• Polymer concrete adhesive or mortar
• Compactor plate
• Safety gear (gloves, goggles)
• Water for curing: Use 2 liters of water mixed per bag of setting compound, ensuring the temperature is between 22–28°C (72–82°F) for optimal curing time.

Installation Steps

1. Excavation and Preparation Dig a trench that is slightly wider and deeper than the 4×6 dimensions of the trough. Ensure the bottom is compacted solid. Any soft spots will cause the trough to settle and crack later.
2. Establish the Slope This is critical. The trench must have a minimum slope of 0.5% to 1% toward the outlet. Use your laser level to verify. If the water doesn’t flow, the grate will overflow regardless of its size.
3. Laying the Trough Sections Place the 36-inch trough sections end-to-end. Ensure the joints are tightly aligned. If your run is longer than 36 inches, use manufacturer-approved coupling connectors to seal the joints watertight.
4. Securing the Channel Pour concrete haunching (support concrete) along the sides of the trough. Do not pour concrete inside the channel. The support concrete should reach about halfway up the side of the 6-inch depth.
5. Installing the Grating Once the side concrete has cured (wait at least 24 hours), place the 36-inch grates on top. Ensure they sit flush with the finished floor level. If using locking mechanisms, engage them now to prevent theft or shifting.
6. Final Sealing and Testing Apply a bead of polyurethane sealant around the perimeter where the grate meets the floor. Run water through the system to test flow rate and check for leaks at the joints.

Maintenance: Keeping Your System Flowing

Even the best Plumbing Sewer Grating & Trough 4 X 36 X 6” system needs care. Neglect leads to blockages and unpleasant odors.

• Weekly: Sweep debris off the grate surface. In kitchen environments, wipe down grease buildup.
• Monthly: Remove the 36-inch grate sections (most have lift-out keys) and scoop out sediment from the 6-inch deep trough.
• Quarterly: Flush the system with high-pressure water. Check the catch basin sump for oil or heavy solids that need disposal.
• Annually: Inspect the grate for cracks or corrosion. Replace any damaged 36-inch sections immediately to prevent injury.

Frequently Asked Questions (FAQ)

1. Can I cut the 36-inch grate to fit a smaller space?

Generally, no. Most metal and polymer grates are structurally engineered to span 36 inches. Cutting them compromises their load-bearing integrity and voids the warranty. If you need a shorter length, order custom sizes or use a filler plate designed by the manufacturer.

2. What is the maximum water flow rate for a 4×6 trough?

The flow rate depends heavily on the slope and surface roughness. However, a 4-inch wide by 6-inch deep channel with a 1% slope can typically handle approximately 150–200 gallons per minute (GPM) before reaching capacity. For precise hydraulic calculations, consult an engineer.

3. Is this system compatible with existing 4-inch PVC pipes?

Yes, most 4-inch wide troughs come with pre-molded outlets at the bottom or ends that are designed to connect directly to standard 4-inch Schedule 40 PVC piping. You may need a rubber gasket adapter to ensure a watertight seal between the polymer concrete and the plastic pipe.

4. How much weight can the 4 X 36 X 6” system support?

The weight capacity depends on the grate material, not the trough.

• Polymer grates: Up to 1,000 lbs (Pedestrian).
• Steel grates: Up to 15,000 lbs (Light vehicles).
• Ductile Iron grates: Up to 90,000 lbs (Heavy trucks/aircraft). Always verify the load class before installation.

5. Where can I buy authentic 4x36x6 systems in the US?

You can find these systems at major plumbing supply houses (like Ferguson or Hajoca), specialized drainage manufacturers (like ADS or NDS), and select industrial hardware distributors. Avoid generic marketplace listings that do not specify load ratings.

Conclusion

Investing in a high-quality Plumbing Sewer Grating & Trough 4 X 36 X 6” is a strategic move for any property owner serious about water management. Its specific dimensions offer a perfect blend of capacity and versatility, suitable for everything from bustling restaurant kitchens to heavy-duty industrial yards. By choosing the right materials, following precise installation steps, and committing to regular maintenance, you ensure a drainage system that lasts for decades.

Don’t let water damage compromise your property’s safety and value. If you found this guide helpful, share it with your contractor or facility manager on LinkedIn, Facebook, or Twitter to help others build better drainage solutions!

Disclaimer: Always consult local building codes and a licensed professional engineer before starting any major plumbing or drainage project.
