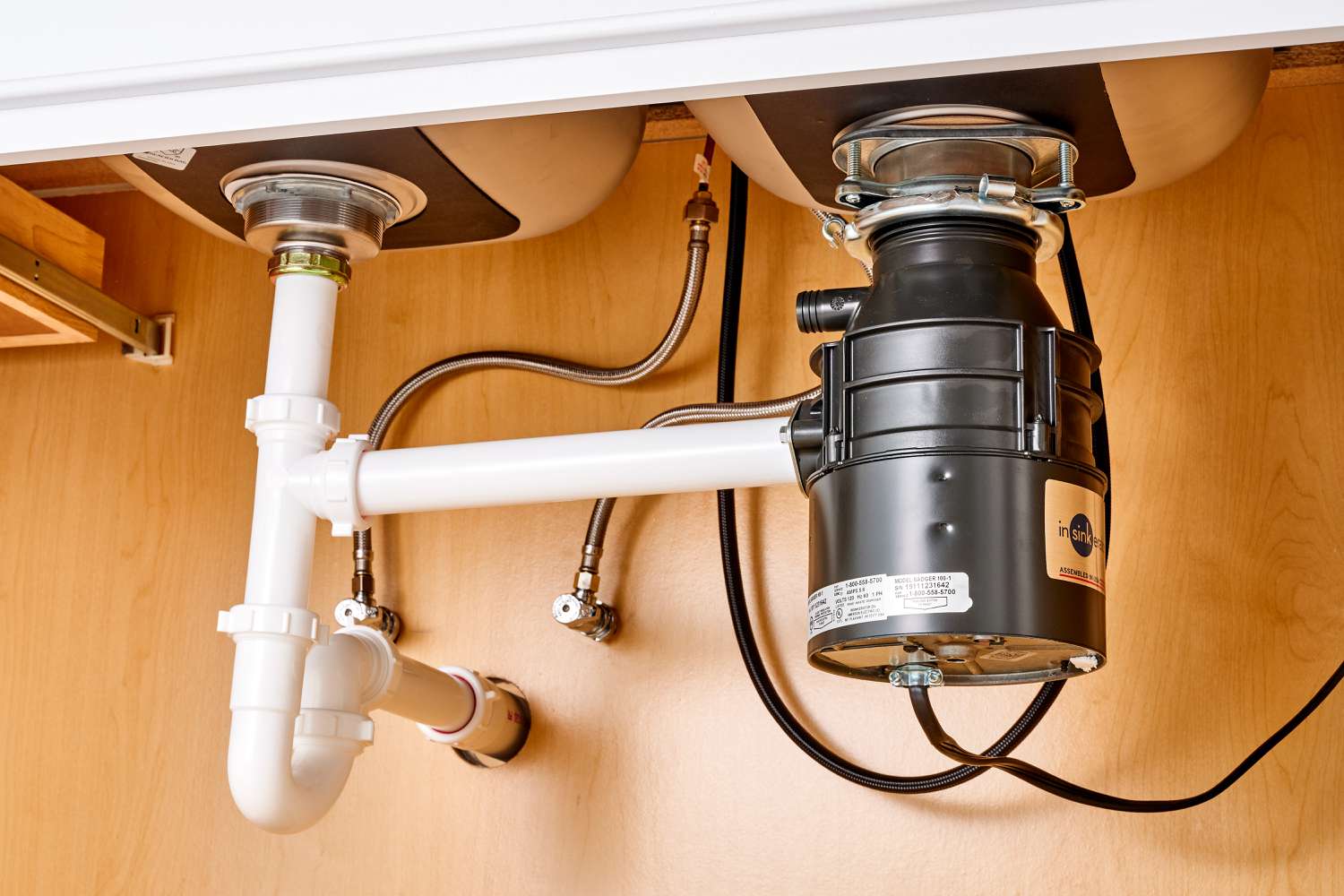

Are you staring at a new kitchen sink and feeling overwhelmed by the maze of pipes and fittings under your cabinet? You are not alone; many homeowners hesitate to tackle plumbing projects due to fear of leaks or buying the wrong parts. However, with the right preparation and a clear list of the plumbing supplies required to install a kitchen sink water supply, you can confidently complete this upgrade yourself. This guide will walk you through every necessary component, ensuring your new sink functions perfectly from day one.
What Are the Essential Components for a Kitchen Sink Water Line?
Before you head to the hardware store, it is crucial to understand exactly what makes up a functional water supply system. A kitchen sink requires two distinct lines: one for hot water and one for cold. Missing even a small washer or adapter can halt your entire project.
The core plumbing supplies required to install a kitchen sink water supply generally fall into three categories: the delivery lines, the connection valves, and the sealing accessories. According to general plumbing standards, the reliability of your installation depends 90% on the quality of these connections rather than the complexity of the pipe layout.
The Primary Supply Lines
You will need flexible water supply lines. In the past, rigid copper piping was common, but modern DIY standards favor flexible braided stainless steel lines.
- Length: Measure from the shut-off valve to the faucet tailpiece. Common lengths are 12, 16, or 20 inches. Always buy slightly longer than needed; you can coil excess, but you cannot stretch a short line.
- Material: Look for lines with a braided stainless steel exterior and a PEX (cross-linked polyethylene) or rubber core. These resist bursting and kinking better than plain plastic tubing.
- Diameter: Standard residential kitchen sinks use 3/8-inch compression fittings on the valve end and 1/2-inch FIP (Female Iron Pipe) on the faucet end.
The Shut-Off Valves
Never install a sink without dedicated shut-off valves. These allow you to turn off water to the sink without cutting water to the whole house during future repairs.
- Type: Angle stop valves are most common for sinks where the water pipe comes out of the wall. Straight stop valves are used if the pipe comes up from the floor.
- Mechanism: Choose “quarter-turn” ball valves over multi-turn compression valves. Quarter-turn valves are more reliable and less likely to seize up over time.
How Do I Choose the Right Fittings and Adapters?
One of the most common reasons for installation failure is mismatched threads. Plumbing fixtures are not universally standardized, which leads to confusion at the checkout counter.
Understanding Thread Types
To ensure a watertight seal, you must match the male and female threads correctly.
- Compression Fittings: These use a ferrule (a small brass ring) that compresses onto the pipe when tightened. They are excellent for connecting supply lines to copper pipes.
- FIP/MIP (Iron Pipe): Female Iron Pipe (FIP) and Male Iron Pipe (MIP) threads are tapered. They require thread seal tape or dope to create a seal.
- Quick-Connect: Some modern faucets come with push-to-connect fittings that require no tools, though traditional compression is still the industry standard for durability.
The Adapter Checklist
If your existing water stub-outs (the pipes coming from the wall) do not match your new supply lines, you will need adapters.
- 3/8-inch OD to 1/2-inch FIP adapters: Used if your shut-off valve has a different outlet size.
- Male to Female converters: Occasionally needed if the faucet tailpieces are non-standard.
- Extension tubes: If the shut-off valve is positioned too far back in the cabinet.
Pro Tip: Take a photo of your existing plumbing setup with a ruler next to it before going to the store. This visual aid helps store associates identify the exact plumbing supplies required to install a kitchen sink water supply for your specific configuration.
For a deeper understanding of pipe threading standards and historical context, you can refer to this resource on Pipe threading.
What Tools and Sealing Materials Are Necessary?
Having the parts is only half the battle; you need the right tools to assemble them without damaging the components. Over-tightening is a frequent mistake that cracks fittings, while under-tightening causes leaks.
Essential Tool Kit
- Adjustable Basin Wrench: This is non-negotiable. The space under a sink is tight, and a standard wrench often cannot reach the faucet nuts. A basin wrench has a pivoting jaw specifically designed for this awkward angle.
- Channel-Lock Pliers: Useful for holding the shut-off valve steady while you tighten the supply line nut.
- Tubing Cutter: If you need to trim copper pipes for new valves, a clean cut is vital. Do not use a hacksaw, as it leaves burrs that prevent a good seal.
- Bucket and Towels: Always have a bucket ready to catch residual water when disconnecting old lines.
Sealing Agents
- PTFE Tape (Teflon Tape): Use this on all tapered thread connections (NPT). Wrap it clockwise around the male threads 3–4 times. Do not use tape on compression fittings or flare fittings, as the seal is made by the metal-to-metal contact of the ferrule, not the threads.
- Pipe Dope (Thread Sealant): An alternative to tape, often preferred by professionals for its lubricating properties which help prevent over-tightening. A thin layer is sufficient.
Comparison: Tape vs. Dope
| Feature | PTFE Tape | Pipe Dope |
|---|---|---|
| Ease of Use | High (Clean application) | Medium (Can be messy) |
| Best For | Water lines, small fittings | Gas lines, larger industrial pipes |
| Cleanup | None | Requires rag/solvent |
| Risk | Can shred if wrapped poorly | Can clog small valves if over-applied |
| Recommendation | Ideal for DIY Kitchen Sinks | Good for stubborn threads |
Step-by-Step: Installing the Water Supply Lines
Now that you have gathered all the plumbing supplies required to install a kitchen sink water supply, let’s proceed with the installation. Follow these steps precisely to ensure a leak-free result.
Step 1: Preparation and Shut-Off
Locate the main water shut-off or the existing individual valves under the sink. Turn them clockwise until they stop. Open the old faucet handles to drain any remaining pressure and water in the lines. Place your bucket underneath the connections.
Step 2: Remove Old Lines
Using your basin wrench, loosen the nuts connecting the old supply lines to the faucet tailpieces. Then, disconnect the other end from the shut-off valves. Inspect the tailpieces on the new faucet; ensure they are clean and free of manufacturing debris.
Step 3: Install New Shut-Off Valves (If Replacing)
If your old valves are corroded, replace them now.
- Cut the existing pipe cleanly using a tubing cutter.
- Slide the compression nut and then the ferrule onto the pipe.
- Push the valve body onto the pipe until it bottoms out.
- Hand-tighten the compression nut, then give it an additional three-quarters of a turn with a wrench. Do not overtighten, or you risk crushing the ferrule.
Step 4: Connect Supply Lines to the Faucet
Attach the supply lines to the faucet tailpieces first. This is easier to do before the lines are routed through the cabinet.
- Connect the hot water line (usually marked with red or a red ring) to the left tailpiece.
- Connect the cold water line (usually marked with blue) to the right tailpiece.
- Tighten by hand until snug, then use the basin wrench for a final quarter-turn. Remember, these often have rubber gaskets inside, so no Teflon tape is needed here.
Step 5: Route and Connect to Valves
Carefully route the lines down to the shut-off valves. Avoid sharp bends or kinks, which restrict water flow.
- Connect the lines to the respective shut-off valves.
- Ensure the hot line goes to the hot valve (typically left) and cold to the cold (typically right).
- Tighten the compression nuts gently. Over-tightening stainless steel braided lines can strip the threads.
Step 6: The Pressure Test
This is the most critical step.
- Ensure the faucet handles are in the OFF position.
- Slowly turn on the shut-off valves. Listen for hissing.
- Take a dry paper towel and wipe every connection point (valve nut, faucet nut).
- Wait 5 minutes. Check the paper towel for any moisture. Even a single drop indicates a leak that needs tightening.
- Turn on the faucet and let water run for 30 seconds to flush out any debris and check flow rate.
Frequently Asked Questions (FAQ)
1. Can I reuse my old water supply lines?
It is strongly recommended that you do not reuse old supply lines. Over time, the rubber washers inside degrade, and the braided steel can develop micro-fractures. Since these lines are inexpensive, replacing them is a cheap insurance policy against catastrophic flooding.
2. What is the difference between 3/8-inch and 1/2-inch supply lines?
The 3/8-inch measurement usually refers to the compression end that connects to the shut-off valve, while 1/2-inch refers to the FIP end that connects to the faucet. Most standard kitchen faucets require a line with a 3/8-inch compression fitting on one end and a 1/2-inch female iron pipe thread on the other. Always verify your specific faucet manual.
3. Why is my new faucet making a humming noise?
A humming noise often indicates a partially closed shut-off valve or a restricted flow due to a kinked supply line. It can also happen if the water pressure is too high for the specific aerator installed. Check that both shut-off valves are fully open (quarter-turn valves should be parallel to the pipe).
4. Do I need to apply Teflon tape to flexible supply lines?
Generally, no. Most flexible braided supply lines come with a rubber gasket inside the connector nut that creates the seal when tightened against the flat surface of the valve or faucet. Adding tape can actually interfere with this gasket seal and cause leaks. Only use tape on threaded pipe connections that do not have a gasket.
5. How long do braided stainless steel supply lines last?
High-quality braided stainless steel lines typically last between 5 to 7 years, though many can last longer. However, manufacturers often recommend inspecting them annually and replacing them every 5 years as a preventative measure, as the internal rubber hose can degrade even if the exterior looks fine.
6. What if my water pipes are galvanized steel?
If you have older galvanized steel pipes, you may encounter rusted threads or incompatible sizes. In this case, you will likely need specific transition adapters (e.g., Galvanized Male to Compression Female). If the pipes are heavily corroded, it may be wise to consult a professional plumber to replace the stub-outs before installing your new sink.
Conclusion
Successfully installing a kitchen sink comes down to preparation and using the correct plumbing supplies required to install a kitchen sink water supply. By gathering high-quality braided lines, reliable quarter-turn valves, and the proper sealing tools, you eliminate the risk of leaks and ensure the longevity of your fixture. Remember, the key to a professional job is not just tightening the nuts, but understanding how they seal and testing your work thoroughly.
Now that you are equipped with this expert knowledge, you are ready to transform your kitchen. Did you find this guide helpful? Share this article with your friends on social media who might be planning their own DIY renovations, and save it for your next home improvement project!
