Have you ever looked at an old heating system or a new industrial setup and wondered about the limits of the materials used? Specifically, many DIY enthusiasts and even junior plumbers often ask: can copper tube be used in steam applications without risking catastrophic failure? This is a critical question because using the wrong material in a high-pressure, high-temperature environment can lead to dangerous explosions, costly property damage, and severe safety hazards. In this edition of Plumbing Techcorner, we will dive deep into the science, codes, and practical realities of using copper in steam systems to ensure your projects are both efficient and safe.
The Short Answer: Yes, But With Strict Limits
The direct answer to whether can copper tube be used in steam systems is yes, but it is heavily regulated by pressure and temperature limits. Unlike water supply lines where copper reigns supreme, steam introduces unique physical stresses that demand caution.
Copper is an excellent conductor of heat and is naturally resistant to corrosion in many environments. However, steam systems operate under different physics than hydronic (hot water) systems. Steam expands to occupy 1,600 times the volume of water, creating significant pressure spikes. If the copper tubing exceeds its rated pressure or temperature threshold, it can anneal (soften), bulge, or burst.
According to major plumbing codes like the International Plumbing Code (IPC) and ASME B31.9, copper tubing is generally permitted for steam heating systems only if the operating pressure does not exceed 15 psi (pounds per square inch). Anything above this threshold typically requires steel or other high-strength alloys.
Key Safety Thresholds
- Maximum Pressure: 15 psi for most standard copper tubing types (K, L, M).
- Maximum Temperature: Generally capped at 250°F (121°C), though some specific alloys may vary slightly.
- Application Scope: Primarily low-pressure residential heating radiators and vapor systems.
Understanding the Physics: Why Steam is Different
To understand why the question “can copper tube be used in steam” requires such a nuanced answer, we must look at the behavior of steam versus hot water.
Thermal Expansion and Pressure Spikes
In a hot water system, the liquid is relatively incompressible, and pressure changes are gradual. In a steam system, water turns to gas, creating rapid expansion. When steam condenses back into water, it creates a vacuum that can cause “water hammer”—a shockwave that slams through pipes with immense force.
Copper, while ductile, has a lower tensile strength compared to black steel or carbon steel pipes often used in commercial steam setups. Repeated thermal cycling (heating up and cooling down) causes copper to expand and contract. Over time, this can weaken soldered joints, which are the weakest link in a copper steam system.
The Annealing Risk
One of the lesser-known risks is annealing. If copper is exposed to temperatures consistently near its upper limit for extended periods, the metal loses its temper and becomes soft. A softened copper pipe cannot withstand pressure spikes as effectively as hardened copper, increasing the risk of rupture during a boiler malfunction.
Expert Insight: “While copper is fantastic for domestic water, steam is a beast of its own. The combination of heat and pressure cycling tests the integrity of soldered joints more than any other system. Always respect the 15 psi limit.” — Senior Mechanical Engineer, HVAC Specialist.
For more detailed technical specifications on material properties, you can refer to the general engineering principles outlined on Wikipedia.
Code Compliance: What Do the Regulations Say?
When asking can copper tube be used in steam, the legal answer is just as important as the physical one. Building codes are designed to protect life and property, and they are very specific about this topic.
International Plumbing Code (IPC) Guidelines
The IPC is the standard adopted by most US jurisdictions. It explicitly states that copper tubing (Types K, L, and M) can be used for steam heating systems provided:
- The system pressure does not exceed 15 psi.
- The temperature does not exceed 250°F.
- The tubing is installed in accordance with manufacturer instructions and standard joining methods.
ASME B31.9 Standards
The American Society of Mechanical Engineers (ASME) code B31.9 covers building services piping. It reinforces the 15 psi limit for copper in steam service. If your boiler is set to operate at 20 psi or higher, using copper is a code violation and an insurance liability.
Comparison: Copper vs. Black Steel for Steam
| Feature | Copper Tubing | Black Steel Pipe |
|---|---|---|
| Max Pressure | 15 psi | 150+ psi (depending on schedule) |
| Corrosion Resistance | High (resists rust) | Low (prone to internal rust over decades) |
| Heat Conductivity | Excellent (heats up fast) | Moderate |
| Joint Method | Soldered or Press-fit | Threaded or Welded |
| Cost | Higher material cost | Lower material cost |
| Installation Ease | Easier to cut and fit | Requires threading tools |
| Best Use Case | Low-pressure residential | Commercial & High-pressure |

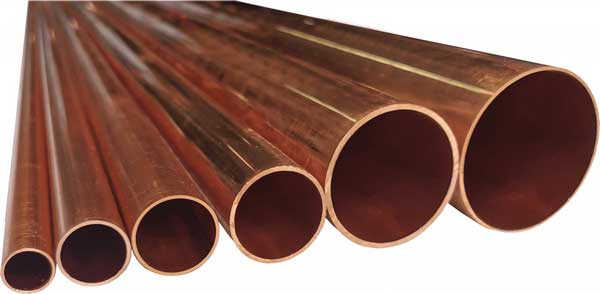

Types of Copper Tubing Suitable for Steam
Not all copper is created equal. If you determine that your system falls within the safe parameters and you proceed, you must choose the correct type of tubing.
Type K Copper
- Wall Thickness: Thickest.
- Suitability: Best for steam applications due to higher pressure tolerance.
- Recommendation: Highly recommended for any steam retrofit where copper is permitted.
Type L Copper
- Wall Thickness: Medium.
- Suitability: Acceptable for 15 psi steam systems and widely used in residential hydronic heating.
- Recommendation: Commonly used, but Type K offers a better safety margin.
Type M Copper
- Wall Thickness: Thinnest.
- Suitability: Generally not recommended for steam, even at low pressures, due to lower burst strength and susceptibility to damage from water hammer.
- Recommendation: Avoid for steam; stick to water supply only.
Step-by-Step: Installing Copper for Low-Pressure Steam
If your project meets the criteria (under 15 psi) and you have decided to use copper, follow these precise steps to ensure a leak-free and safe installation.
Materials Needed:
- Type K or Type L hard-drawn copper tubing
- Lead-free solder (95/5 or higher silver content recommended for heat resistance)
- Flux paste rated for high temperatures
- Propane or MAPP gas torch
- Pipe cutter and deburring tool
- Emery cloth or wire brush
Installation Procedure:
- Measure and Cut: Measure the required length accurately. Use a dedicated tube cutter to make a square cut. Do not use a hacksaw, as it leaves burrs that restrict steam flow and cause turbulence.
- Deburr and Clean: Remove all internal and external burrs. Clean the outside of the tube and the inside of the fitting with emery cloth until they shine like a new penny. Cleanliness is 90% of a good solder joint.
- Apply Flux: Apply a thin, even layer of high-temperature flux to the outside of the tube and the inside of the fitting. Do not glob it on; excess flux can corrode the pipe from the inside over time.
- Assemble: Push the tube into the fitting fully. Give it a slight twist to spread the flux evenly. Wipe away any excess flux squeezed out.
- Heat the Joint: Use your torch to heat the fitting, not the solder. Move the flame around the fitting to ensure even heating.
- Temperature Check: The metal should be hot enough to melt the solder instantly upon contact (approx. 400°F – 500°F).
- Apply Solder: Touch the solder wire to the joint opposite the flame. If the heat is correct, the solder will be drawn into the joint by capillary action.
- Quantity: Use approximately 1 inch of solder per 1/2 inch of pipe diameter.
- Cool Naturally: Let the joint cool naturally. Do not quench it with water, as rapid cooling can crack the solder or weaken the bond.
- Pressure Test: Before introducing steam, pressure test the system with air or water to check for leaks.
Common Mistakes to Avoid
Even experienced plumbers can stumble when answering can copper tube be used in steam in practice. Avoid these pitfalls:
- Ignoring the Pressure Relief Valve: Never install a steam system without a properly sized pressure relief valve set to discharge at or below 15 psi.
- Using Water-Grade Solder: Standard 50/50 tin-lead solder (if still available) or low-temp solders may fail under steam heat. Always use 95/5 tin-antimony or high-silver solder which has a higher melting point.
- Poor Slope: Steam pipes must be sloped correctly (usually 1/4 inch per foot) to allow condensate to return to the boiler. Copper’s smoothness helps, but improper pitch causes water hammer that can rip joints apart.
- Mixing Metals Without Dielectric Unions: If connecting copper to steel boiler nipples, use dielectric unions to prevent galvanic corrosion, which happens faster in hot steam environments.
FAQ Section
1. Can I use PEX instead of copper for steam lines?
No. PEX (cross-linked polyethylene) is strictly for potable water and hydronic (liquid) heating. It cannot withstand the temperatures of steam (212°F+) and will melt or fail catastrophically. Never use plastic piping for steam.
2. What happens if I exceed 15 psi in a copper steam system?
Exceeding the 15 psi limit significantly increases the risk of the pipe bursting or the soldered joints blowing apart. This can release scalding steam into the living space, causing severe burns and property damage. It is also a direct violation of building codes, voiding insurance coverage.
3. Is Type M copper ever okay for steam?
It is strongly advised against. Type M has the thinnest walls of the common copper types. While it might technically hold 15 psi when new, it lacks the safety margin to handle water hammer or pressure spikes common in steam systems. Stick to Type K or L.
4. How long does a copper steam system last?
With proper installation, correct water chemistry, and operation within pressure limits, a copper steam system can last 50 years or more. Copper resists internal rust better than steel, which is a significant advantage, provided the joints remain intact.
5. Can I convert my old steel steam radiators to copper piping?
Yes, this is a common renovation practice in historic homes where steel pipes have rusted through. As long as the boiler is a low-pressure residential unit (typically 0.5 to 2 psi operating pressure), upgrading to Type K copper is an excellent, long-lasting solution.
6. Does solder melt when steam goes through the pipe?
No, provided you use the correct solder. Steam at 15 psi is roughly 250°F. Standard 95/5 tin-antimony solder melts at around 450°F, and silver-bearing solders melt even higher. As long as the system operates correctly, the solder will remain solid.
Conclusion
The question “can copper tube be used in steam” has a clear answer: Yes, but only in low-pressure residential applications under 15 psi. When used within these strict parameters, copper offers superior corrosion resistance, ease of installation, and longevity compared to traditional black steel. However, stepping outside these limits invites dangerous failures and code violations.
Whether you are a homeowner looking to upgrade an old radiator system or a plumber designing a new install, always prioritize safety margins. Choose Type K or L copper, use high-temperature solder, and ensure your pressure relief valves are functional. By respecting the physics of steam and adhering to the codes, you can build a heating system that is both efficient and safe for decades.
