Plumbing Tee 3/8 x 3/8 x 5/16: The Ultimate Guide for Perfect Fittings

Have you ever stood in the plumbing aisle, staring at a confusing array of numbers, wondering if that specific fitting will actually stop the leak under your sink? It is a frustrating experience that many homeowners face when trying to connect water lines of different diameters, especially in older homes or custom appliance installations. Getting the right size is not just about convenience; it is the difference between a dry floor and a water damage disaster. In this guide, we will demystify the Plumbing Tee 3/8 x 3/8 x 5/16, explaining exactly what those numbers mean, where to use it, and how to install it like a pro.

What Does “3/8 x 3/8 x 5/16” Actually Mean?

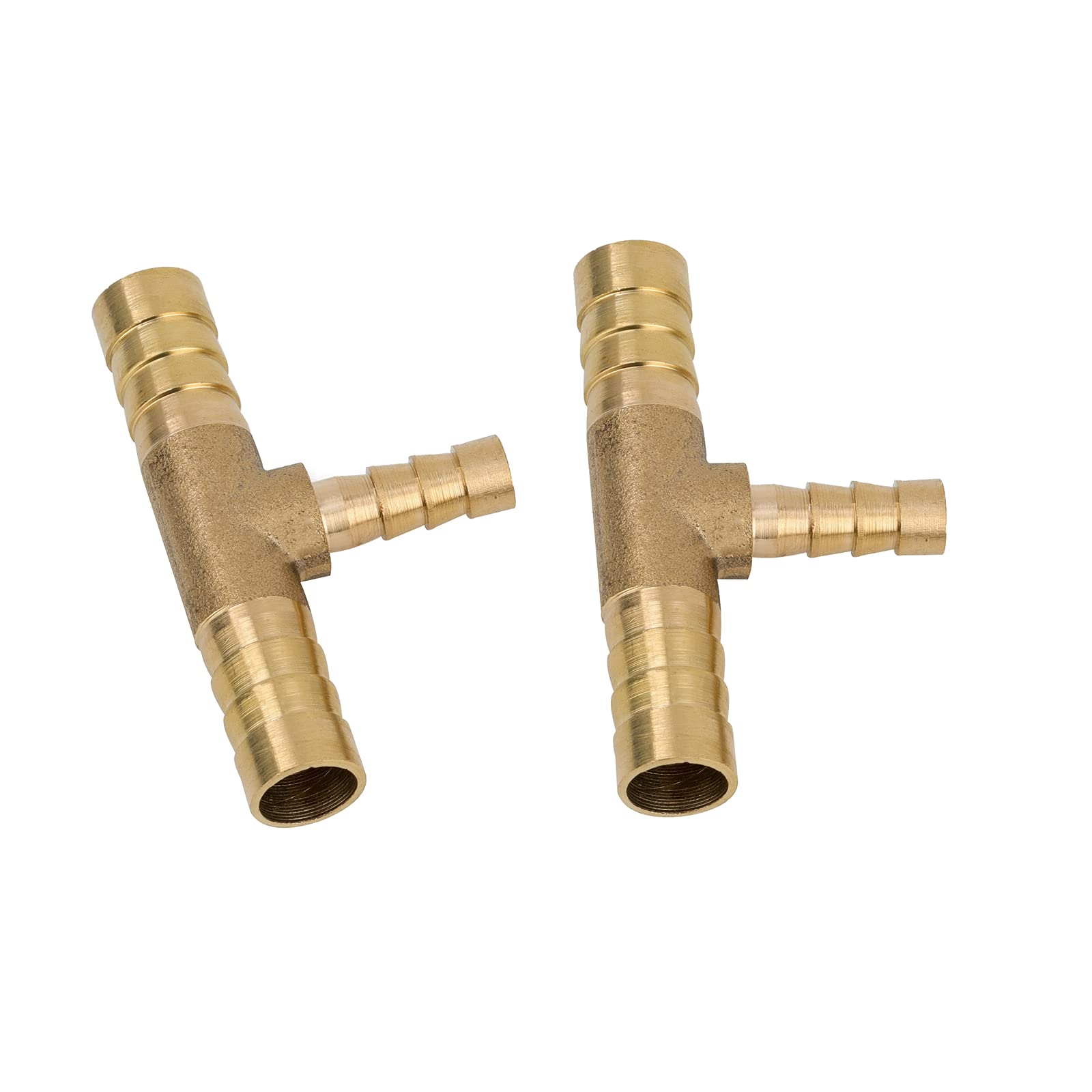

When you see a fitting labeled as a Plumbing Tee 3/8 x 3/8 x 5/16, the numbers represent the diameters of the three openings on the “T” shaped connector. Understanding this nomenclature is the first step to a successful project.

• The First Two Numbers (3/8 x 3/8): These refer to the two ends of the main run of the tee. In this case, both sides are identical, measuring 3/8 of an inch. This allows a continuous 3/8-inch line to pass through.
• The Third Number (5/16): This represents the branch or the perpendicular outlet. This side is slightly smaller, measuring 5/16 of an inch.

This specific configuration is known as a Reducing Tee. It is designed for situations where you need to tap into a 3/8-inch water line to feed a smaller appliance or fixture that requires a 5/16-inch connection. This is common in:

• Refrigerator ice maker lines.
• Specific humidifier connections.
• Older radiator systems.
• Custom beverage dispensing units.

Using a standard equal tee (3/8 x 3/8 x 3/8) with a reducer bushing is possible, but a dedicated Plumbing Tee 3/8 x 3/8 x 5/16 offers a cleaner, more compact solution with fewer potential leak points.

Why Precision Matters in Fractional Sizing

In the US plumbing industry, fractions of an inch are standard, but the difference between 5/16″ and 3/8″ is critical.

• 3/8 inch = 0.375 inches
• 5/16 inch = 0.3125 inches

That difference of roughly 0.06 inches might seem negligible to the naked eye, but in plumbing, it is massive. Trying to force a 3/8 tube into a 5/16 port will crush the tubing or crack the fitting. Conversely, putting a 5/16 tube into a 3/8 port will result in an immediate, catastrophic leak. Always verify your tubing OD (Outer Diameter) before purchasing.

Common Applications: Where Do You Use This Fitting?

You might be wondering, “Do I really need such a specific size?” The answer is often yes, particularly in modern American homes where space is tight and appliances have specific manufacturer requirements.

1. Refrigerator Ice Makers and Water Dispensers

Many modern refrigerators require a specific flow rate and pressure. While 1/4-inch tubing is the industry standard for ice makers, certain high-flow European-style models or specialized filtration systems utilize 5/16-inch tubing for the final connection. If your main supply line is 3/8-inch PEX or copper, this tee allows you to branch off perfectly without altering the main flow significantly.

2. Humidifier Installations

Whole-house humidifiers attached to furnace ducts often have unique inlet size requirements depending on the model year. A reducing tee allows HVAC technicians to tap into existing 3/8-inch saddle valves or supply lines to feed the unit correctly.

3. Under-Sink Filtration Systems

Reverse osmosis (RO) systems and countertop filters often have varied tubing sizes for their input and output. A Plumbing Tee 3/8 x 3/8 x 5/16 is frequently used to split the cold water line, sending one path to the faucet and the smaller path to the filter unit.

4. Radiant Heating and Hydronic Systems

In older hydronic heating setups, balancing the flow to different zones often requires reducing the pipe size to increase velocity or restrict flow to specific radiators. These tees are essential for maintaining system pressure balance.

Material Matters: Brass, Plastic, or Stainless Steel?

Not all tees are created equal. The material you choose depends on your local building codes, water quality, and budget.

Expert Tip: Always ensure that any brass fitting you purchase is certified “Lead-Free” compliant with the Safe Drinking Water Act (SDWA). Since 2014, the definition of “lead-free” in the US has been strictly regulated to contain no more than 0.25% lead weighted average.

For a deeper understanding of plumbing standards and material safety, you can review general guidelines on plumbing fixtures and safety via Wikipedia.

Step-by-Step Installation Guide

Installing a Plumbing Tee 3/8 x 3/8 x 5/16 varies slightly depending on the connection type (Compression, Push-to-Connect, or Flare). Below is a universal guide focusing on the most common DIY method: Push-to-Connect (SharkBite style) and Compression Fittings.

Tools You Will Need

• Tube cutter (for clean, square cuts)
• Deburring tool or fine-grit sandpaper
• Adjustable wrench (two are better)
• Marker pen
• Bucket and towel (for residual water)

Phase 1: Preparation

1. Shut Off the Water: Locate the main shut-off valve or the local angle stop under the sink. Turn it clockwise until tight.
2. Depressurize: Open the faucet connected to the line you are working on to drain remaining water. Have your bucket ready.
3. Measure and Mark: Identify where you want to insert the tee. Measure the length of the tee itself. Mark your pipe cut lines, ensuring you account for the depth the pipe will insert into the fitting (usually about 5/8 inch deep).

Phase 2: Cutting and Cleaning

4. Cut the Pipe: Using your tube cutter, slice through the 3/8-inch supply line at your marked spot. Crucial: The cut must be perfectly square (90 degrees). An angled cut will cause leaks.
5. Deburr: Use the deburring tool on the inside and outside edges of the cut pipe. Remove any metal shavings or plastic burrs.
6. Clean the Ends: Wipe the pipe ends with a clean cloth. They must be free of oil, dirt, and oxidation. For compression fittings, lightly polish the end with emery cloth until shiny.

Phase 3: Installation

7. Insert the Pipes (Push-to-Connect Method):
   • Push the existing 3/8-inch supply line into one side of the tee until it bottoms out. You should feel a solid stop.
   • Insert a new piece of 3/8-inch tubing into the other side (to continue the line).
   • Insert your 5/16-inch tubing into the branch port.
   • Note: Ensure the tubing is fully inserted. You can usually see a depth gauge line on the fitting.
8. Tighten (Compression Method):
   • Slide the nut, then the ferrule (brass ring), onto the tube.
   • Insert the tube into the fitting body until it hits the shoulder.
   • Slide the ferrule up and thread the nut on by hand.
   • Use two wrenches: one to hold the fitting body steady, and one to tighten the nut. Tighten 1.5 to 2 full turns past hand-tight. Do not overtighten, as this can crush the ferrule and cause leaks.

Phase 4: Testing

9. Slowly Turn On Water: Open the main valve slowly to prevent water hammer.
10. Inspect for Leaks: Immediately check all three connections. Run your finger around the joints to feel for spraying water.
11. The Paper Towel Test: Wrap a dry paper towel around each joint. If it stays dry after 2 minutes, you are successful. If it gets wet, tighten slightly (compression) or reseat the tube (push-to-fit).

Troubleshooting Common Issues

Even with the best Plumbing Tee 3/8 x 3/8 x 5/16, issues can arise. Here is how to fix them:

• Leak at the 5/16 Connection: This is usually due to the tubing not being cut squarely or not pushed in far enough. Cut the end again and re-insert.
• Whistling Noise: If you hear whistling after installation, the water velocity through the reduced 5/16 port might be too high, or there is a partial blockage. Check for debris inside the fitting.
• Fitting Spins Freely: If using threaded adapters, ensure you are using Teflon tape (PTFE) or pipe dope. Wrap the tape clockwise around the male threads 3-4 times.

FAQ: Frequently Asked Questions

1. Can I use a 3/8 x 3/8 x 5/16 tee for gas lines?

No. Never use standard plumbing water fittings for gas lines unless they are specifically rated and labeled for gas (usually yellow brass). Gas requires different sealing methods and materials to prevent dangerous leaks. Always consult a licensed professional for gas work.

2. Is this fitting compatible with PEX, Copper, and CPVC?

It depends on the type of tee you buy.

• Push-to-connect tees often work with PEX, Copper, and CPVC interchangeably.
• Compression tees are generally designed specifically for either soft copper/PEX (with inserts) or rigid copper.
• Threaded tees require the pipe to have matching threads or adapters. Always check the packaging specifications.

3. What is the pressure rating for these tees?

Most high-quality brass reducing tees are rated for 200 PSI at temperatures up to 200°F (93°C). However, plastic or POM push-fittings may have lower temperature ratings (usually max 140°F). Always verify the rating on the product box before installing on hot water lines.

4. Can I reduce from 5/16 to 3/8 using this same tee?

Technically, yes, fluid dynamics work both ways. However, the designation “3/8 x 3/8 x 5/16” implies the flow direction is intended to branch down in size. If you are expanding from a small line to a larger one, ensure the pressure drop does not affect your appliance performance.

5. Where can I buy a Plumbing Tee 3/8 x 3/8 x 5/16?

These are considered specialty fittings. You might not find them in the basic bin at every hardware store. Your best bets are:

• Specialized plumbing supply houses (e.g., Ferguson, SupplyHouse).
• The “specialty fittings” section of major home improvement stores (Home Depot, Lowe’s).
• Online retailers like Amazon or eBay (ensure the seller is reputable and sells lead-free certified products).

6. Do I need to solder this fitting?

Only if you purchase a “sweat” or “solder” end fitting. Many modern DIYers prefer push-to-connect or compression styles which require no heat, no torch, and no soldering skills. If you are working in a tight space near flammable materials, non-solder options are highly recommended.

Conclusion

Finding the right component can make or break a plumbing repair, and the Plumbing Tee 3/8 x 3/8 x 5/16 is a perfect example of why specificity matters. Whether you are connecting a new refrigerator, installing a humidifier, or repairing an old radiator, understanding the dimensions and material options ensures a leak-free, long-lasting result. By following the installation steps outlined above and choosing high-quality, lead-free materials, you can tackle this project with confidence.
