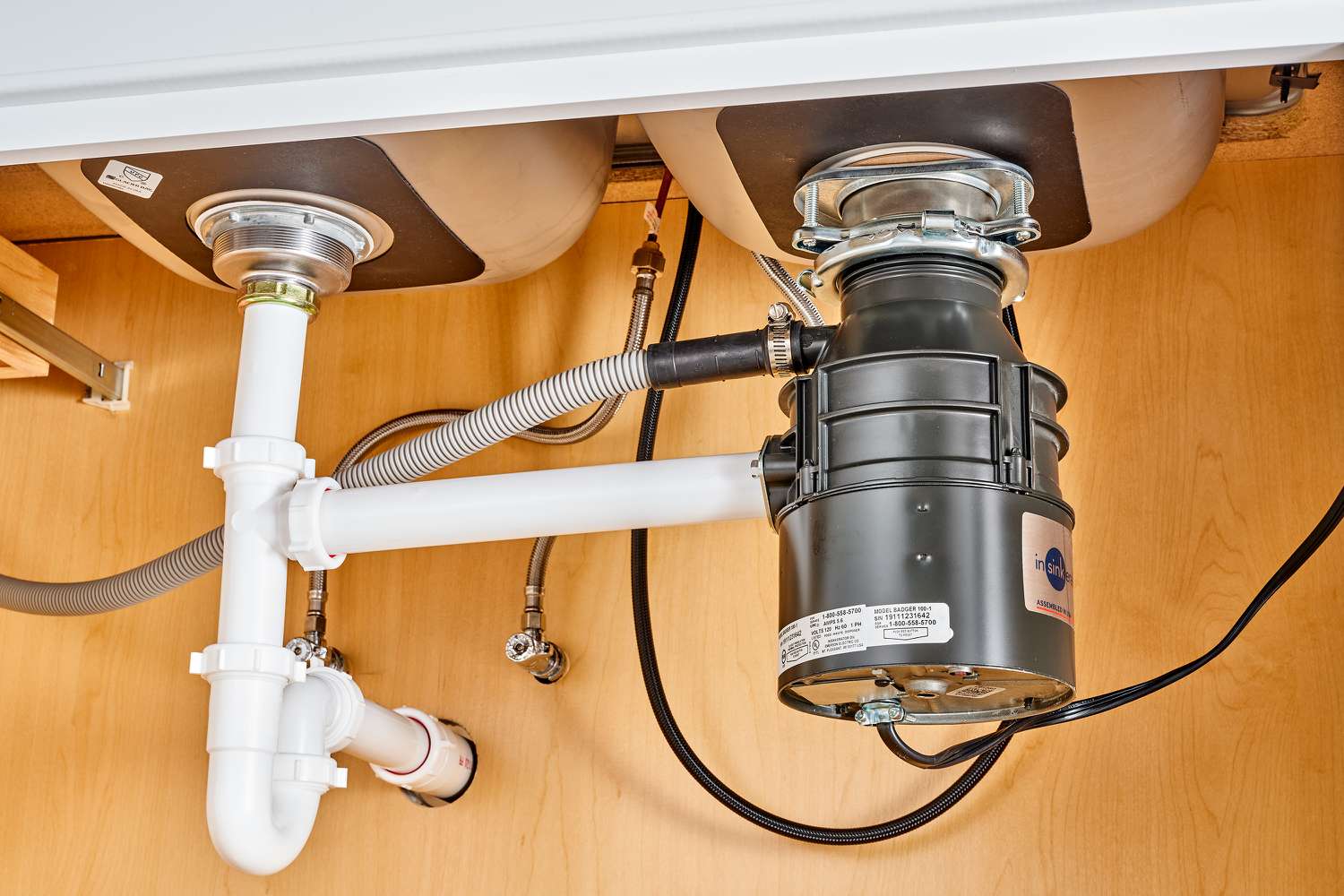

If you’ve ever stared under your kitchen sink wondering how everything connects—especially with a dishwasher and garbage disposal in the mix—you’re not alone. A plumbing under kitchen sink diagram with dishwasher and garbage disposal can be a game-changer for DIY repairs, renovations, or even just understanding your home’s setup. Whether you’re troubleshooting a clog, planning a remodel, or installing new appliances, knowing how these components work together is essential for smooth, leak-free operation.
Why Is Proper Under-Sink Plumbing So Important?
Mistakes in kitchen sink plumbing can lead to slow drains, foul odors, water damage, or even code violations. According to the International Association of Certified Home Inspectors (InterNACHI), improper dishwasher or disposal connections are among the top 10 causes of under-sink leaks in U.S. homes.
A correctly configured system ensures:
Efficient drainage
Prevention of sewer gas entry (thanks to the P-trap)
Compliance with local plumbing codes (like the IPC—International Plumbing Code)
Longevity of your appliances
What Does a Standard Plumbing Diagram Include?
A typical plumbing under kitchen sink diagram with dishwasher and garbage disposal features these key components:
Sink Drain(s) – Usually one or two basins.
Garbage Disposal – Mounted under one sink basin.
Dishwasher Drain Hose – Connected to the disposal or air gap.
P-Trap – Curved pipe that holds water to block sewer gases.
Tailpiece & Drain Arm – Connects sink to P-trap.
Air Gap (if required) – Prevents backflow from the dishwasher.
Waste Line – Carries wastewater to the main drain.
💡 Pro Tip: In most U.S. jurisdictions, the dishwasher must drain through the garbage disposal or an air gap to meet health and safety codes.
Step-by-Step: How to Connect Dishwasher & Garbage Disposal to Sink Drain
Follow this professional-grade guide to ensure a code-compliant, leak-free setup:
Step 1: Install the Garbage Disposal
Mount the disposal unit under the sink using the included flange and mounting assembly.
Connect the disposal’s outlet to the drain arm (typically 1.5″ diameter).
Step 2: Connect the Dishwasher Drain Hose
Locate the dishwasher inlet on the side of the garbage disposal (usually a threaded port with a knockout plug).
Remove the knockout plug using a screwdriver and hammer (wear eye protection!).
Attach the dishwasher’s drain hose to this port using a hose clamp.
Ensure the hose has a high loop (secured under the countertop) to prevent backflow—unless you’re using an air gap.
📏 Measurement Tip: The high loop should be at least 18 inches above the floor and below the countertop to function properly.
Step 3: Assemble the P-Trap
Connect the tailpiece from the sink (or disposal) to the P-trap.
Then connect the P-trap’s outlet to the wall drain stub-out.
Hand-tighten all slip nuts, then give a quarter-turn with pliers—over-tightening causes cracks.
Step 4: Test for Leaks
Run water in the sink and turn on the disposal.
Start the dishwasher on a drain cycle.
Check all connections for drips. Wipe joints dry first for accurate inspection.
For visual learners, refer to this simplified text-based diagram:
1
2
3
4
5
6
7
8
9
10
11
[Sink Basin]
│
[Tailpiece]
│
[Garbage Disposal] ←── [Dishwasher Drain Hose (with high loop)]
│
[Drain Arm]
│
[P-Trap]
│
[Wall Drain Pipe]
Common Mistakes to Avoid
Even experienced DIYers make these errors:
Skipping the air gap or high loop
Dishwasher backflow, contamination
Install air gap or secure high loop
Forgetting to remove knockout plug
Dishwasher won’t drain
Remove plug before connecting hose
Over-tightening slip joints
Cracked pipes, leaks
Hand-tight + ¼ turn only
Using mismatched pipe sizes
Poor drainage, gurgling
Use 1.5″ standard for disposals
⚠️ Note: The U.S. Environmental Protection Agency (EPA) recommends against connecting dishwashers directly to the sink drain without going through the disposal or air gap due to cross-contamination risks.
Do You Need an Air Gap?
This is a frequent point of confusion. Here’s the breakdown:
California, Texas, Washington, and other states require a visible air gap on the countertop.
Other states allow a high loop under the sink as an alternative.
An air gap is a small chrome fixture near your faucet that physically separates the dishwasher drain from the waste line.
👉 Check your local plumbing code—you can search “[Your County] plumbing code dishwasher air gap” online or consult your city’s building department.
Total cost for basic supplies: $20–$50 if you don’t already own them.
When to Call a Professional
While many homeowners successfully install this setup, call a licensed plumber if:
You smell sewer gas (indicates P-trap failure)
Water pools under the sink repeatedly
Your local code requires permits for plumbing changes
You’re unsure about venting requirements (yes, drains need vents too!)
The HomeAdvisor 2024 Cost Guide reports the average U.S. plumbing repair under the sink costs $175–$400, but prevention is far cheaper.
FAQ: Plumbing Under Kitchen Sink Diagram With Dishwasher And Garbage Disposal
Q1: Can I connect the dishwasher directly to the sink drain without a disposal?
A: Technically yes, but it’s not recommended and often violates code. Without a disposal or air gap, dirty water from the sink can backflow into your dishwasher. Always route the dishwasher drain through the disposal or use an air gap.
Q2: Why does my dishwasher smell after installing a new disposal?
A: You likely forgot to remove the knockout plug in the disposal’s dishwasher inlet. This blocks drainage and causes stagnant water—and odors—to build up. Turn off power, remove the plug, and reconnect the hose.
Q3: How high should the dishwasher drain hose loop be?
A: The high loop should be secured under the countertop, ideally 18–24 inches above the floor. This height prevents wastewater from the sink from flowing back into the dishwasher.
Q4: Can I use flexible tubing for the entire drain setup?
A: Avoid flexible corrugated tubing for permanent installations. It traps grease and debris, leading to clogs. Use rigid PVC or ABS pipes for the P-trap and drain arm. Flexible hose is fine only for the short dishwasher connection.
Q5: Does the garbage disposal need its own P-trap?
A: No. The disposal shares the same P-trap as the sink. Installing a second trap creates an illegal “double trapping” situation that blocks proper venting and causes drainage issues.
Q6: How often should I clean the under-sink plumbing?
A: Flush the disposal monthly with ice cubes + vinegar + baking soda. Inspect hose connections and P-trap every 6 months for leaks or corrosion—especially in older homes with metal pipes.
Conclusion
Understanding your plumbing under kitchen sink diagram with dishwasher and garbage disposal empowers you to maintain a functional, hygienic, and code-compliant kitchen. Whether you’re fixing a leak, upgrading appliances, or just satisfying your curiosity, this knowledge saves time, money, and stress.
✅ Key takeaways:
Always connect the dishwasher to the disposal (or air gap).
Never skip the P-trap—it’s your first defense against sewer gas.
Use rigid pipes where possible and avoid over-tightening.
When in doubt, consult local codes or a licensed plumber.
Found this guide helpful? Share it with a friend who’s tackling a kitchen project—or pin it for your next DIY weekend! 🛠️💧
